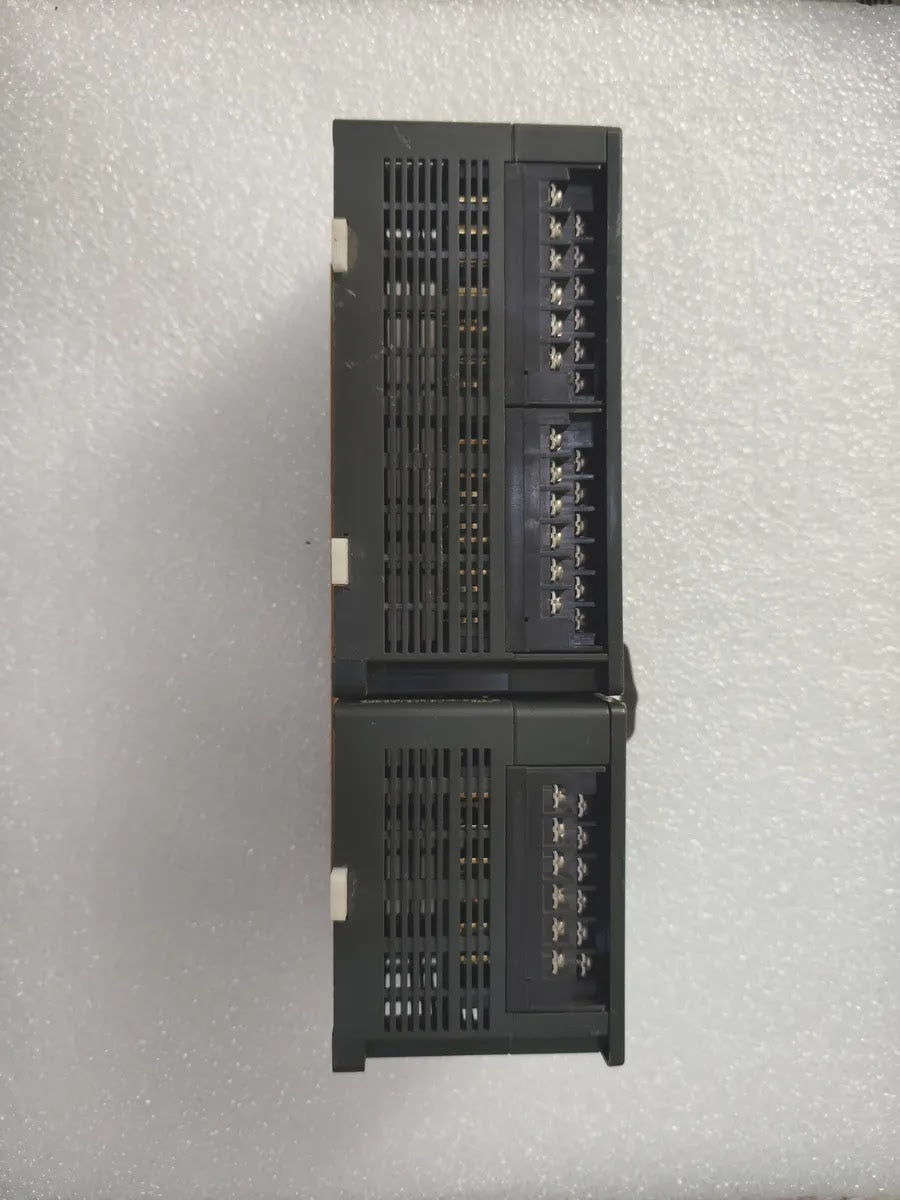

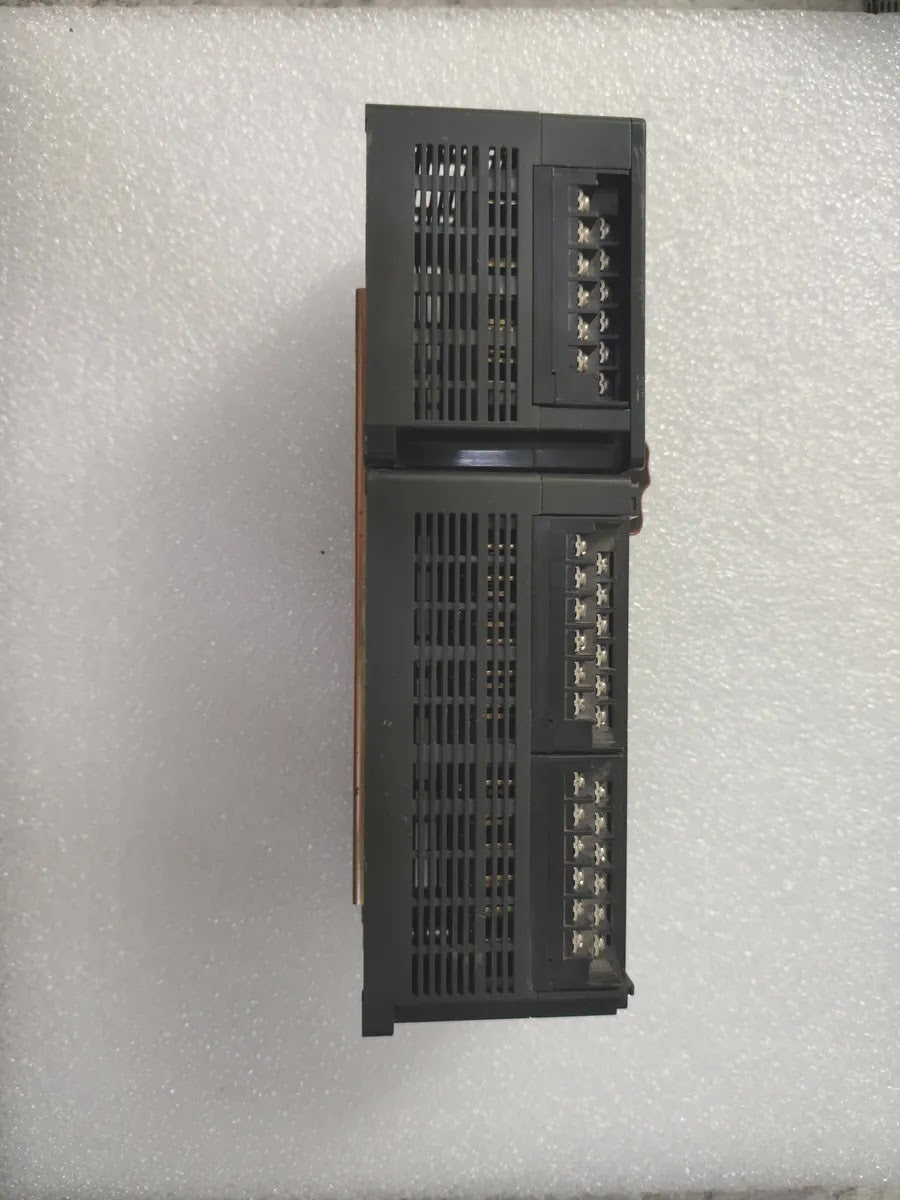

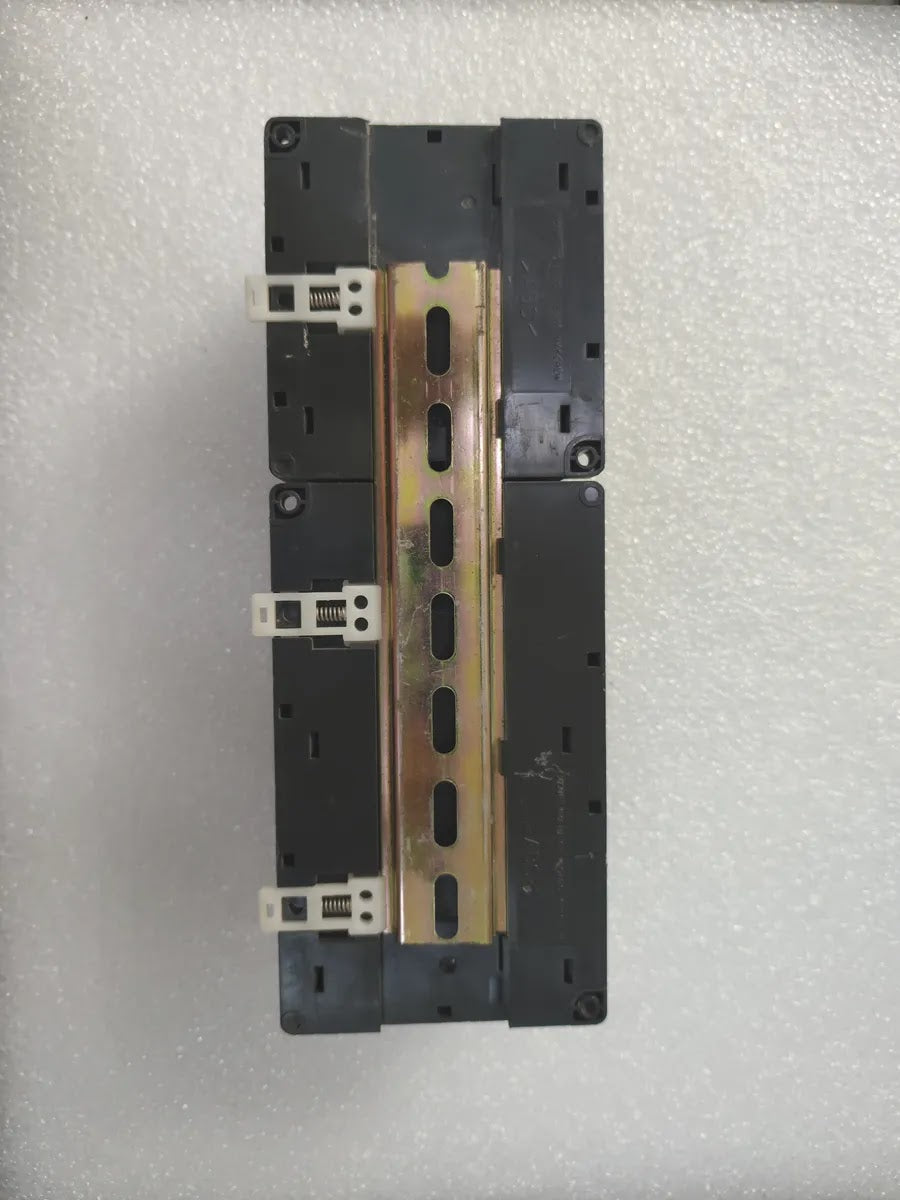

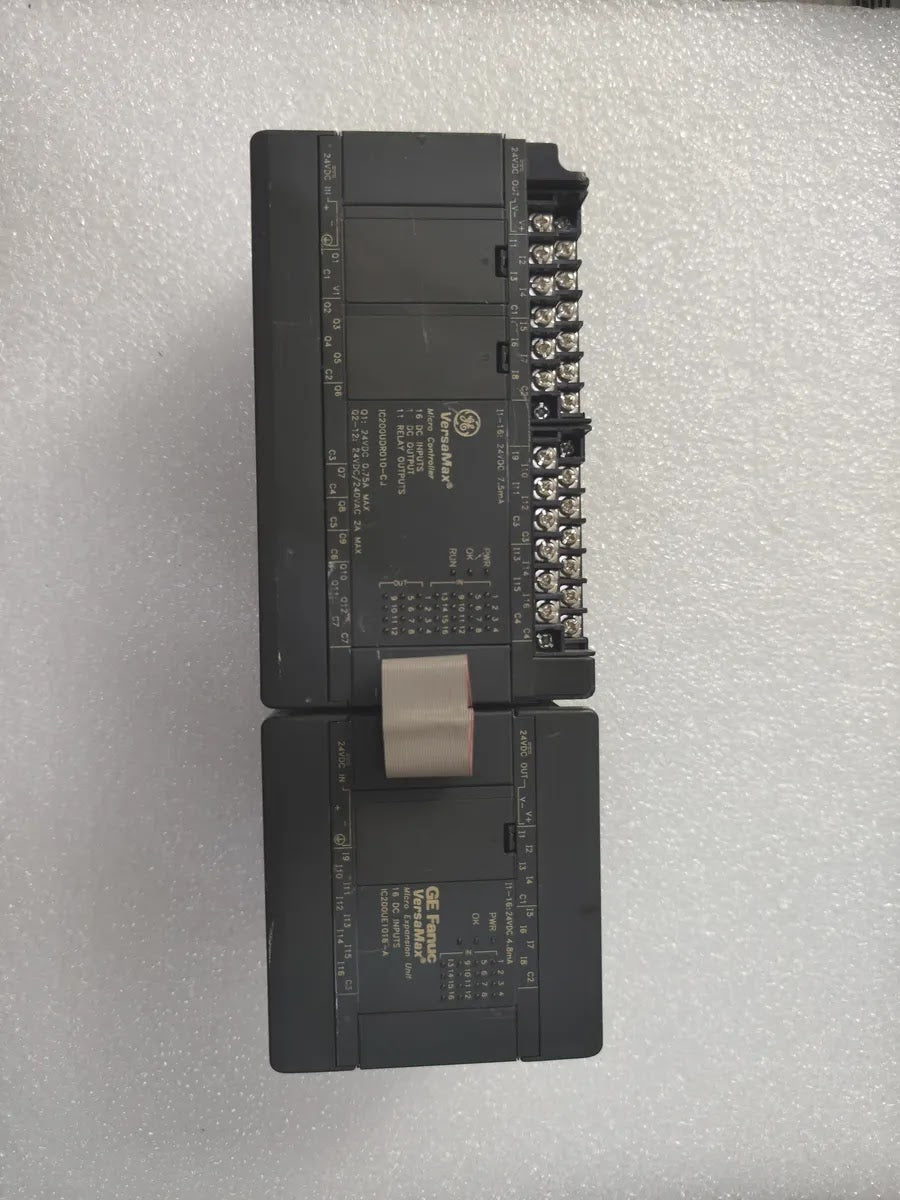

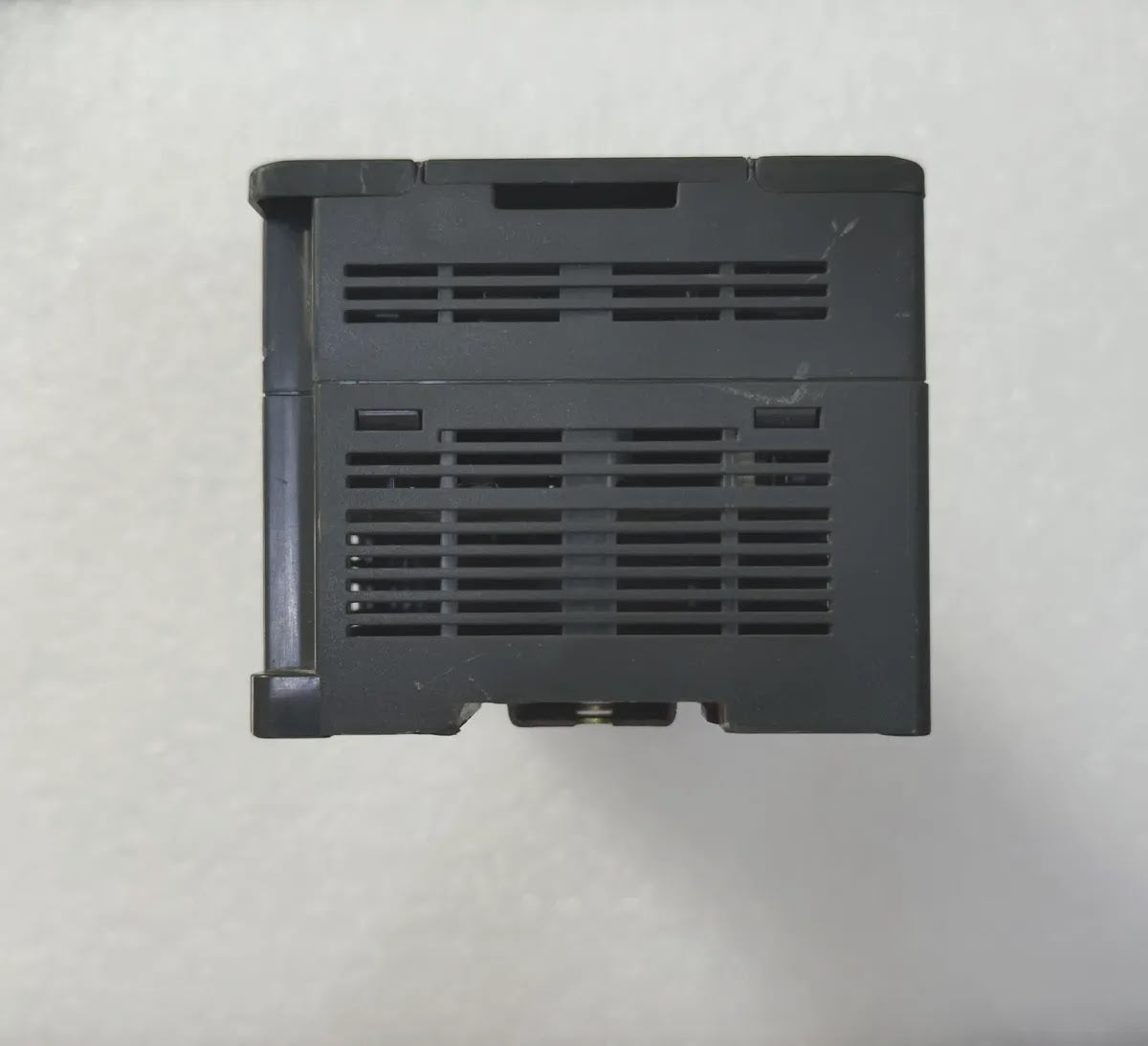

GE FANUC IC200UDR010-CJ VersaMax Micro PLC Controller 24VDC 28-Point
$399.99
Skip to product information
GE FANUC IC200UDR010-CJ VersaMax Micro PLC Controller 24VDC 28-Point
$399.99
Specifications
| BRAND | GE Fanuc |
| MODEL | VersaMax Micro Controller |
| PART NUMBER | IC200UDR010-CJ |
| TYPE | Micro Programmable Logic Controller (PLC), 28-point |
| SERIES | VersaMax Micro |
| SUPPLY VOLTAGE | 24VDC |
| INPUTS | 16 DC inputs, I1-16: 24VDC 7.5mA |
| OUTPUTS | 11 relay outputs and 1 DC output (12 outputs total) |
| OUTPUT RATING | Q1: 24VDC 0.75A MAX; Q2-12: 24VDC/240VAC 2A MAX |
| TOTAL I/O POINTS | 28 |
| SENSOR SUPPLY | 24VDC OUT (V+ / V) |
| STATUS INDICATION | PWR, OK, RUN plus 16 input and 12 output indicators |

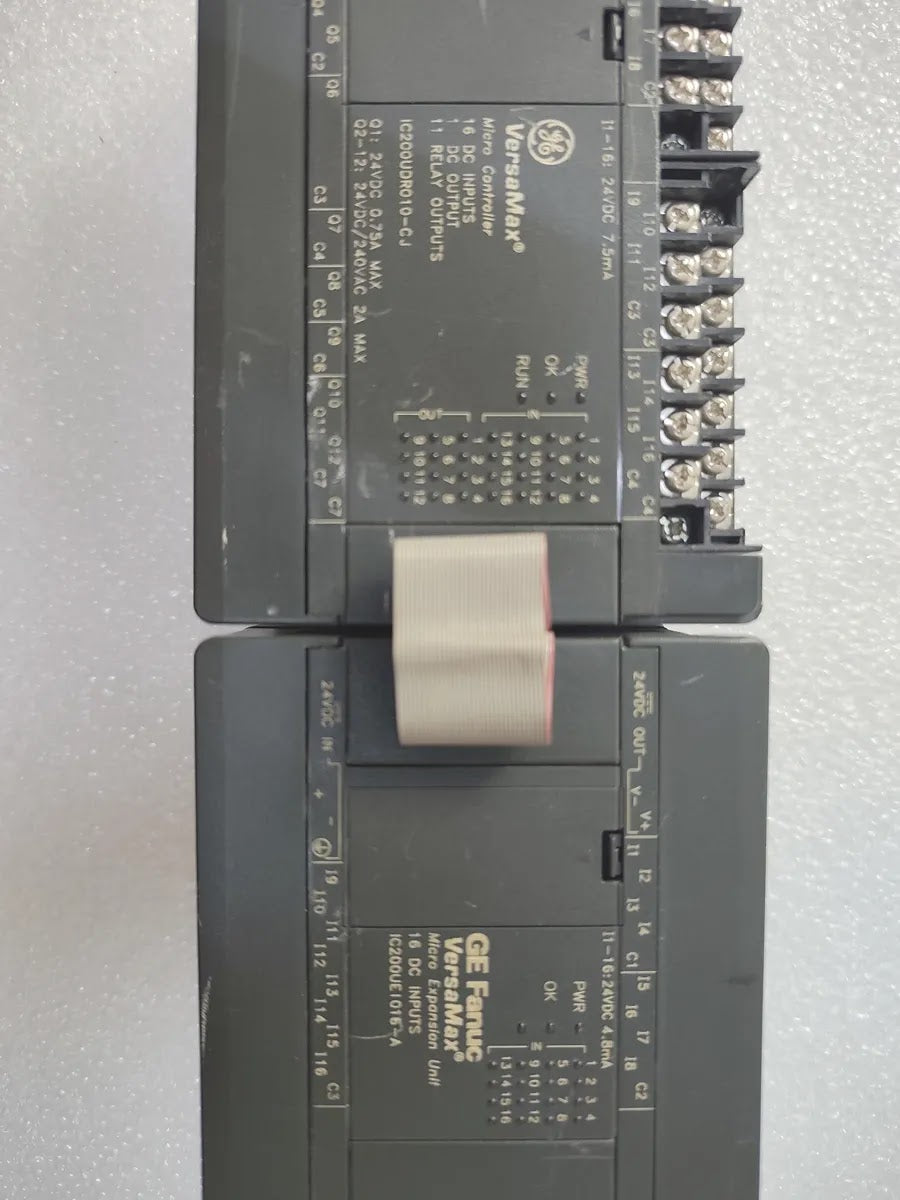

| EXPANSION UNIT | IC200UEI016-A GE Fanuc VersaMax Micro Expansion Unit, 16 DC inputs, I1-16: 24VDC 4.8mA (separate unit, read from the second module) |
| AMBIENT TEMPERATURE | 55c |

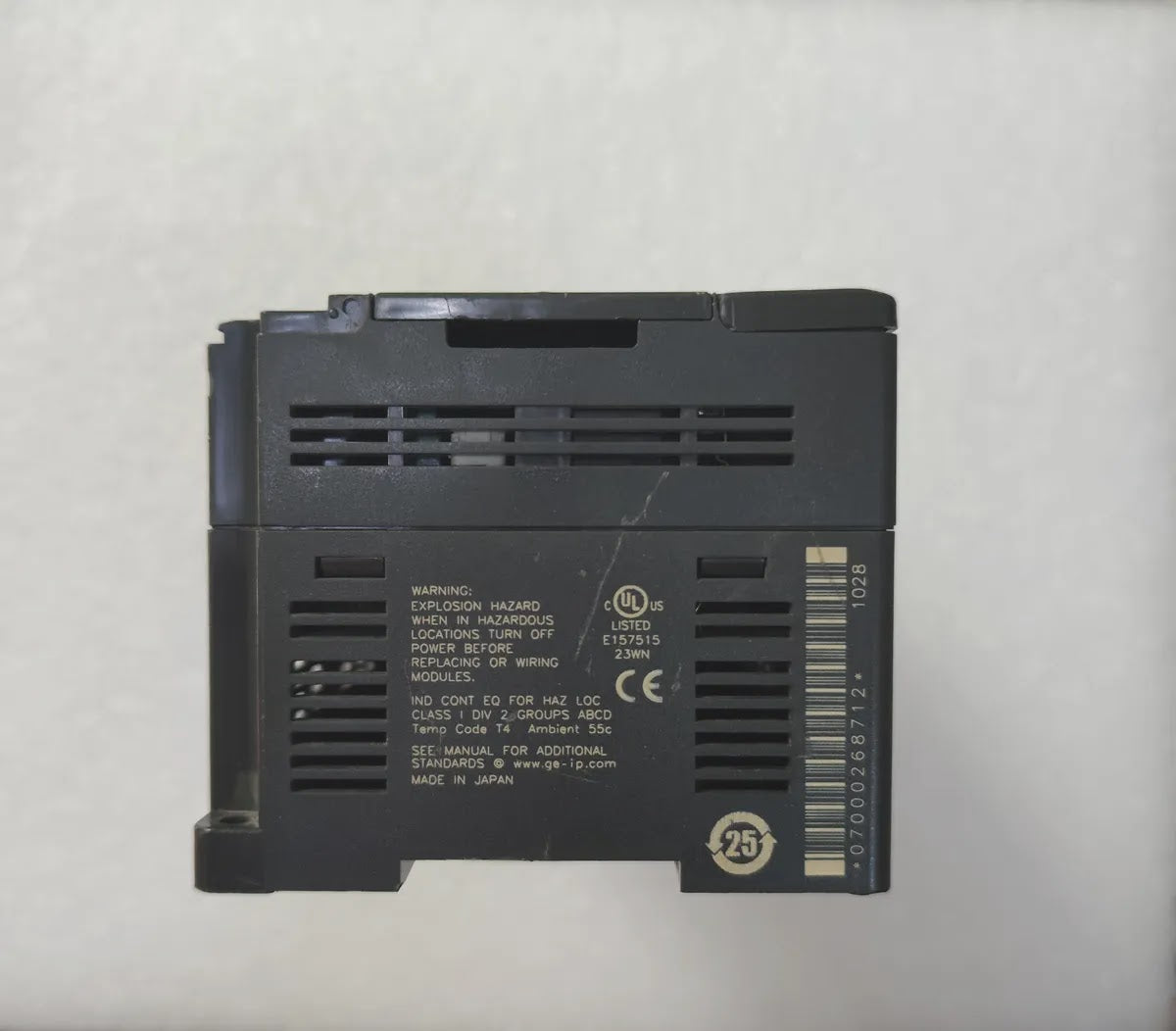

| HAZARDOUS LOCATION RATING | Ind Cont Eq for Haz Loc Class I Div 2 Groups ABCD, Temp Code T4 |
| APPROVALS | UL Listed E157515 23WN; CE |
| COUNTRY OF ORIGIN | Made in Japan |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD008 |
Shipping & Handling
Ships worldwide from India via DHL, UPS, or Aramex with full tracking. Items are securely packed and dispatched promptly after payment.
Import duties, taxes, and customs charges (if applicable) are the buyer's responsibility and are not included in the item price or shipping cost.
