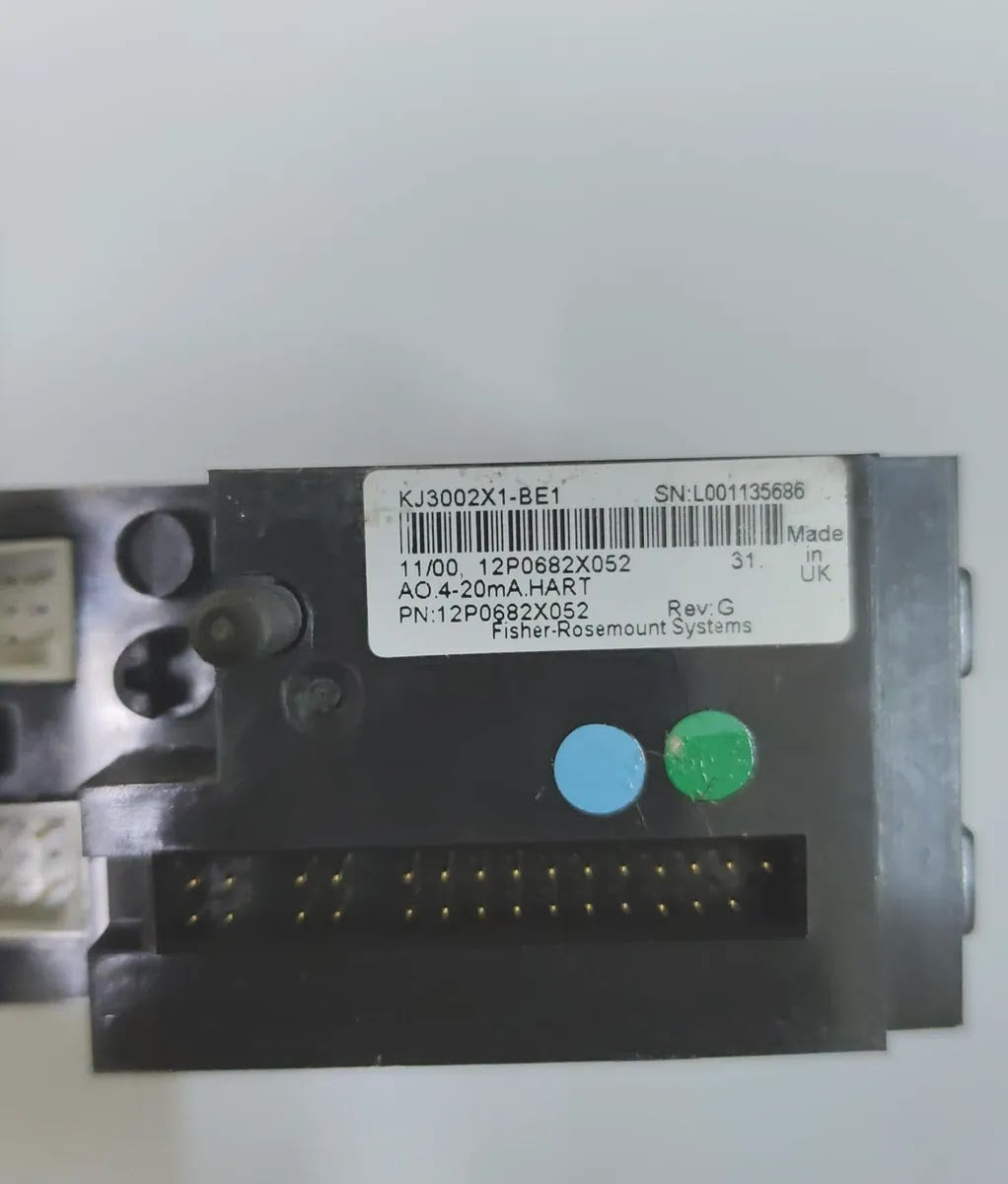

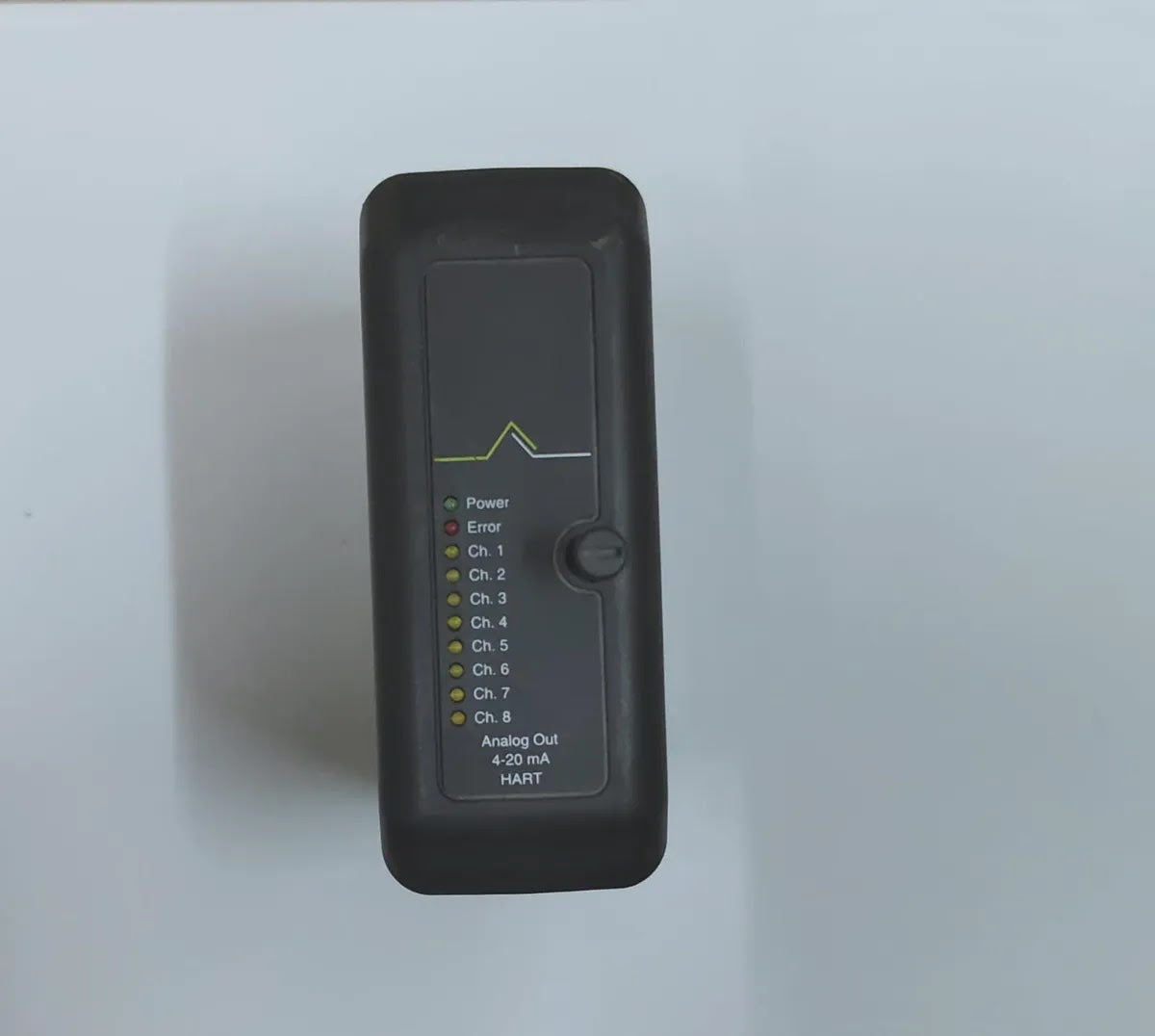

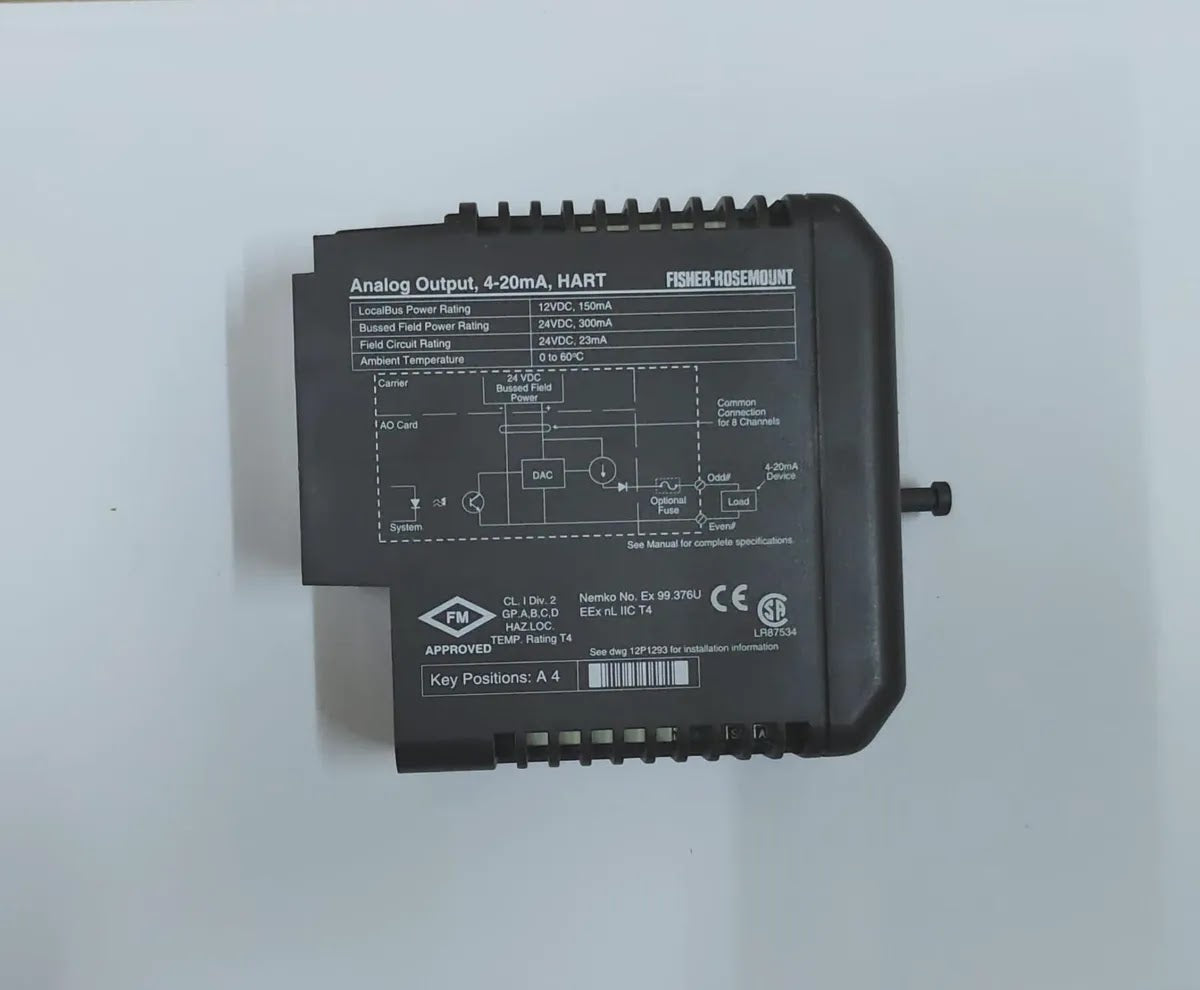

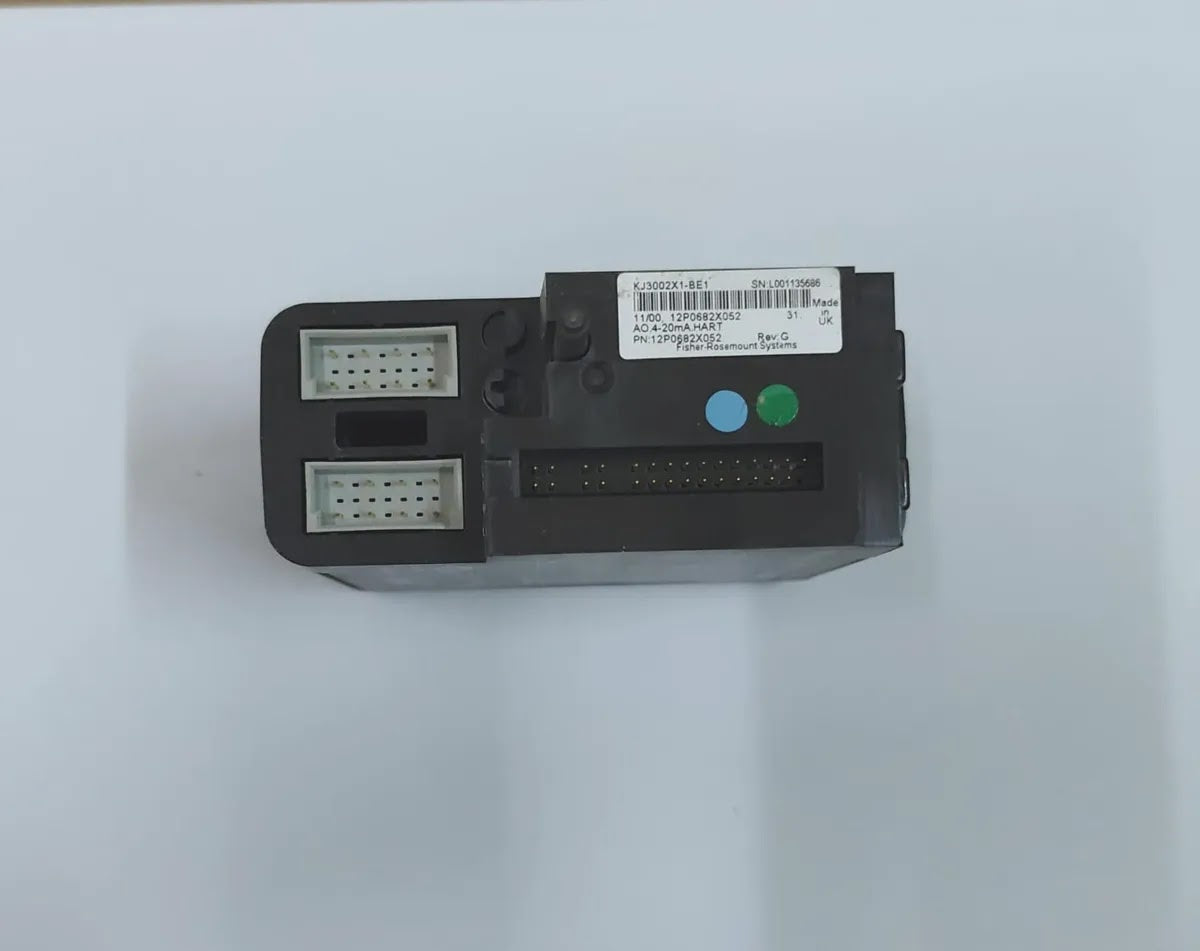

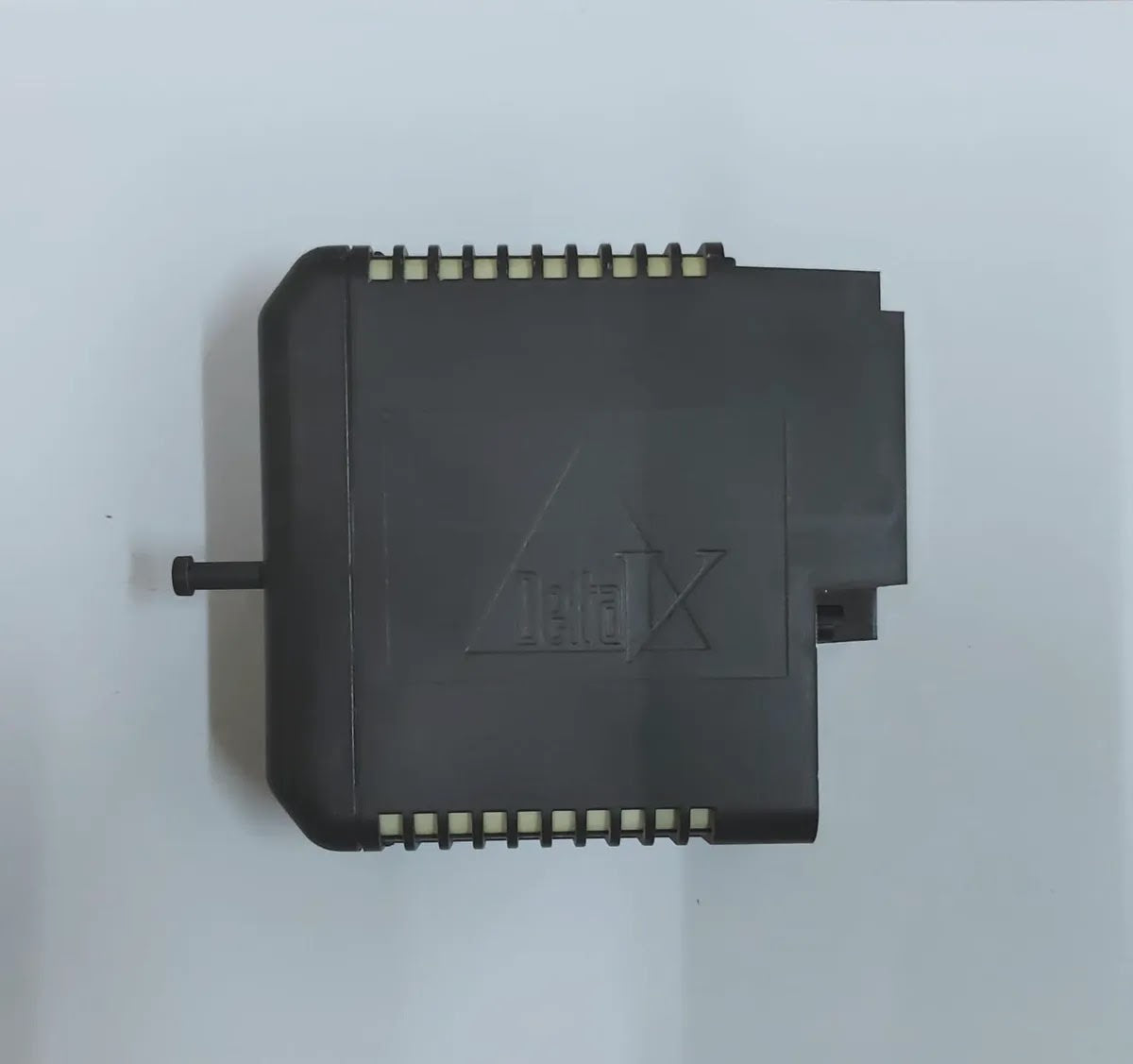

FISHER-ROSEMOUNT KJ3002X1-BE1 Analog Output Card 8-Channel 4-20mA HART
$149.99
Skip to product information
FISHER-ROSEMOUNT KJ3002X1-BE1 Analog Output Card 8-Channel 4-20mA HART
$149.99
Specifications
| BRAND | Fisher-Rosemount Systems |
| MODEL | KJ3002X1-BE1 |
| PART NUMBER | PN: 12P0682X052 |
| TYPE | Analog Output Card, 4-20mA, HART (AO.4-20mA.HART) |
| SERIES | DeltaV |
| CHANNELS | 8 (Ch. 1 to Ch. 8, common connection for 8 channels) |
| OUTPUT SIGNAL | Analog Out 4-20 mA with HART |
| LOCALBUS POWER RATING | 12VDC, 150mA |
| BUSSED FIELD POWER RATING | 24VDC, 300mA |
| FIELD CIRCUIT RATING | 24VDC, 23mA |
| AMBIENT TEMPERATURE | 0 to 60 C |
| KEY POSITIONS | A 4 |
| REVISION | Rev: G |
| HAZARDOUS LOCATION RATING | FM Approved, CL. I Div. 2, GP. A,B,C,D HAZ.LOC., TEMP. Rating T4 |
| EX CERTIFICATION | Nemko No. Ex 99.376U, EEx nL IIC T4 |
| APPROVALS | FM, CSA LR87534, CE |
| INSTALLATION DRAWING | 12P1293 |
| APPLICATION | Analog output signalling to 4-20mA field devices in DeltaV distributed control systems |
| COUNTRY OF ORIGIN | Made in UK |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 8 |
| REF | NTD044 |
