FISHER-ROSEMOUNT KJ3002X1-BA1 Analog Input Module 8-Ch 4-20mA HART
$149.99
Skip to product information
FISHER-ROSEMOUNT KJ3002X1-BA1 Analog Input Module 8-Ch 4-20mA HART
$149.99
Specifications
| BRAND | FISHER-ROSEMOUNT (Fisher Rosemount Systems) |
| MODEL | KJ3002X1-BA1 |
| PART NUMBER | PN: 12P0680X12R |

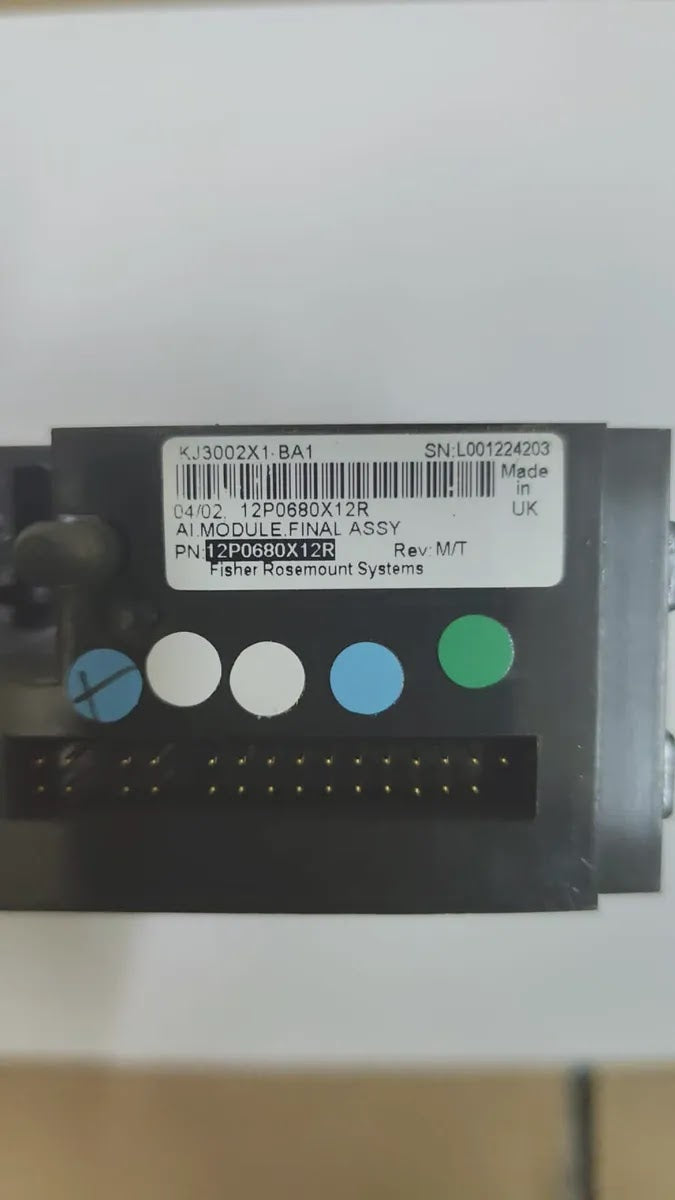

| ASSEMBLY DESCRIPTION | AI.MODULE.FINAL ASSY |
| TYPE | Analog Input Module, 4-20mA, HART |
| SERIES | DeltaV |

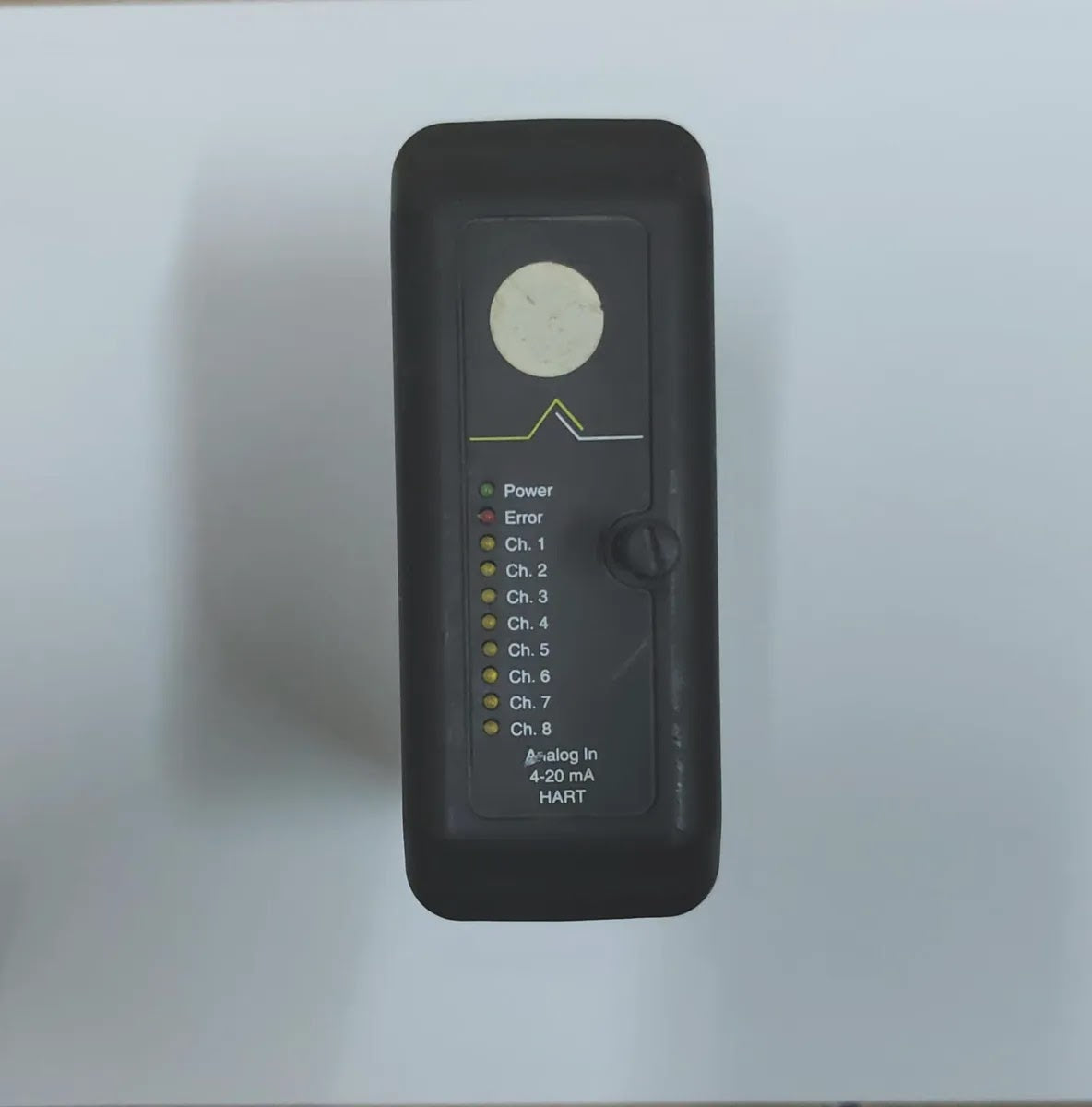

| CHANNELS | 8 channels (Ch. 1 to Ch. 8), Analog In 4-20 mA HART |
| SIGNAL TYPE | 4-20 mA analog input with HART digital communication |
| FIELD WIRING | 2-wire (standard termination) and 4-wire termination |

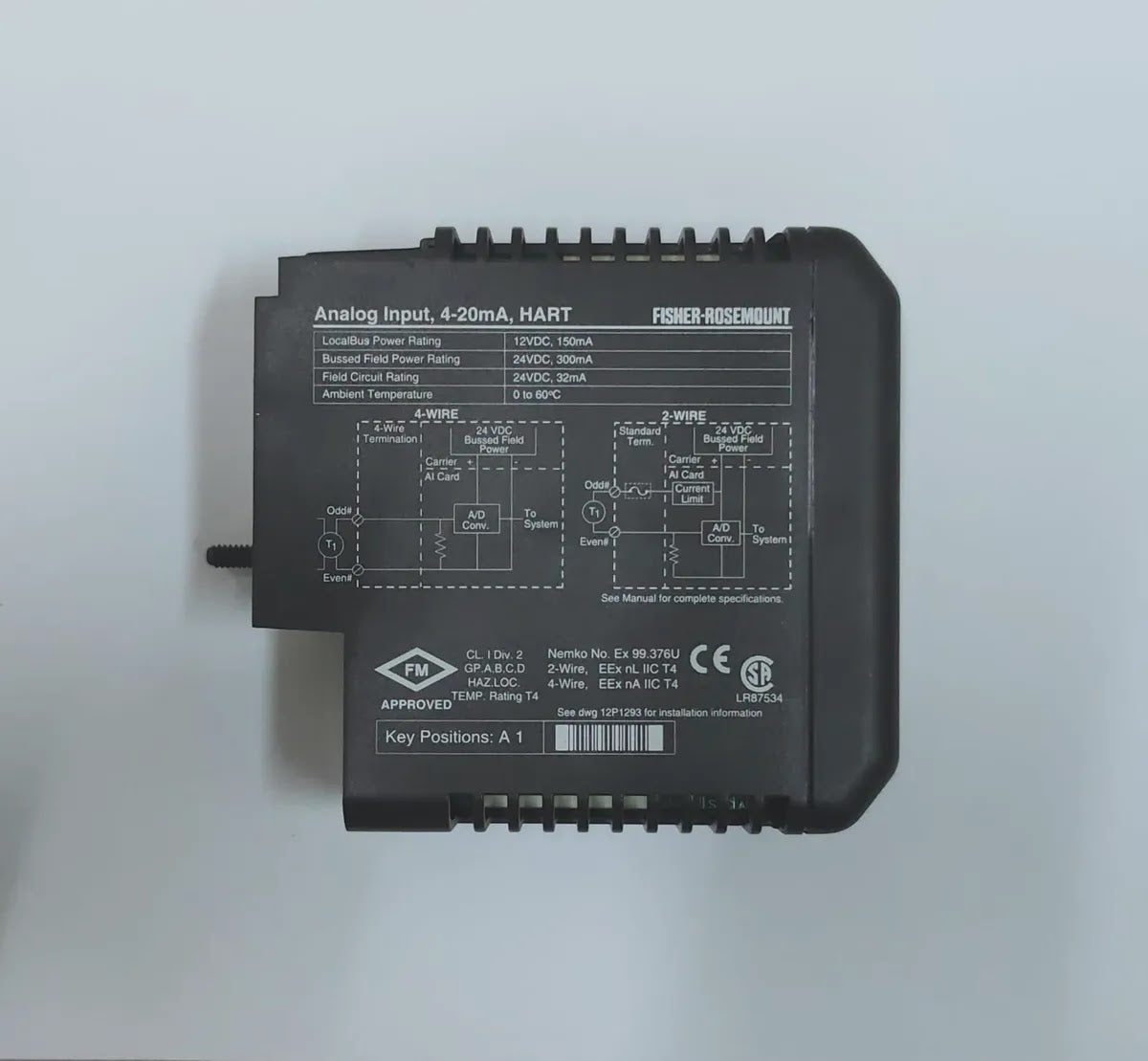

| LOCALBUS POWER RATING | 12VDC, 150mA |
| BUSSED FIELD POWER RATING | 24VDC, 300mA |
| FIELD CIRCUIT RATING | 24VDC, 32mA |
| AMBIENT TEMPERATURE | 0 to 60 deg C |
| REVISION | Rev: M/T |
| KEY POSITIONS | A 1 |
| STANDARD | See Manual for complete specifications; see dwg 12P1293 for installation information |
| HAZARDOUS AREA APPROVAL | FM APPROVED CL. I Div. 2, GP.A,B,C,D HAZ.LOC., TEMP. Rating T4; Nemko No. Ex 99.376U; 2-Wire EEx nL IIC T4; 4-Wire EEx nA IIC T4 |
| APPROVALS | CE, CSA LR87534 |
| COUNTRY OF ORIGIN | Made in UK |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD038 |
