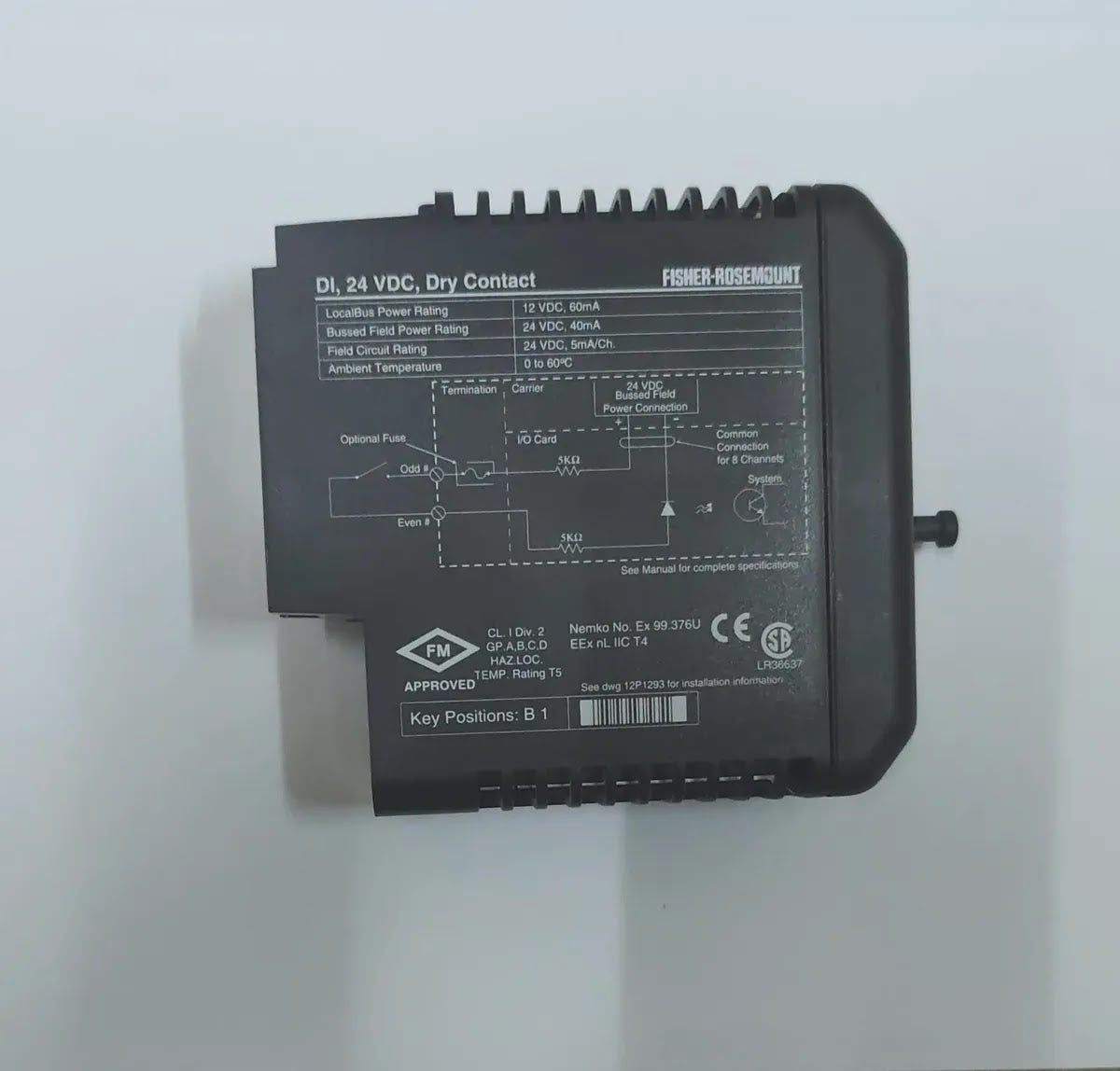

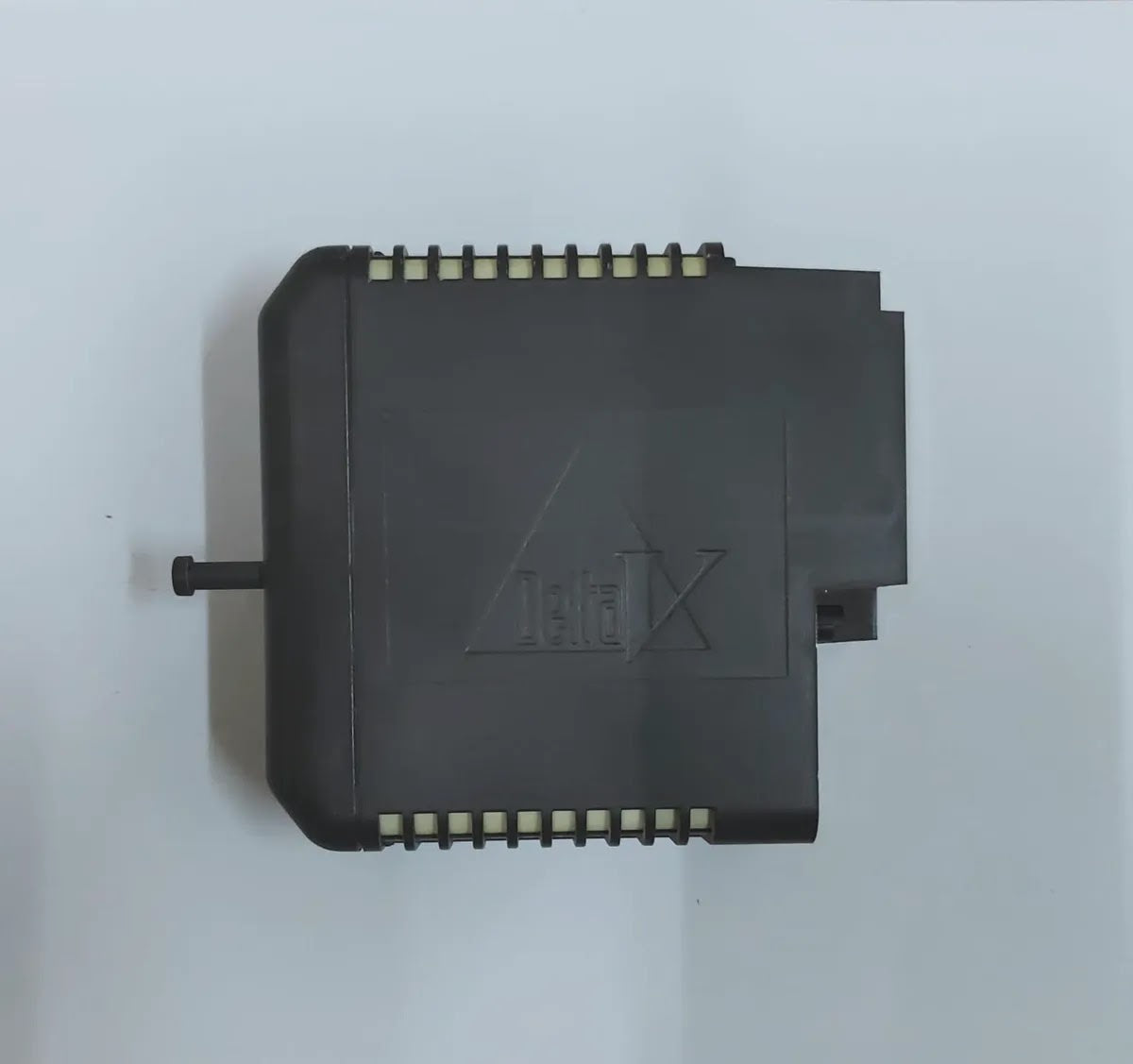

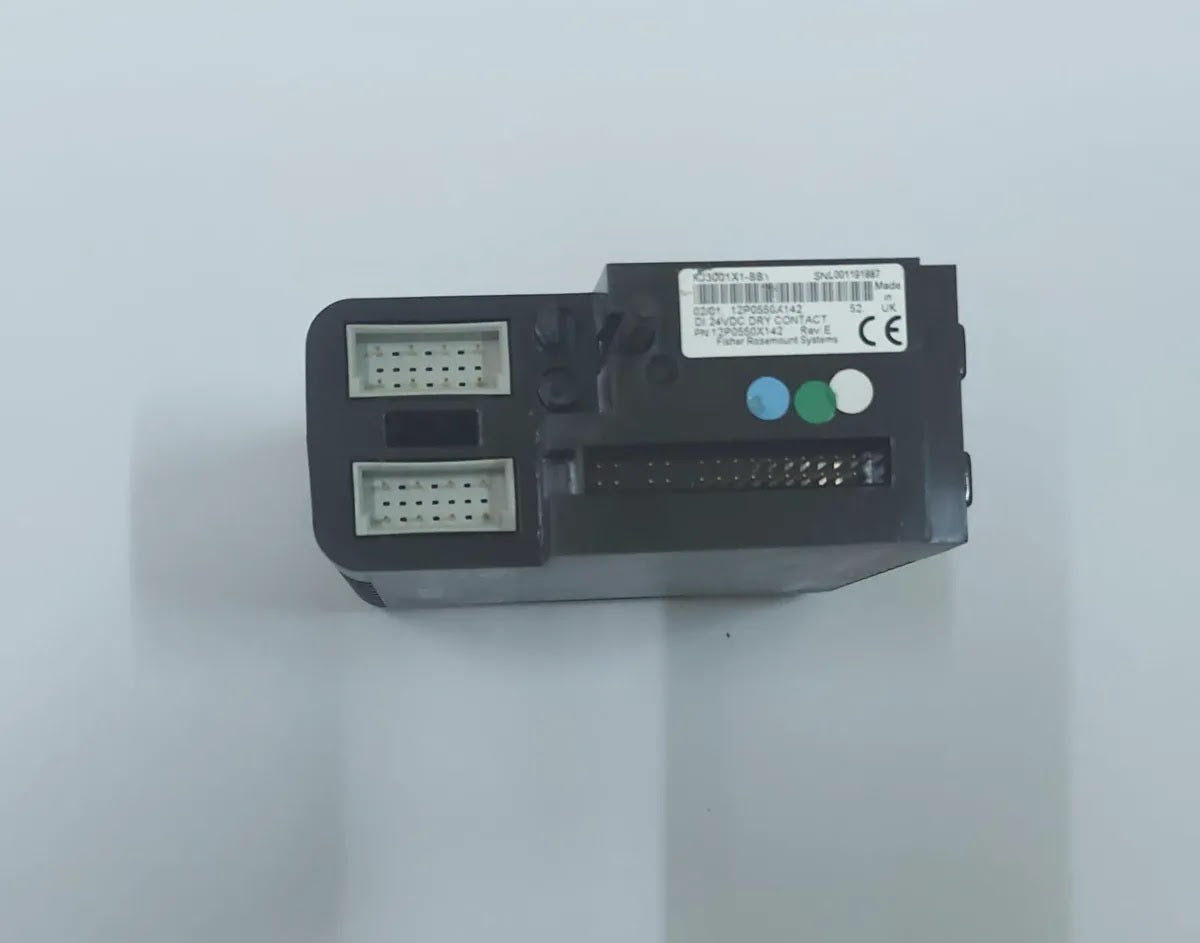

FISHER-ROSEMOUNT KJ3001X1-BB1 DeltaV Discrete Input Module 8-Ch 24VDC
$149.99
Skip to product information
FISHER-ROSEMOUNT KJ3001X1-BB1 DeltaV Discrete Input Module 8-Ch 24VDC
$149.99
Specifications
| BRAND | FISHER-ROSEMOUNT (Fisher Rosemount Systems) |
| MODEL | KJ3001X1-BB1 |

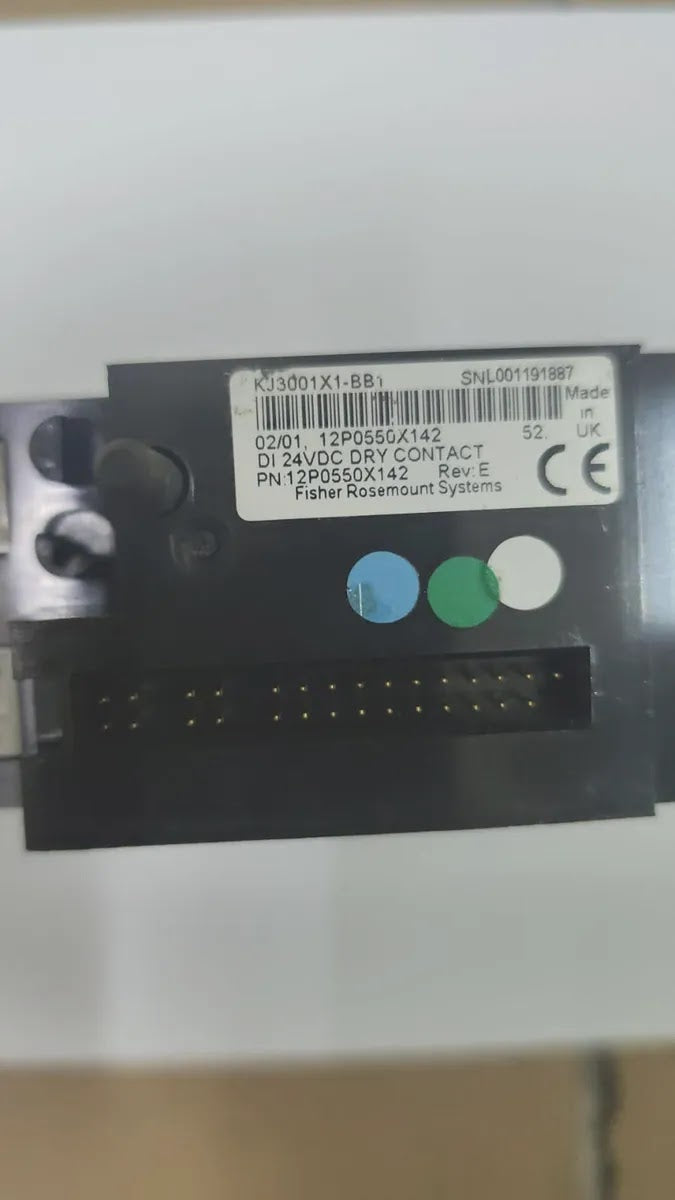

| PART NUMBER | 12P0550X142 |
| TYPE | DI, 24 VDC, Dry Contact - Discrete Input I/O Card |
| SERIES | DeltaV |
| CHANNELS | 8 (Ch. 1 to Ch. 8), common connection for 8 channels |
| INPUT TYPE | Discrete In, 24 VDC, dry contact |
| FIELD CIRCUIT RATING | 24 VDC, 5mA/Ch. |
| BUSSED FIELD POWER RATING | 24 VDC, 40mA |
| LOCALBUS POWER RATING | 12 VDC, 60mA |
| CHANNEL SERIES RESISTANCE | 5K ohm per input leg |
| FIELD POWER PROTECTION | Optional fuse at termination, odd # / even # field wiring |

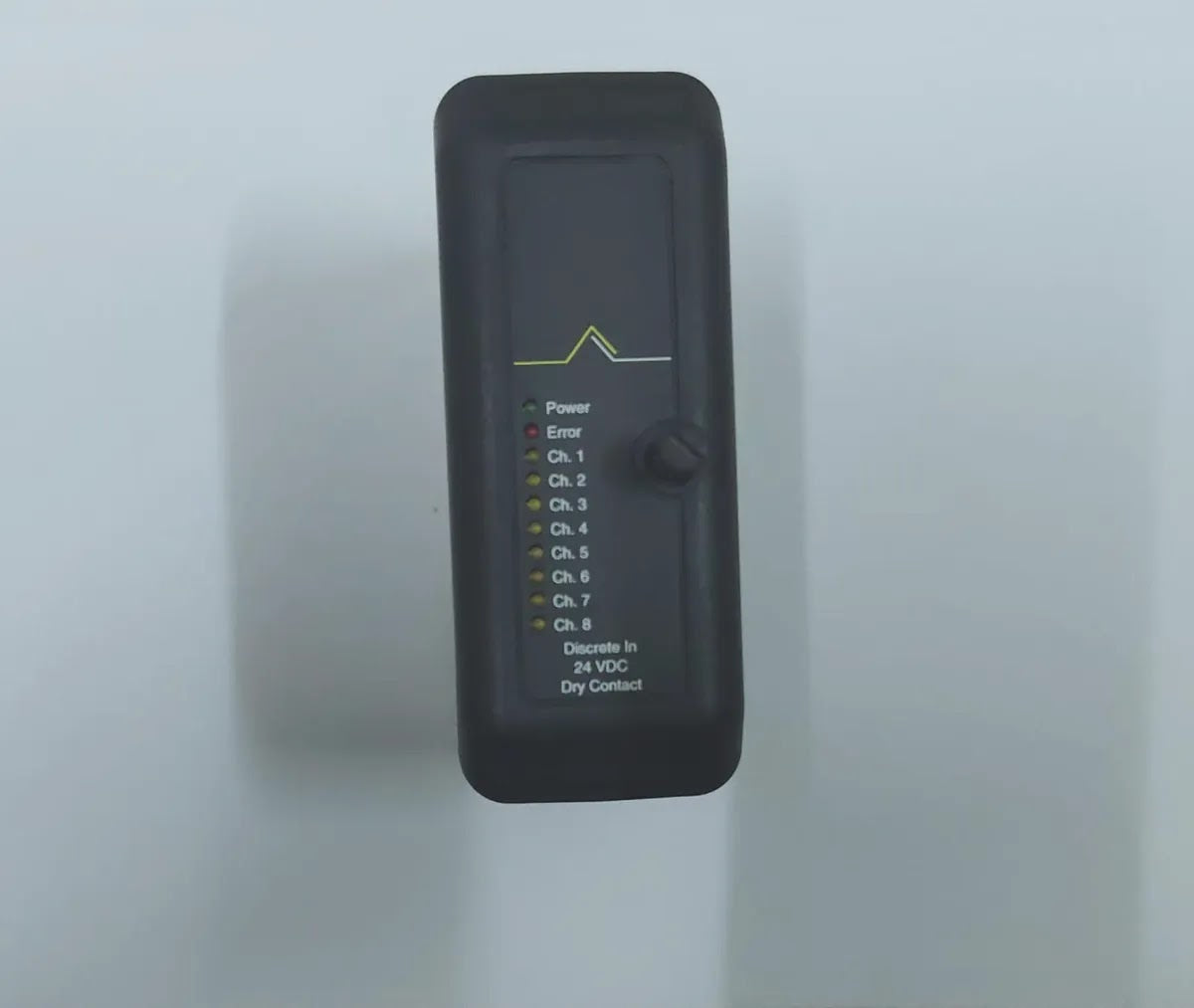

| INDICATORS | Power, Error and eight channel status LEDs |
| AMBIENT TEMPERATURE | 0 to 60°C |
| KEY POSITIONS | B 1 |
| REVISION | Rev: E |
| INSTALLATION DRAWING | See dwg 12P1293 |
| DIMENSIONS | 1.5 in x 4.0 in x 4.5 in (3.8 cm x 10.2 cm x 11.4 cm) |
| WEIGHT | 5.9 oz (0.2 kg) |
| HAZARDOUS AREA APPROVAL | FM APPROVED, CL. I Div. 2, GP. A,B,C,D HAZ.LOC., TEMP. Rating T5; Nemko No. Ex 99.376U, EEx nL IIC T4 |
| APPROVALS | CE, CSA LR36637 |
| ALTERNATE PART NUMBERS | VE4001S2T2, 12P0550X032 |
| COUNTRY OF ORIGIN | Made in UK |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 7 |
| REF | NTD046 |
