FISHER-ROSEMOUNT KJ3001X1-BB1 DeltaV Discrete Input Card 8-Ch 24VDC
$149.99
Specifications
| BRAND | Fisher-Rosemount Systems (Emerson) |
| MODEL | KJ3001X1-BB1 |

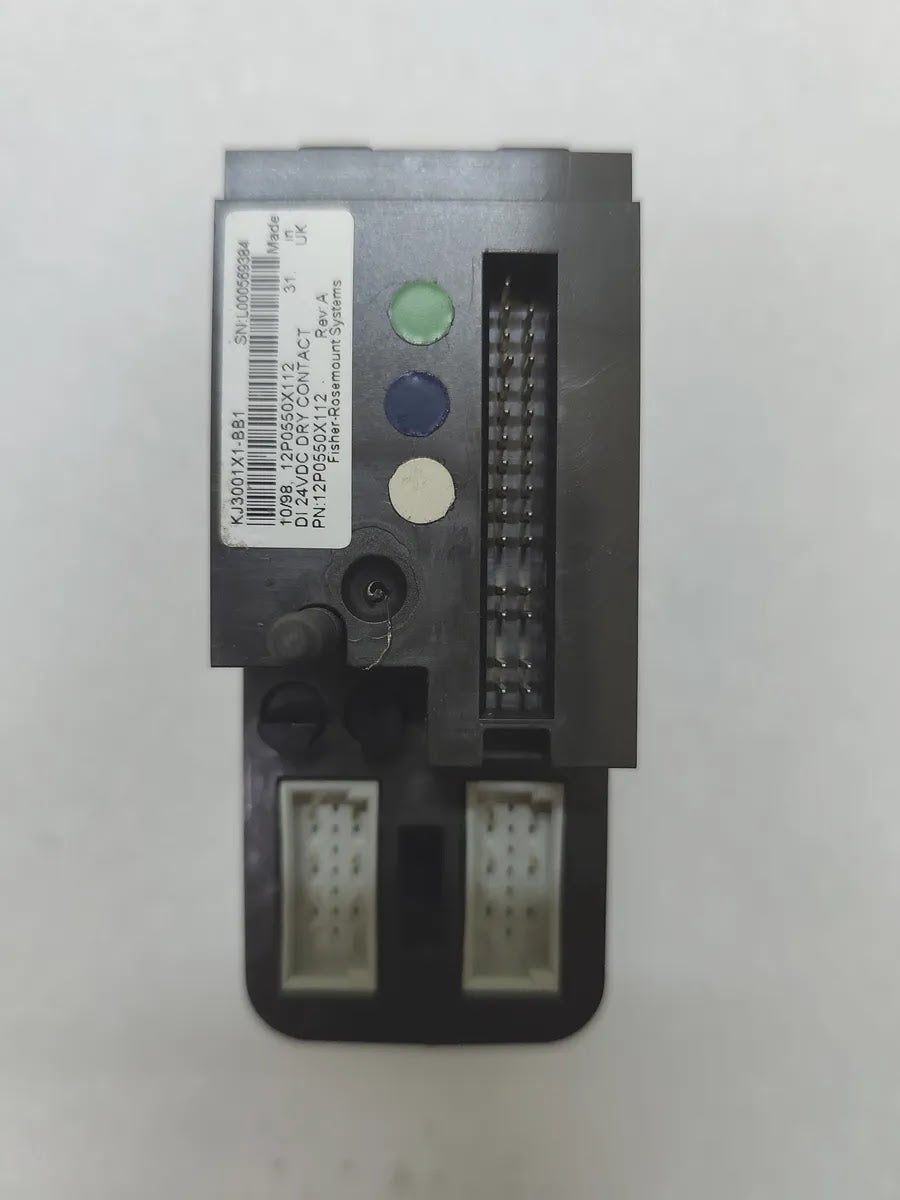

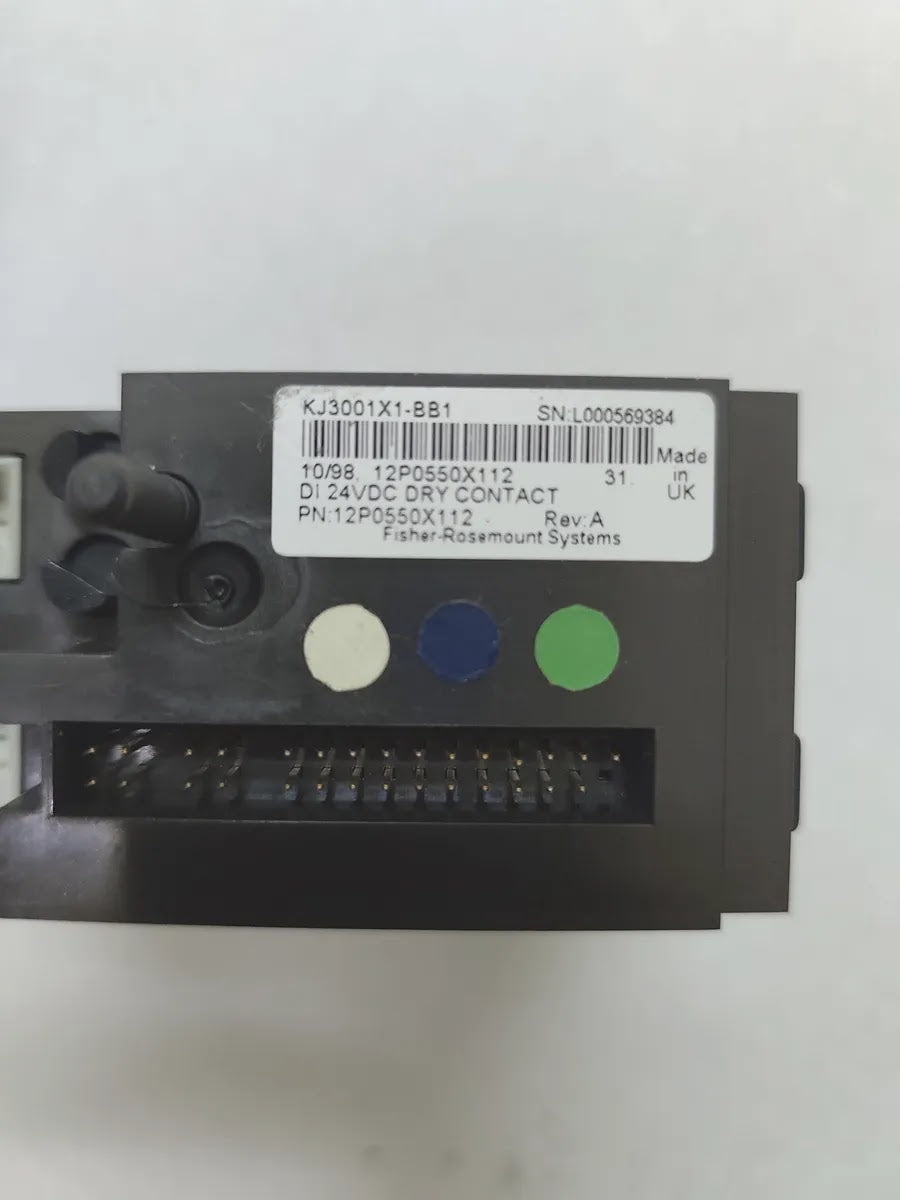

| PART NUMBER | PN:12P0550X112 |
| TYPE | DI, 24 VDC, Dry Contact — Discrete Input I/O Card |
| SERIES | DeltaV |
| REVISION | Rev: A |
| CHANNELS | 8 discrete inputs (Ch. 1 to Ch. 8), common connection for 8 channels |
| FIELD CIRCUIT RATING | 24 VDC, 5 mA/Ch. |
| BUSSED FIELD POWER RATING | 24 VDC, 40 mA |
| LOCALBUS POWER RATING | 12 VDC, 60 mA |

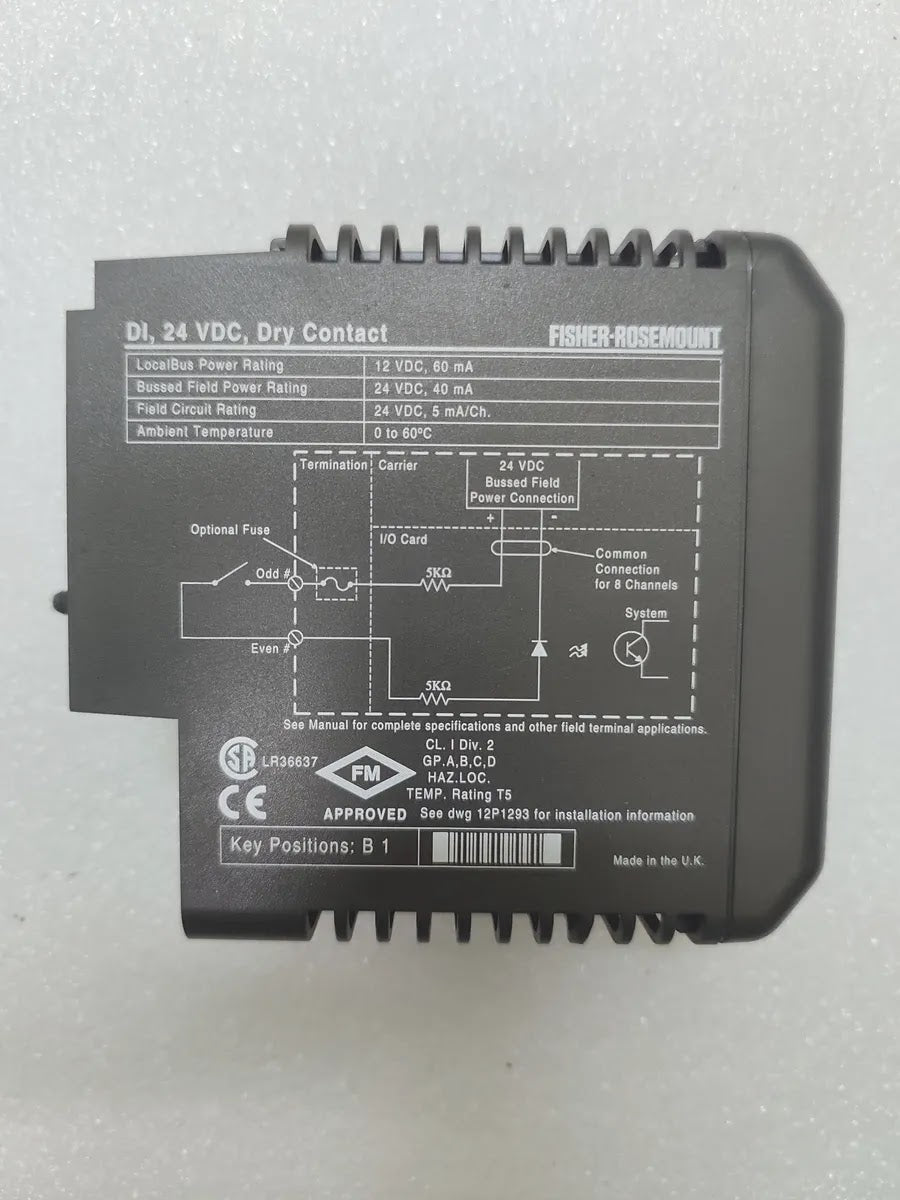

| INPUT CIRCUIT | Dry contact sensing through 5 kilohm series resistors, odd/even field terminal pairs, optional fuse at the termination |

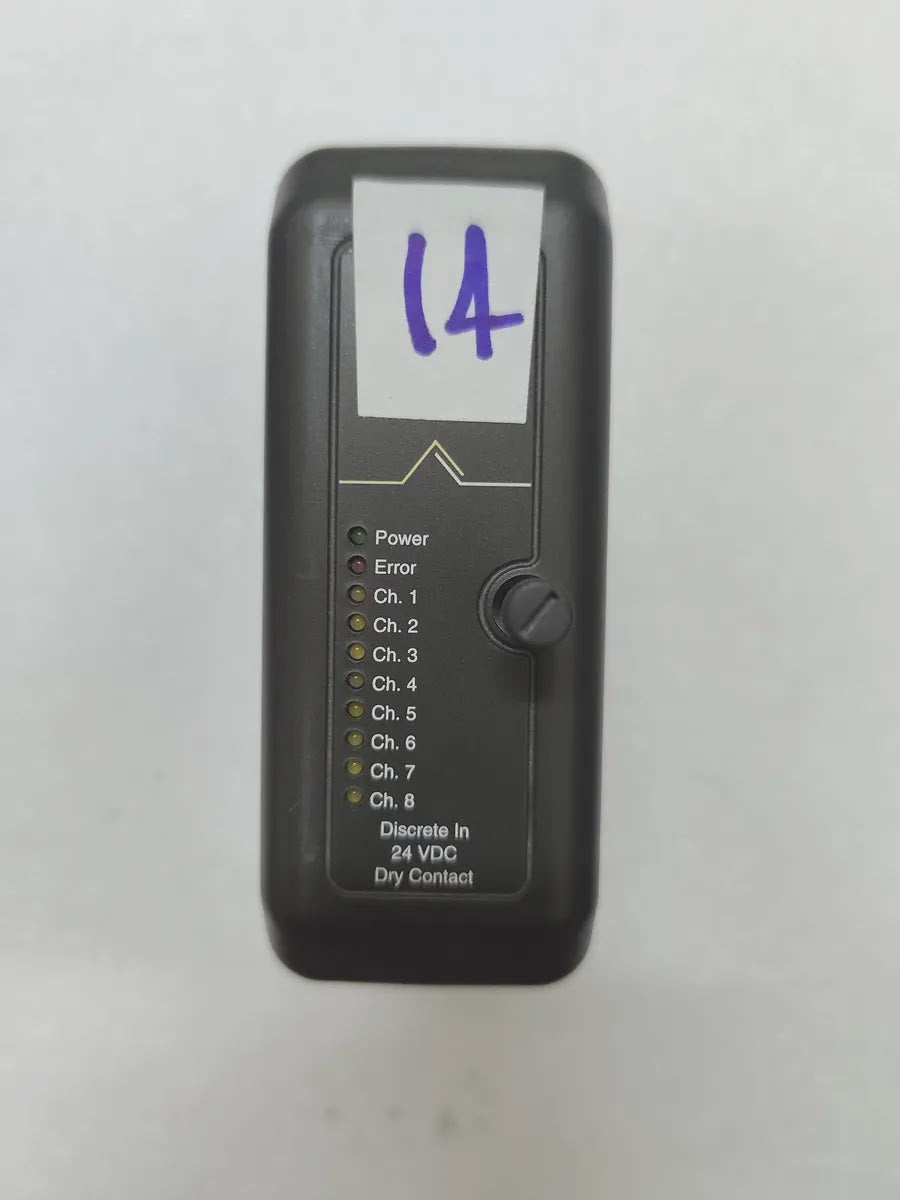

| STATUS INDICATION | Power and Error indicators plus one indicator per channel (Ch. 1 to Ch. 8) |
| KEY POSITIONS | B 1 |
| AMBIENT TEMPERATURE | 0 to 60 C |
| HAZARDOUS AREA RATING | CL. I Div. 2, GP. A,B,C,D, HAZ.LOC., TEMP. Rating T5 |
| APPROVALS | CSA LR36637, FM APPROVED, CE |
| INSTALLATION DRAWING | 12P1293 |
| COUNTRY OF ORIGIN | Made in the U.K. |
| CONDITION | PRE-OWNED / SECOND HAND |

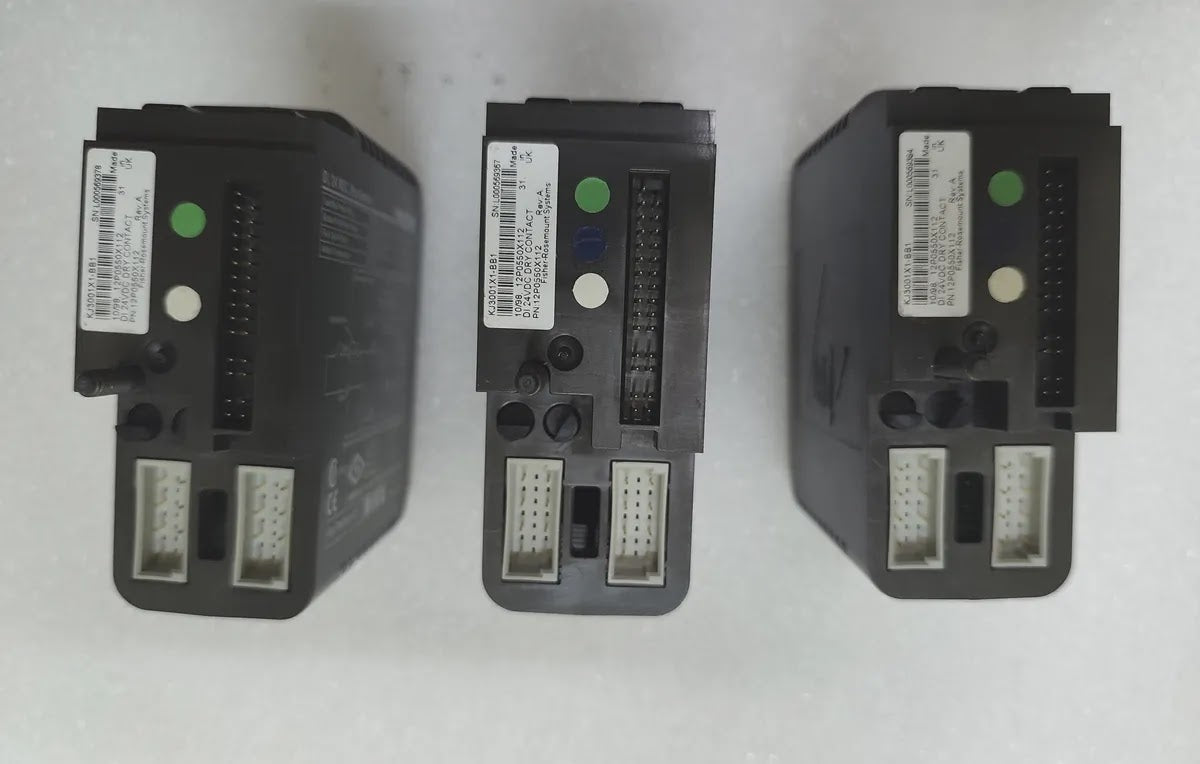

| QTY AVAILABLE | 3 |
| REF | NTD072 |
