ESSEN DEINKI EPS-60-24 Switching Power Supply 24VDC 2.5A
$99.99
Skip to product information
ESSEN DEINKI EPS-60-24 Switching Power Supply 24VDC 2.5A
$99.99
ESSEN DEINKI EPS-60-24 Switching Power Supply 24VDC 2.5A
Specifications
| Brand | ESSEN DEINKI |
| Model | EPS-60-24 |
| Part Number | EPS-60-24 |
| Type | AC-DC Switch Mode Power Supply (SMPS) |
| Series | EPS Series |
| Input Voltage | 110/230 V AC |

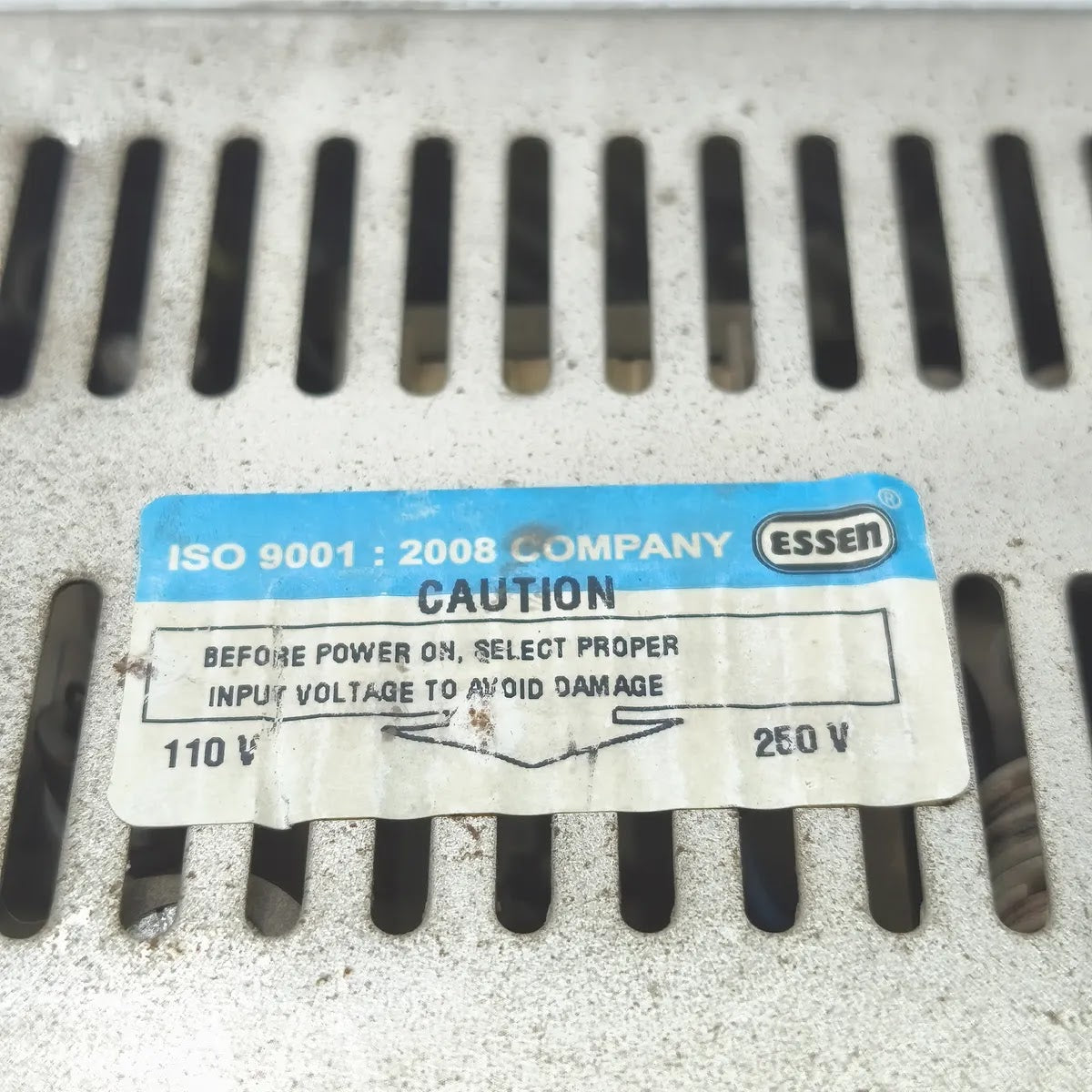

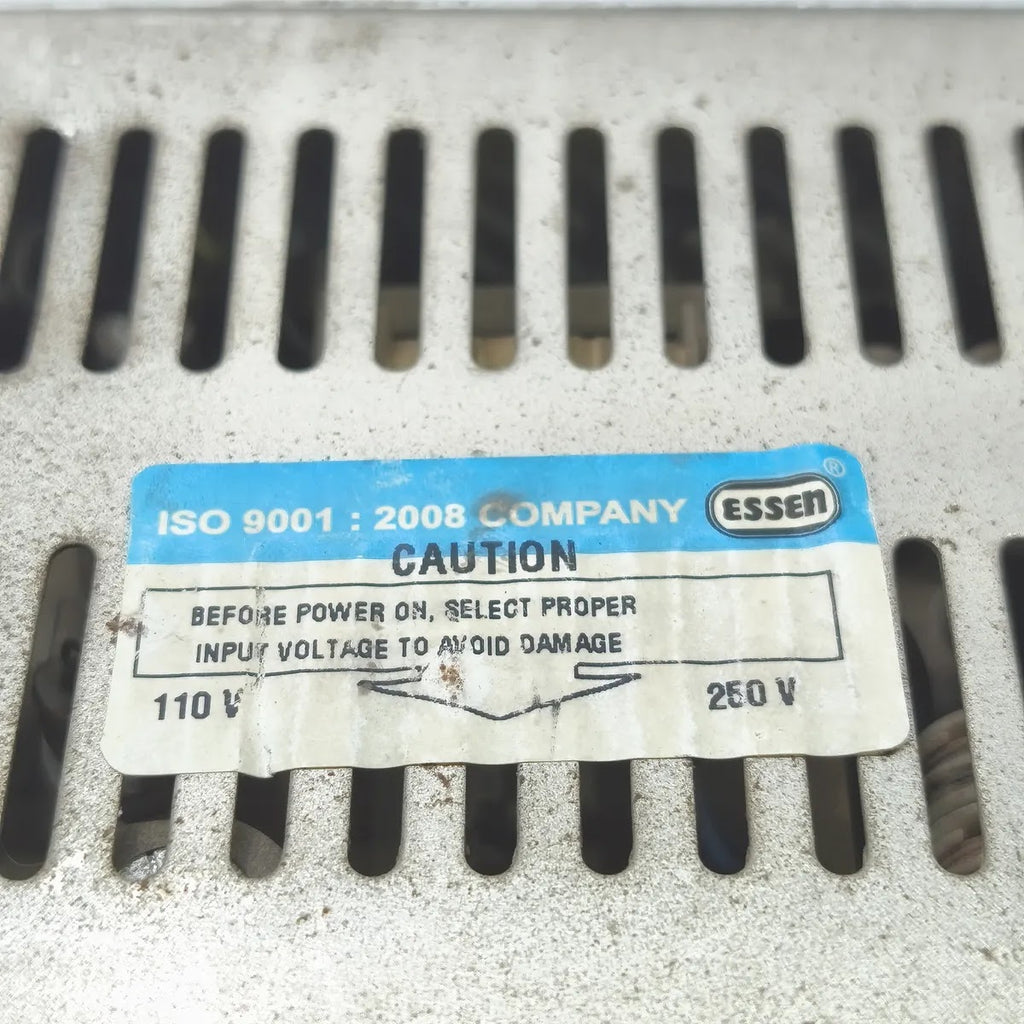

| Input Voltage Selection | Selectable 110 V / 250 V - select proper input voltage before power on to avoid damage |
| Frequency | 50-60 Hz |
| Output Voltage | +24 VDC |
| Output Current | 2.5 A |
| Output Power | 60 W |
| Output Adjustment Range | 21.6 - 26.4 VDC via inbuilt potentiometer |
| Ripple | 100 mV |
| Line Regulation | Better than 1% from low line to high line |
| Load Regulation | Within 1% of output from 0% to 100% rated load |
| Efficiency | 80% |
| Protection | Over-load 110-135%, short circuit, over-voltage and over-temperature, with automatic recovery |
| Cooling | Natural convection |
| Operating Temperature | 10 to 60 C, 20-95% RH non-condensing |
| Dimensions | 159 (L) x 97 (W) x 38 (H) mm |
| Weight | 510 g |
| Approvals | CE marked; manufactured by an ISO 9001:2008 company |
| Application | Industrial process control and automation power supply |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4175 |
