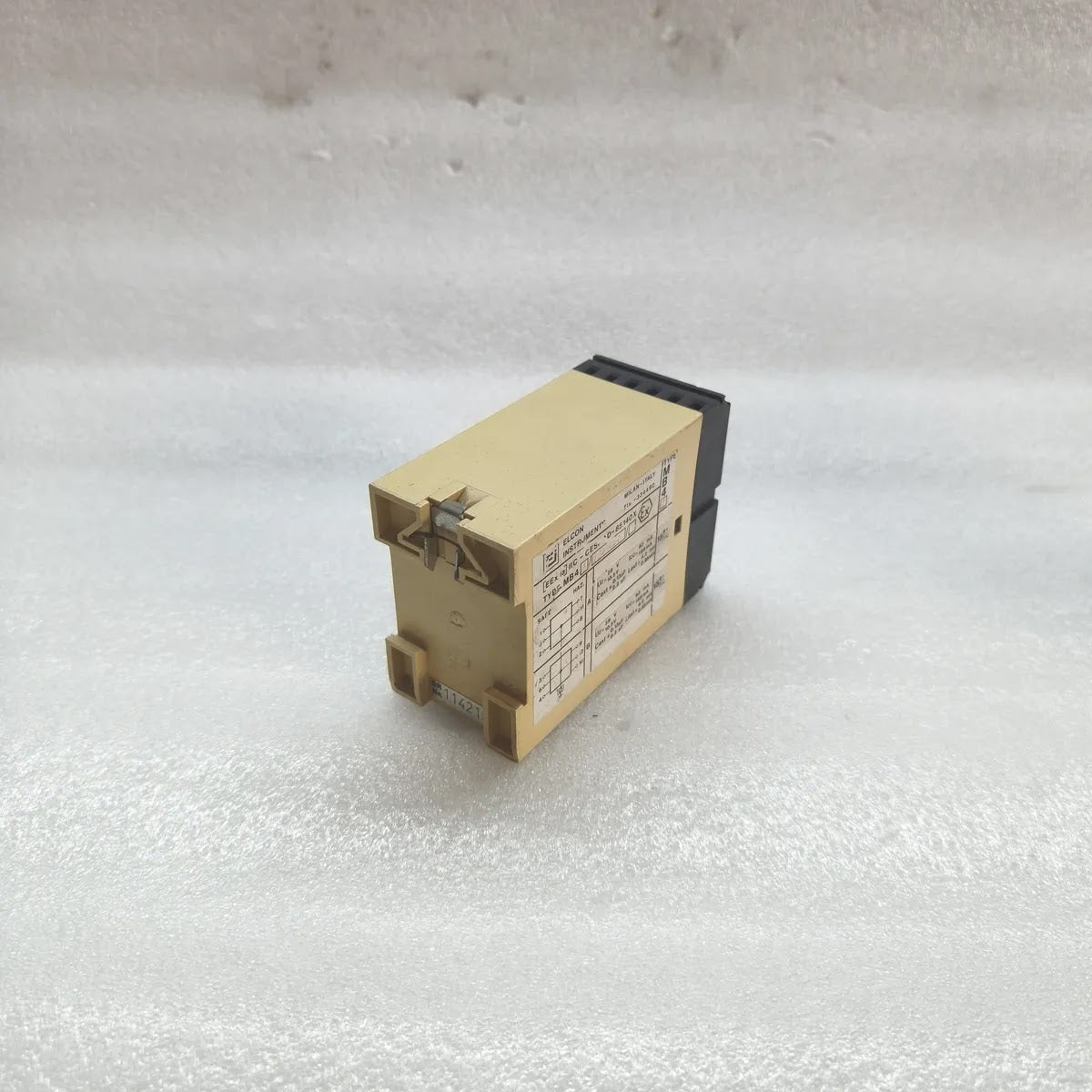

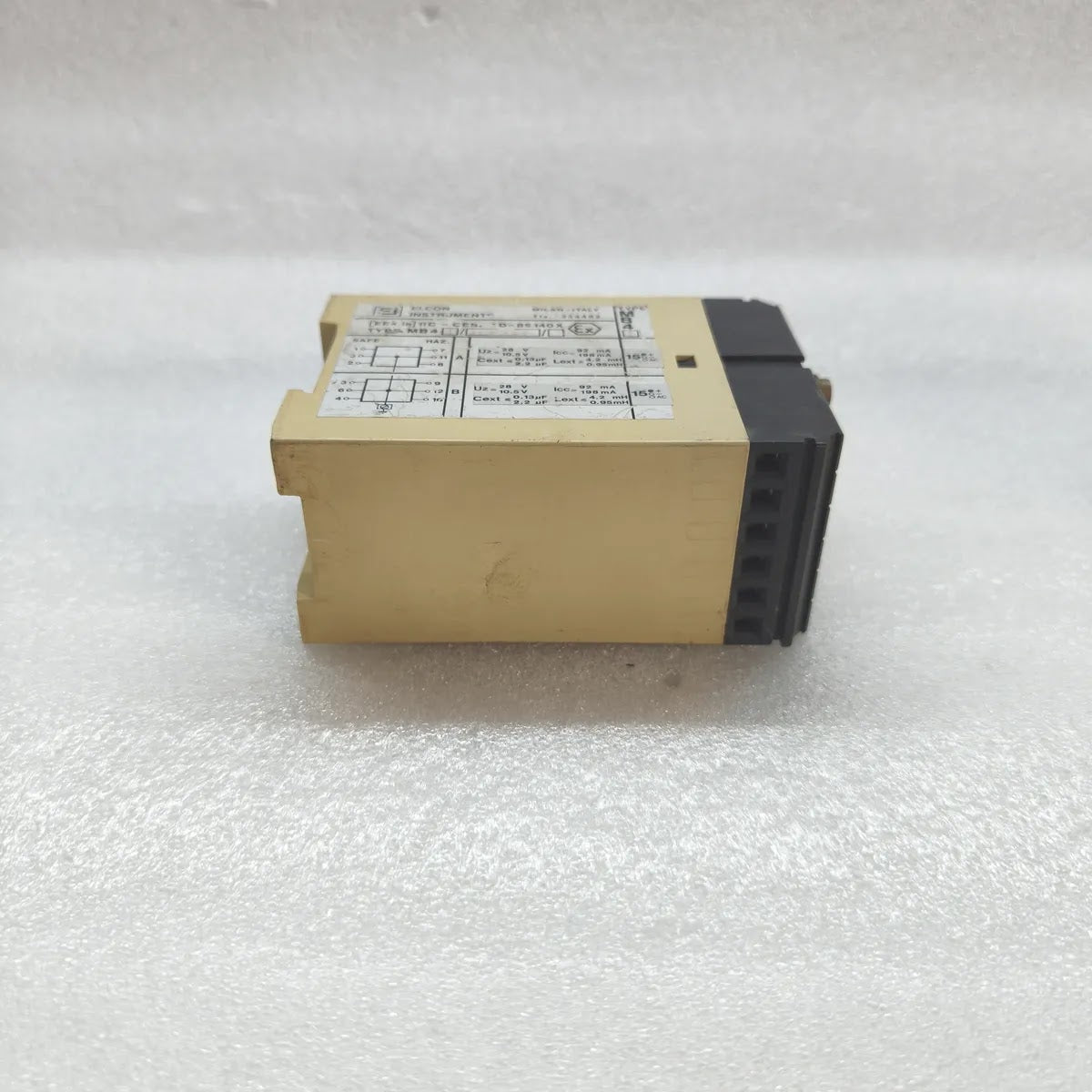

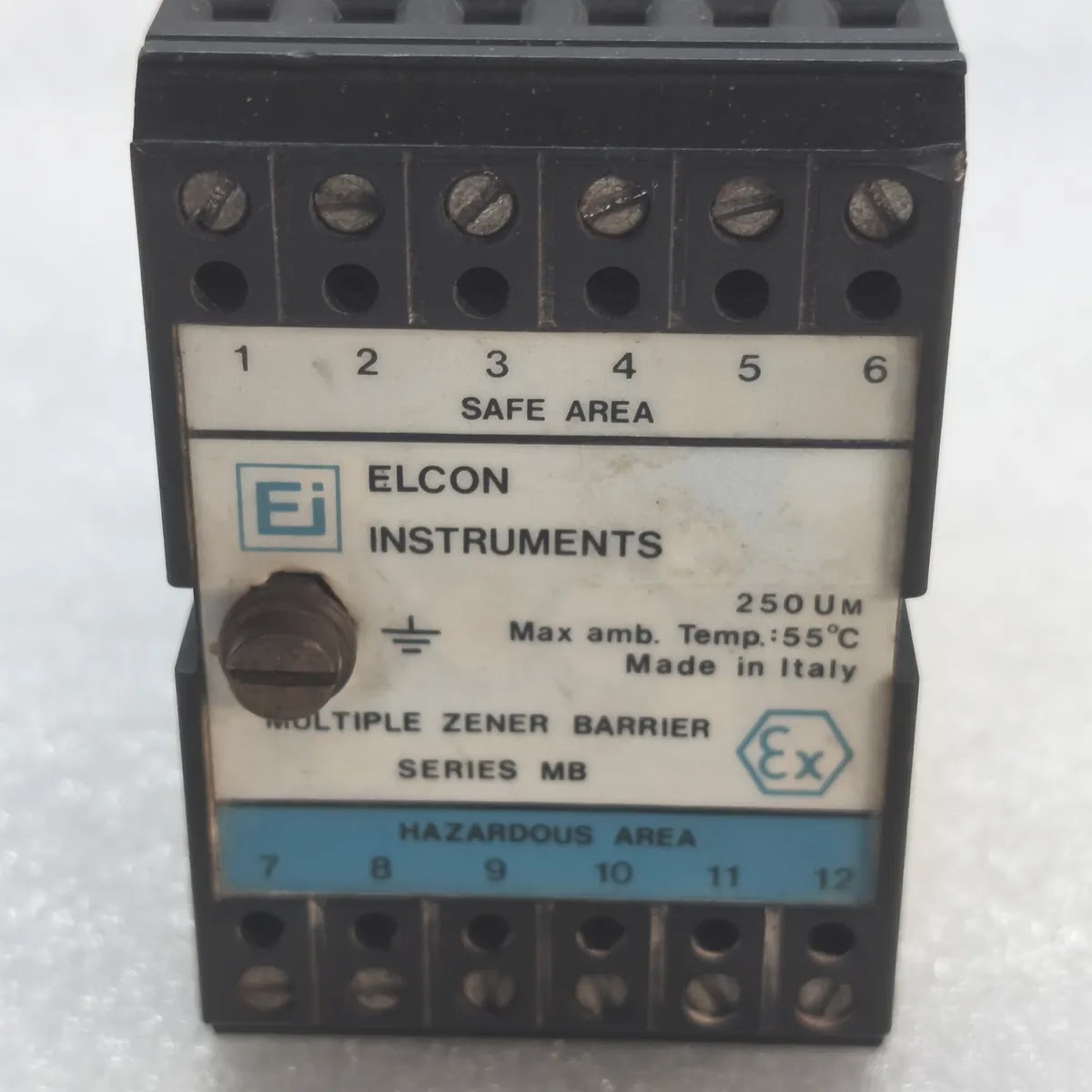

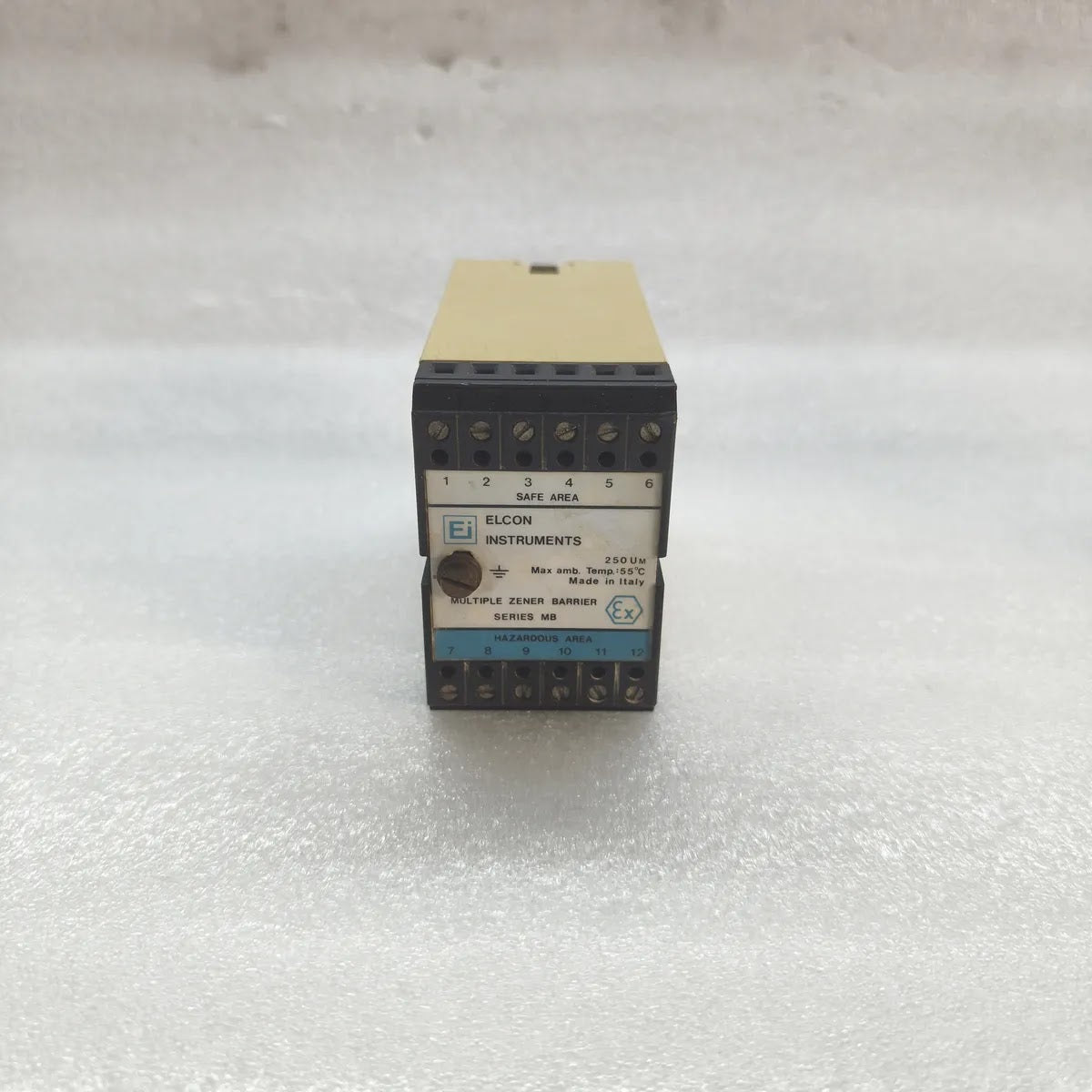

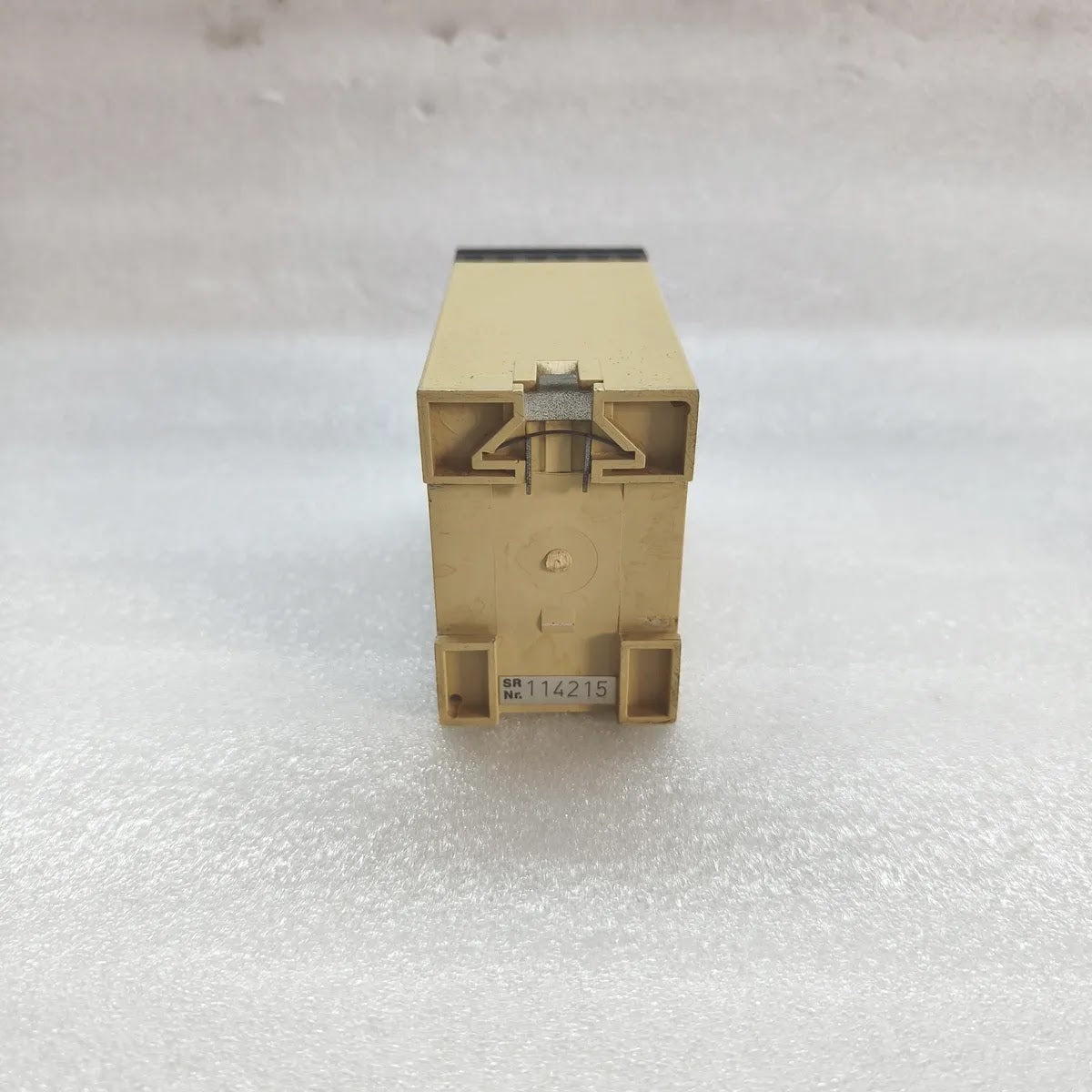

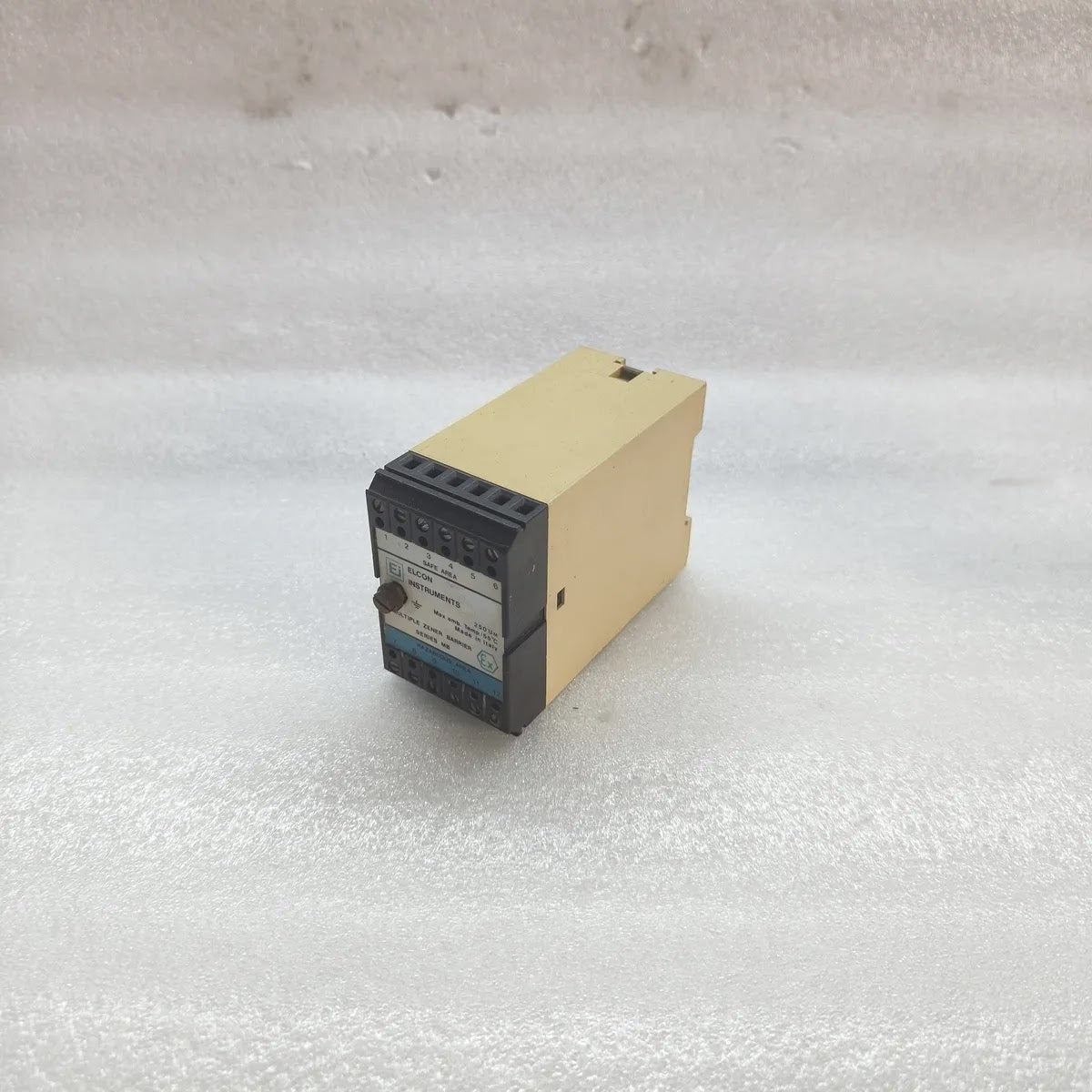

ELCON INSTRUMENTS MB4 Multiple Zener Barrier 28V 92mA
$65.00
Skip to product information
ELCON INSTRUMENTS MB4 Multiple Zener Barrier 28V 92mA
$65.00
ELCON INSTRUMENTS MB4 Multiple Zener Barrier 28V 92mA
Specifications
| Brand | ELCON INSTRUMENTS |
| Model | MB4 |
| Part Number | TYPE MB4 |
| Type | Multiple Zener Barrier |
| Series | MB |
| Channels | 2 (A and B), safe area to hazardous area |

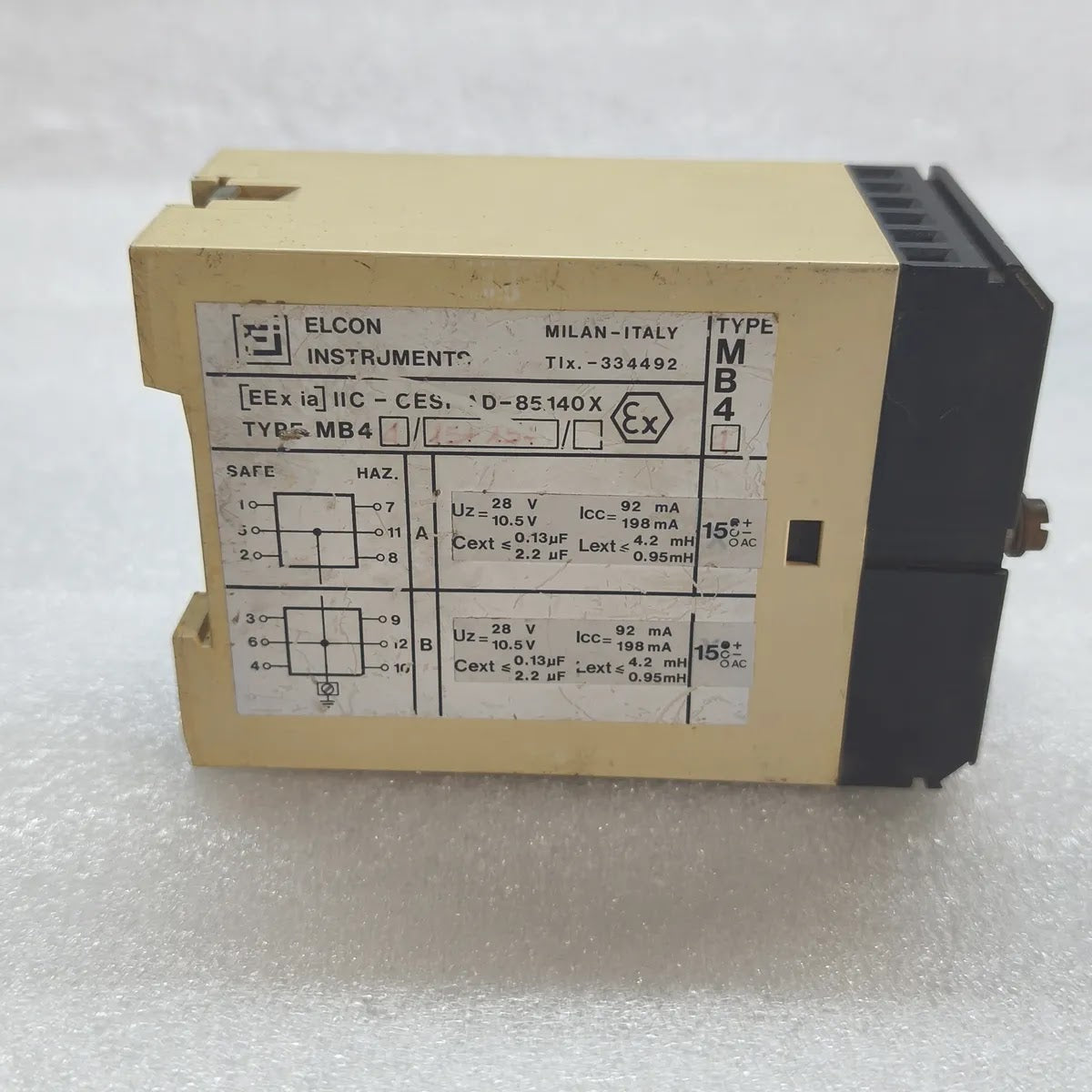

| Zener Voltage | Uz = 28 V / 10.5 V (channels A and B) |
| Short Circuit Current | Icc = 92 mA / 198 mA (channels A and B) |
| Max External Capacitance | Cext ≤ 0.13 µF / 2.2 µF (channels A and B) |
| Max External Inductance | Lext ≤ 4.2 mH / 0.95 mH (channels A and B) |
| Max Safe Area Voltage | 250 Um |
| Channel Code | 15, + / - / AC (channels A and B) |
| Max Ambient Temperature | 55 °C |
| Protection Class | [EEx ia] IIC |
| Certificate | CESI AD-85.140X, Ex (ATEX hexagon mark) |
| Country Of Origin | Made in Italy (Milan - Italy, Tlx.-334492) |
| Condition | PRE-OWNED / SECOND HAND |
| REF | MK9914 |
| Category | Other Automation Equipment |
Shipping & Assurance: Ships worldwide via DHL · UPS · Aramex. WhatsApp +91-814-038-5618 · sales@inmateto.com
