DEIF RMT-111Q96 Phase Sequence Meter 230/400VAC
$239.99
Skip to product information
DEIF RMT-111Q96 Phase Sequence Meter 230/400VAC
$239.99
DEIF RMT-111Q96 Phase Sequence Meter 230/400VAC
Specifications
| Brand | DEIF |
| Model | RMT-111Q96 |
| Part Number | RMT-111Q96 |
| Type | Phase Sequence Meter / Phase Sequence Relay |
| Series | RMT-111 Q96 panel instrument |

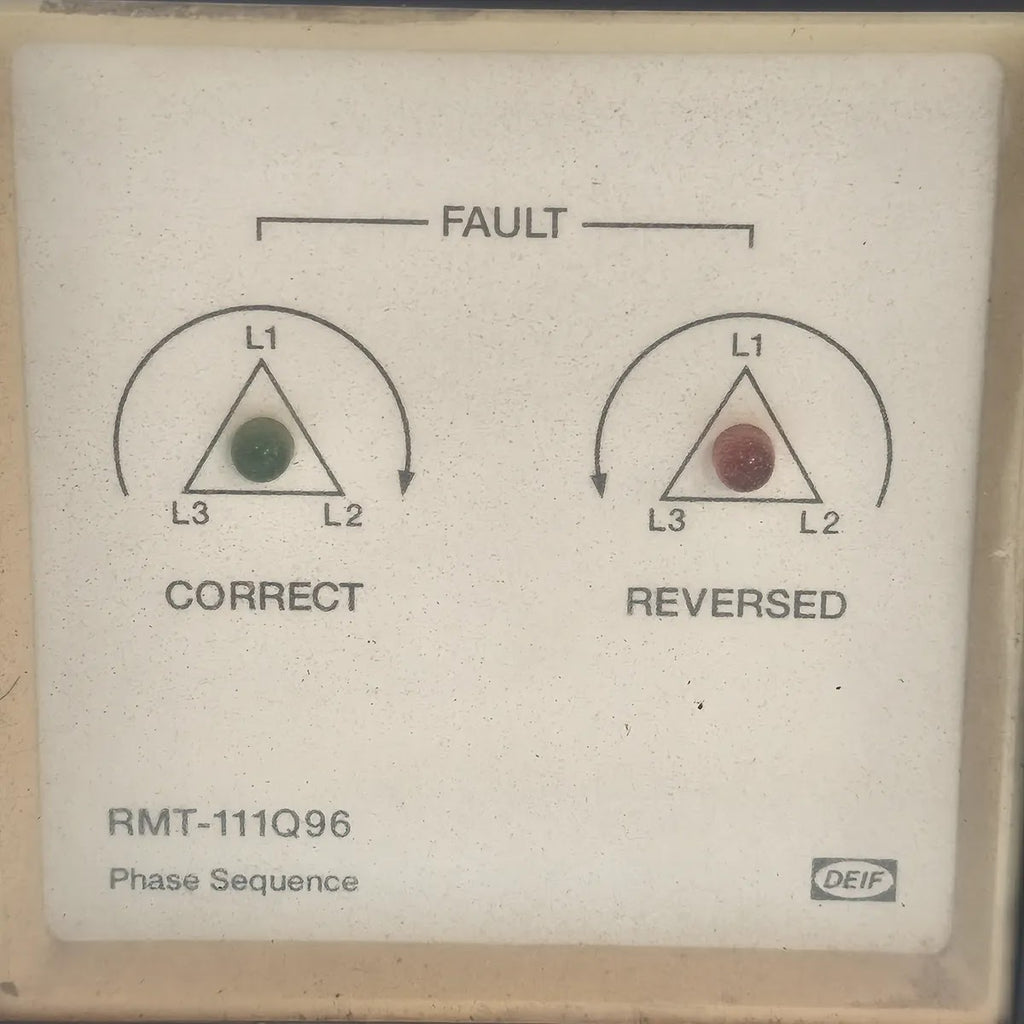

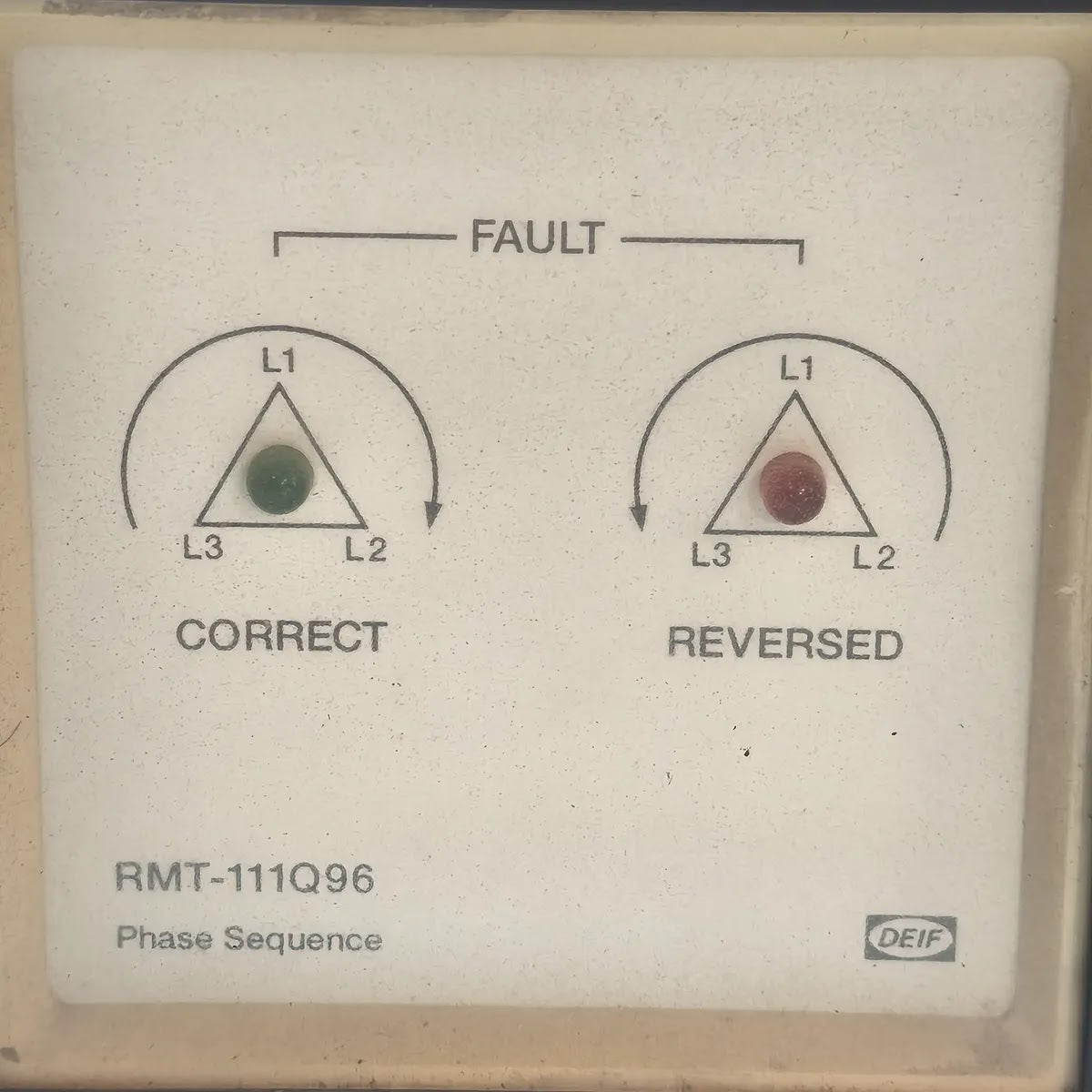

| Function | Sequence check (relay) with indication of CORRECT and REVERSED phase rotation and FAULT on phase breakage |
| Measuring Voltage | 230 or 400 V AC |
| Frequency | 47 to 63 Hz |
| Phases | 3-phase, L1 / L2 / L3 |
| Duty | Continuous operation |
| Case Size | DIN standard size Q96 (96 x 96 mm) |
| Order No (Variant 01) | 2918310010 01 - all voltages, incl. anti-glare glass |
| Approvals | CE |
| Application | Checking phase sequence and phase breakage of shore connections and marine / industrial switchboards |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3925 |
