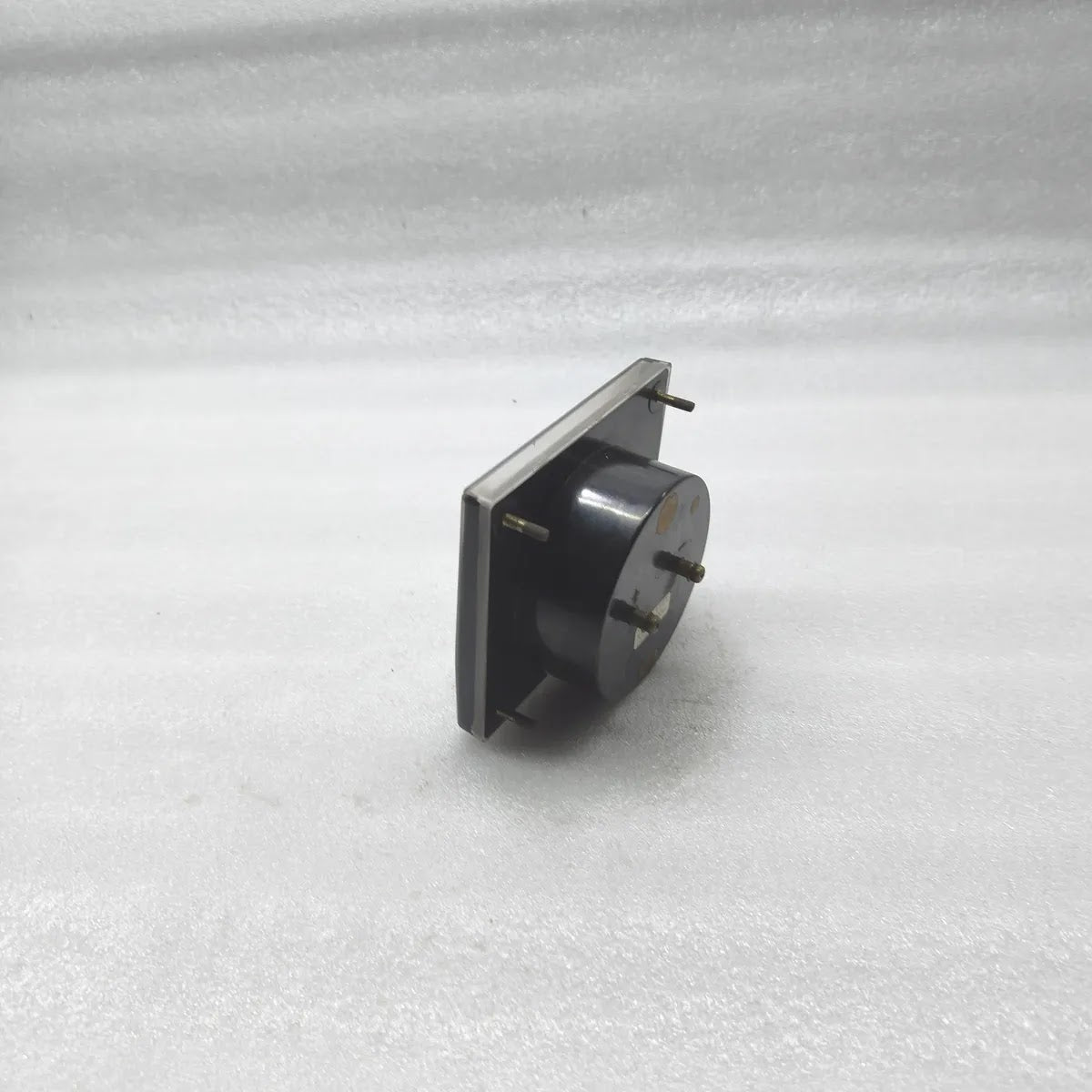

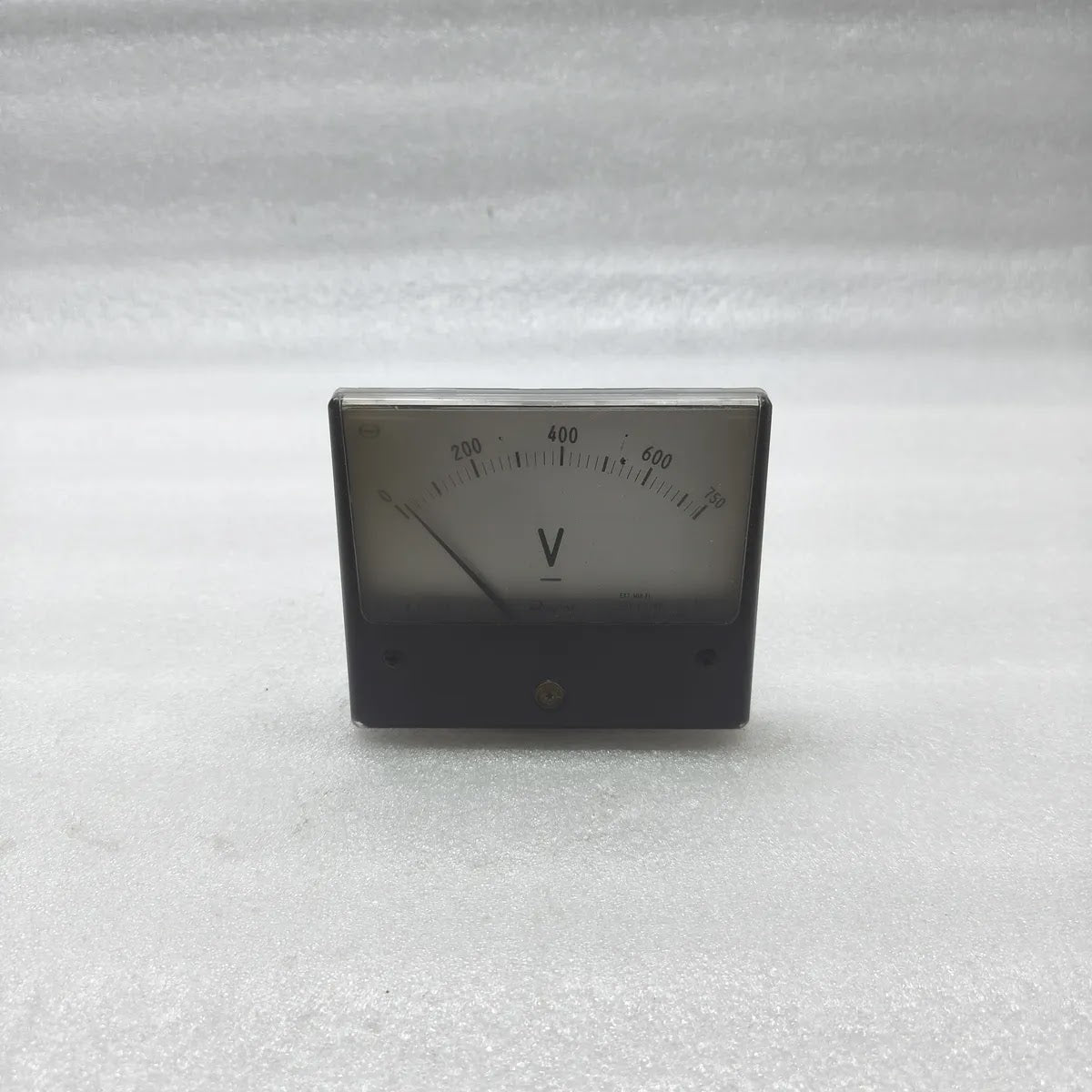

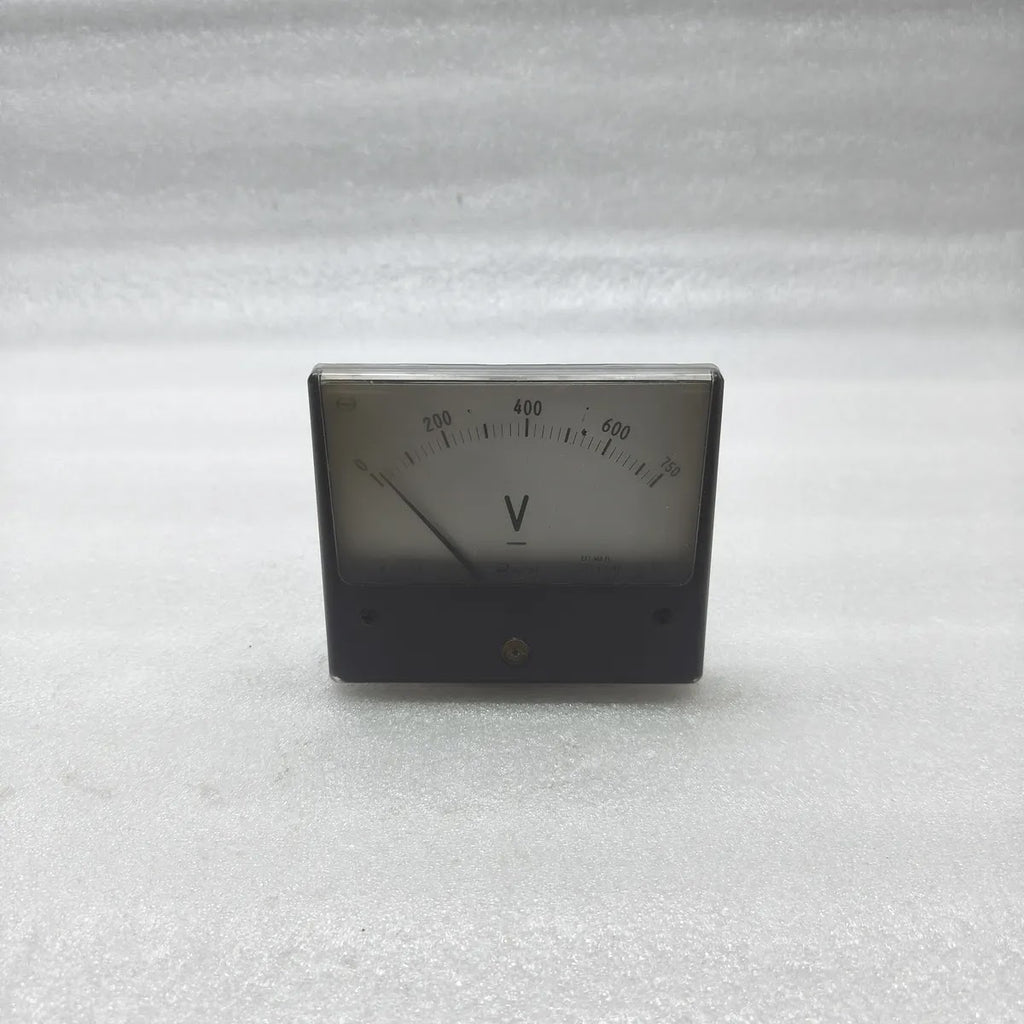

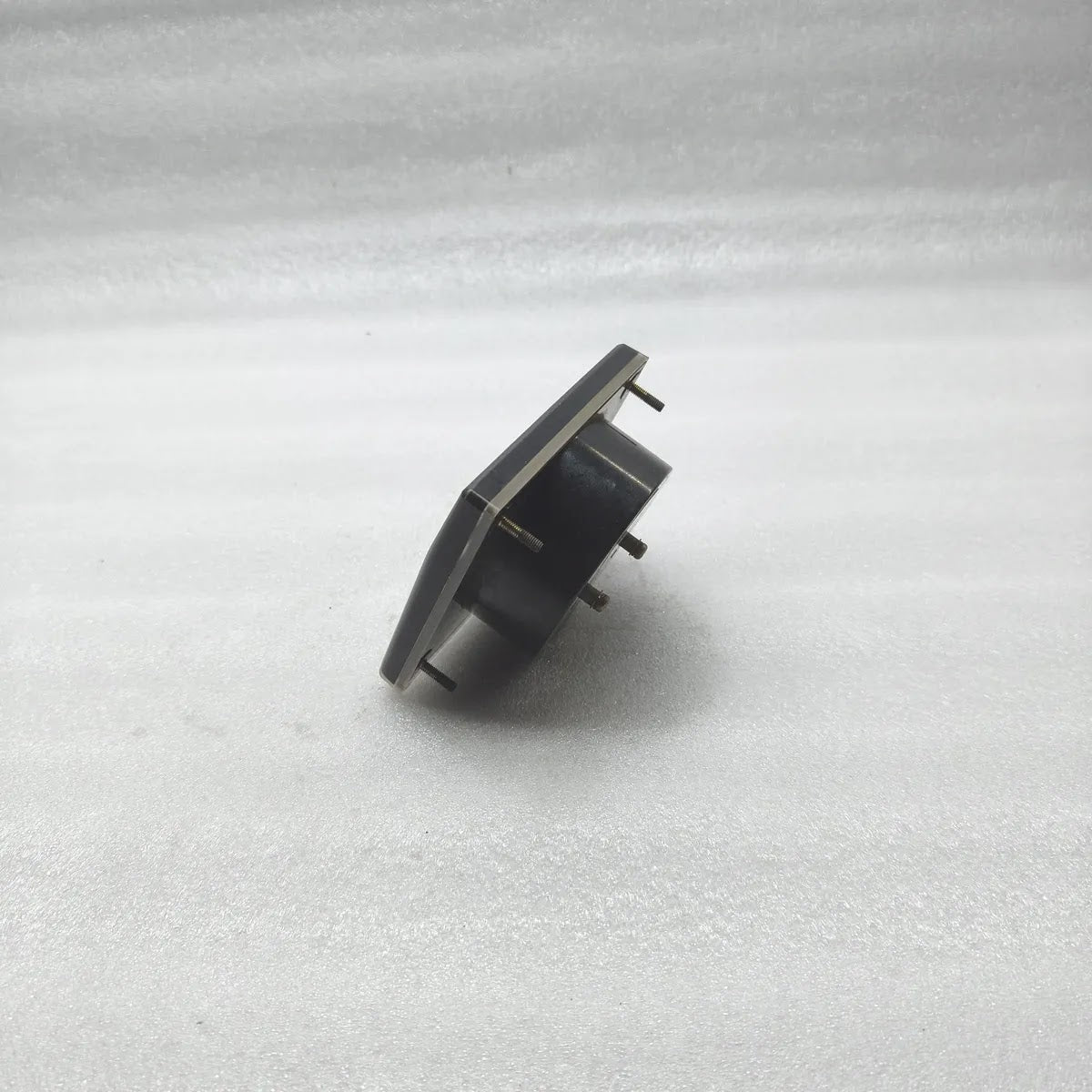

DAIICHI LMK-12 DC Panel Voltmeter 0-750V
$119.99
Skip to product information
DAIICHI LMK-12 DC Panel Voltmeter 0-750V
$119.99
DAIICHI LMK-12 DC Panel Voltmeter 0-750V
Specifications
| Brand | Daiichi (Daiichi Electronics Co., Ltd.) |
| Model | LMK-12 |
| Type | Analogue DC voltmeter, moving-coil type, flush panel mounting |
| Series | LK / LMK oblong (rectangle type) meter series, 12-type size |
| Measuring Range | 0-750 V DC |

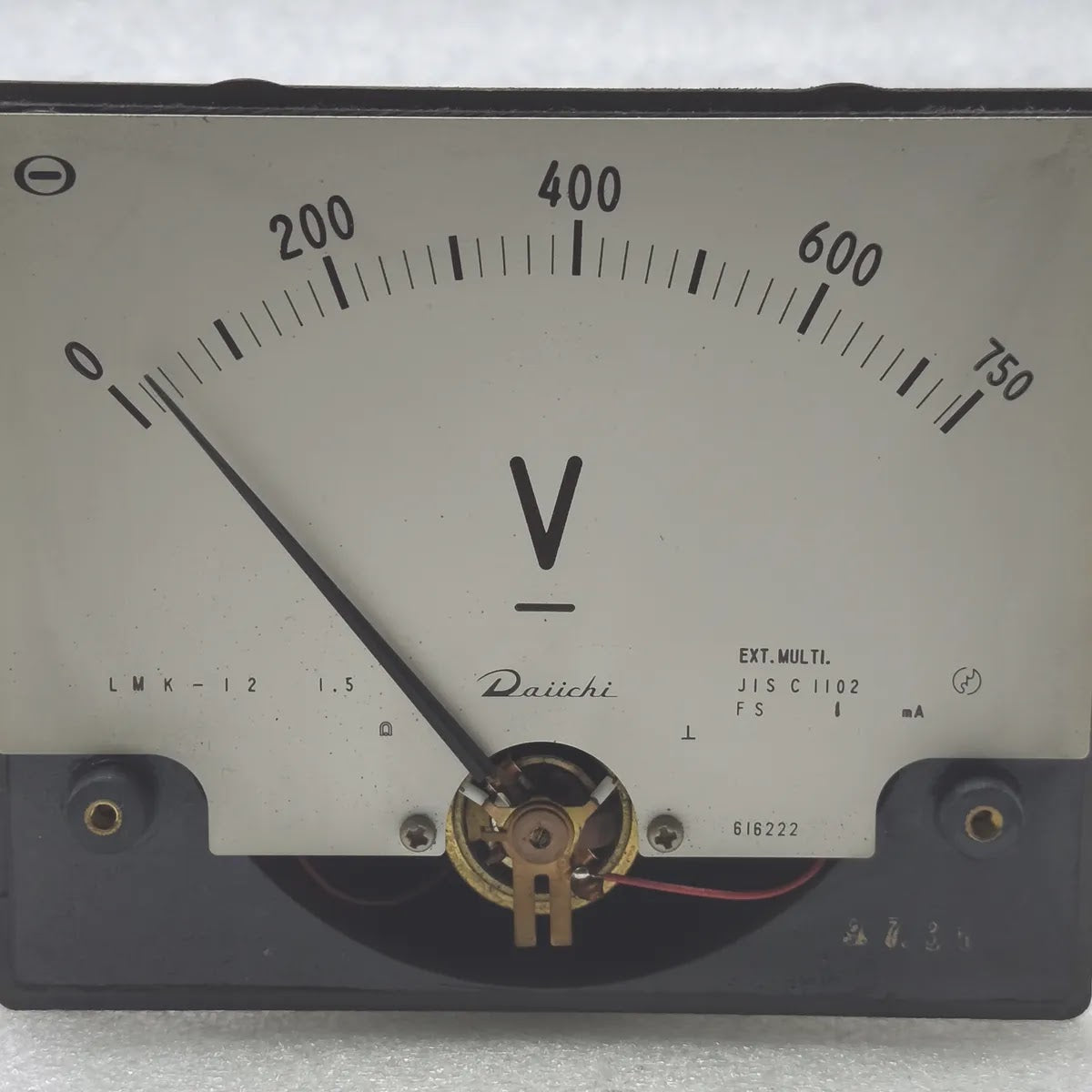

| Scale Graduation | 0 - 200 - 400 - 600 - 750 V |
| Full Scale Current | FS 1 mA |

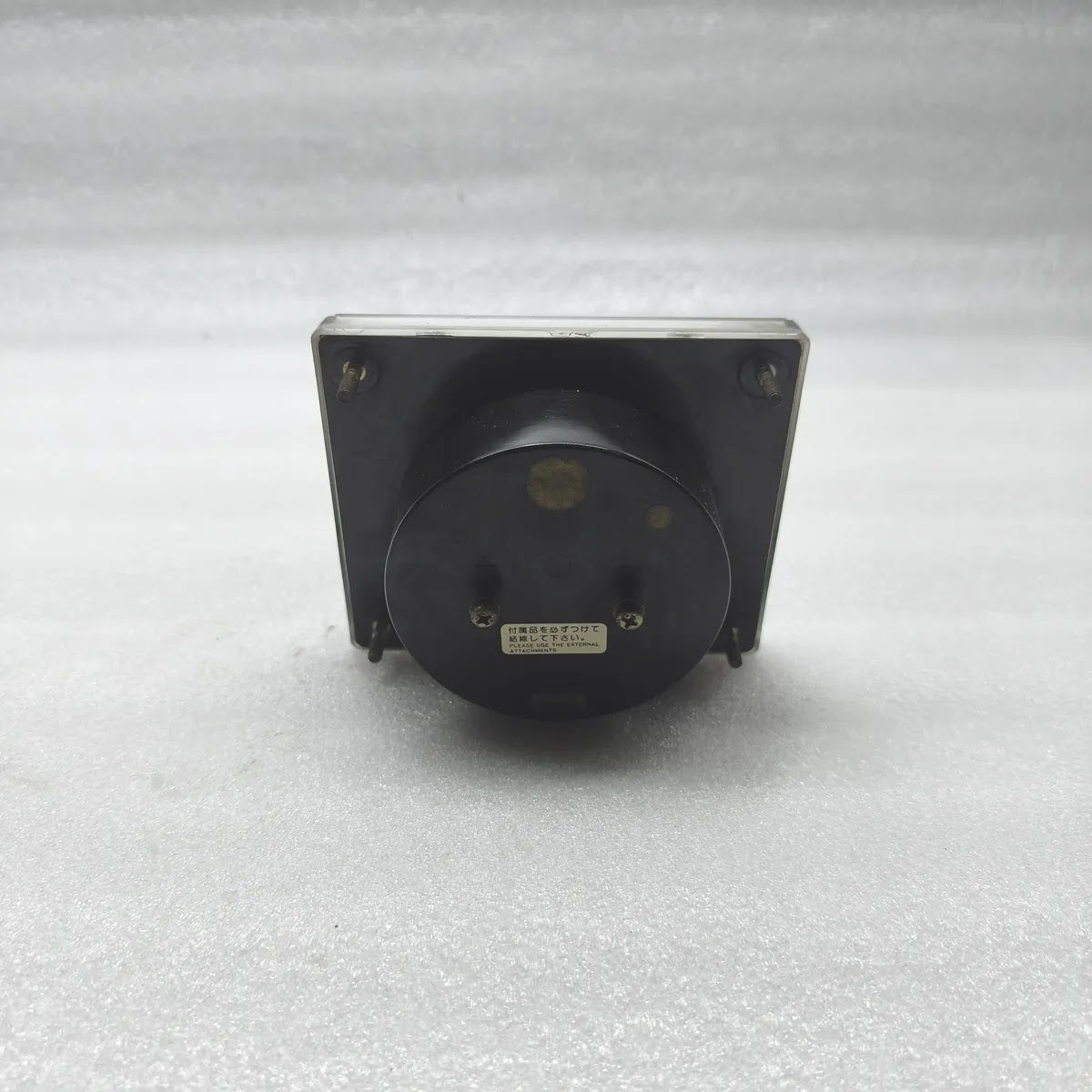

| External Multiplier | EXT. MULTI. - external series resistor (multiplier) required; rear label states "PLEASE USE THE EXTERNAL ATTACHMENTS" |
| Accuracy Class | 1.5 |
| Current Type | DC (direct current symbol shown under the V on the dial) |
| Standard | JIS C 1102 |
| Panel Cutout Standard | Cutout dimensions to JIS C 1103 |
| Application | Switchboard, marine and industrial panel DC voltage indication |
| Condition | PRE-OWNED / SECOND HAND |

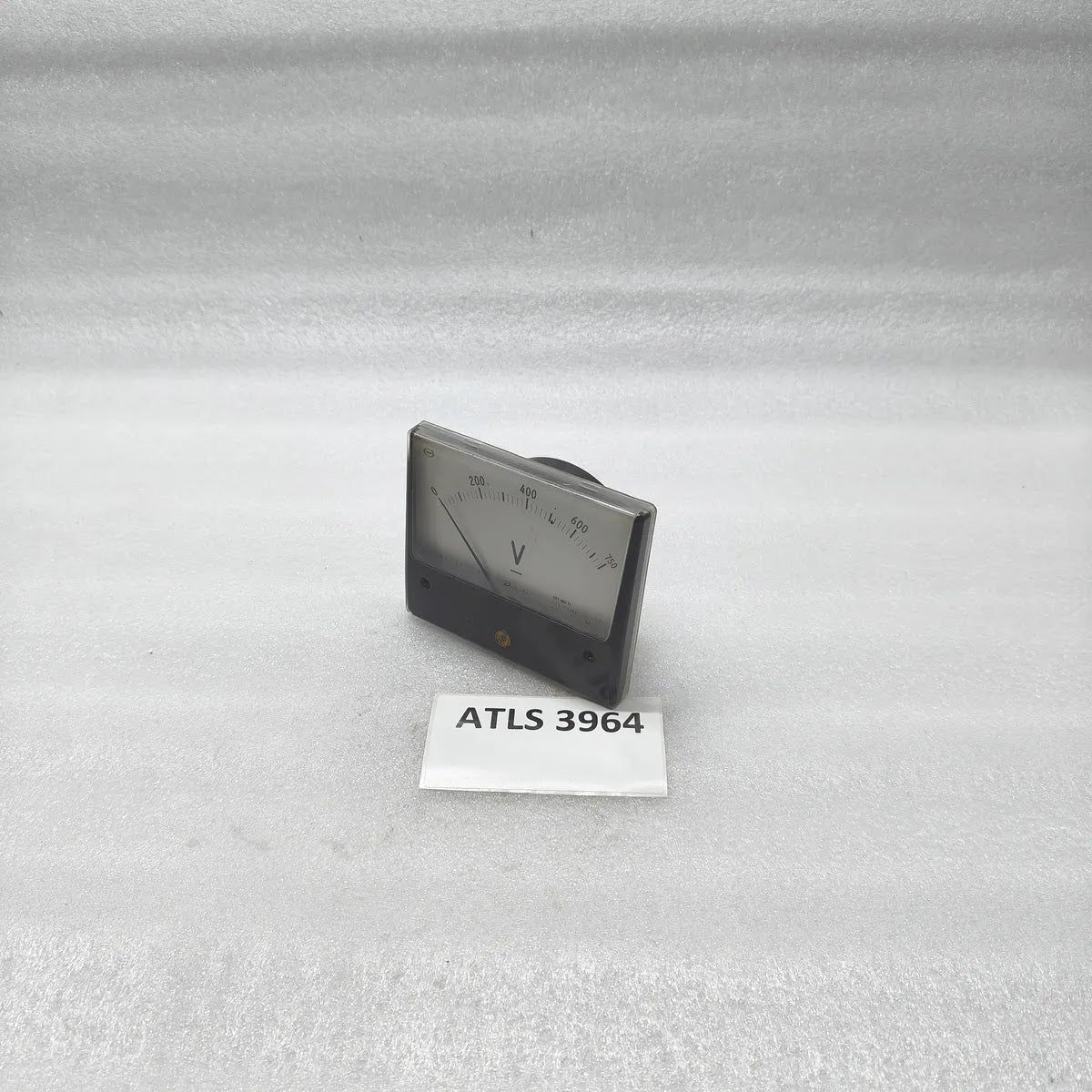

| REF | ATLS3964 |
