DAIICHI LCTK-12 Analog Panel Voltmeter 0-150V AC
$239.99
Skip to product information
DAIICHI LCTK-12 Analog Panel Voltmeter 0-150V AC
$239.99
DAIICHI LCTK-12 Analog Panel Voltmeter 0-150V AC
Specifications
| Brand | Daiichi (Daiichi Electronics Co., Ltd.) |
| Model | LCTK-12 |

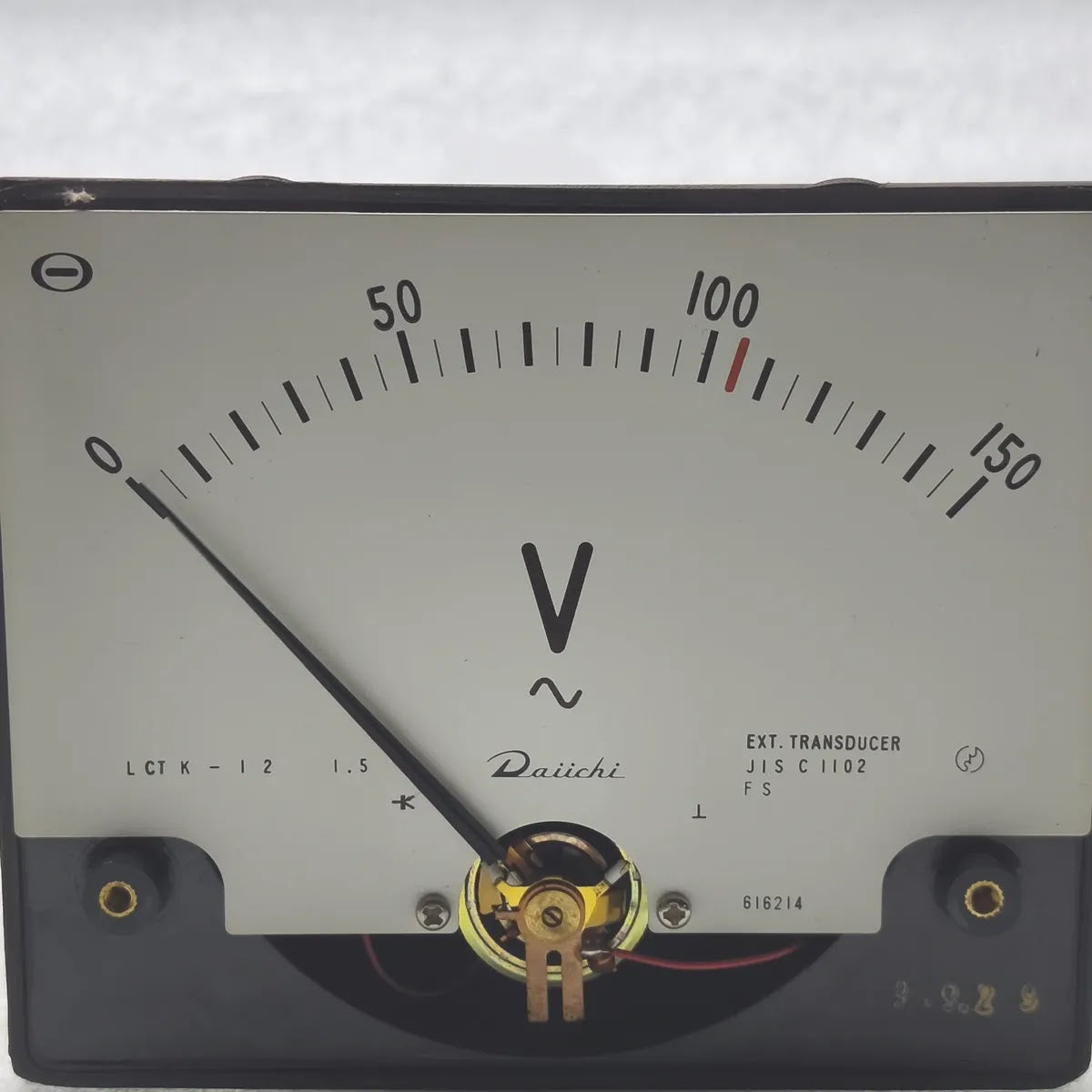

| Part Number | LCTK-12 (printed on dial as "L CT K - 1 2") |
| Type | Analog moving-coil rectifier-type AC panel voltmeter |
| Series | LK Series oblong (rectangle) panel meter, size 12 |
| Scale Range | 0-150 V, full scale (FS) |
| Accuracy Class | 1.5 |

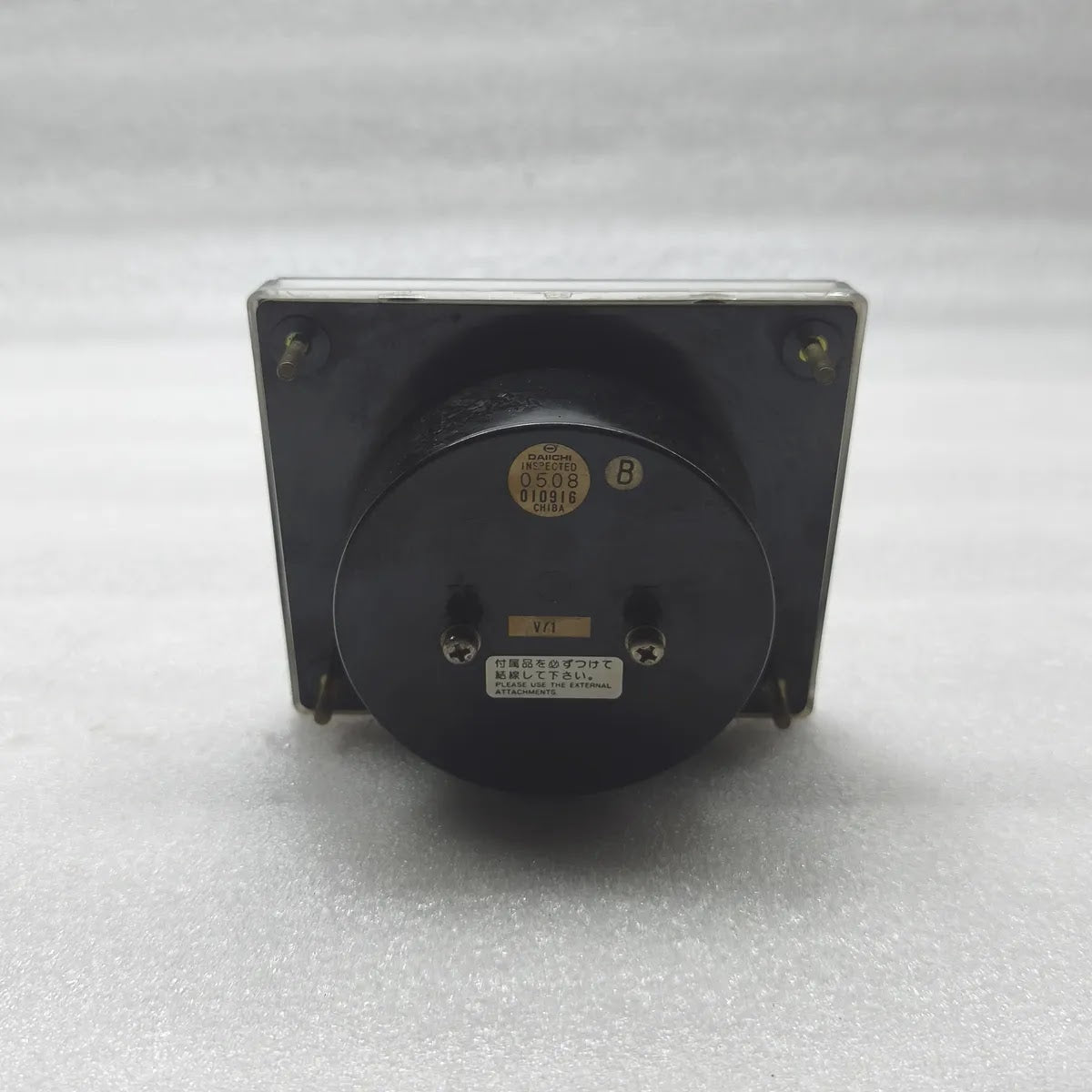

| Input | EXT. TRANSDUCER - external transducer / attachment required, to be wired with the supplied external attachments |
| External Transducer | AT-62MEC external attachment used with the LCTK type |
| Measurement Method | Approximate RMS-value rectifier method, suited to distorted waveforms such as third harmonics and SCR waveforms |
| Standard | JIS C 1102 (dial also carries the perpendicular operating-position symbol, a test-voltage star symbol and a JIS-style approval logo) |
| Application | Switchboard and marine / industrial panel AC voltage indication |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3961 |
