CROMPTON E243-016-G-FA-VJ-IP-NC kVAr Panel Meter 0-4000kVAr 0-1mA
$79.99
CROMPTON E243-016-G-FA-VJ-IP-NC kVAr Panel Meter 0-4000kVAr 0-1mA
Specifications
| Brand | Crompton (Crompton Instruments) |
| Model | E243 |
| Part Number | E243-016-G-FA-VJ-IP-NC |
| Type | Analogue reactive power panel meter (varmeter), transducer input |
| Series | E243 DIN analogue panel meter, 72 x 72 mm |
| Specification | DIN STANDARD |
| Input Range | 0/1 Milliamps |

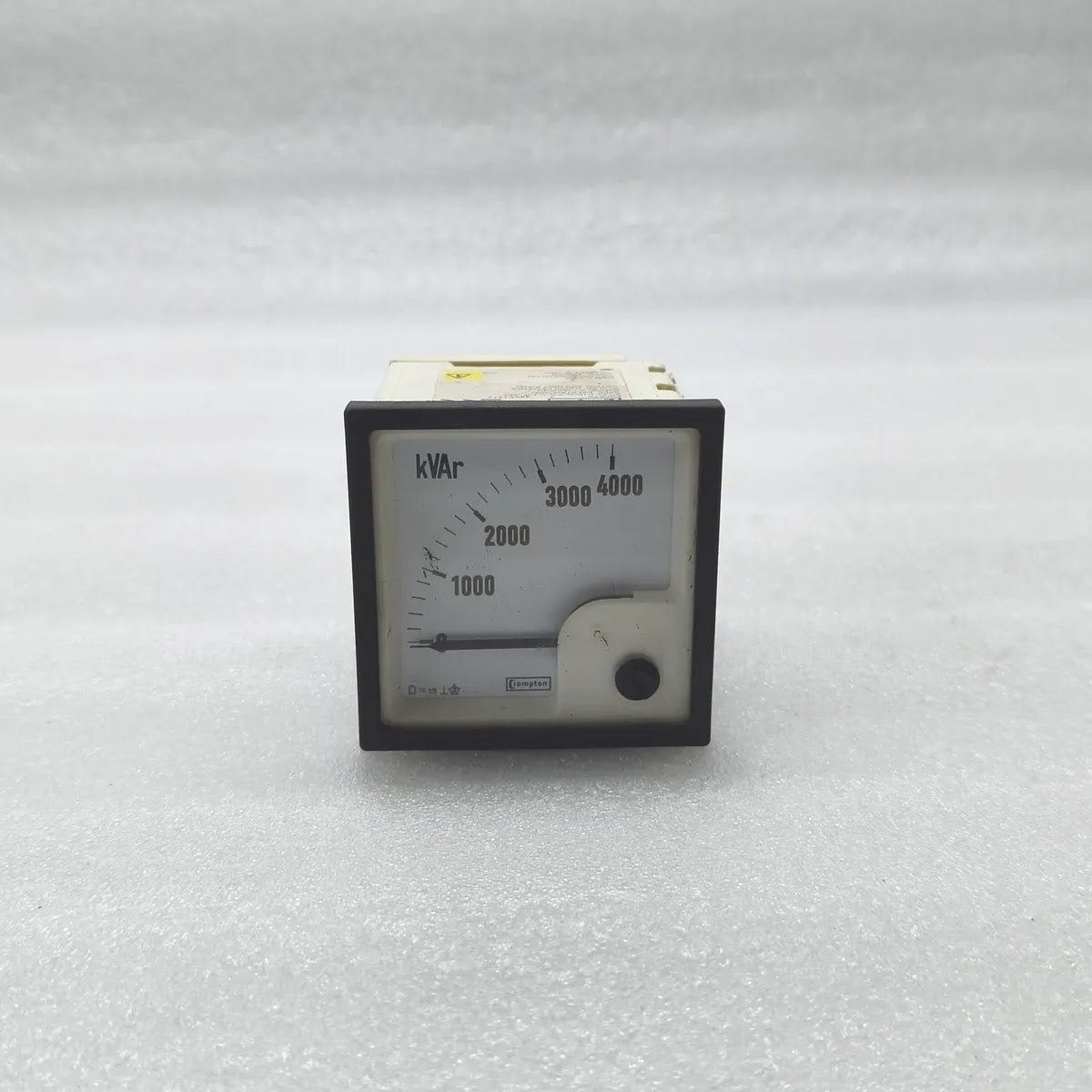

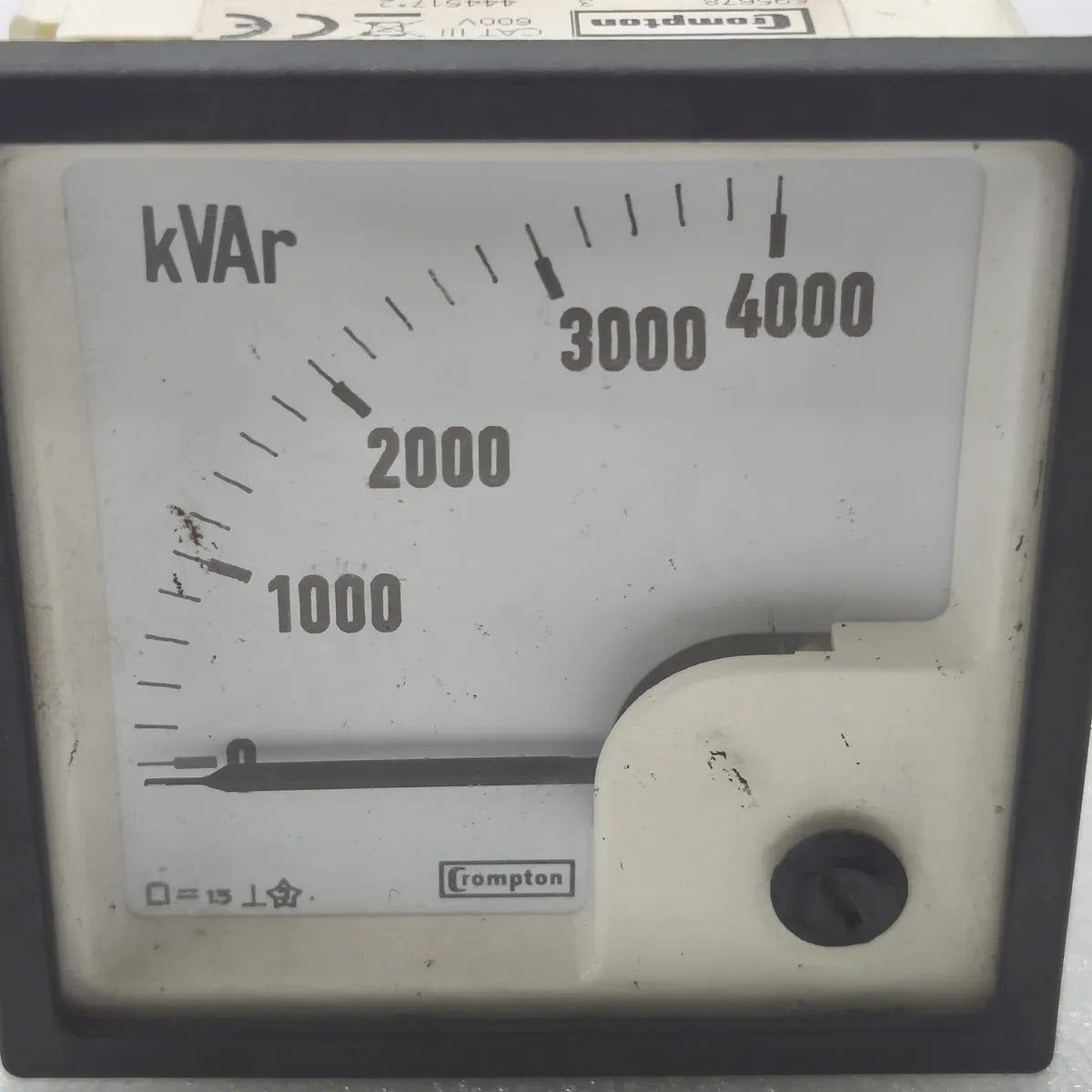

| Scale Range | 0/4000 KILOVARS (dial marked kVAr, 1000 / 2000 / 3000 / 4000) |
| Accuracy Class | 1.5 |
| Movement | Short scale moving coil, 90 degree scale |
| Measurement Category | CAT III 600V |
| Ingress Protection | IP54 (NOT PG16) |
| Dimensions | 72 x 72 mm DIN panel size |
| Approvals | CE marked, WEEE symbol |
| Manufacturer | Tyco Electronics UK Ltd, Witham, England |
| Country Of Origin | Made in India |
| Application | Reactive power (kVAr) indication on switchboards and power factor correction panels, driven from a 0/1 mA transducer output |
| Condition | PRE-OWNED / SECOND HAND |

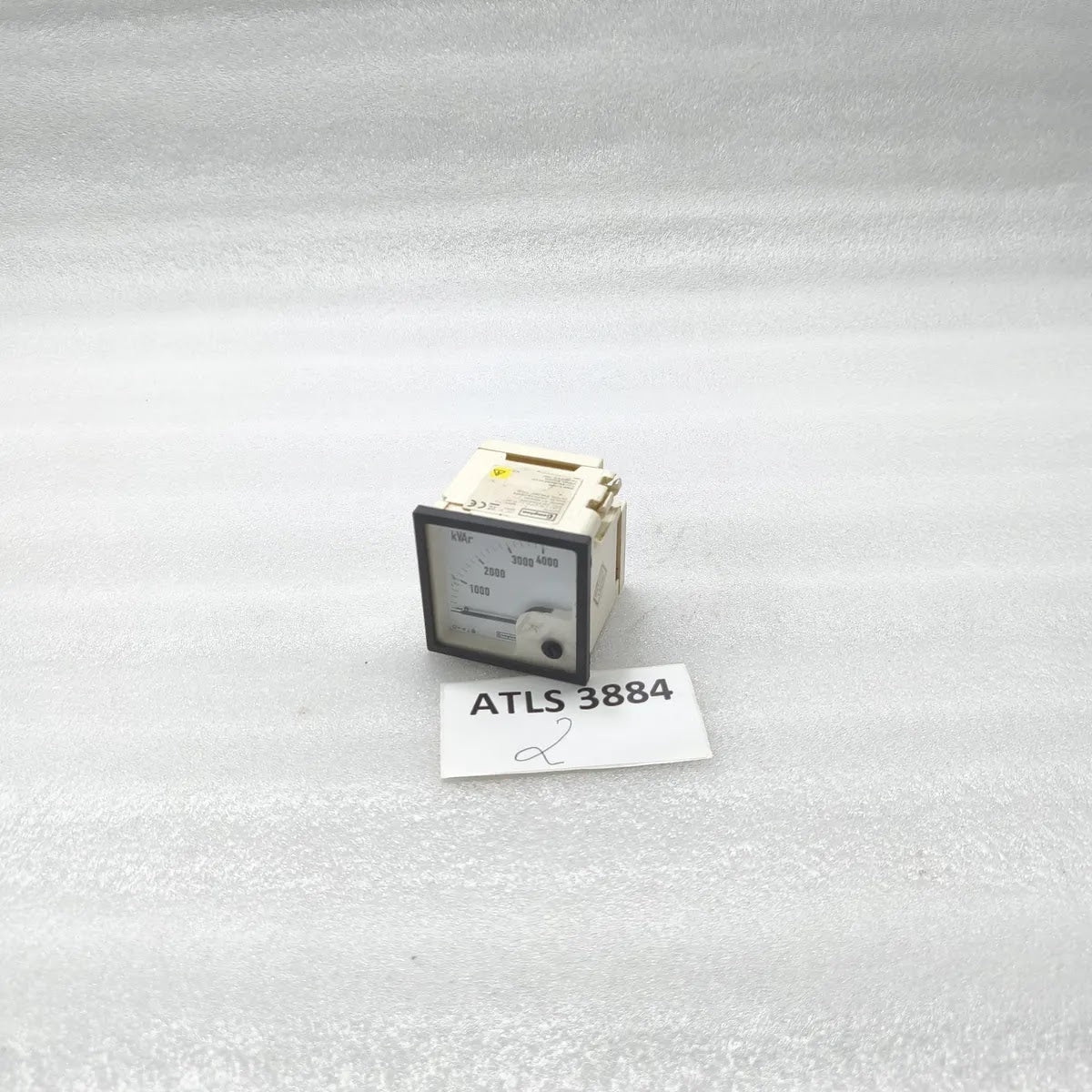

| REF | ATLS3884 |
