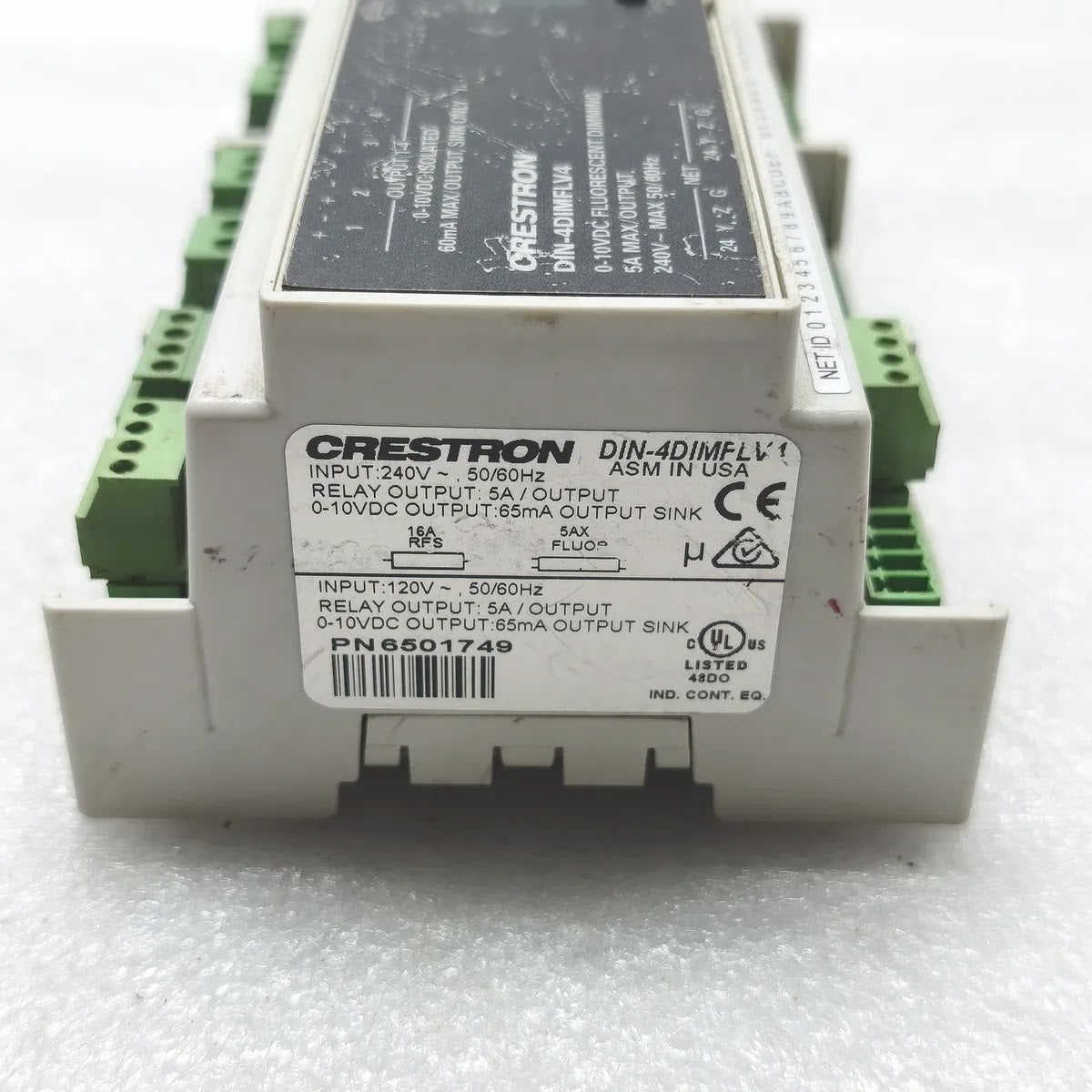

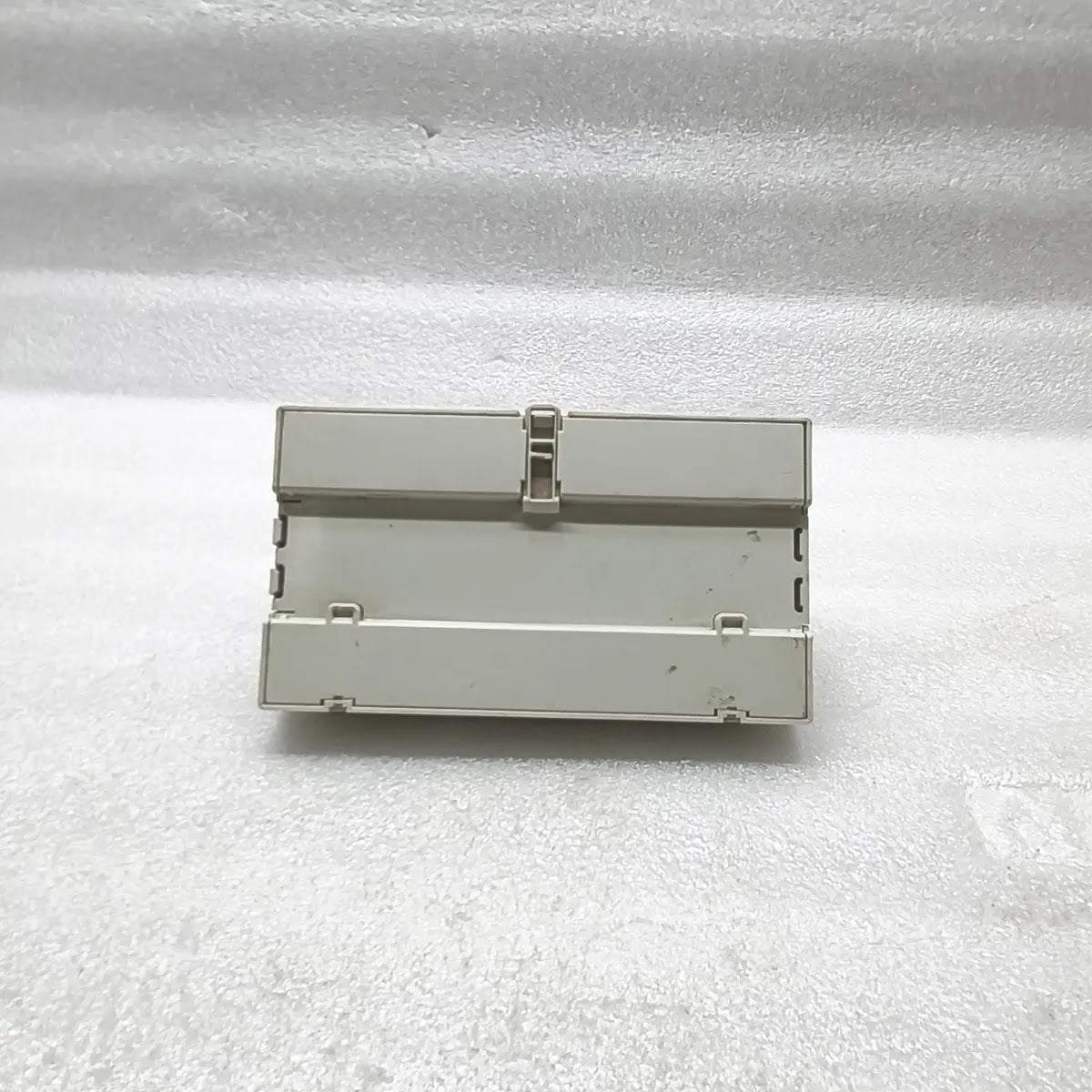

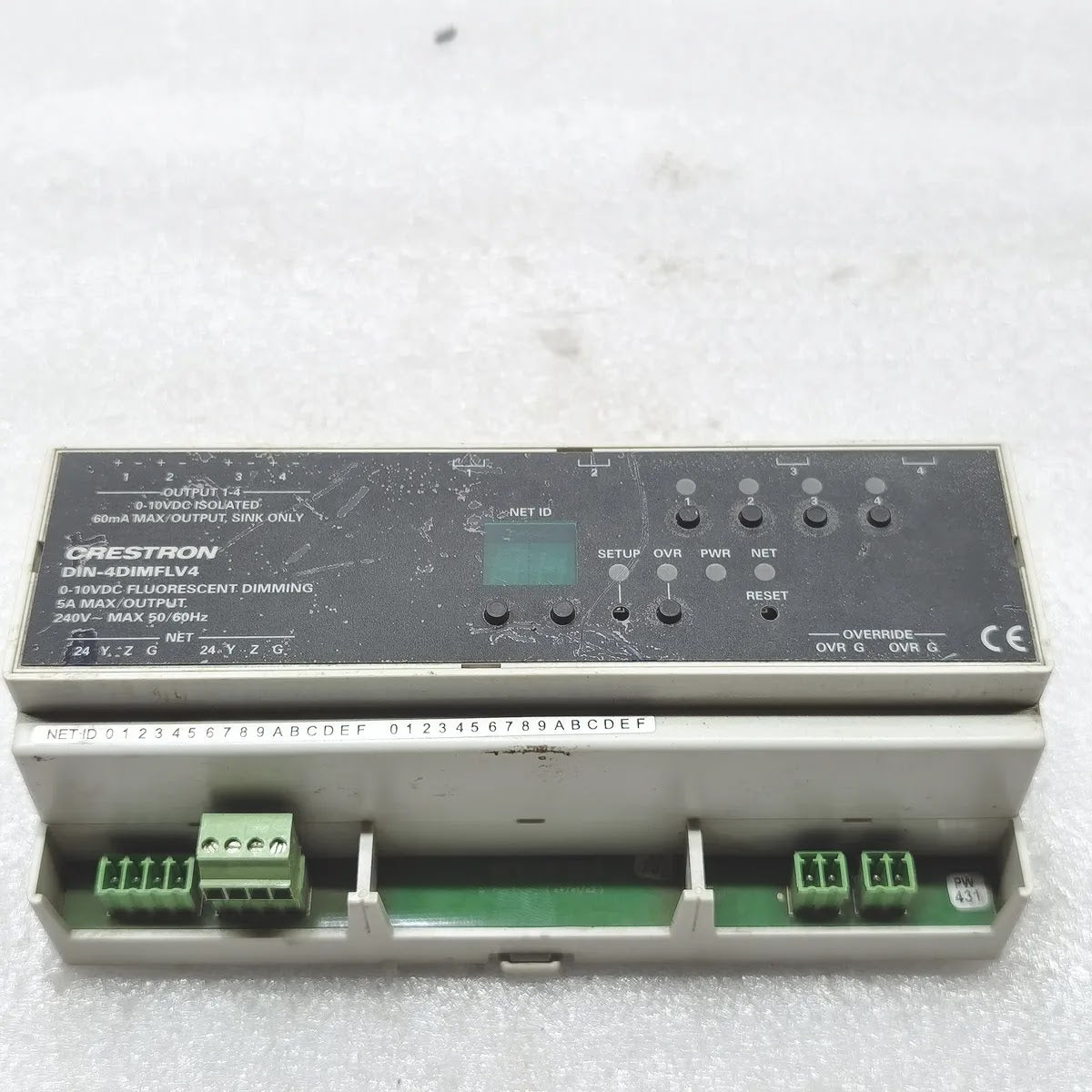

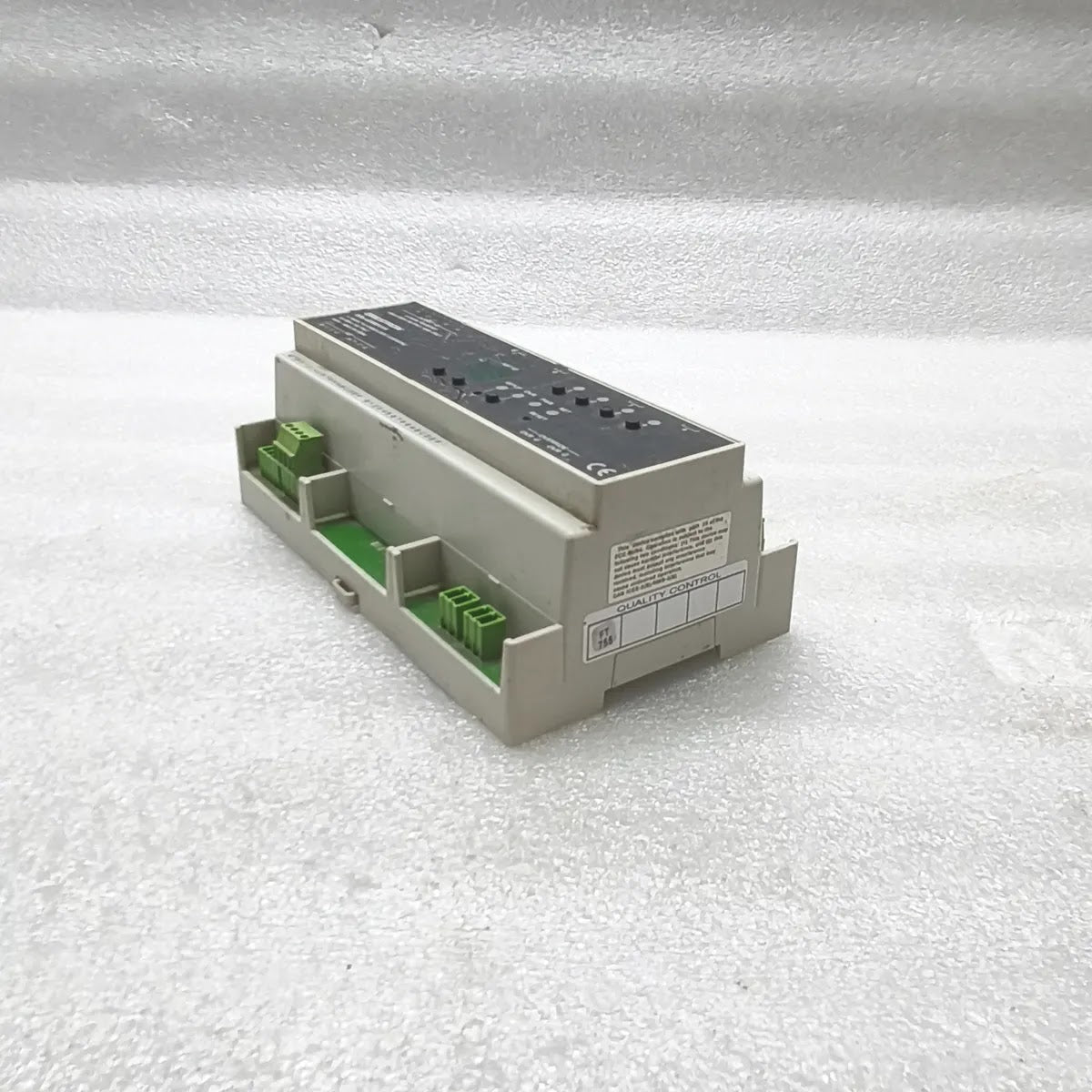

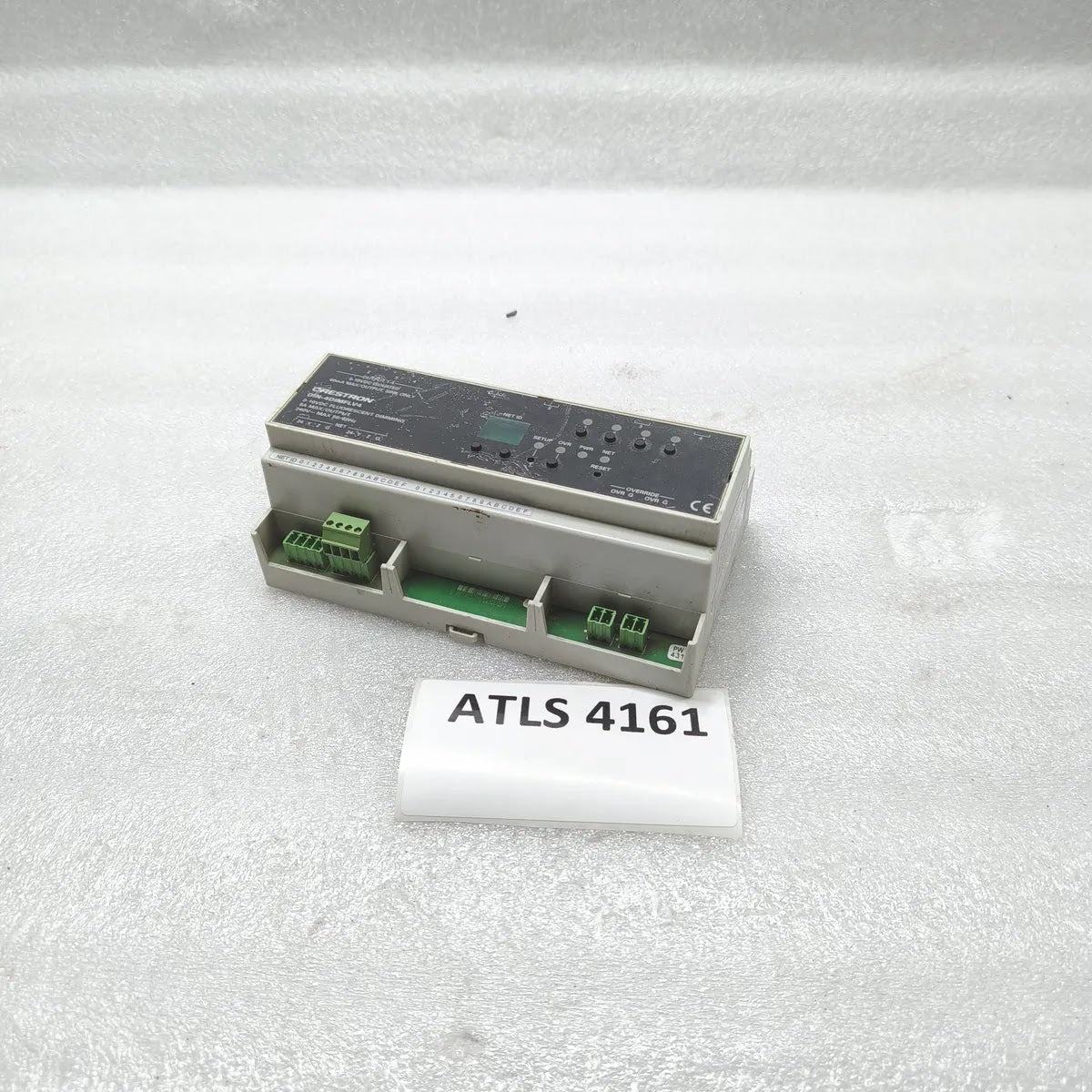

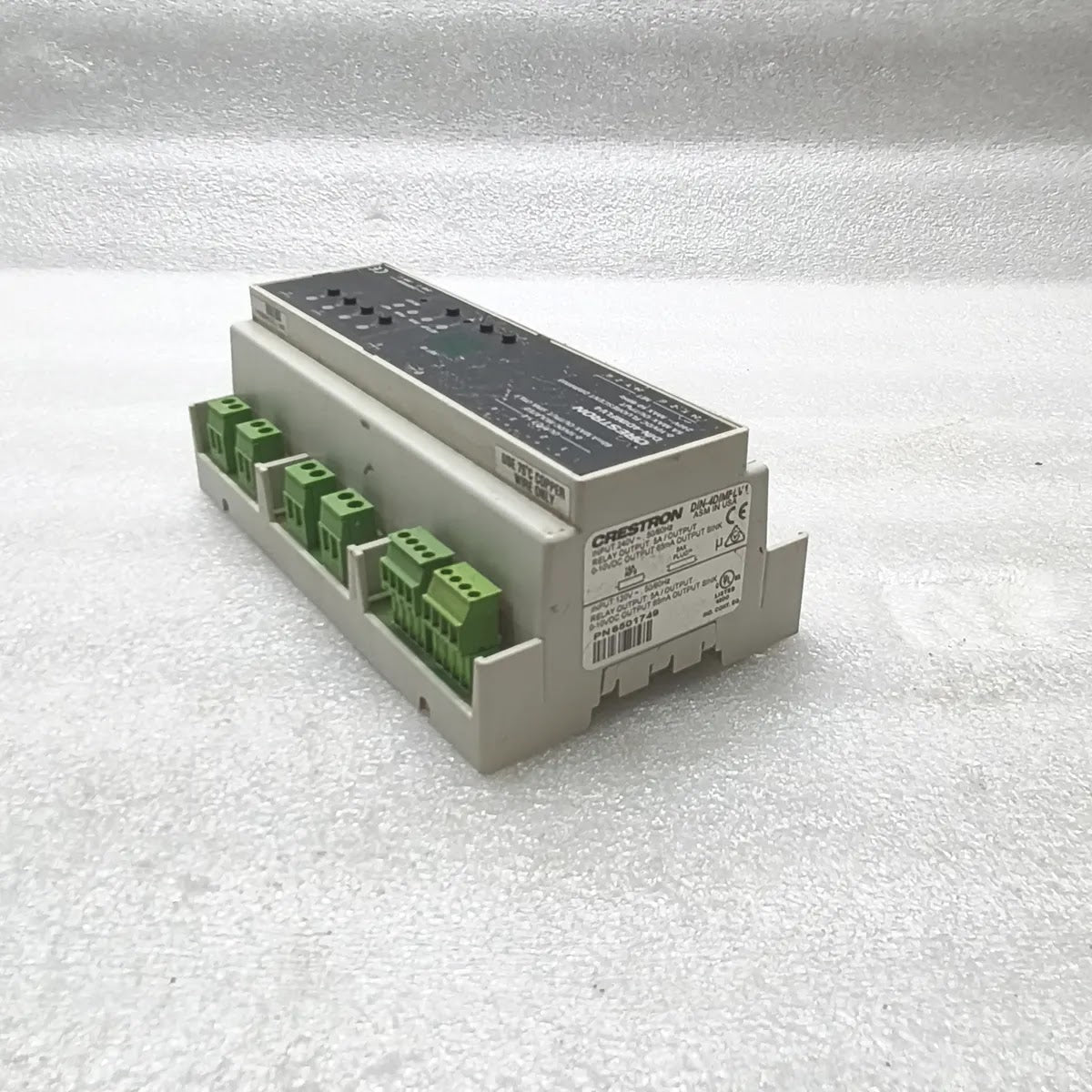

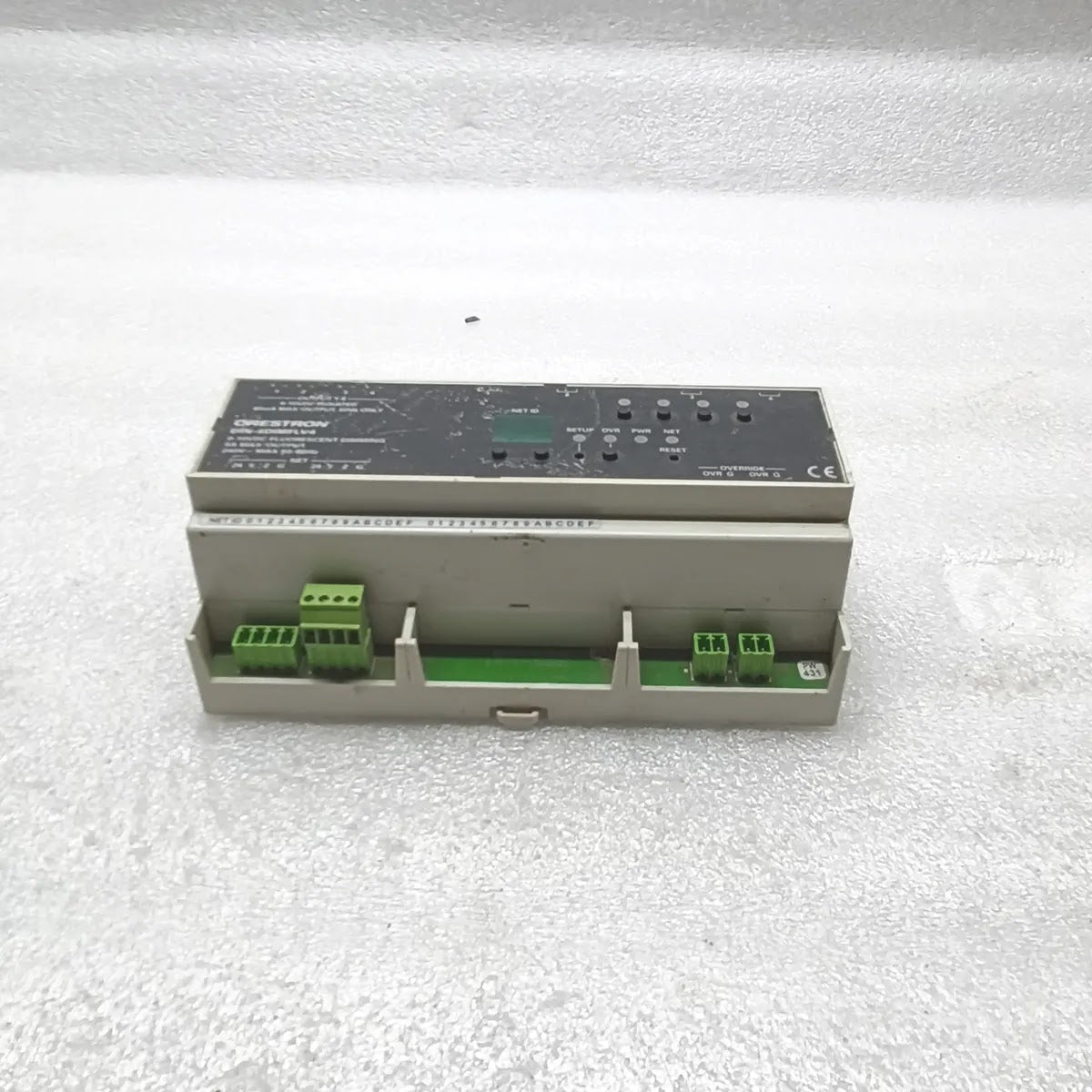

CRESTRON DIN-4DIMFLV4 0-10V Dimmer Module 4-Channel 5A 240V
$145.99
Skip to product information
CRESTRON DIN-4DIMFLV4 0-10V Dimmer Module 4-Channel 5A 240V
$145.99
CRESTRON DIN-4DIMFLV4 0-10V Dimmer Module 4-Channel 5A 240V
Specifications
| Brand | CRESTRON |
| Model | DIN-4DIMFLV4 |
| Part Number | PN 6501749 |
| Type | 0-10VDC Fluorescent Dimming Module, 4 feeds / 4 channels |
| Series | Crestron DIN Rail Series |
| Supply Voltage | 240V~ MAX 50/60Hz; also rated INPUT 120V~, 50/60Hz |
| Channels | Output 1-4 (4 channels) |
| Relay Output | 5A / output (5A MAX/OUTPUT) |
| Control Output | 0-10VDC isolated, 60mA max per output, sink only; label states 65mA output sink |
| Load Rating | 16A RFS; 5AX FLUOR |
| Motor Capacity | 0.5 HP per channel |
| Network | Cresnet slave, NET ID 0-F, address set on module |
| Dimming Resolution | 1024 levels (10 bit) |
| Application | Dimming of 0-10V fluorescent ballasts and 4-wire LED drivers, max 30 dimmable ballasts/drivers; override input provided |
| Wiring | Use 75°C copper wire only |
| Dimensions | 95mm H x 159mm W x 60mm D (9 DIN module spaces, 162mm) |
| Weight | 260 g (9.2 oz) |
| Approvals | cULus Listed 48DO Ind. Cont. Eq., CE, FCC Part 15 |
| Country Of Origin | ASM IN USA |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4161 |
