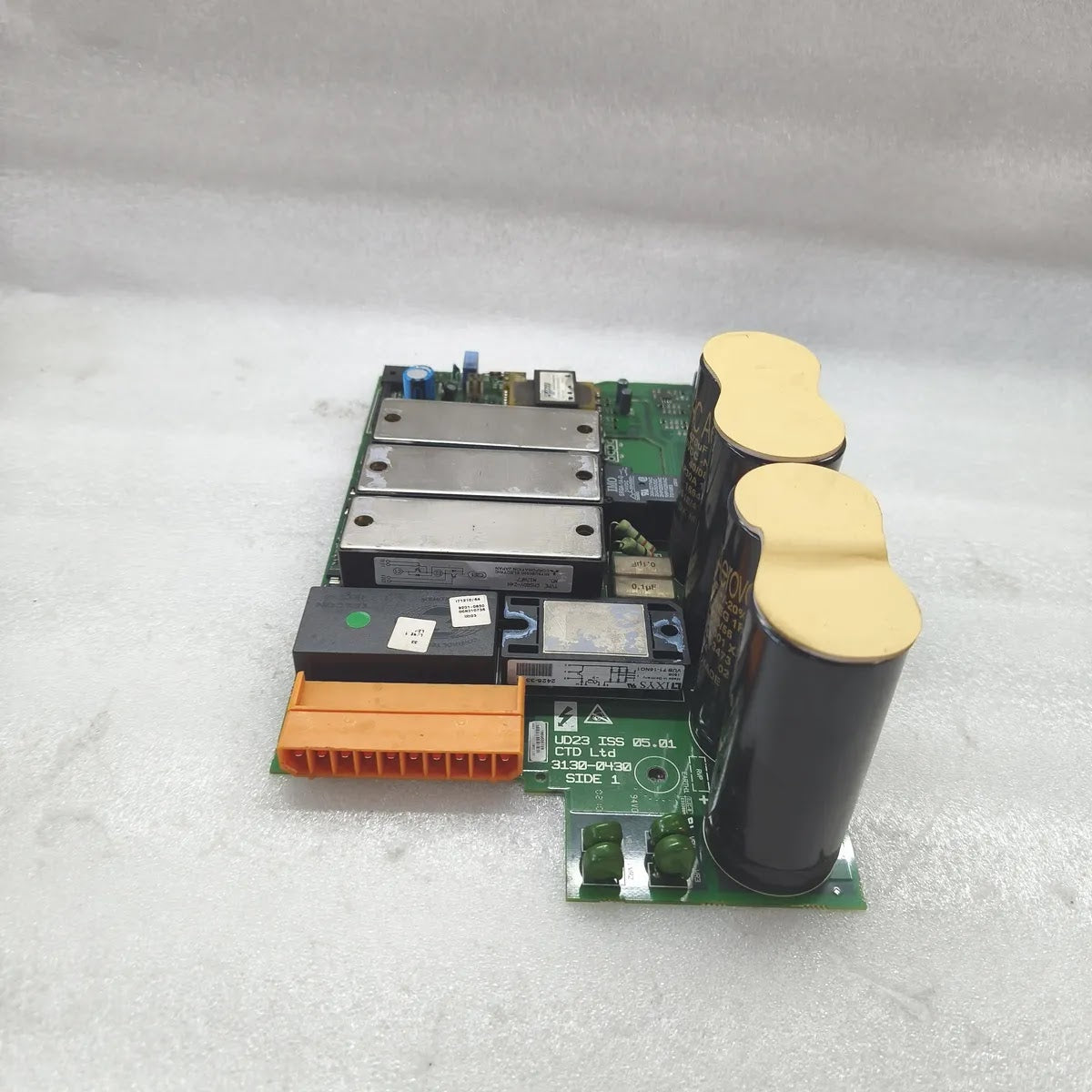

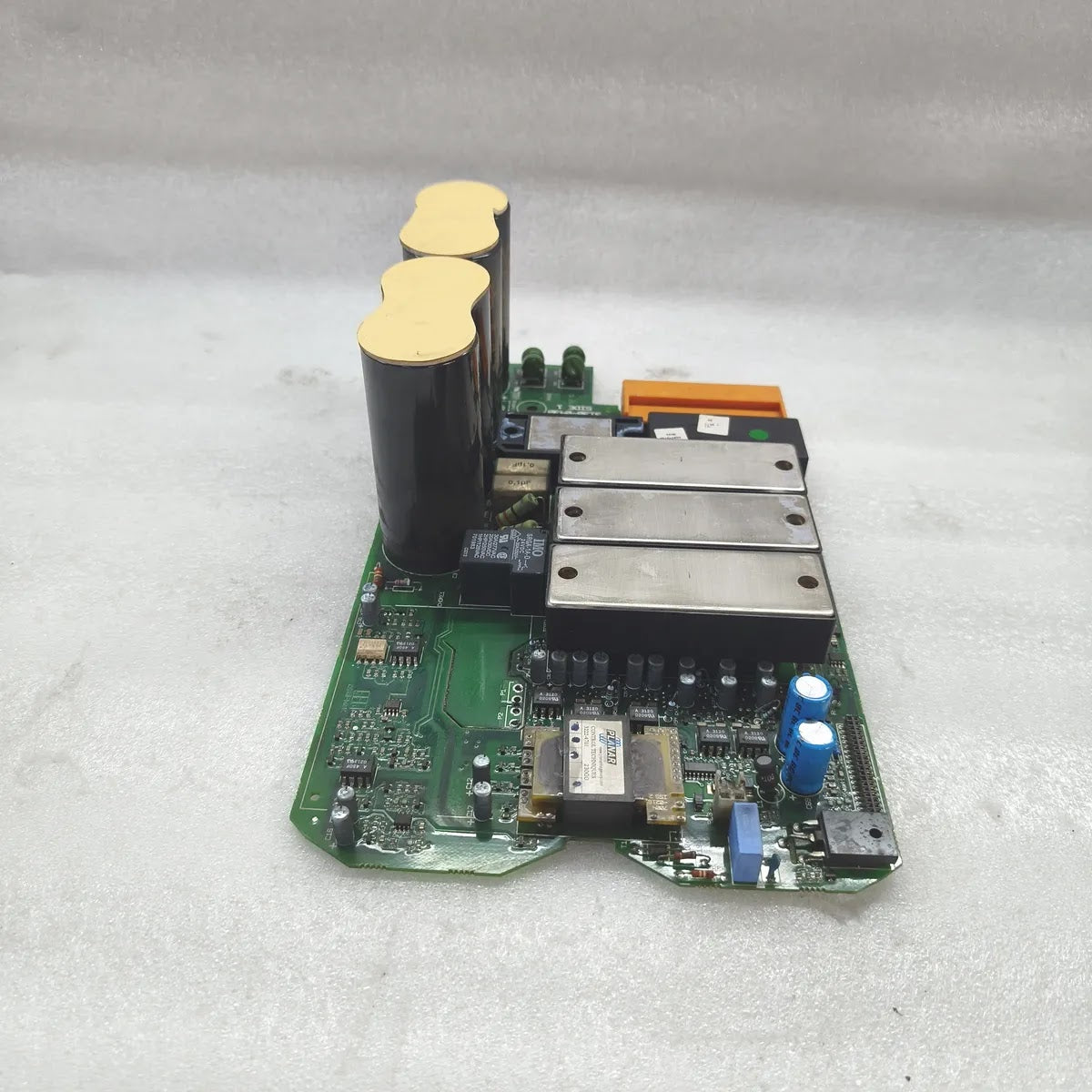

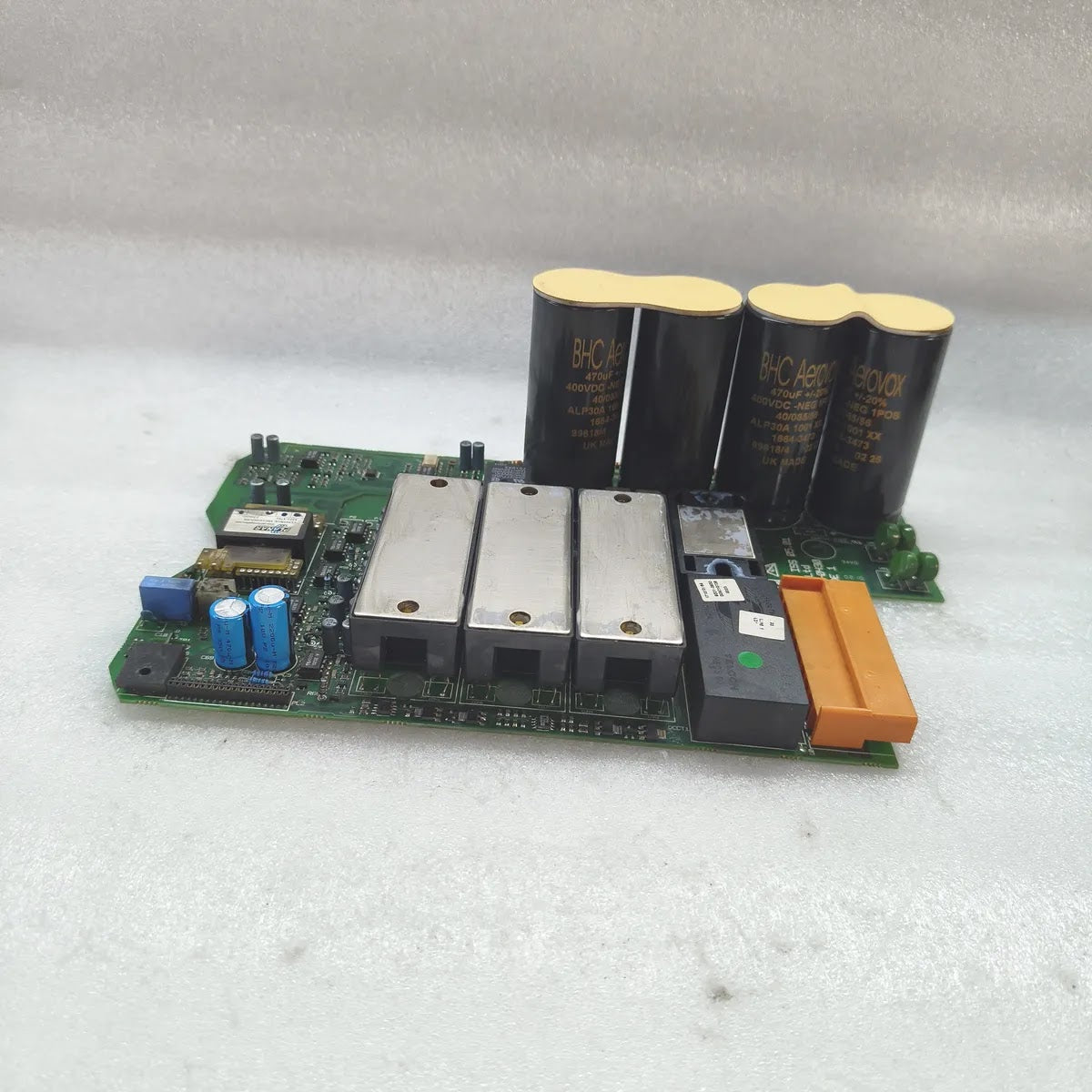

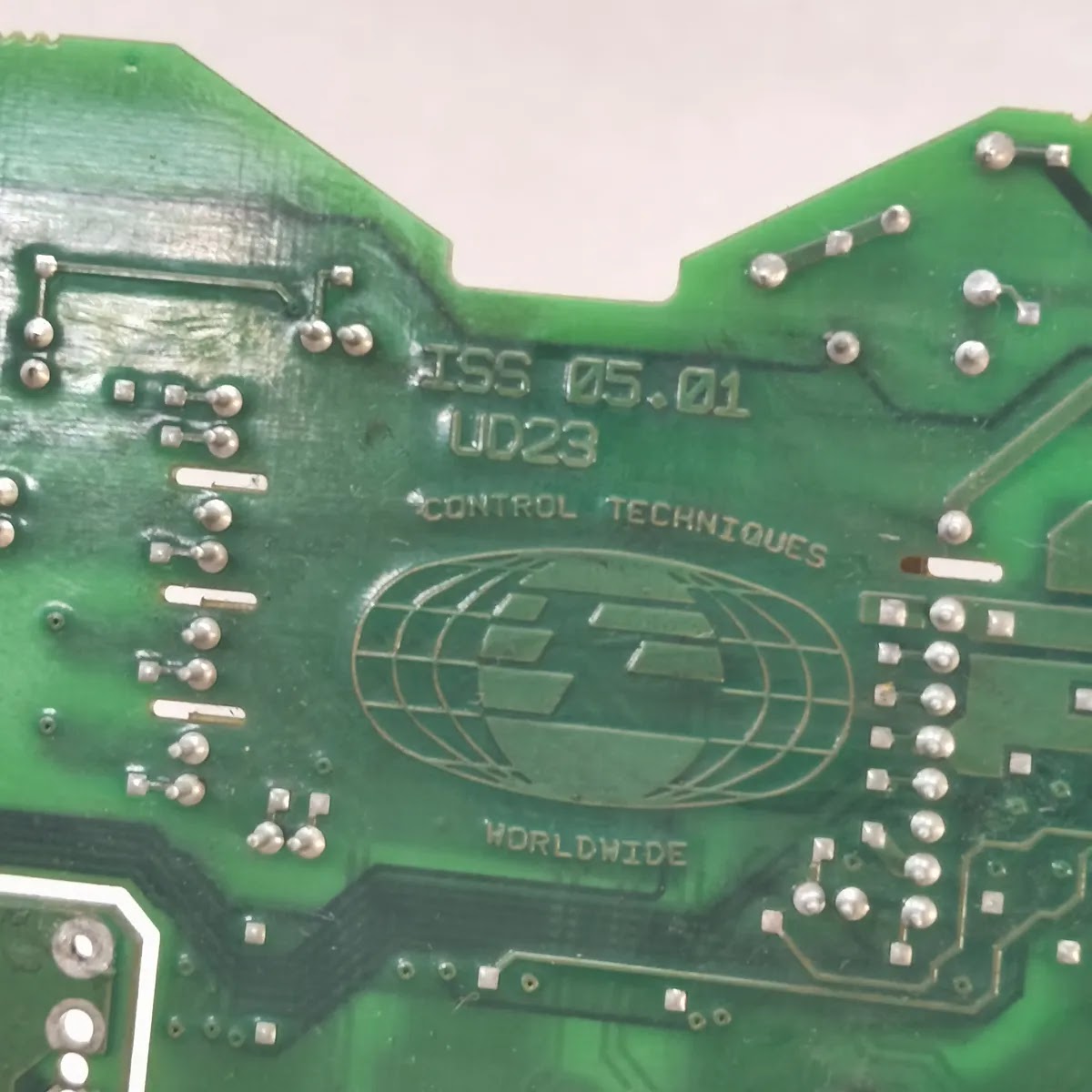

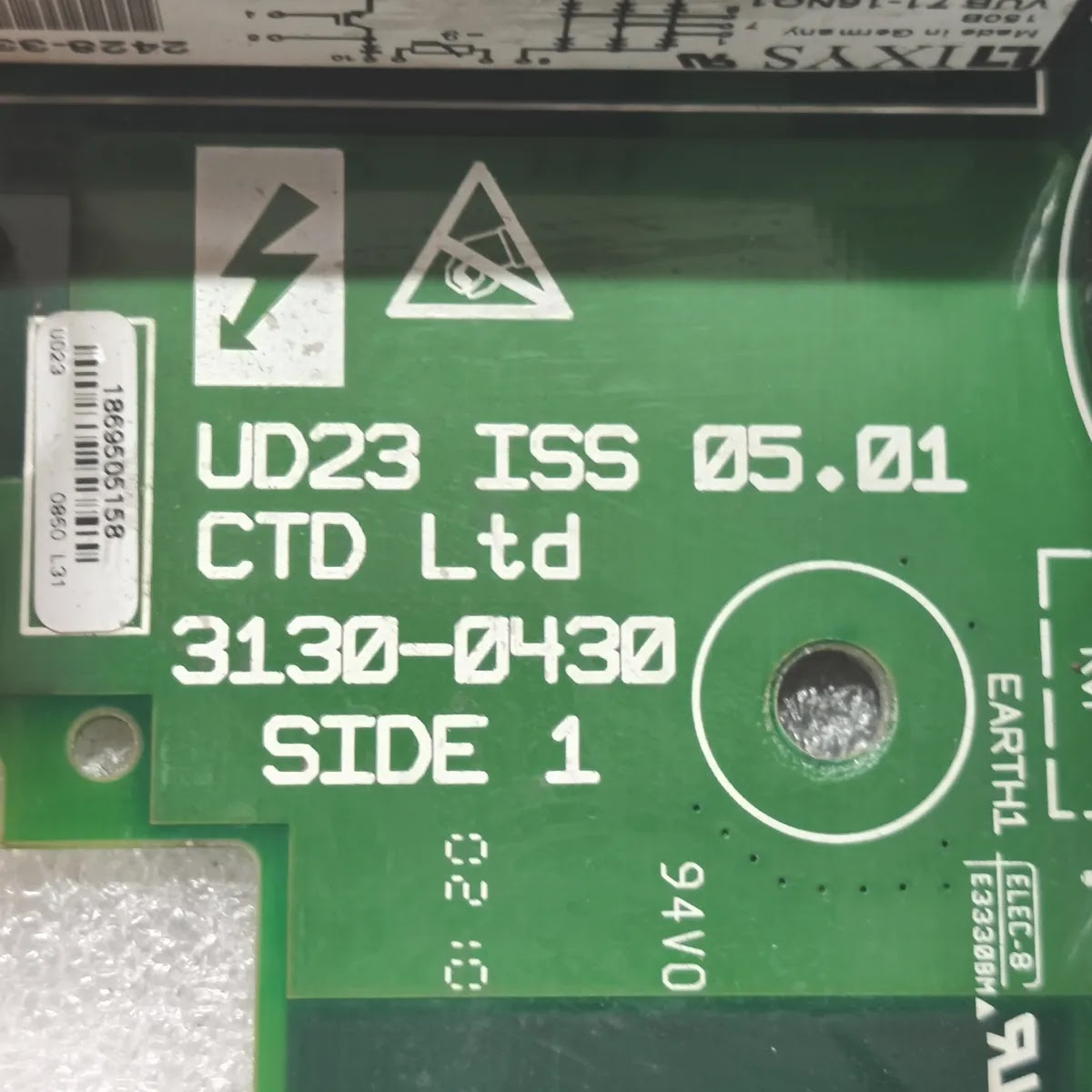

CONTROL TECHNIQUES UD23 3130-0430 ISS 05.01 Unidrive Power Driver Board
$549.99
Skip to product information
CONTROL TECHNIQUES UD23 3130-0430 ISS 05.01 Unidrive Power Driver Board
$549.99
CONTROL TECHNIQUES UD23 3130-0430 ISS 05.01 Unidrive Power Driver Board
Specifications
| Brand | Control Techniques |
| Model | UD23 |
| Part Number | 3130-0430 |

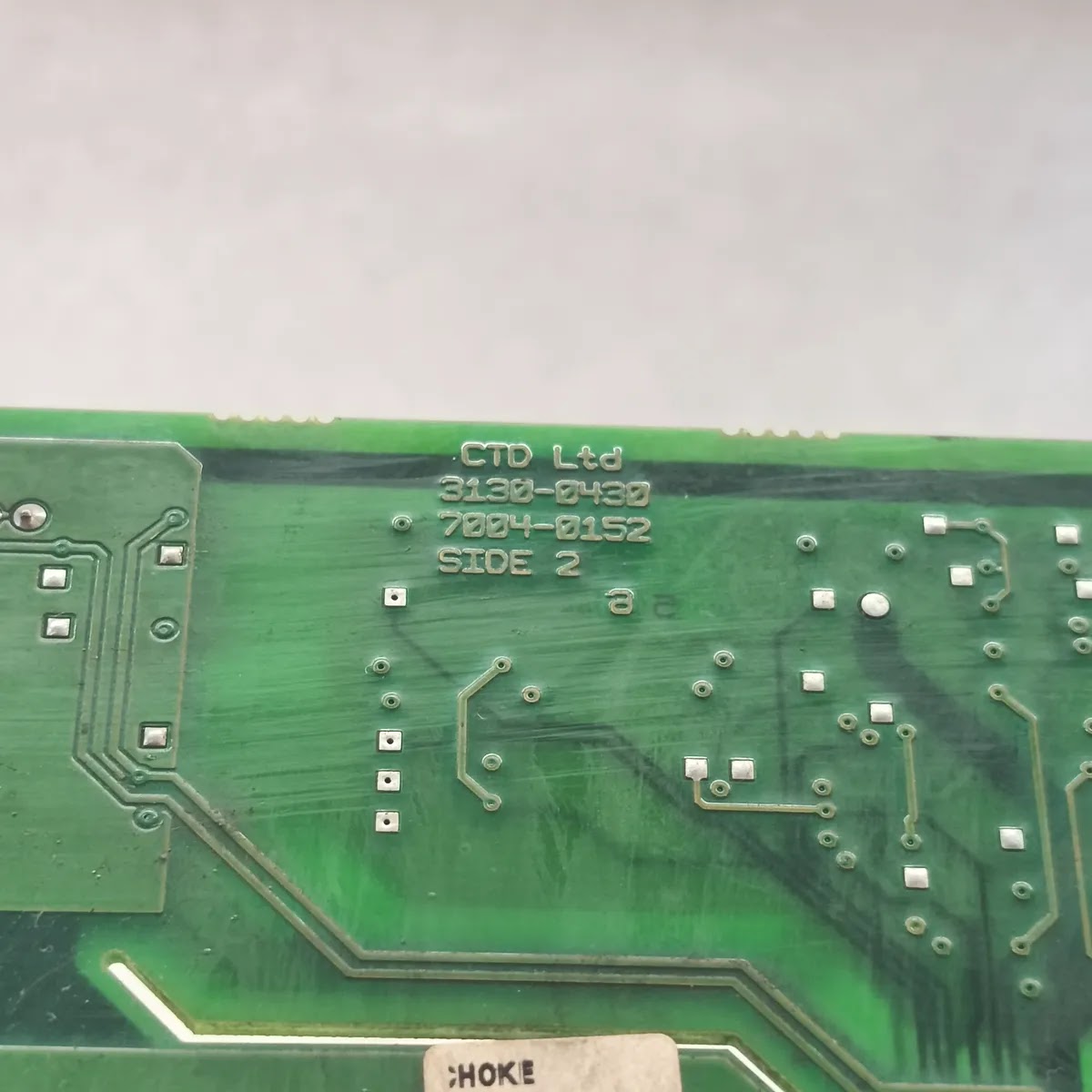

| Pcb Number | 7004-0152 (Side 2 legend) |
| Issue | ISS 05.01 |
| Type | Power / driver printed circuit board |
| Series | Unidrive |
| Board Manufacturer | CTD Ltd |

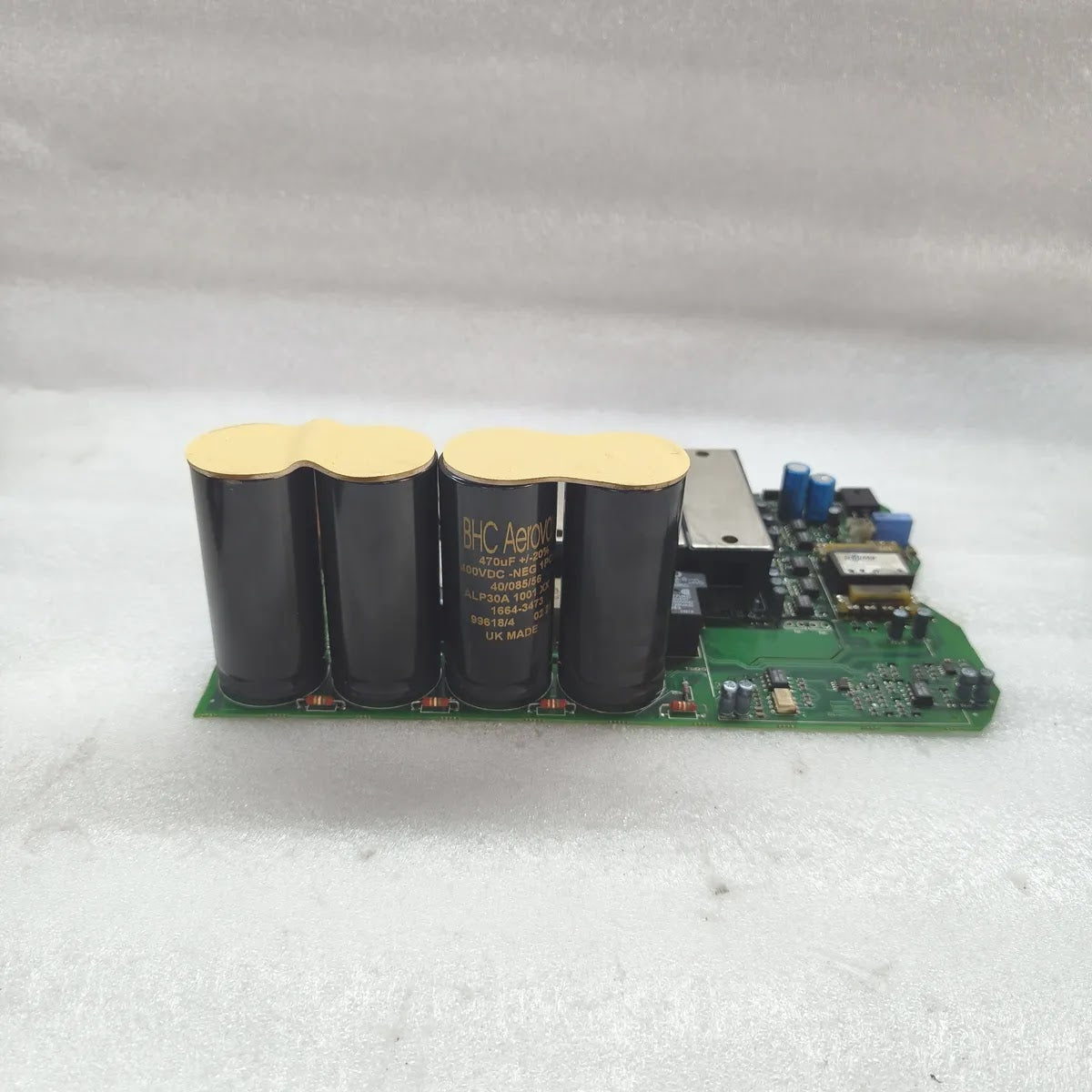

| DC Bus Capacitors | BHC Aerovox ALP30A 1001 XX, 470uF +/-20%, 400VDC, -NEG 1POS, 40/085/56, ref 1664-3473, UK made |
| Film Capacitors | 0,1uF |
| Rectifier Module | IXYS VUB 71-16NO1, made in Germany |
| Power Modules | Mitsubishi Electric Corporation Japan, type CH58DV-24H[?] |
| Onboard Relay | IMO SRGA-1A-D, 24VDC coil, 30A/277VAC, 25A/250VAC, 1HP/125VAC, 2HP/250VAC |
| Current Transducer | Telcon HES 50[?] |
| Gate Drive Transformer | Planar / Control Techniques 1322-4701 ISS 2, 23000 |
| Auxiliary Capacitors | 470uF 50V and 2200uF 10V[?] electrolytics in the control section |
| Surge Protection | Three varistors, VR1 / VR2 / VR3 |
| Approvals | UL recognised, ELEC-8 E33308M; laminate flammability rating 94V-0 |
| Country Of Origin | Not marked on the board; DC bus capacitors UK made, rectifier module made in Germany |
| Condition | PRE-OWNED / SECOND HAND |

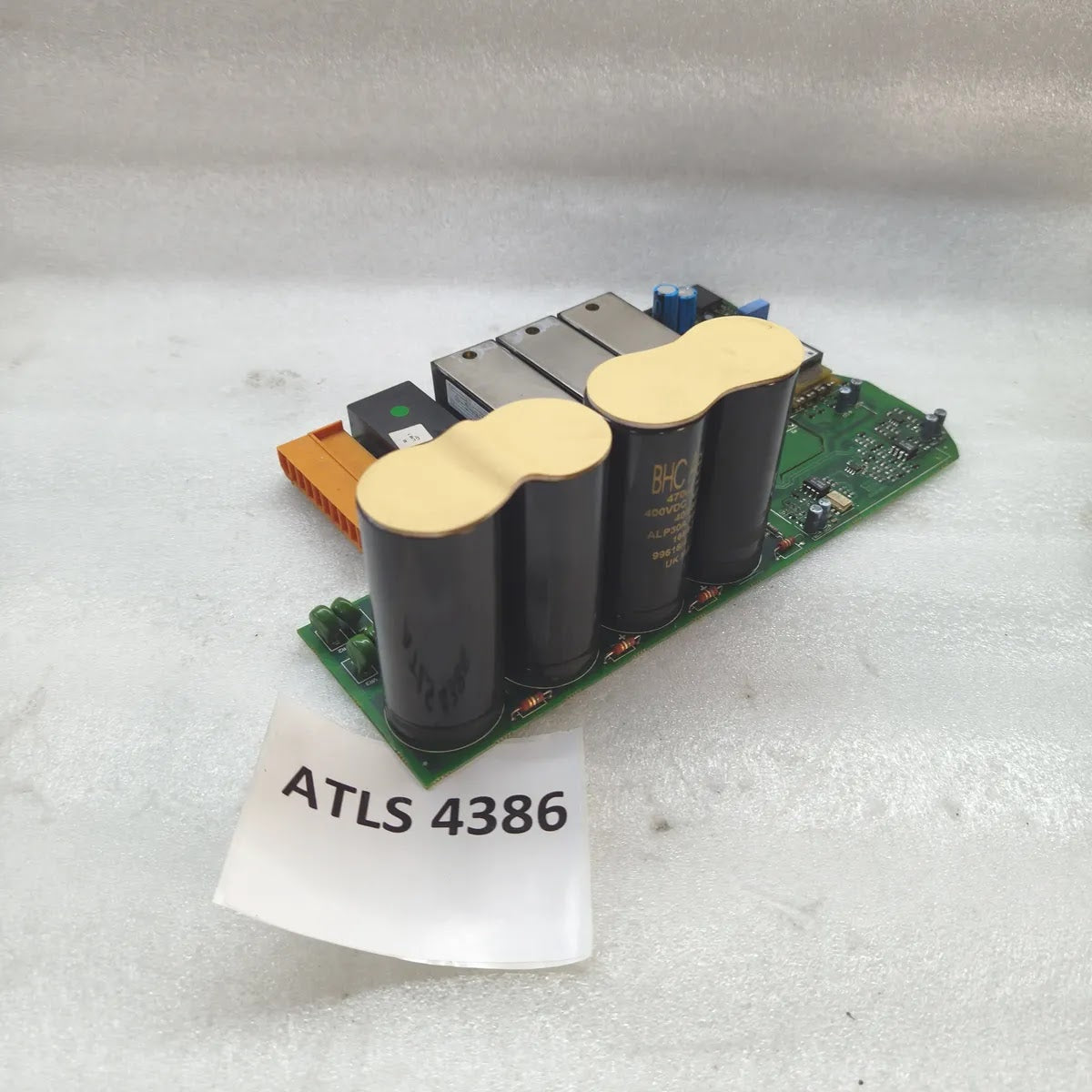

| REF | ATLS4386 |
| Category | Other Automation Equipment |
