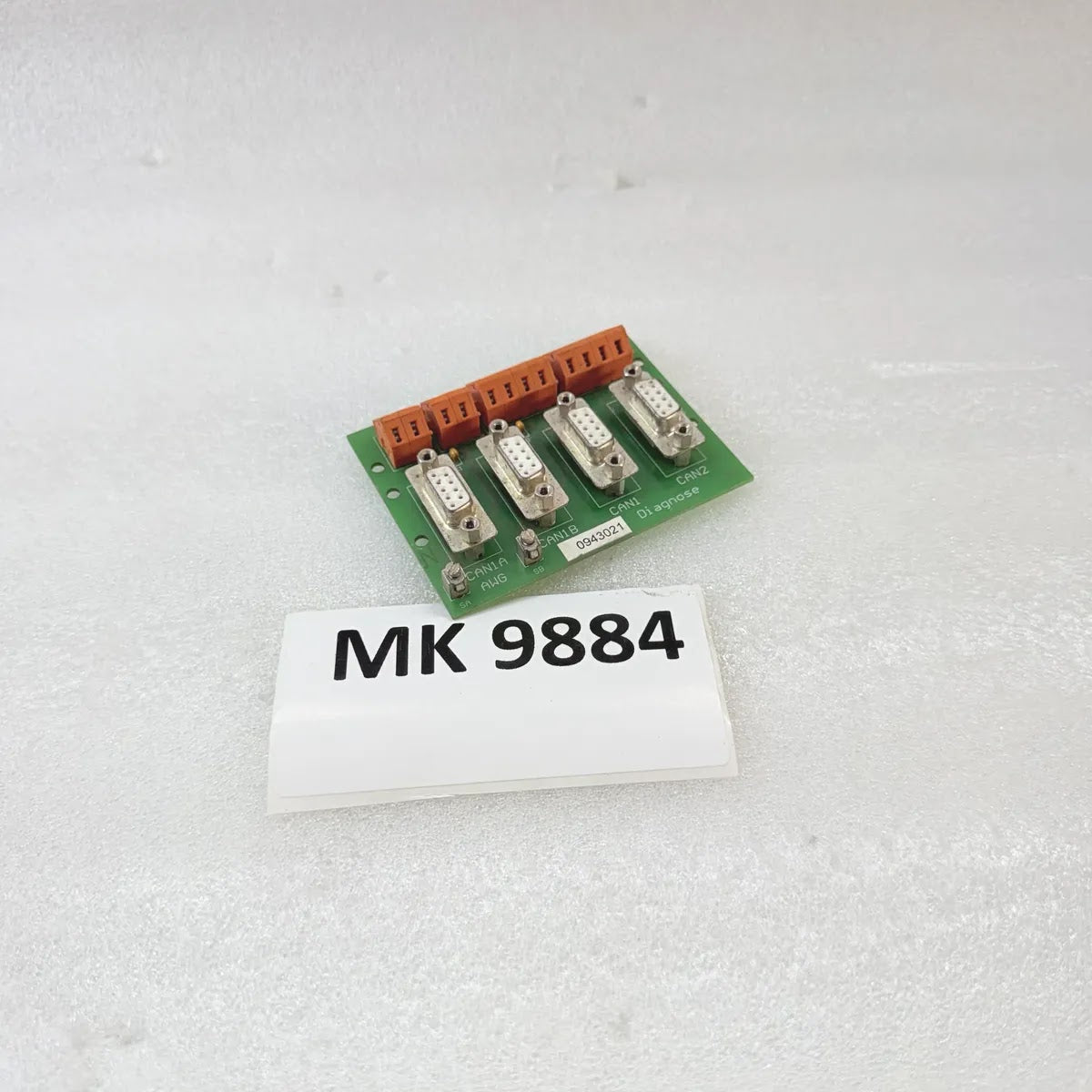

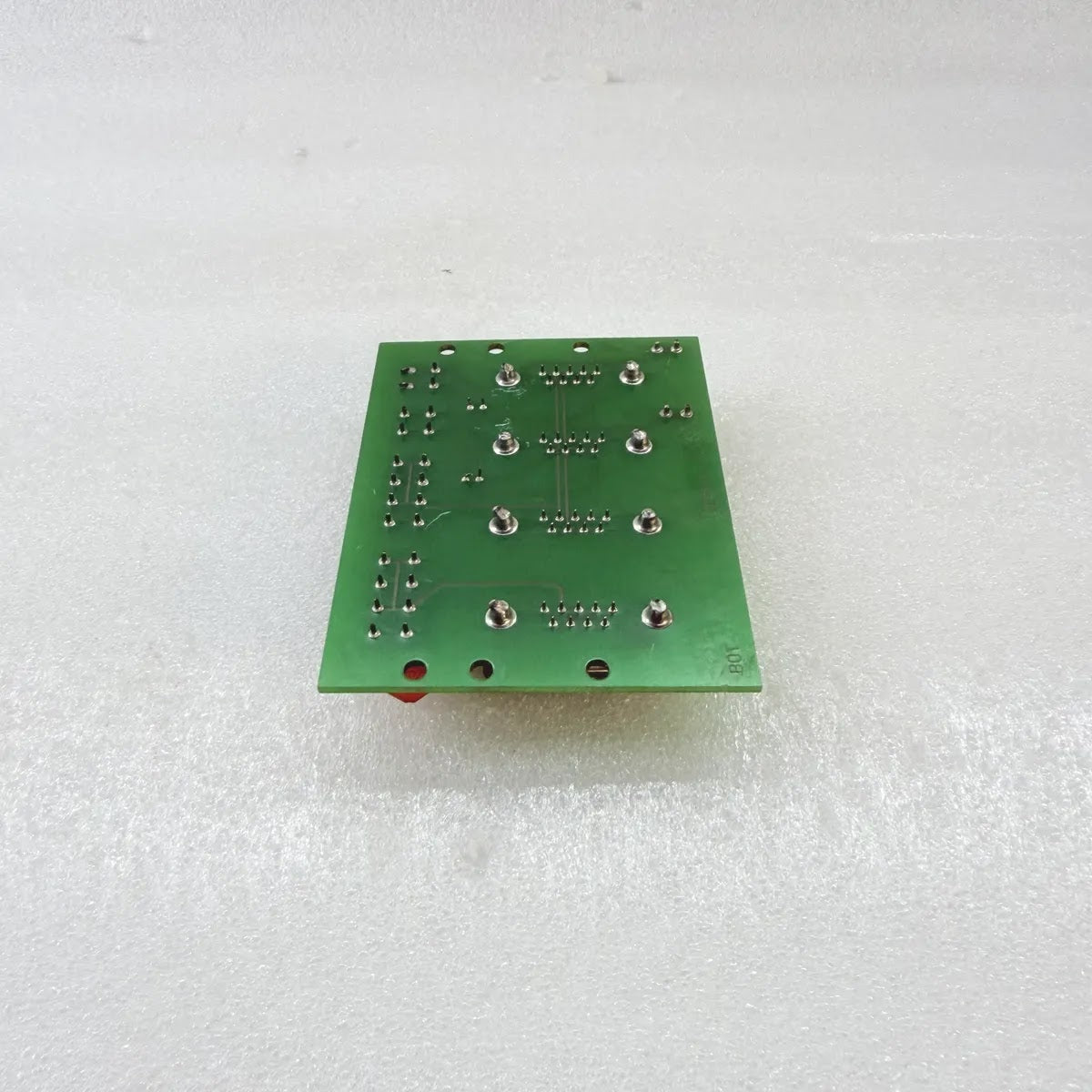

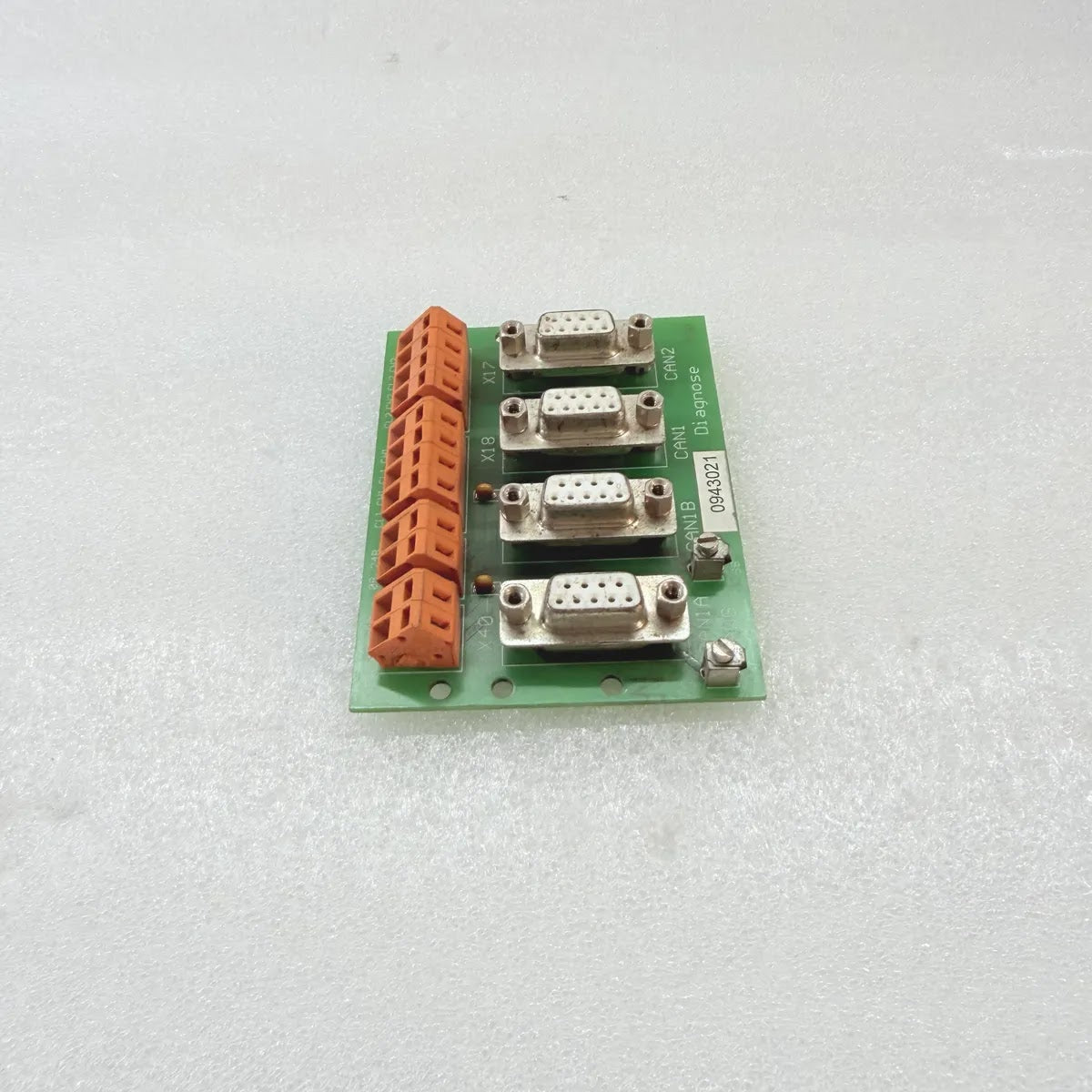

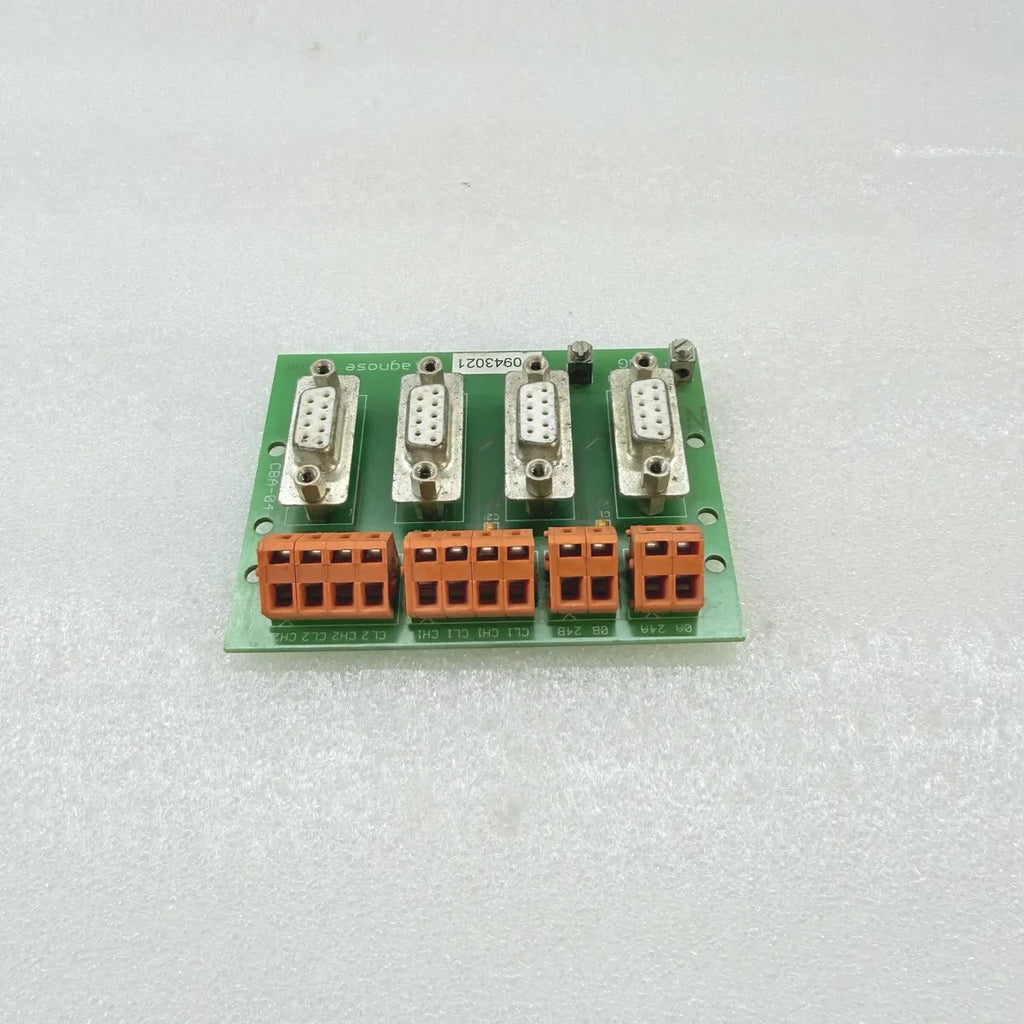

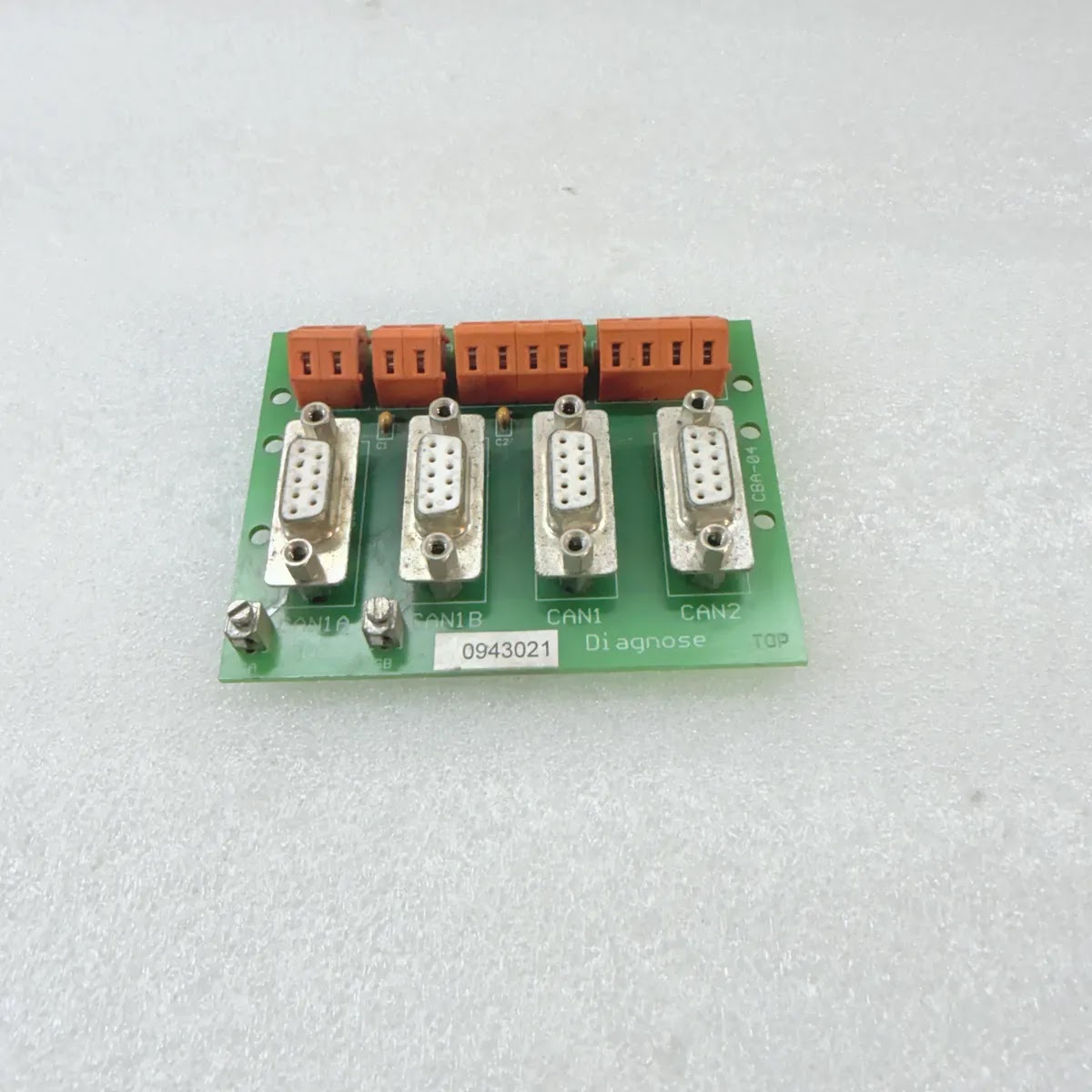

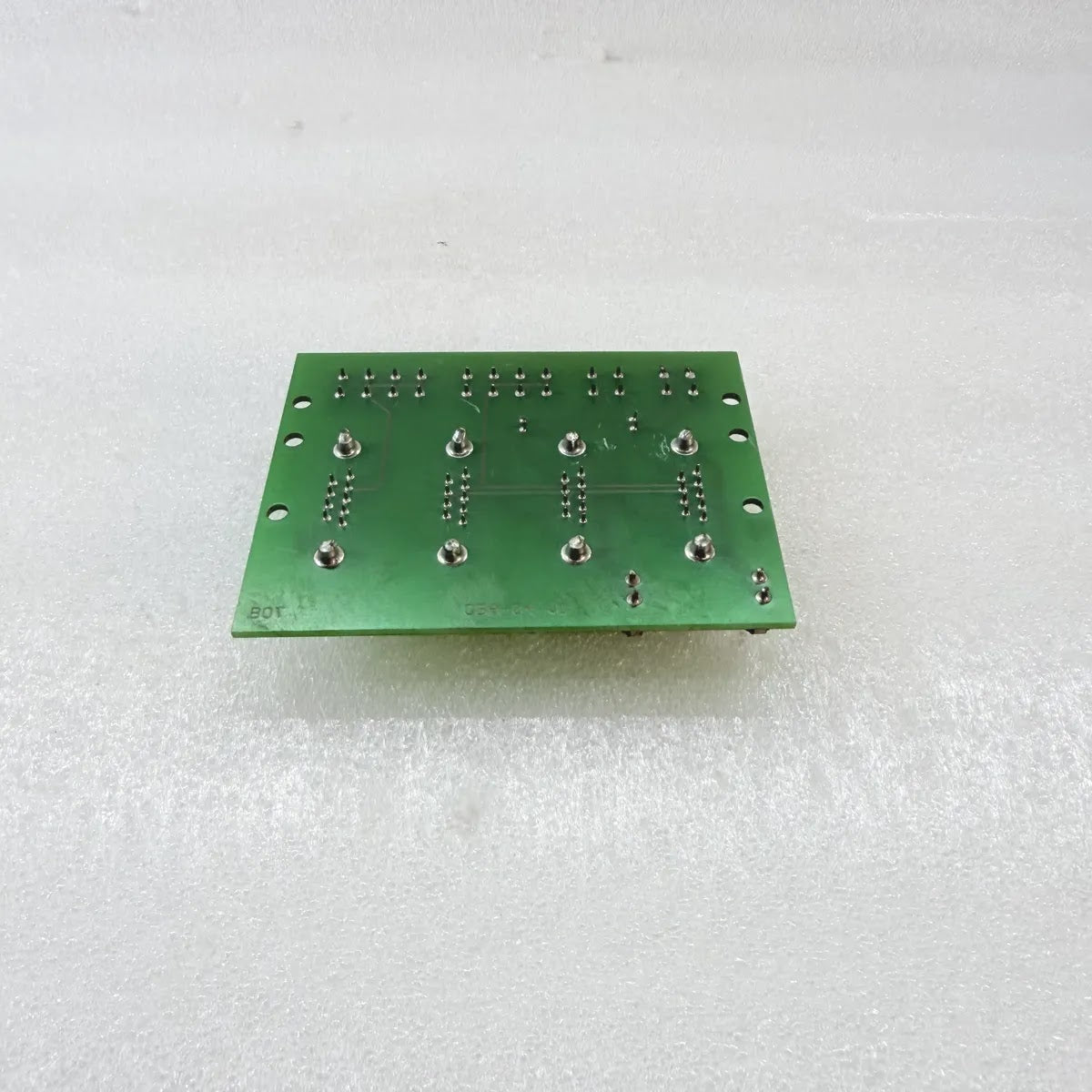

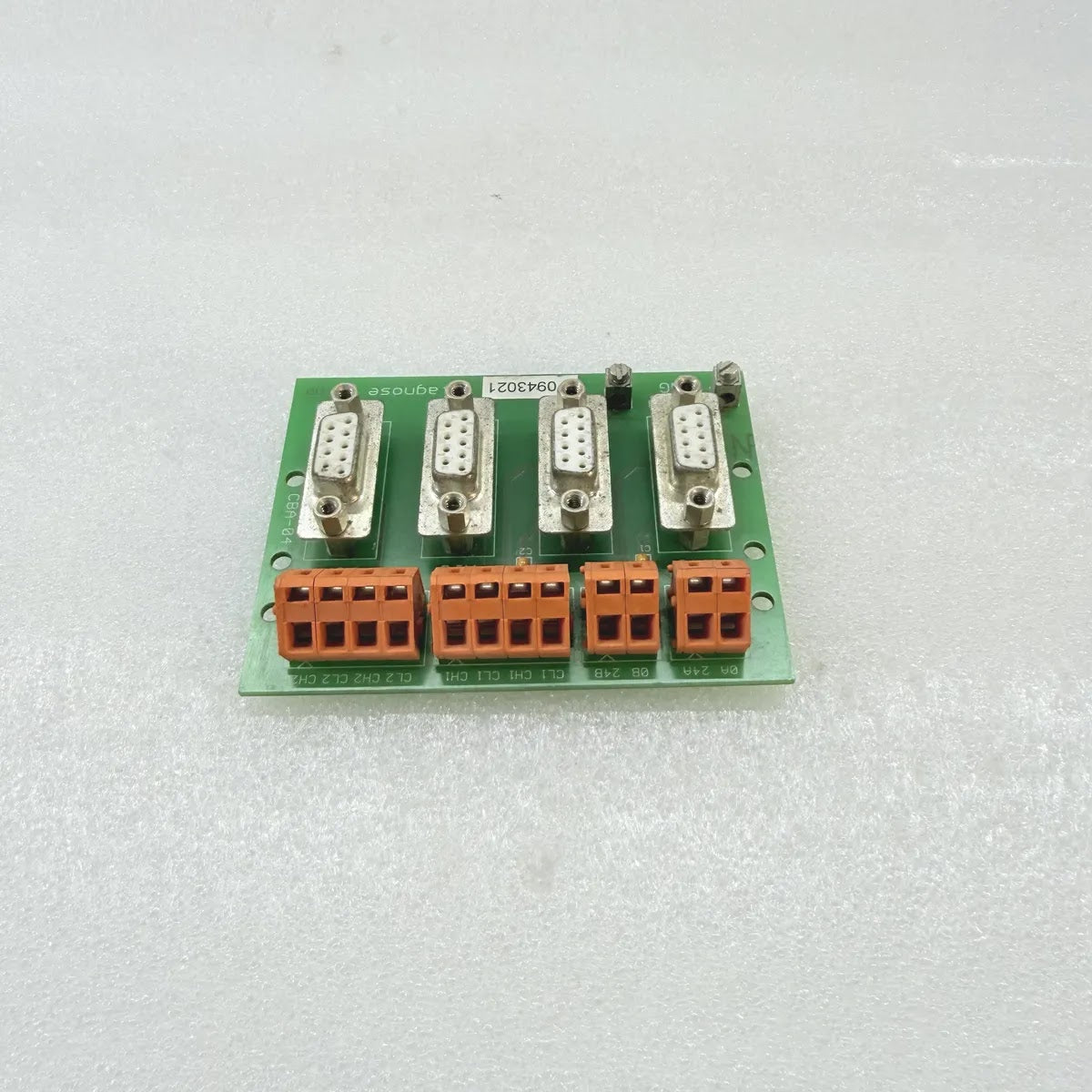

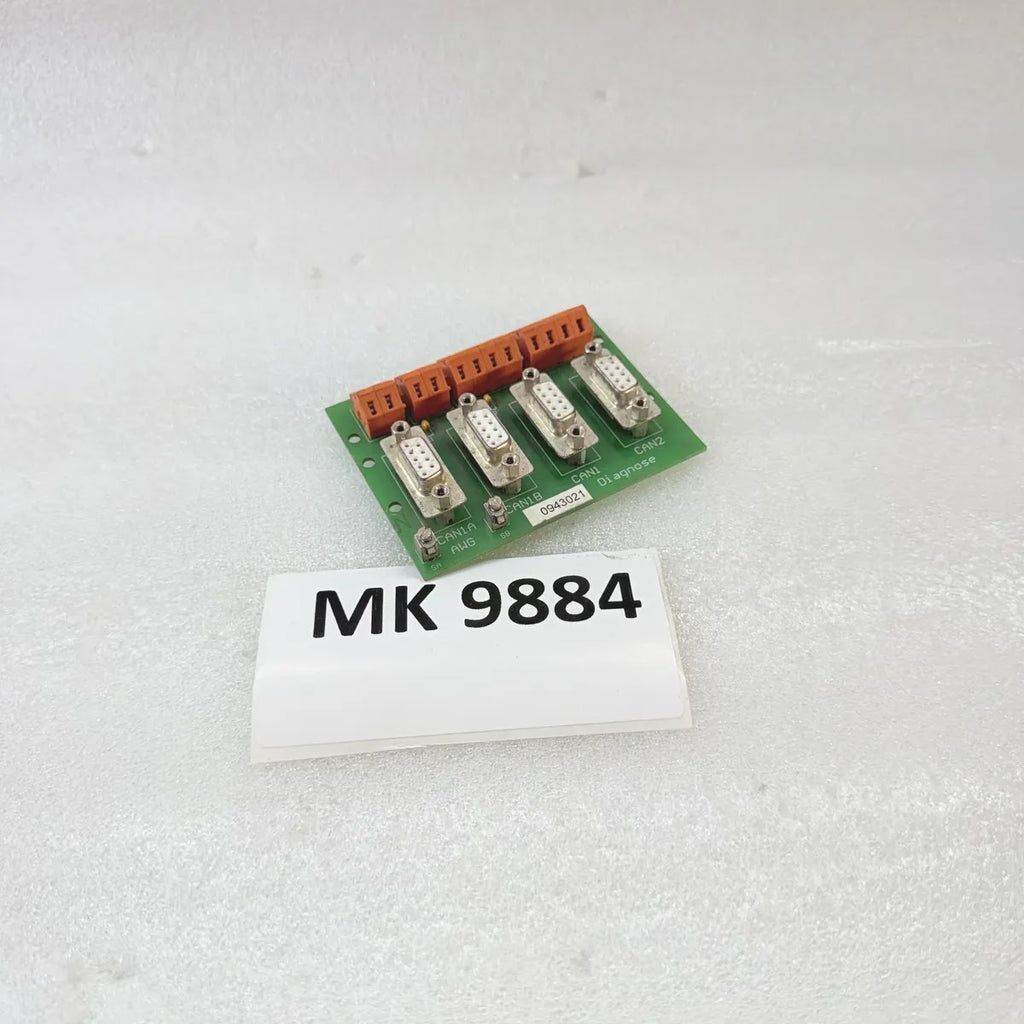

CBA-04 0943021 CAN Bus Diagnostic Board 4-Channel
$315.99
Skip to product information
CBA-04 0943021 CAN Bus Diagnostic Board 4-Channel
$315.99
CBA-04 0943021 CAN Bus Diagnostic Board 4-Channel
Specifications
| Model | CBA-04 |
| Part Number | 0943021 (label on board) |
| Type | CAN Bus Diagnostic Interface Board |
| Function | Diagnose - CAN bus diagnostic distribution board |
| Can Channels | 4 - CAN1A, CAN1B, CAN1, CAN2 |
| Bus Signals | CH1 / CL1 and CH2 / CL2 (CAN high and CAN low, two bus circuits) |
| Supply Voltage | 24V DC, two supply circuits (0A / 24A and 0B / 24B) |
| Circuit References | X17, X18, X40 |
| Application | CAN bus diagnostics and bus distribution in industrial and marine control systems |
| Condition | PRE-OWNED / SECOND HAND |
| REF | MK9884 |
