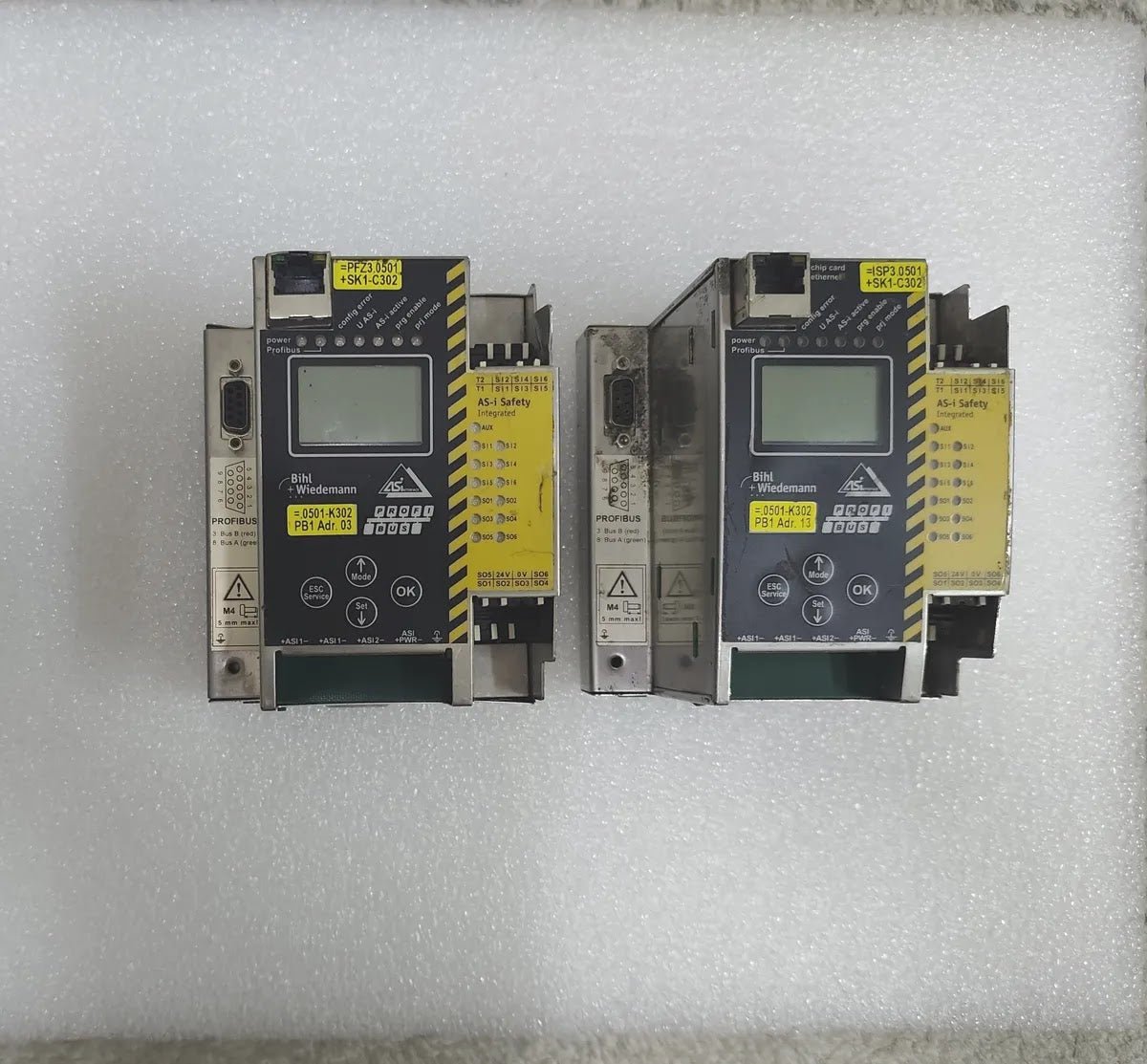

BIHL+WIEDEMANN BWU3275 AS-i 3.0 PROFIBUS Gateway 30V
$470.99
Skip to product information
BIHL+WIEDEMANN BWU3275 AS-i 3.0 PROFIBUS Gateway 30V
$470.99
Specifications
| BRAND | Bihl+Wiedemann |
| MODEL | BWU3275 |
| ART. NO | BWU3275 |
| IDENT NO | 16406 |
| TYPE | AS-i 3.0 PROFIBUS Gateway with integrated Safety Monitor |
| SERIES | AS-i 3.0 (ASi-3) |
| AS-I MASTERS | 2 masters with 1 power supply for 2 AS-i networks |
| SAFETY MONITOR | Integrated, 32 release circuits |
| DIAGNOSTIC FUNCTIONS | Duplicate address recognition and AS-i inspector |
| SUPPLY VOLTAGE | AS-i +: 30V / AS-i -: 0V |
| POWER CONSUMPTION | 9W |
| CURRENT RATING | Max. 4A per AS-i network |
| SAFE INPUTS | 3 x 2 channel safe inputs, expandable to max. 62 x 2 channel |
| SAFE OUTPUTS | 6 release circuits (6 electronic safe outputs), expandable to max. 32 safe outputs |
| SAFETY LEVEL | Up to Category 4 / PL e / SIL 3 |
| PROTECTION DEGREE | IP20 |
| DIMENSIONS | 100 x 120 x 90 mm (with RJ45 connector) |
| APPROVALS | CE, UL Listed Industrial Control Equipment 1HD8, AS-Interface certified |
| YEAR OF CONSTRUCTION | 2016 |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 2 |
| REF | NTD012 |
Shipping & Handling
Ships worldwide from India via DHL, UPS, or Aramex with full tracking. Items are securely packed and dispatched promptly after payment.
Import duties, taxes, and customs charges (if applicable) are the buyer's responsibility and are not included in the item price or shipping cost.
