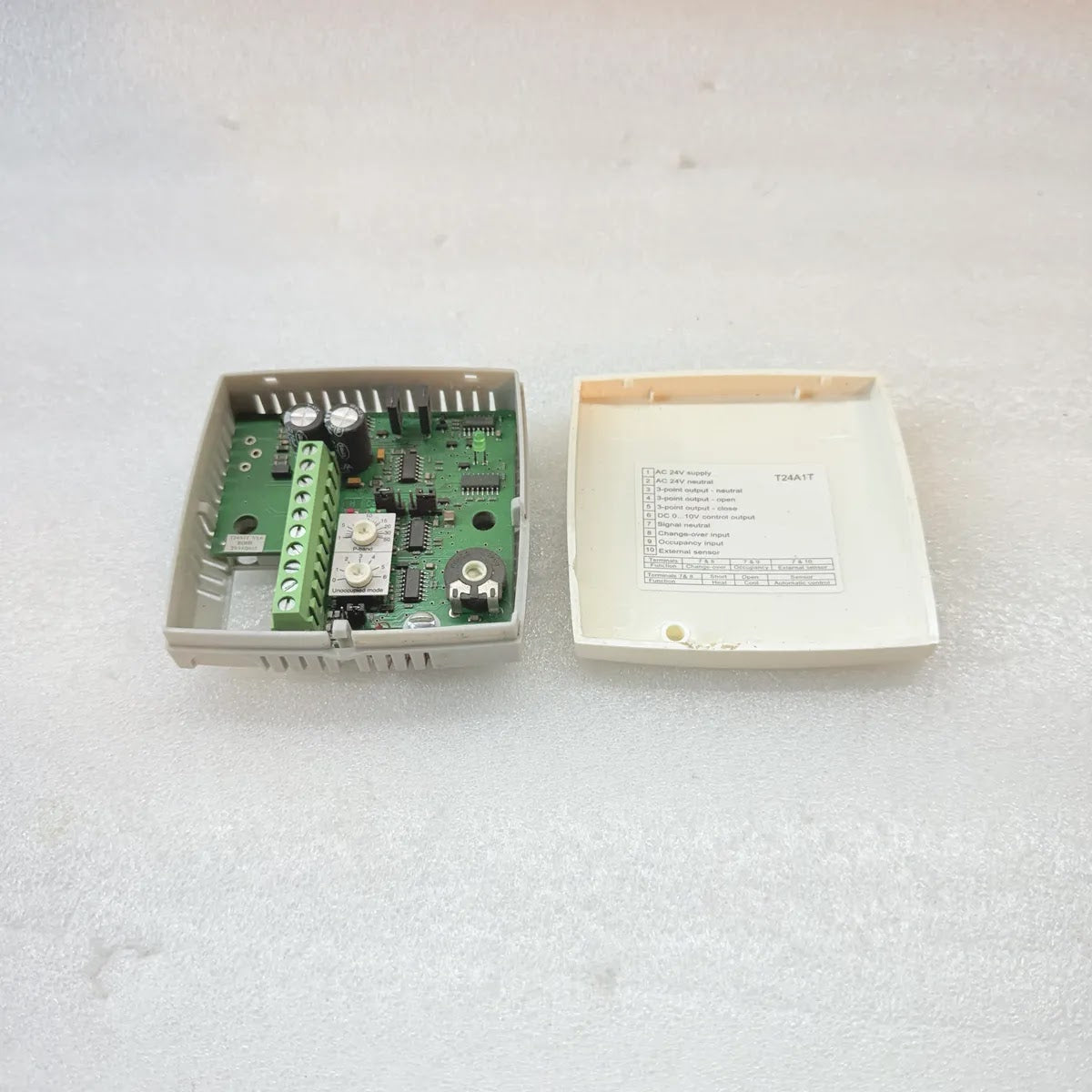

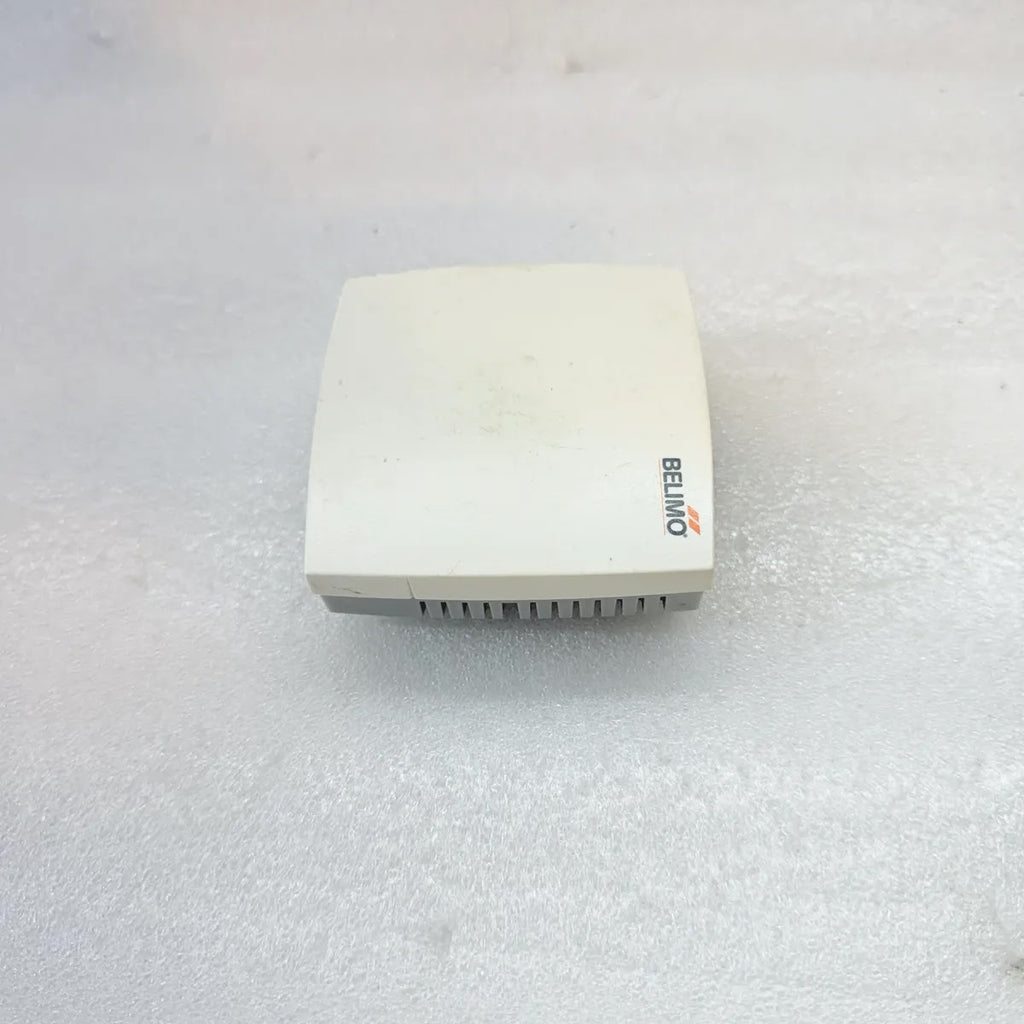

BELIMO T24A1T Room Temperature Controller 24VAC 0-10V
$99.99
Skip to product information
BELIMO T24A1T Room Temperature Controller 24VAC 0-10V
$99.99
BELIMO T24A1T Room Temperature Controller 24VAC 0-10V
Specifications
| Brand | BELIMO |
| Model | T24A1T |
| Part Number | T24A1T |
| Type | Room temperature controller / room thermostat for heating or cooling |
| Series | Room Units, sensors and meters |

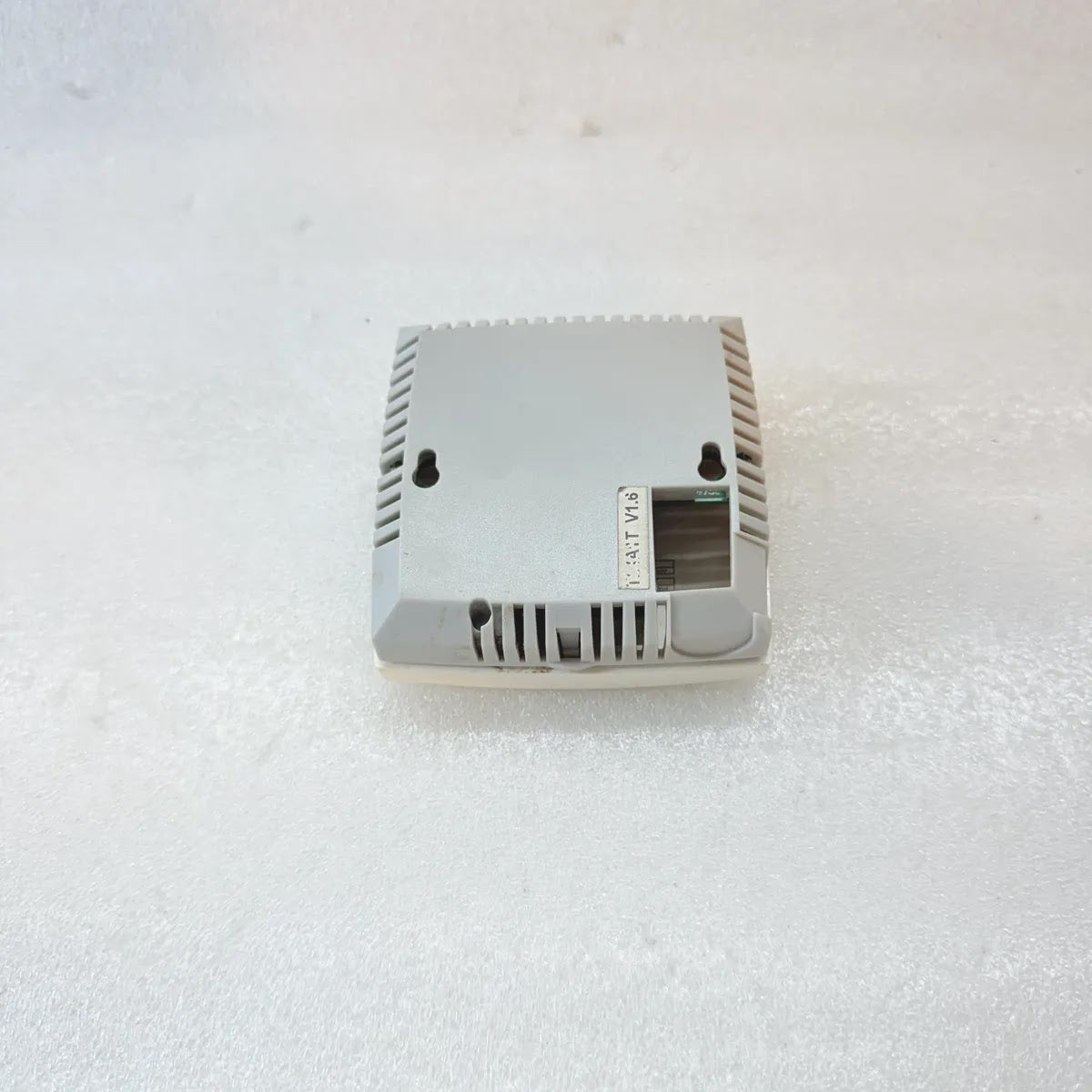

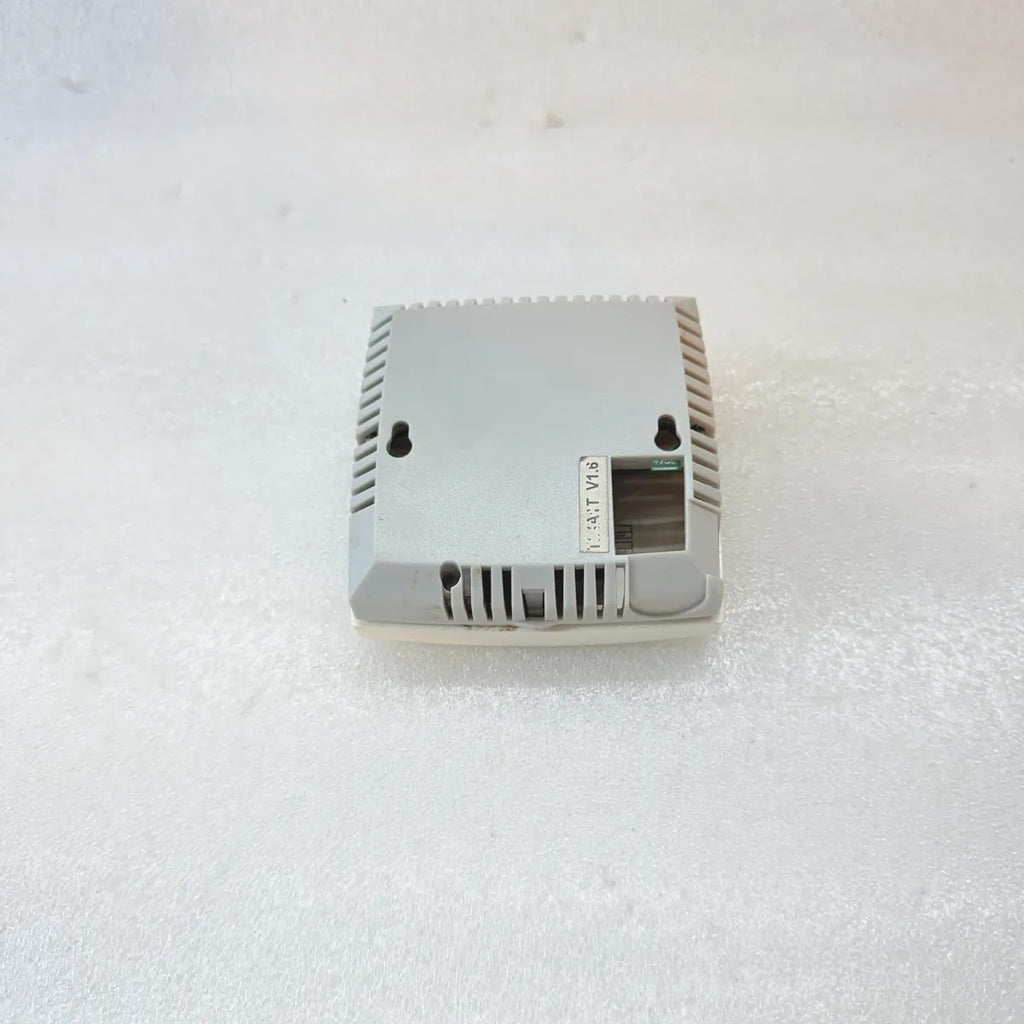

| Revision | V1.6 |

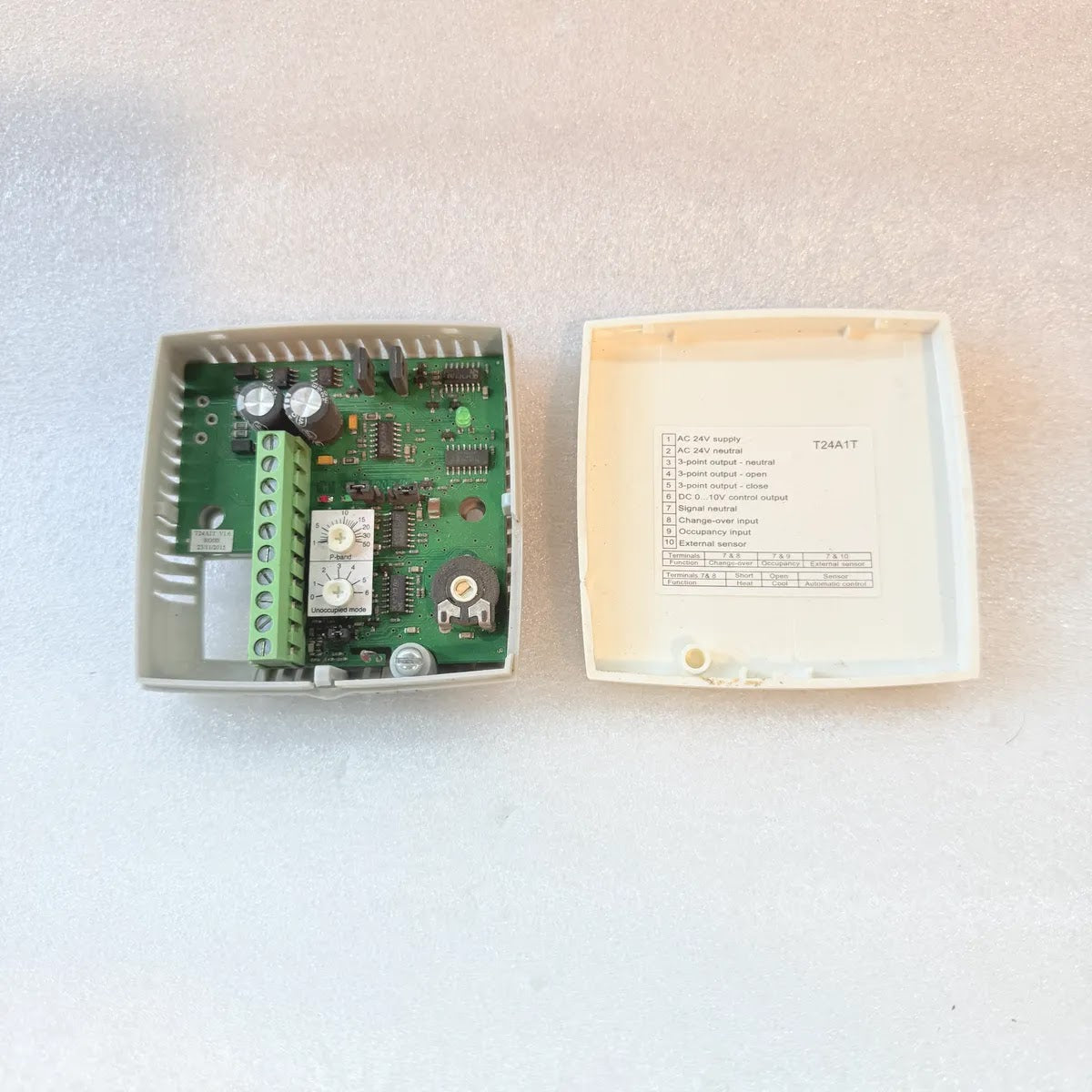

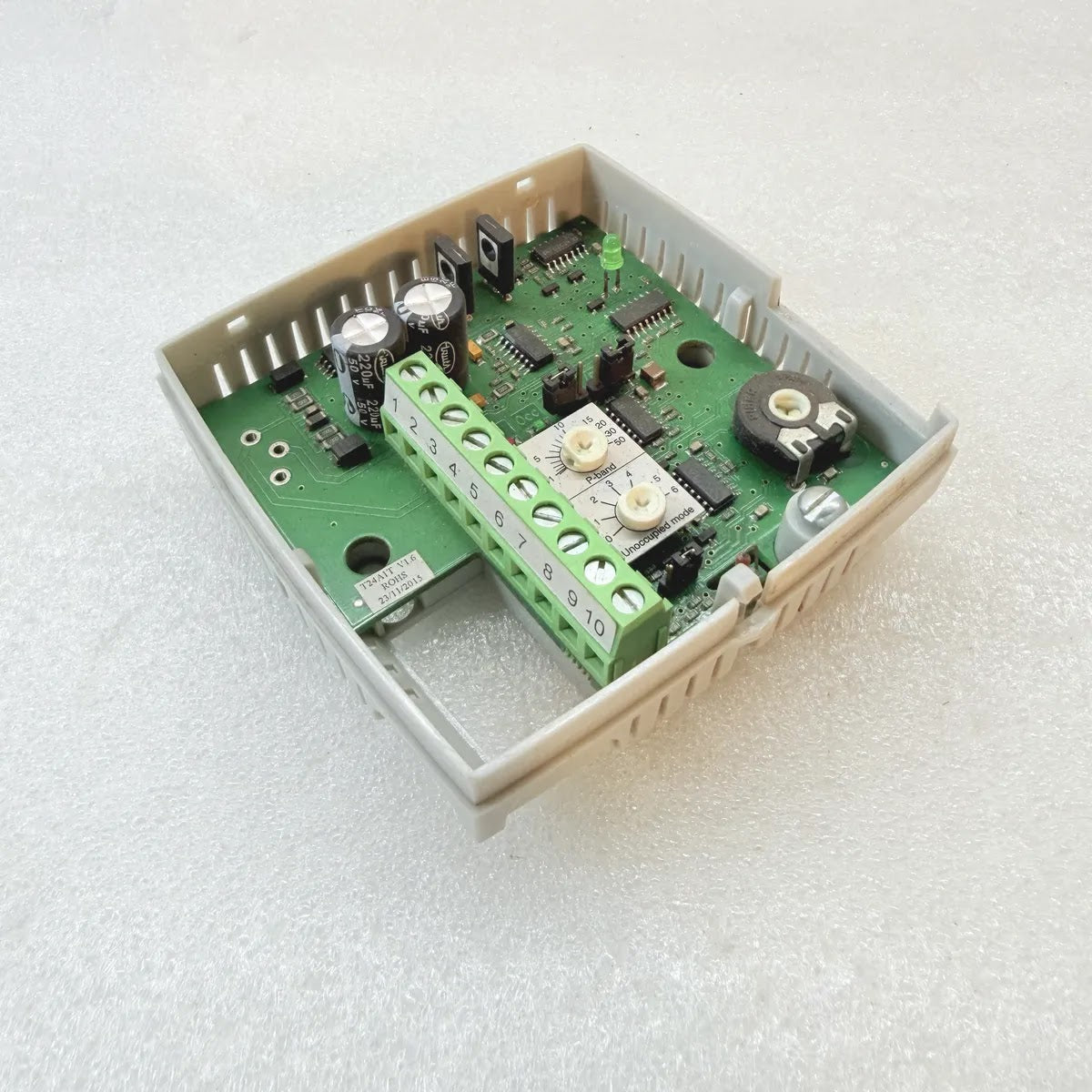

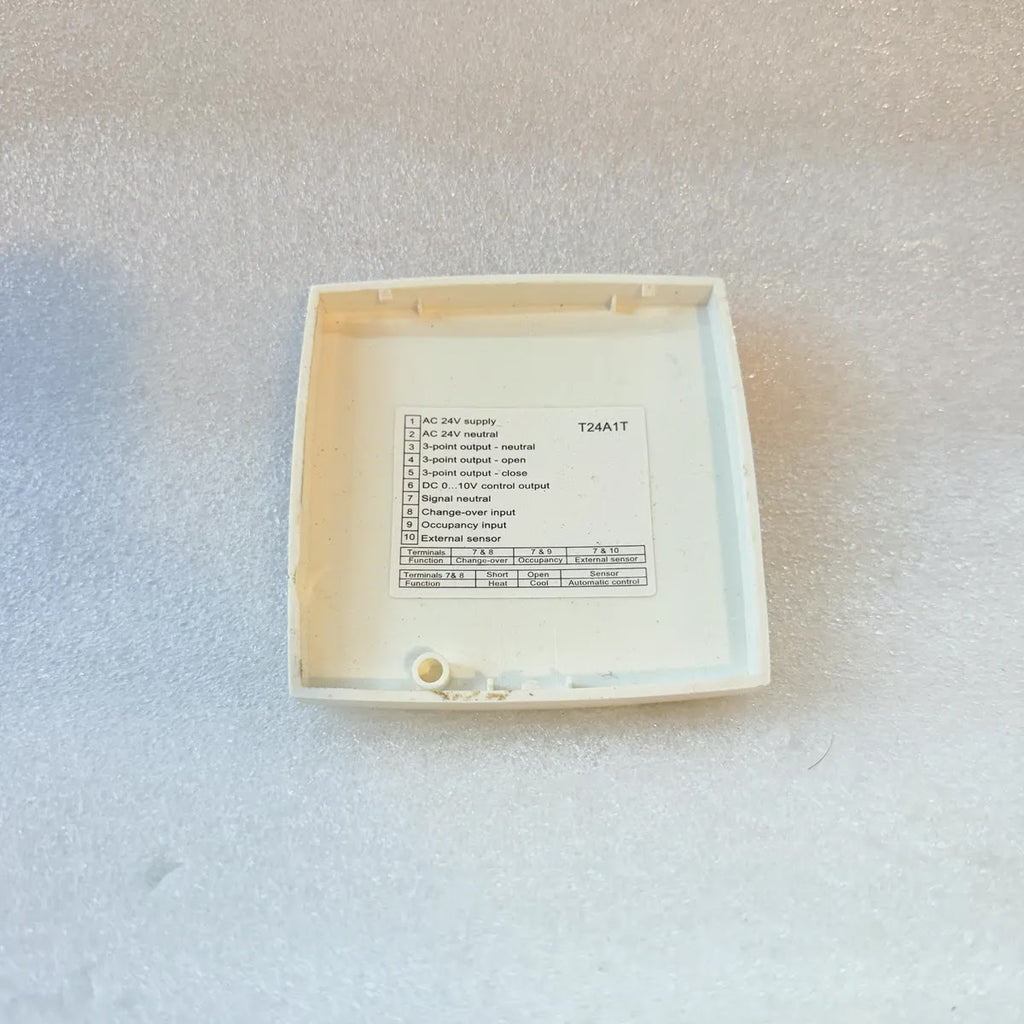

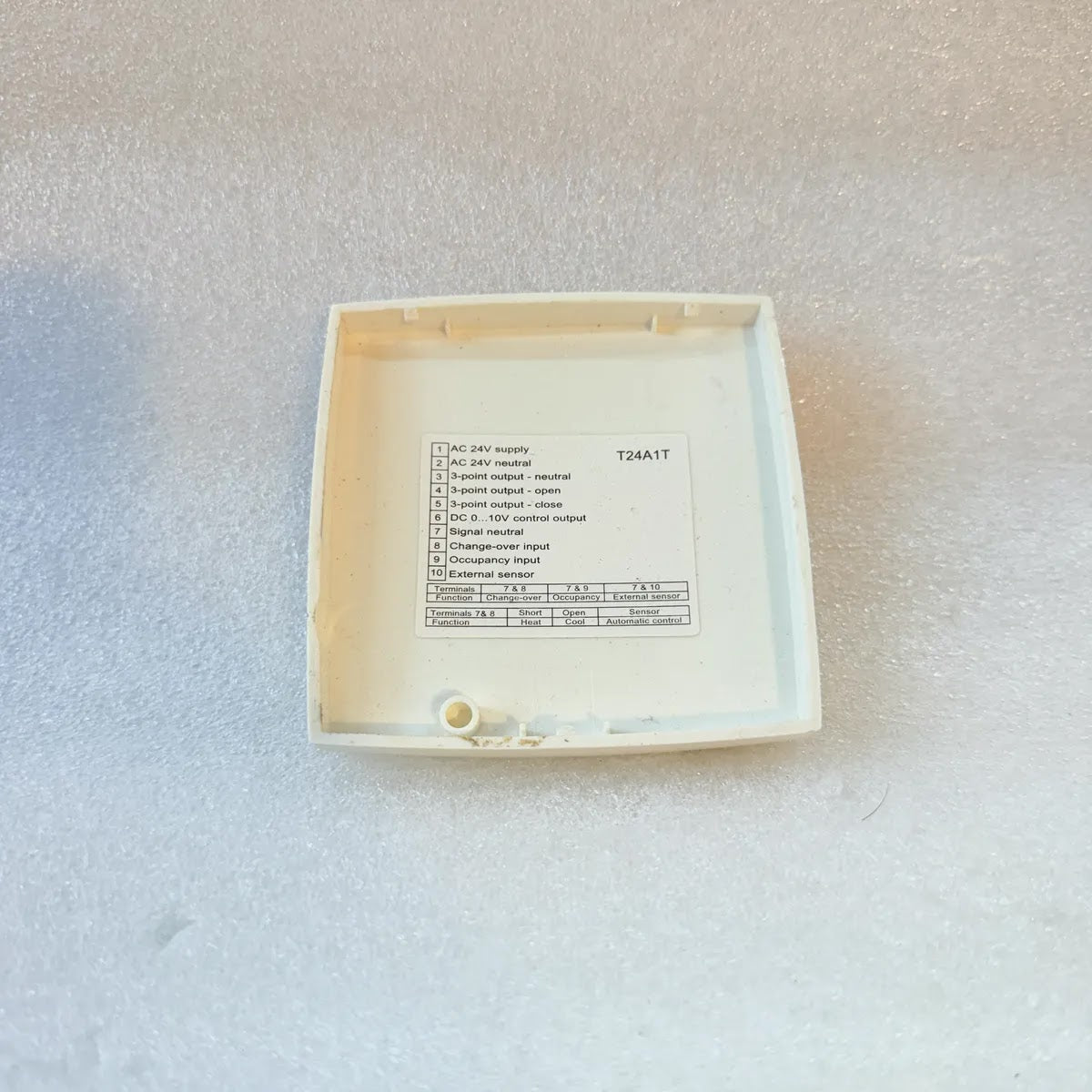

| Supply Voltage | AC 24V (terminal 1 supply, terminal 2 neutral), range AC 19.2 to 28.8 V |
| Frequency | 50/60 Hz |
| Power Consumption | 2 VA |
| Analogue Output | DC 0...10V control output, 1 mA |
| Three-Point Output | Open / close / neutral, AC 24V 1A |
| Inputs | Change-over, occupancy (voltage-free contact) and external sensor, all referenced to signal neutral |
| Change-Over Function | Short = heat, open = cool, sensor fitted = automatic control |
| Sensing Element | Built-in temperature sensor, optional external NTC 10 kOhm at 40 degrees C probe |
| P-Band Range | 1, 5, 10, 15, 20, 30, 50 (adjustable) |
| Unoccupied Mode | Selectable settings 0 to 6 |
| Application | Modulating heating and cooling zone control in HVAC and air handling systems |
| Ambient Temperature | Operating 0...50 degrees C, storage -10...60 degrees C |
| Standard | RoHS compliant |
| Condition | PRE-OWNED / SECOND HAND |

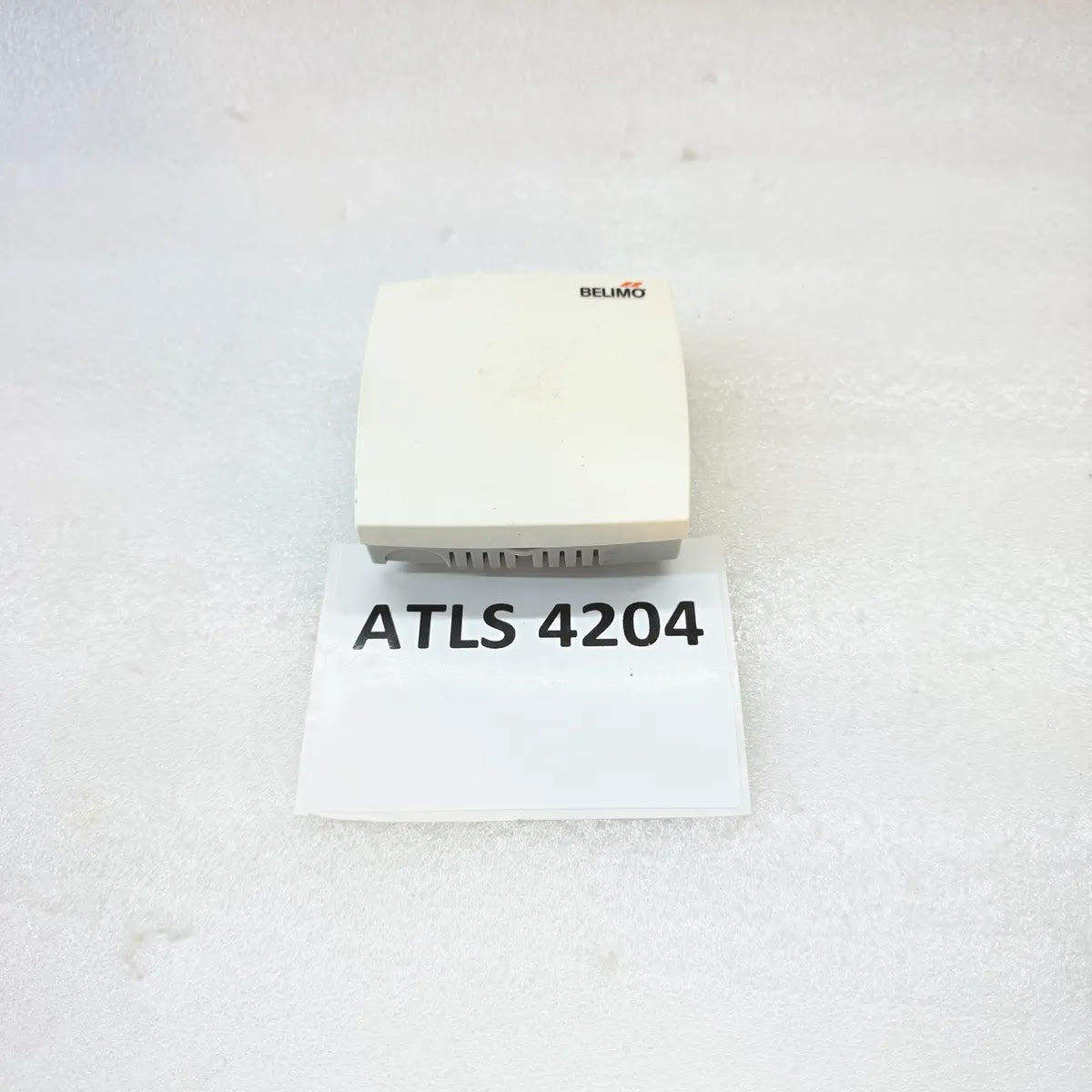

| REF | ATLS4204 |
