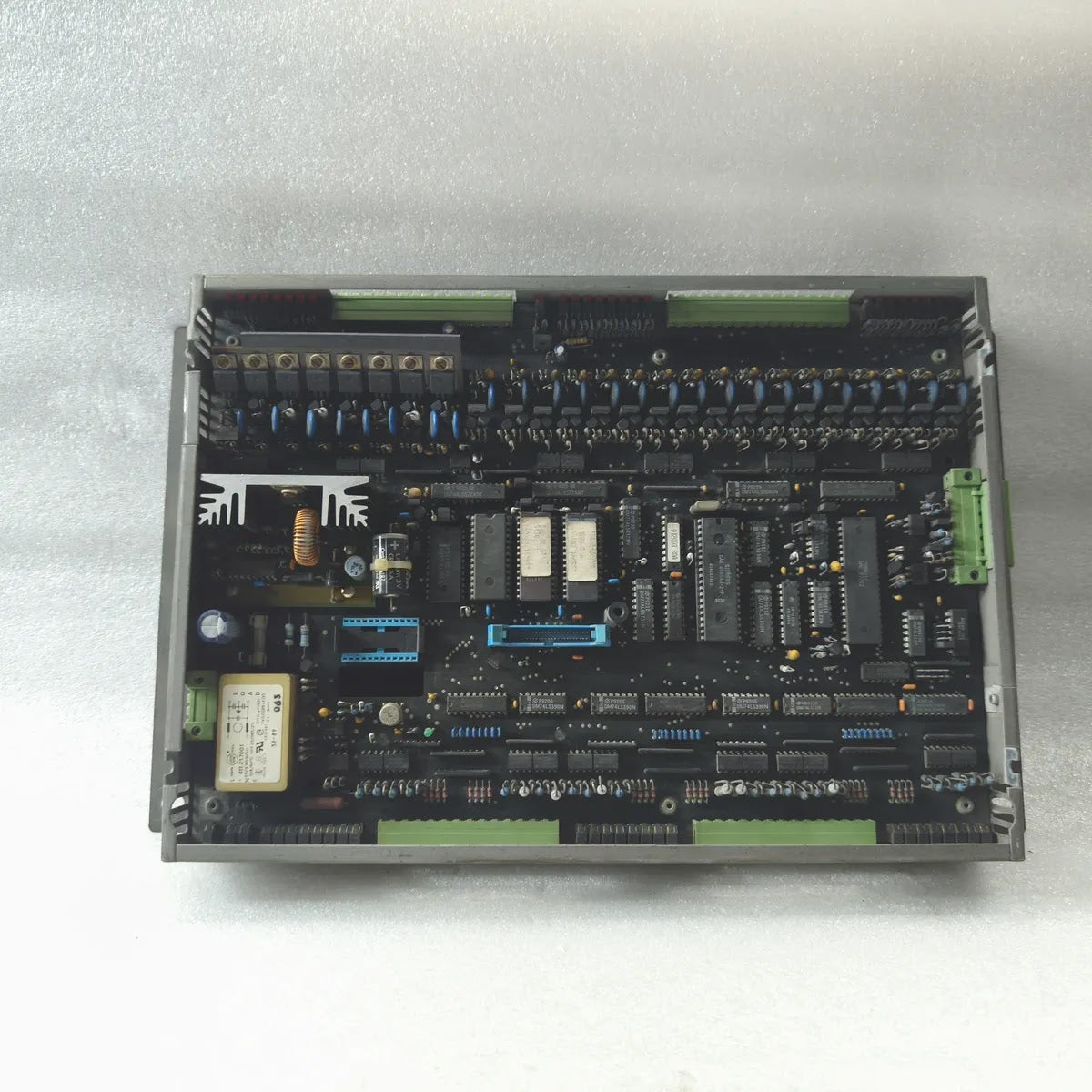

BDA 01.130.300-01 Digital I/O Base Module 24V DC 24 In/ 24 Out
$999.99
BDA 01.130.300-01 Digital I/O Base Module 24V DC 24 In/ 24 Out
Specifications
| Model | BDA |
| Part Number | 01.130.300-01 |

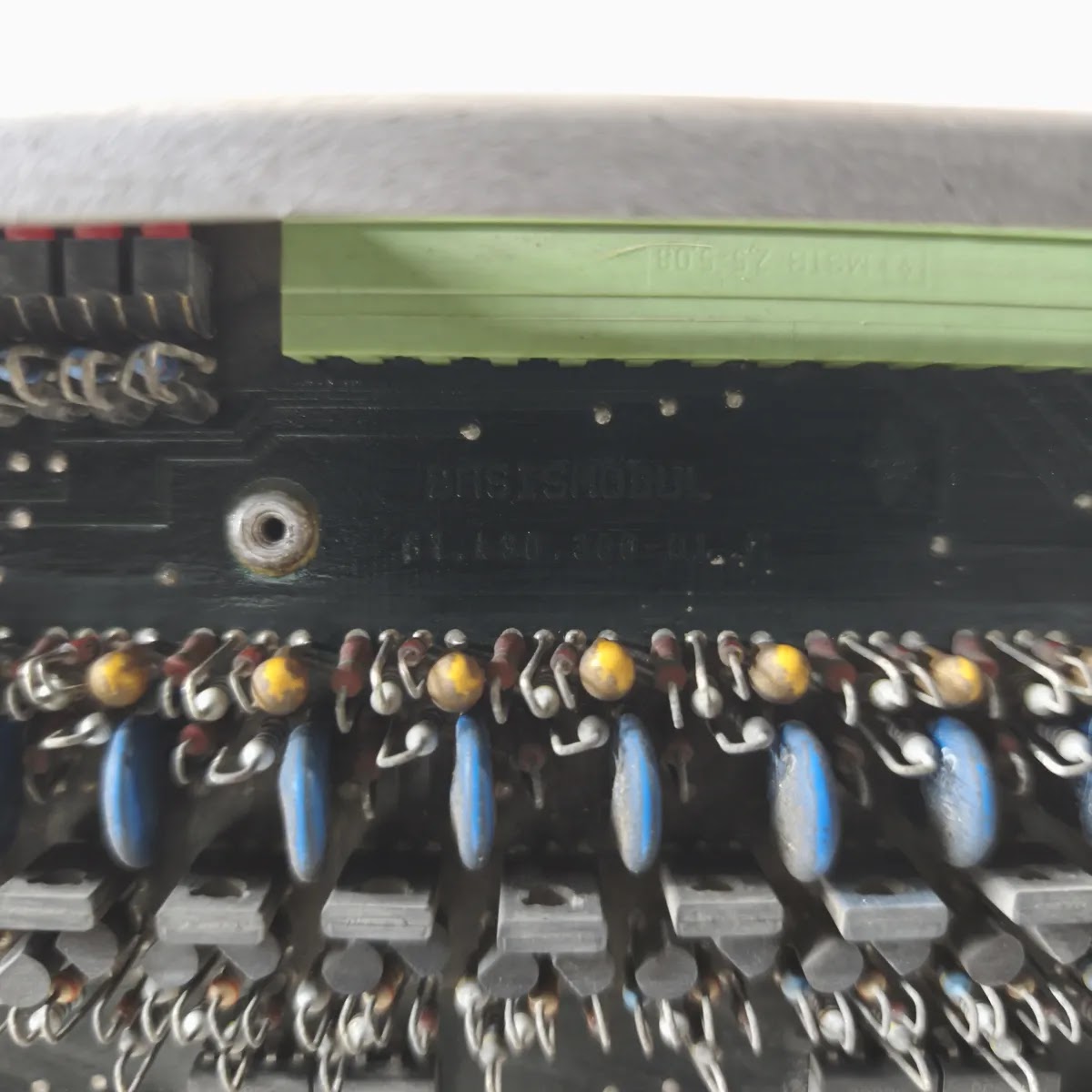

| Type | Base module, digital input / output controller board (marked BASISMODUL) |
| Supply Voltage | 24 V DC (Supply 24 V / 0 V) |

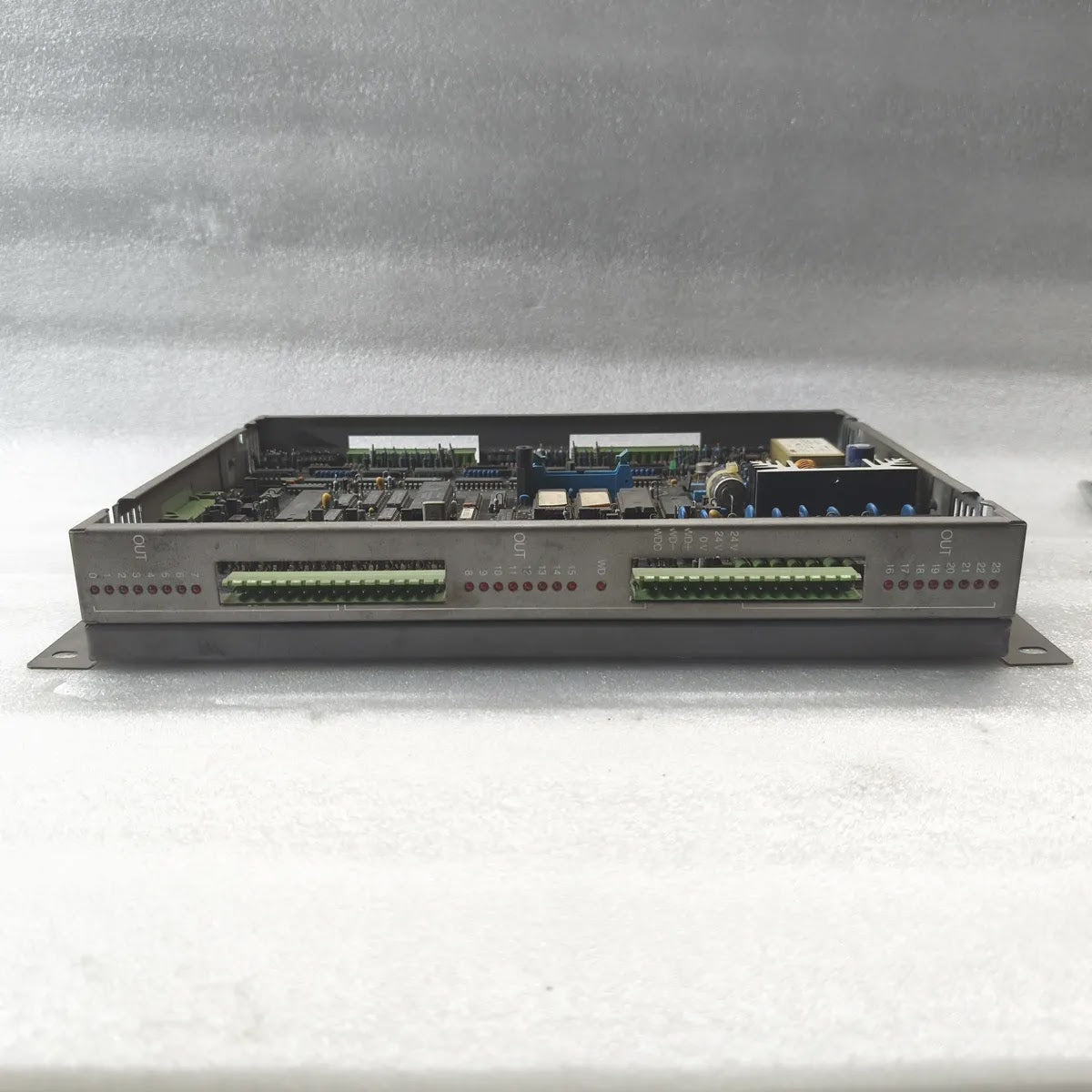

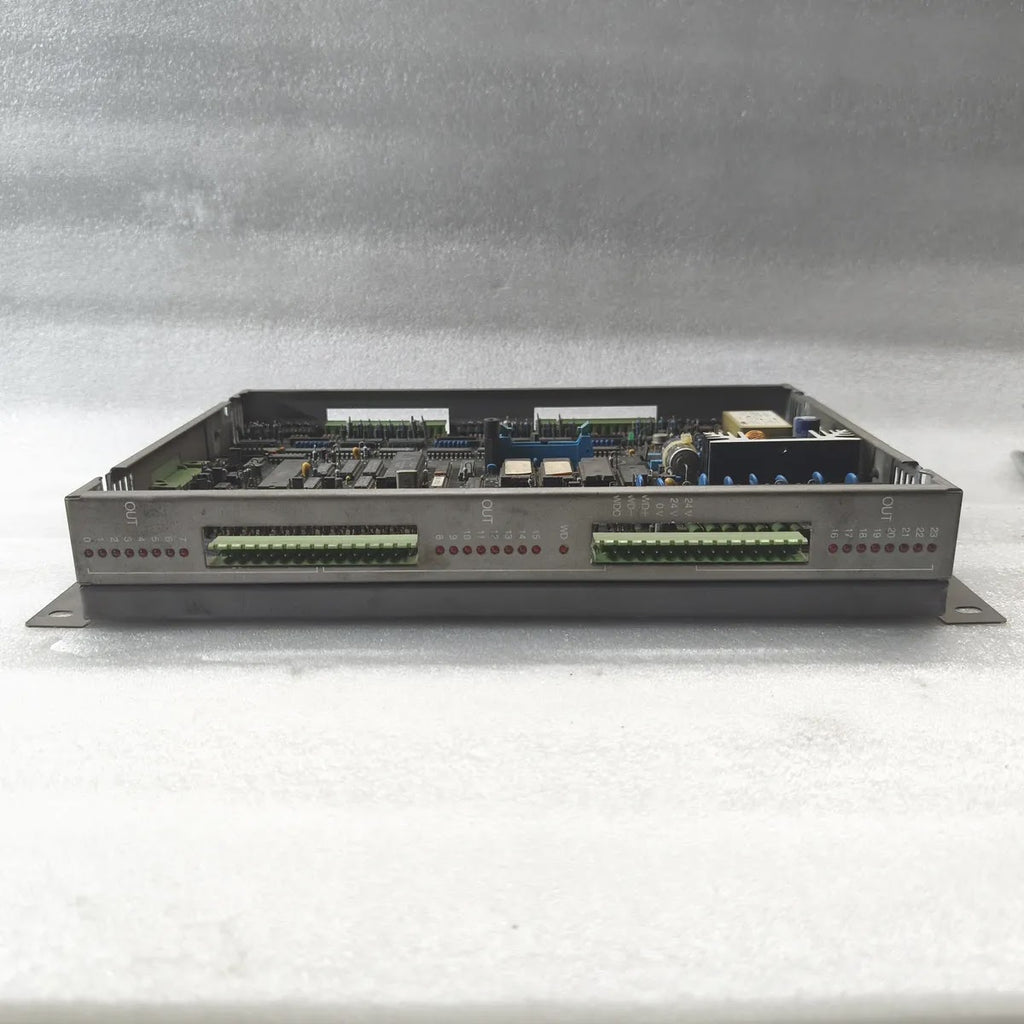

| Inputs | 24 digital inputs, IN 0 to 23 |

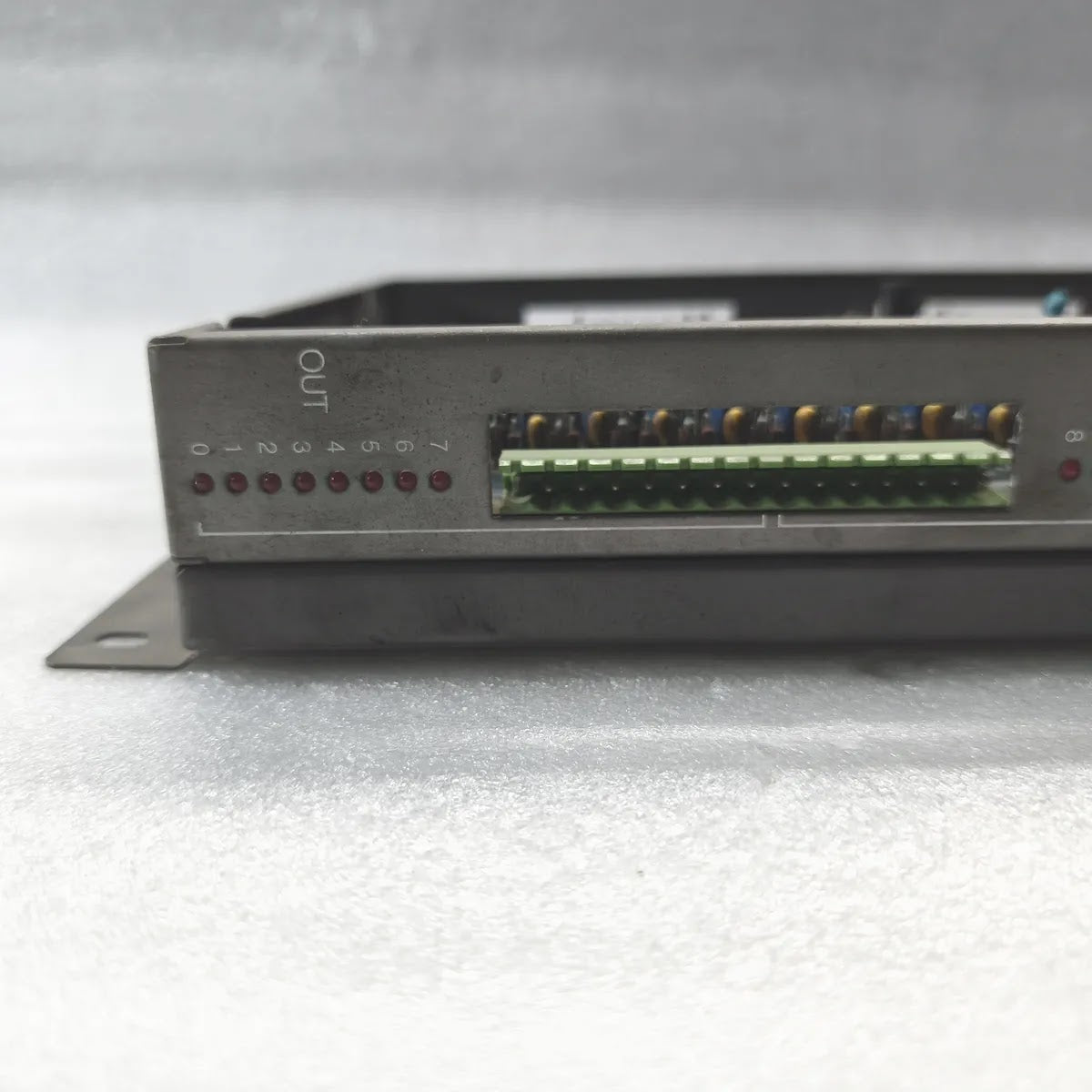

| Outputs | 24 digital outputs, OUT 0 to 23 |

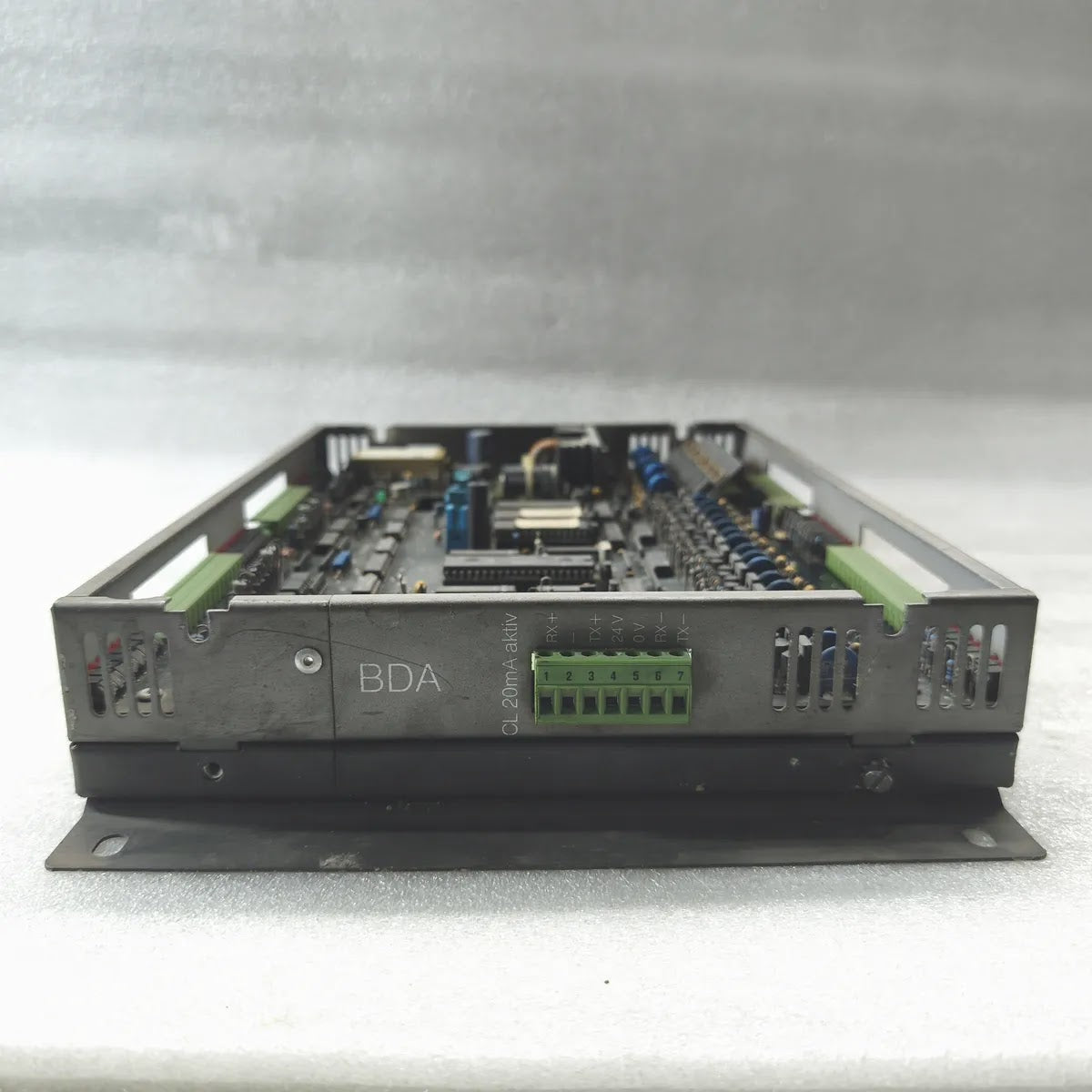

| Serial Interface | CL 20mA active current loop, RX+ / RX- / TX+ / TX- with 24 V and 0 V |

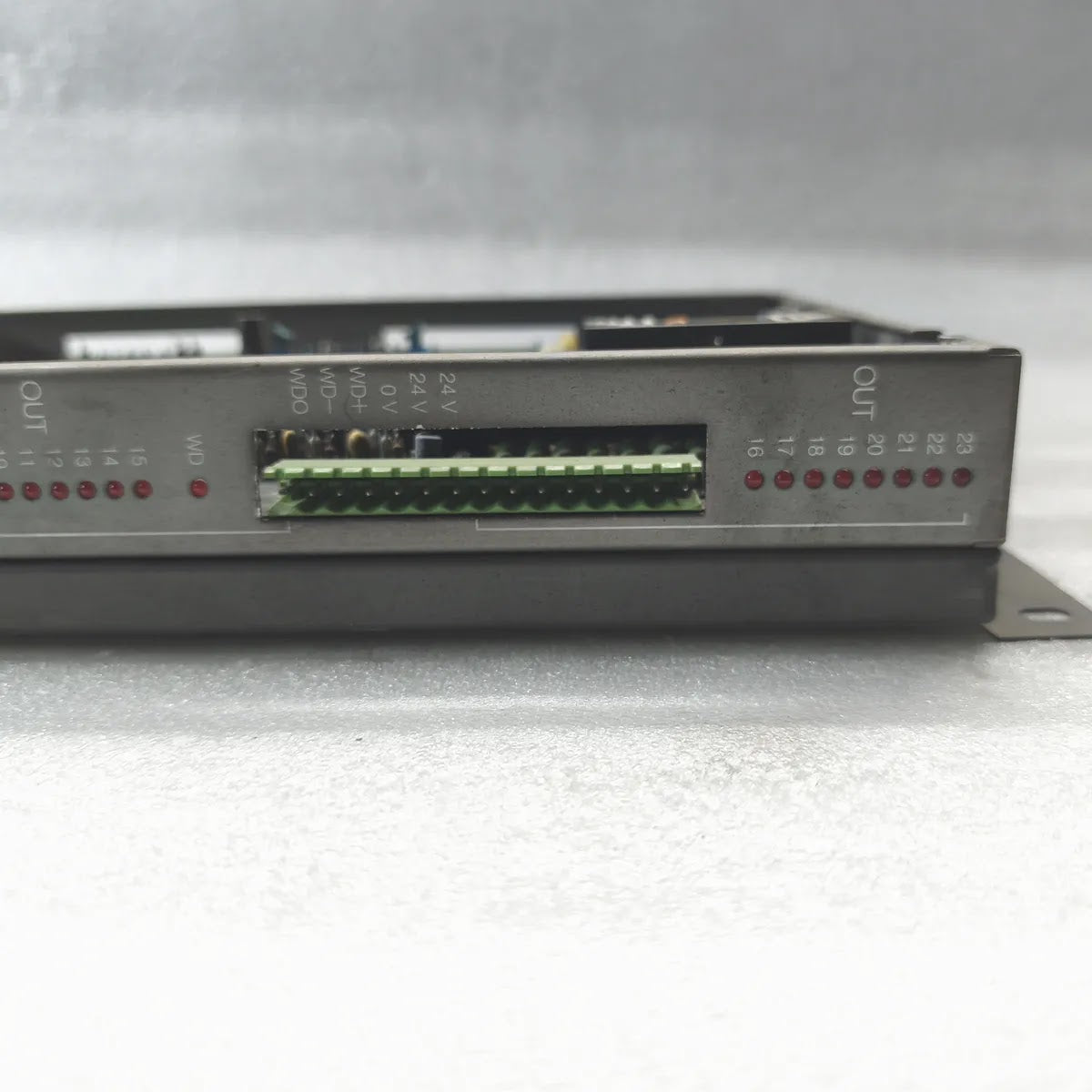

| Watchdog | Watchdog circuit with WD, WD+, WD- and WDO signals |
| Status Signals | BAT, WD and VCC status outputs on the input face |

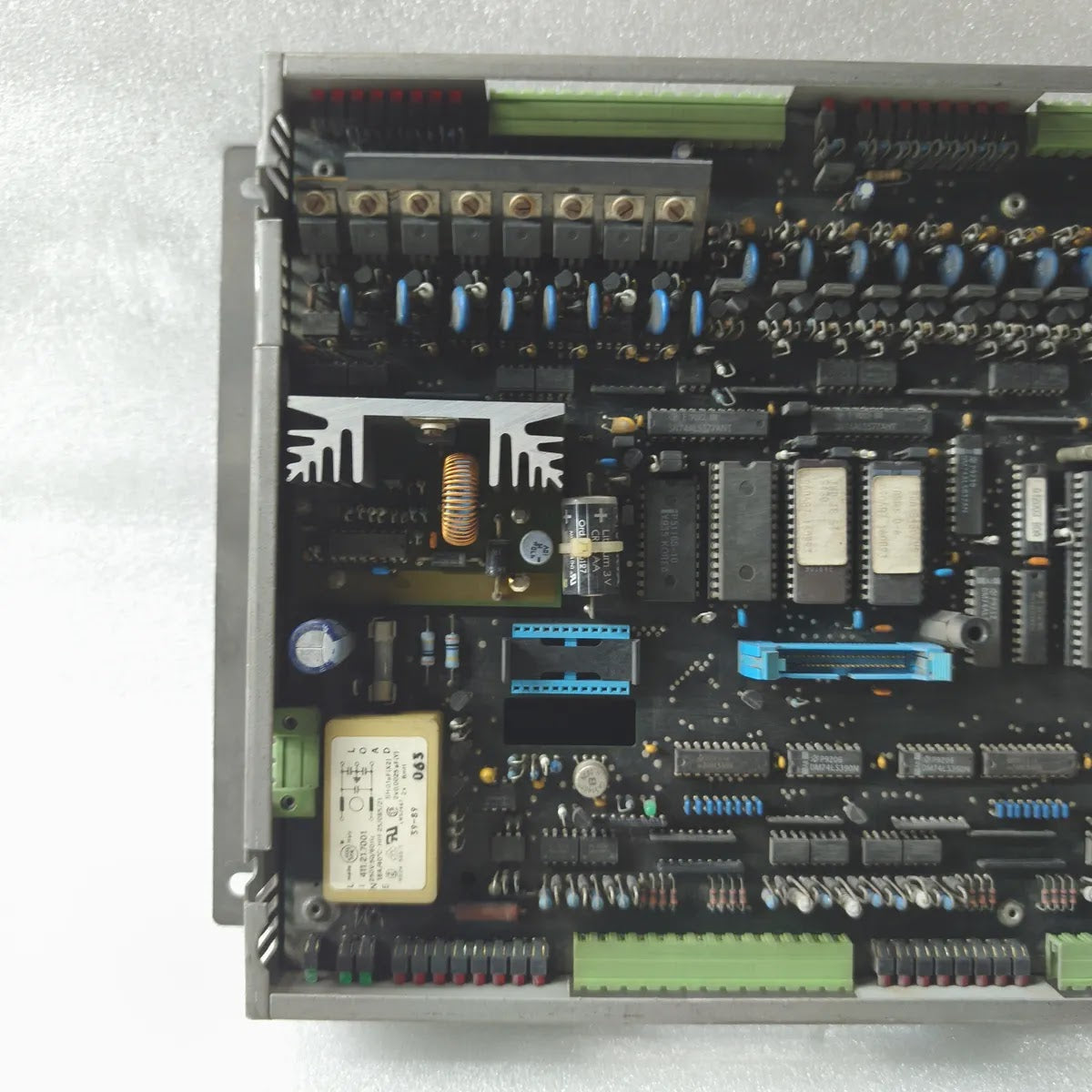

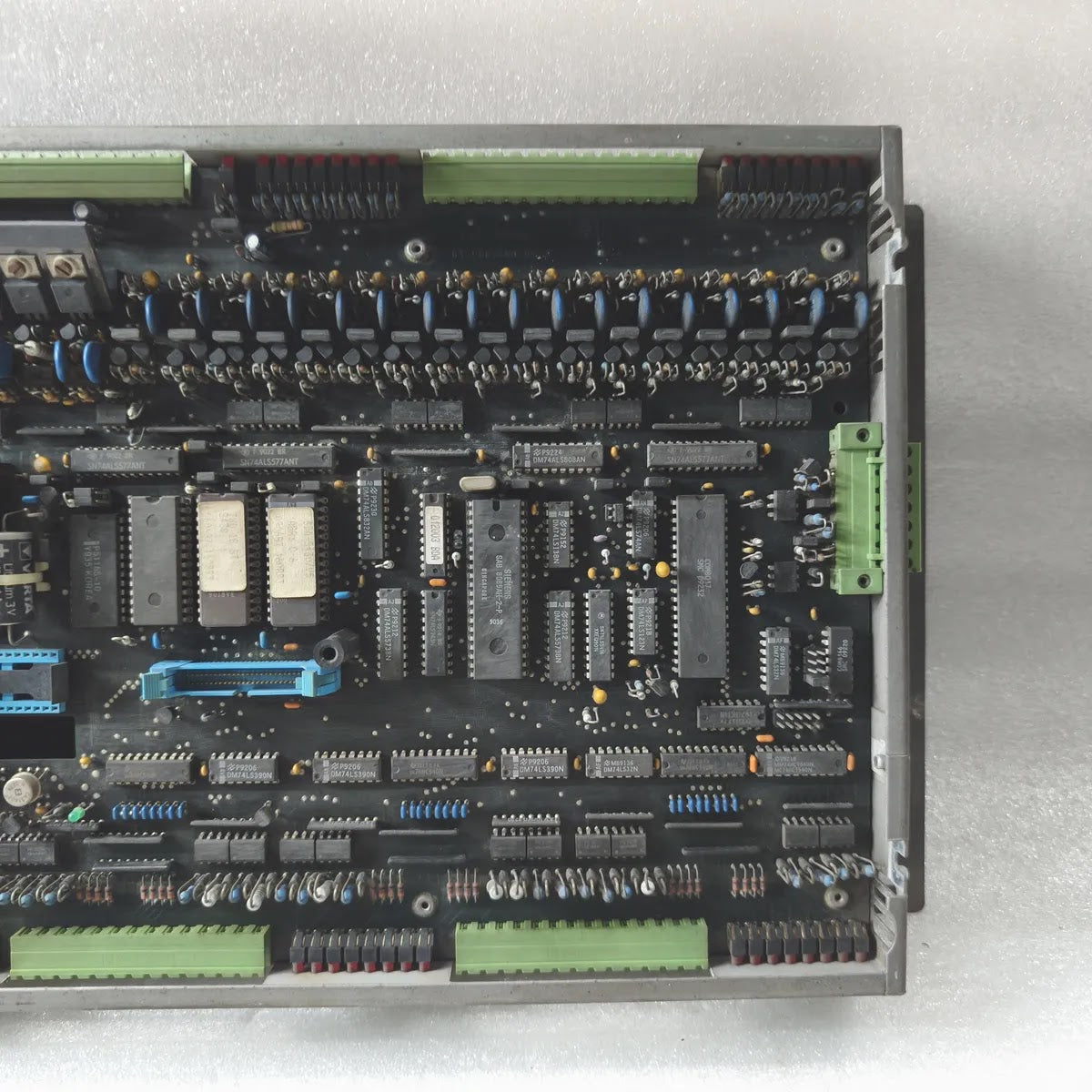

| Processor | Siemens SAB 8085AH-2-P 8-bit microprocessor |
| Communication Ic | SMC COM8017 UART |
| Memory | Two socketed UV-EPROMs plus PS1165-10 static RAM with lithium 3 V backup cell |
| Logic Family | 74ALS, 74LS and 74HCT series TTL logic (SN74ALS577ANT, DM74ALS808AN, DM74LS390N, DM74LS32N, DM74ALS573BN, SN74LS245N, MM74HCT540N and similar) |
| Line Filter | 411 217001, 250 V 50/60 Hz, 8 A at 40 °C, 2 x 6 mH, 0.1 µF (X2) and 2 x 0.0025 µF (Y) |
| Approvals | UL and VDE marks on the on-board line filter |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4318 |
