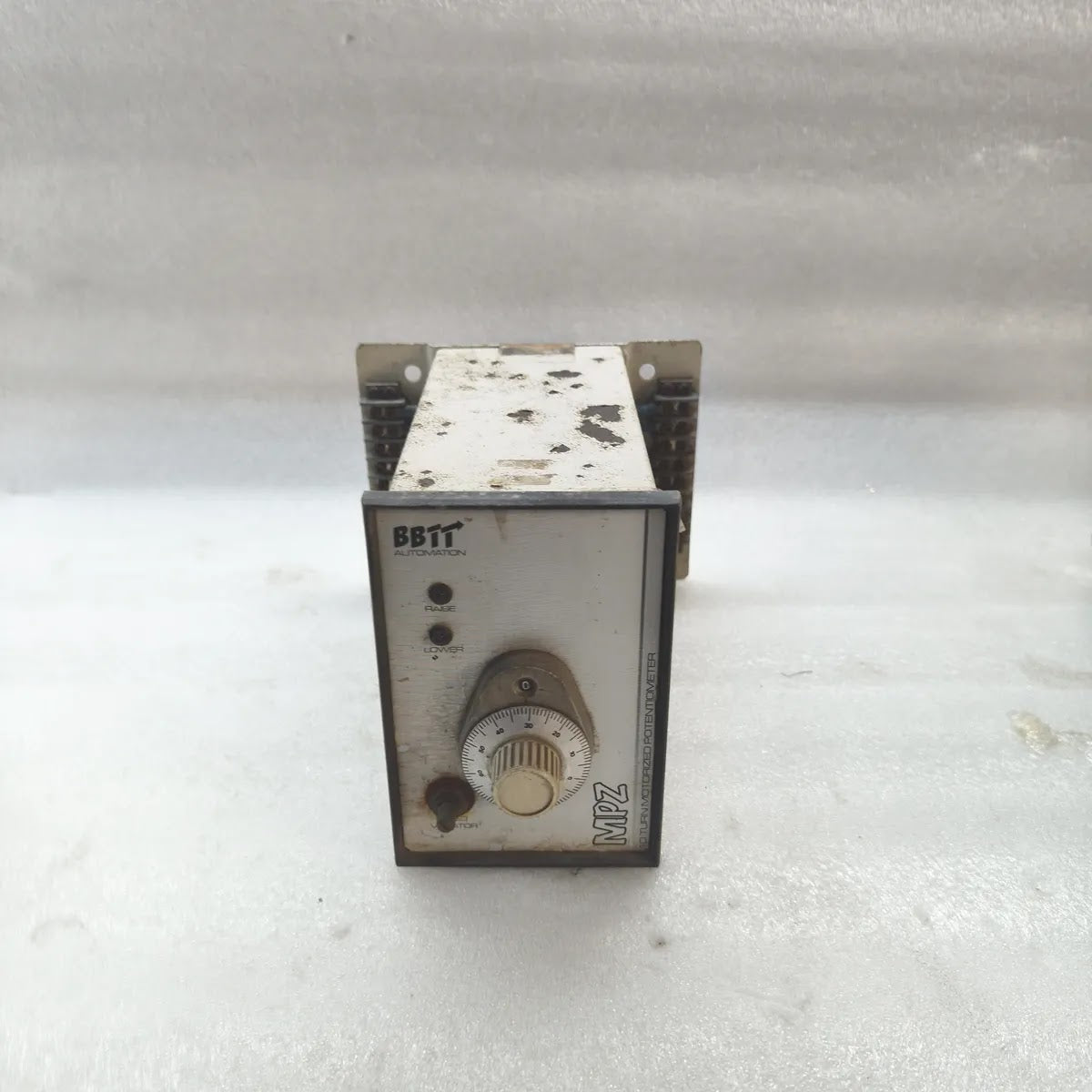

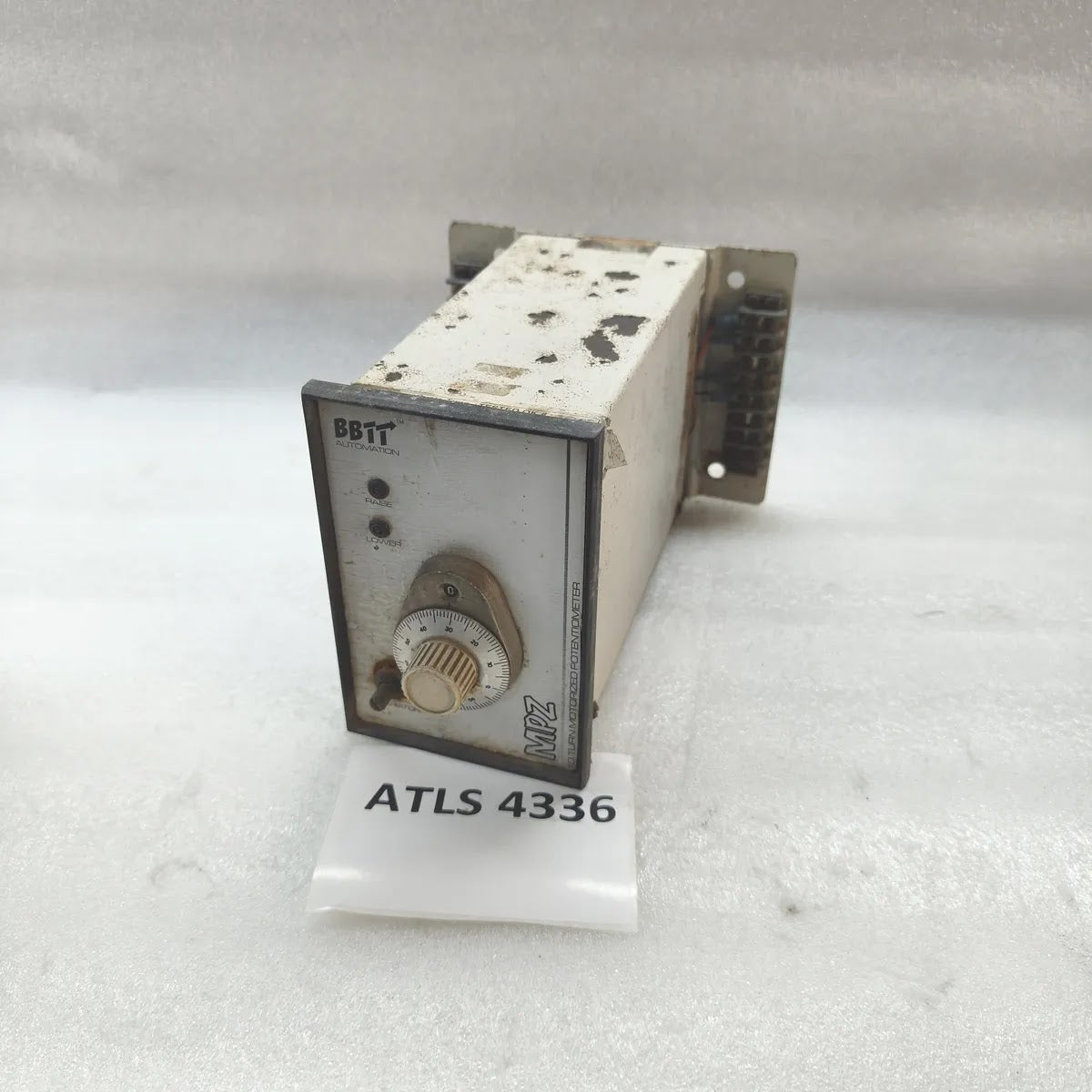

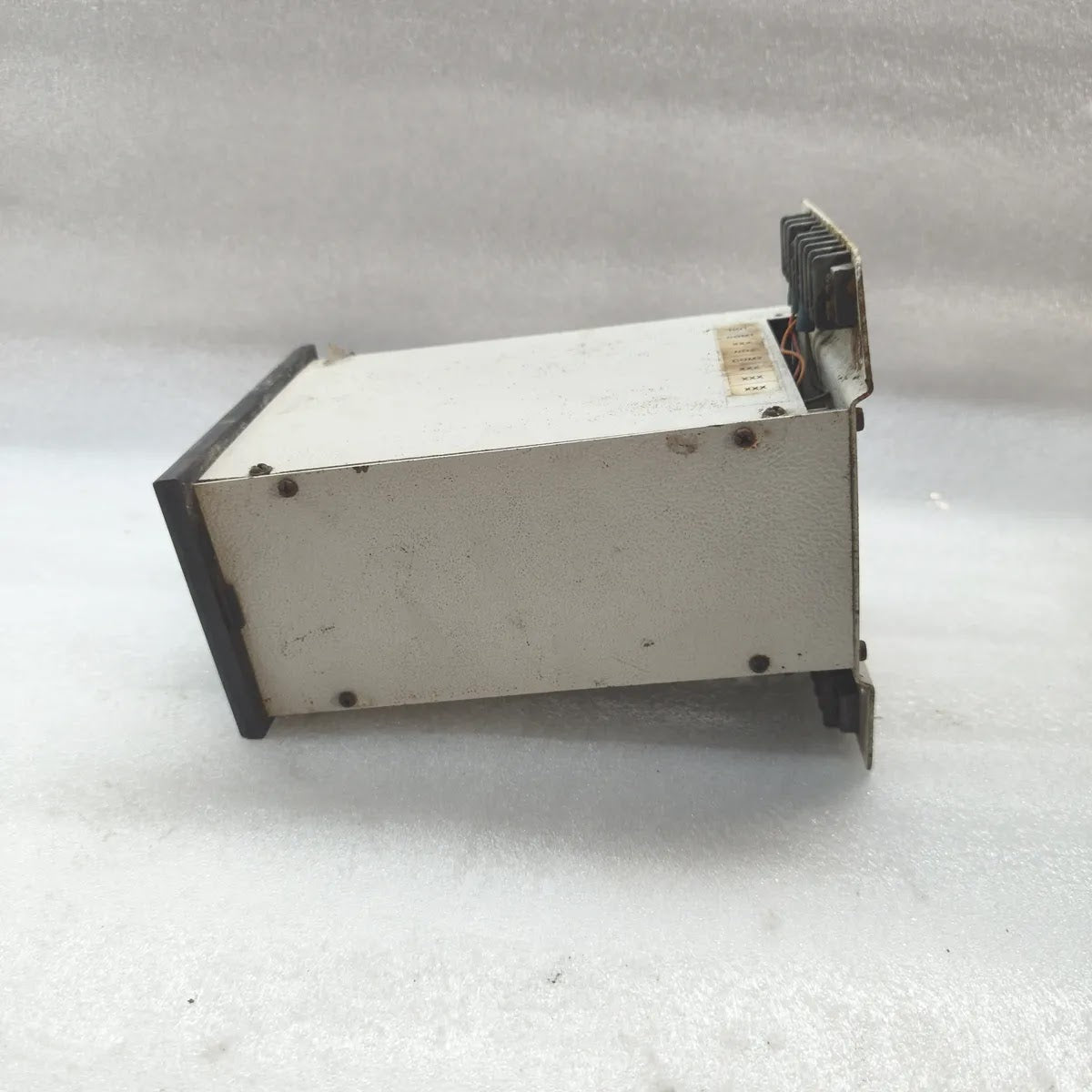

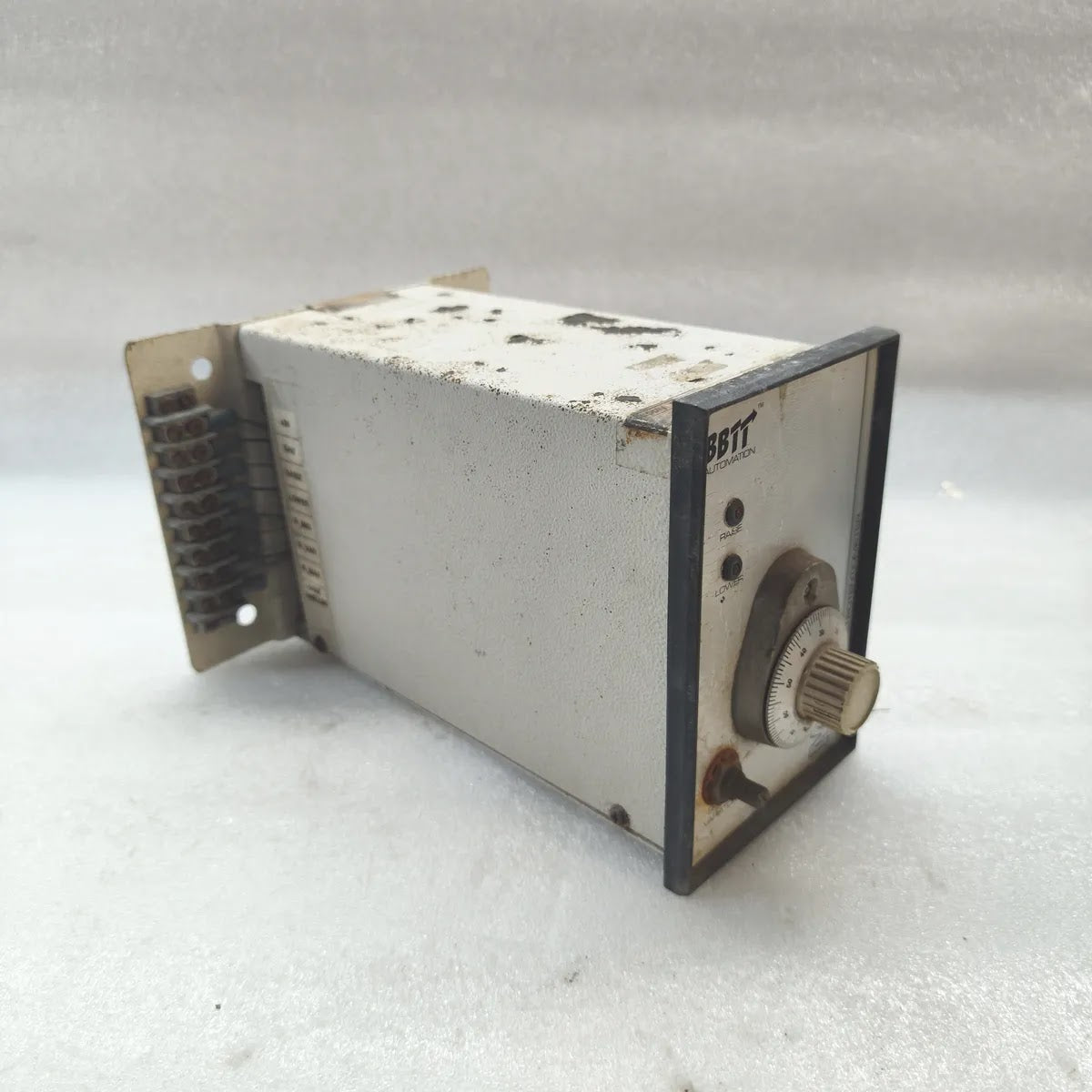

BBTT MPZ Motorized Potentiometer 10-Turn
$499.99
BBTT MPZ Motorized Potentiometer 10-Turn
Specifications
| Brand | BBTT Automation |
| Model | MPZ |
| Type | 10 Turn Motorized Potentiometer |
| Supply Voltage | 24 VDC, or 110/240 VAC +/-10% 50/60 Hz single phase |
| Potentiometer Travel | 10 turns, 3500 degrees rotation |
| Cycle Time | 6-100 seconds over the full 10-turn range, adjustable by the front variator |

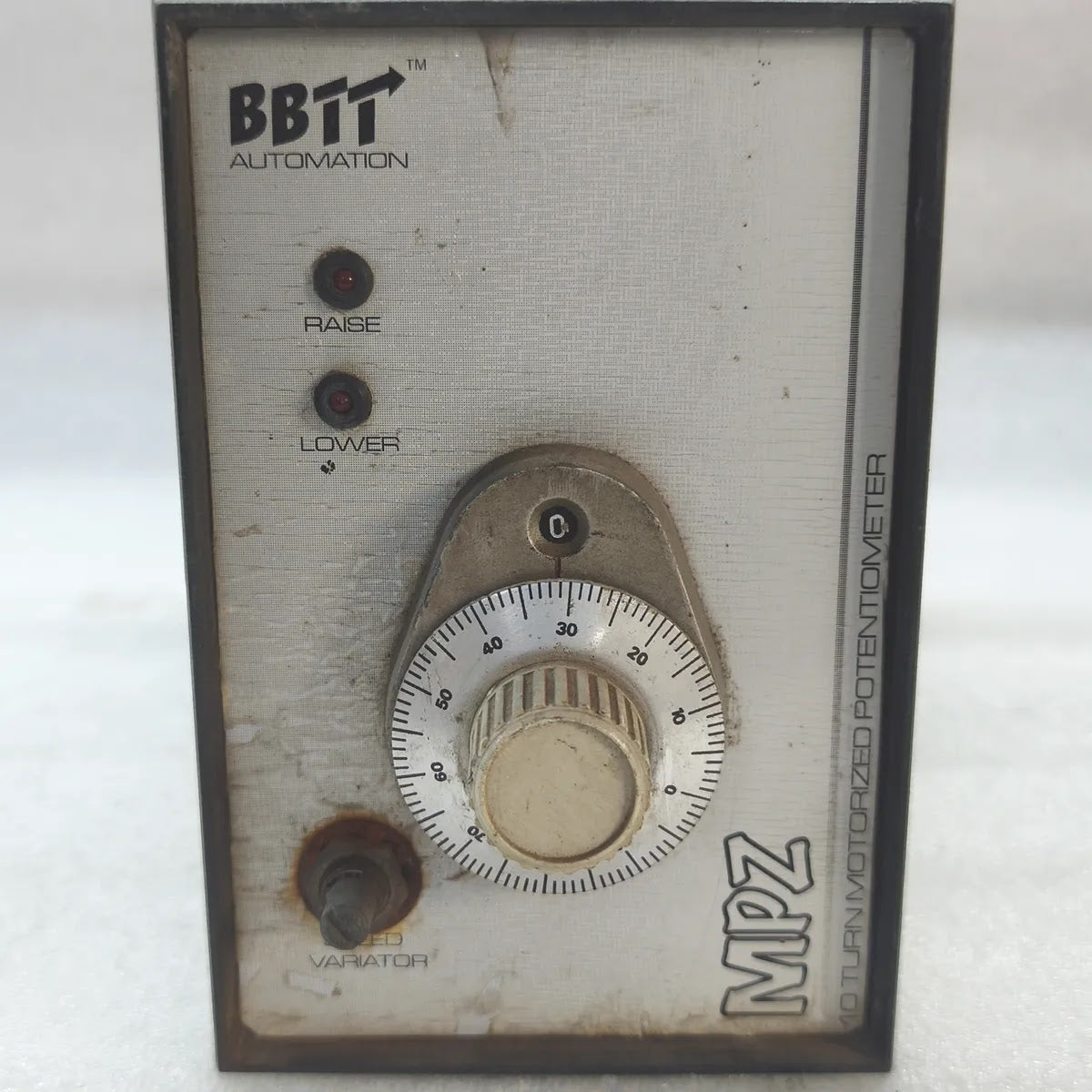

| Set Point Adjustment | Remote RAISE and LOWER commands via +24 VDC digital inputs, plus manual counter knob |

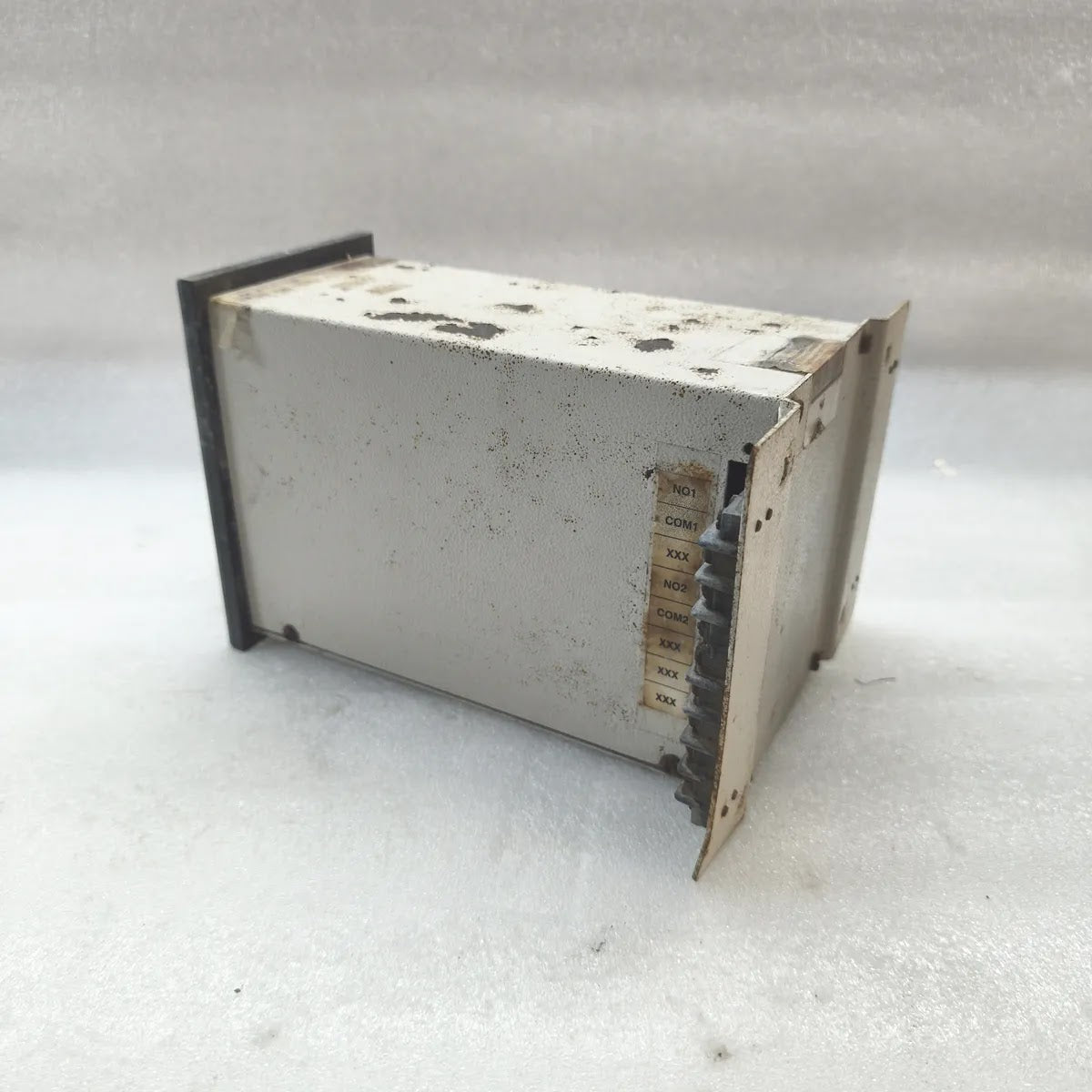

| Limit Outputs | Two SPDT relay changeover contacts, one per travel limit |
| Protection | Motor over-run burn-out protection at the travel limits, with friction coupling for manual adjustment |
| Application | Remote set-point control and regulation in industrial closed-loop automation |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4336 |
