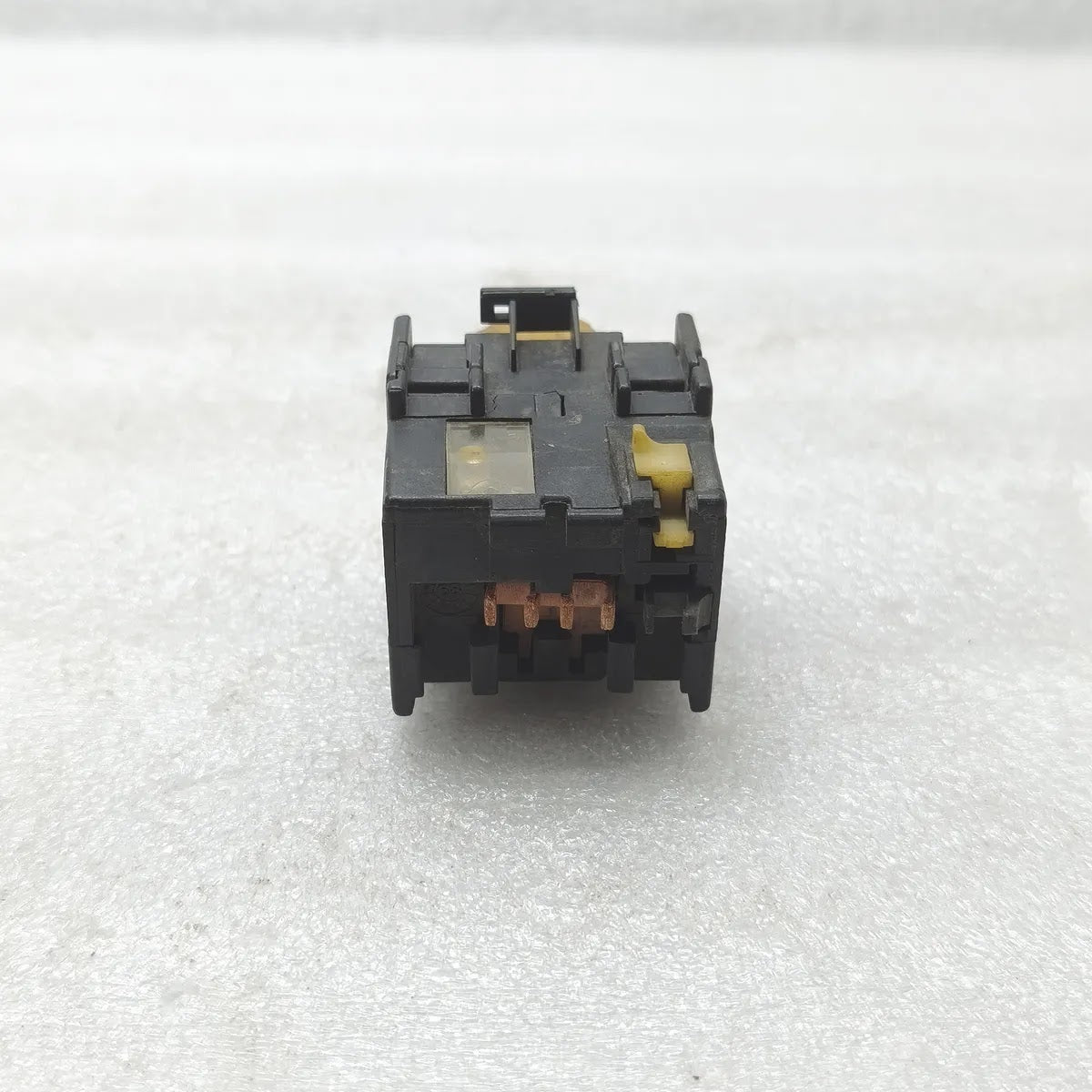

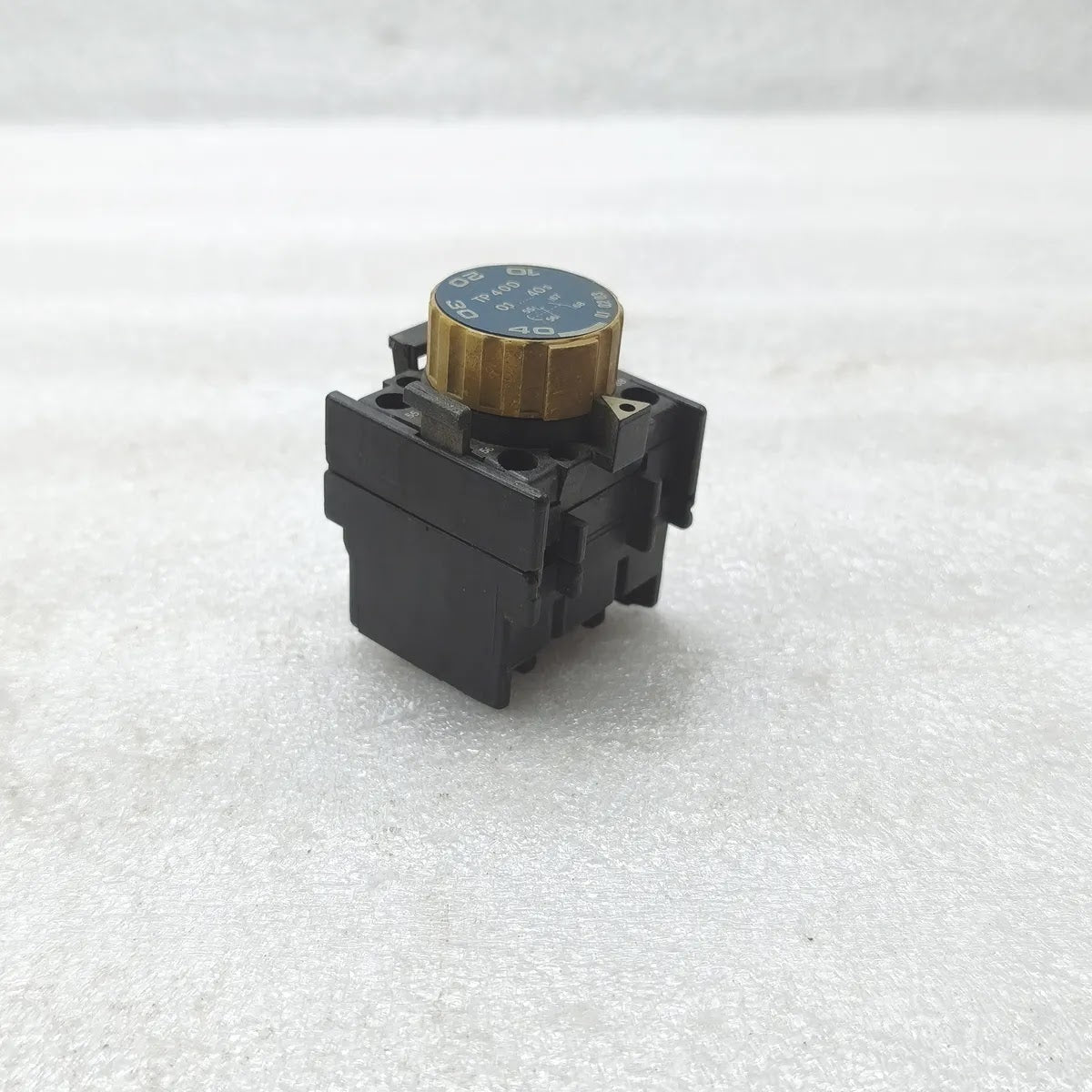

BBC TP40D Pneumatic Timer Block 0.1-40s 10A 660V
$108.99
BBC TP40D Pneumatic Timer Block 0.1-40s 10A 660V
Specifications
| Brand | BBC Petercem |
| Model | TP 40 D |
| Part Number | TP40D |
| Type | Pneumatic time-delay block for contactors |
| Series | TP (TP D delayed version; nameplate also shows TP I inverse version) |

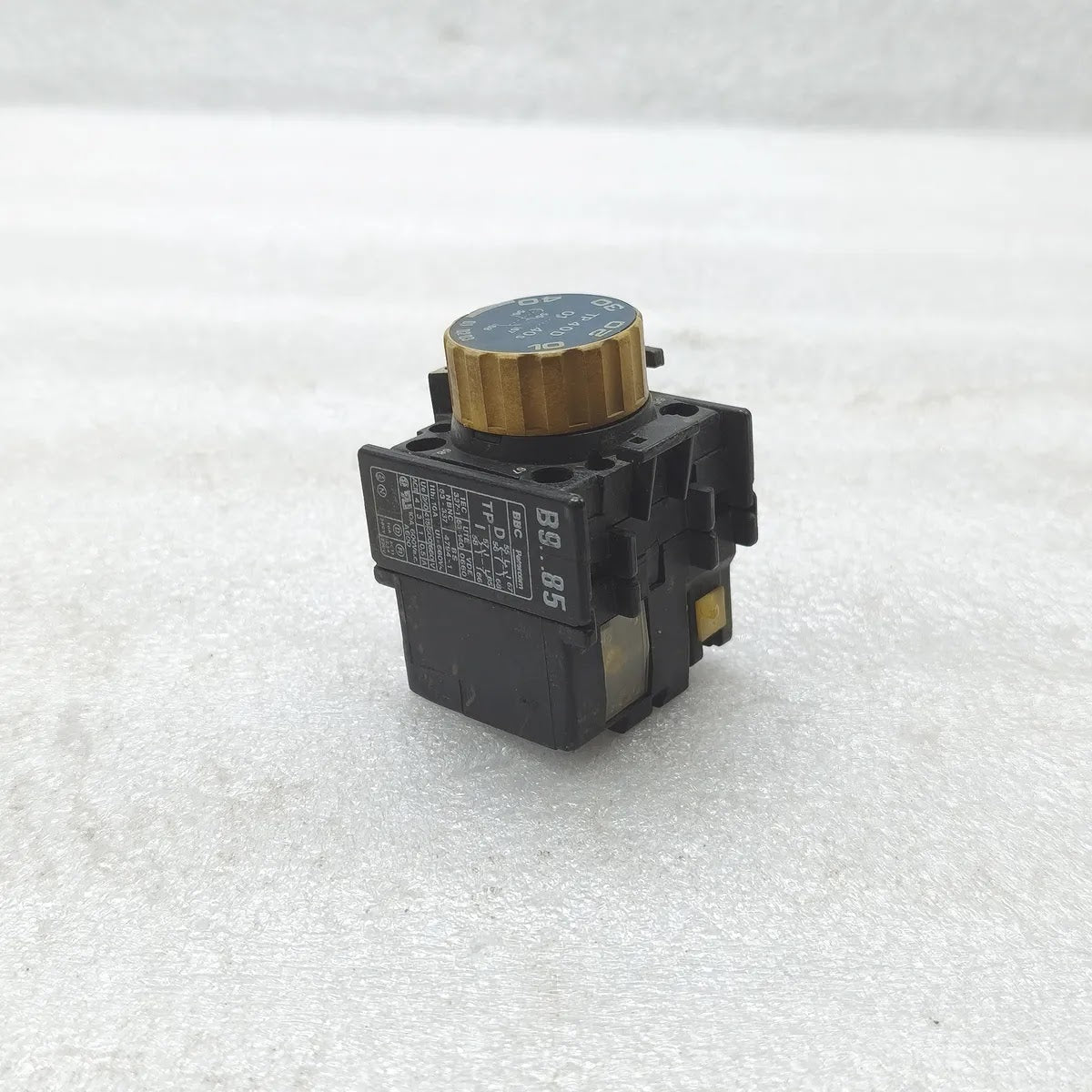

| Application | For B9..85 contactors |

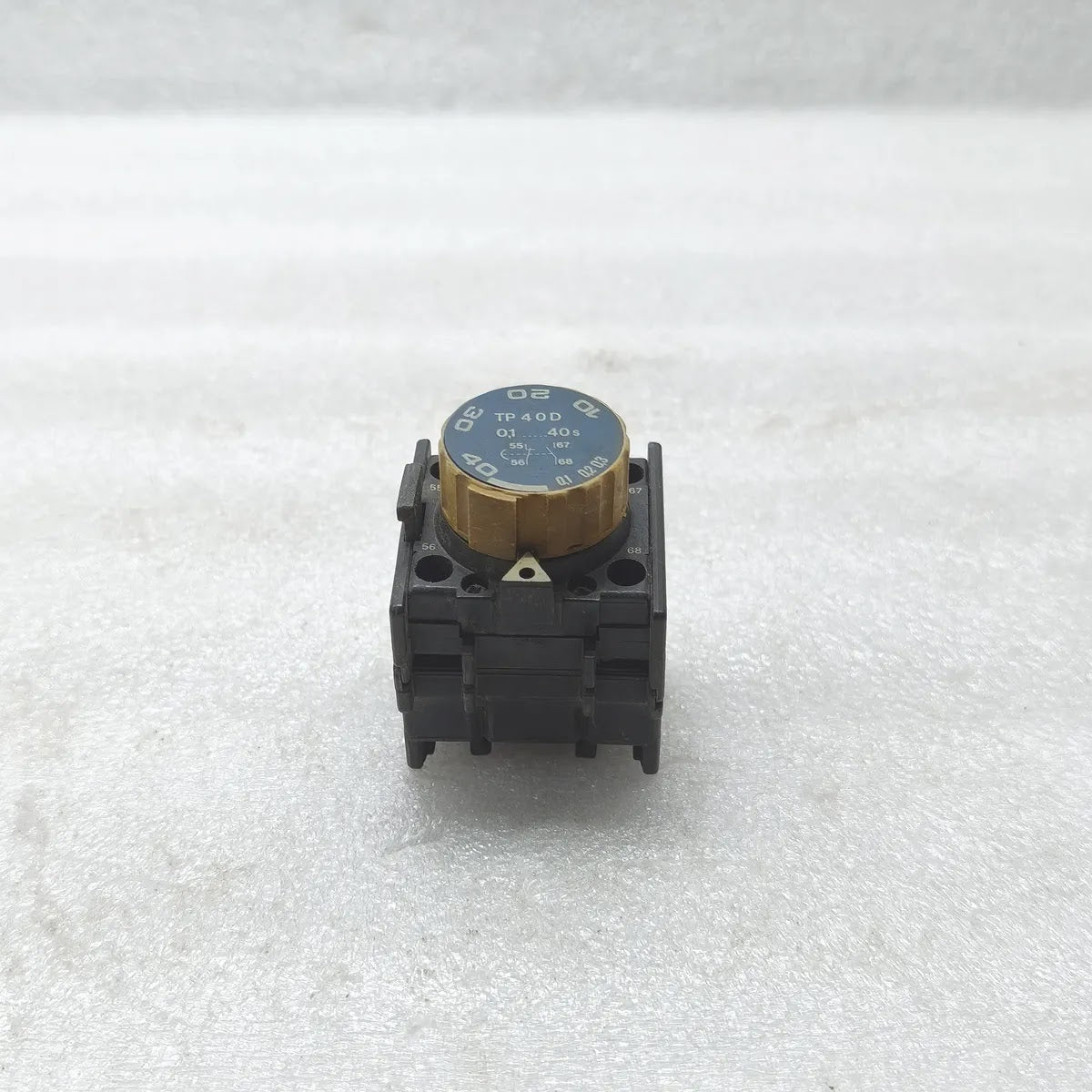

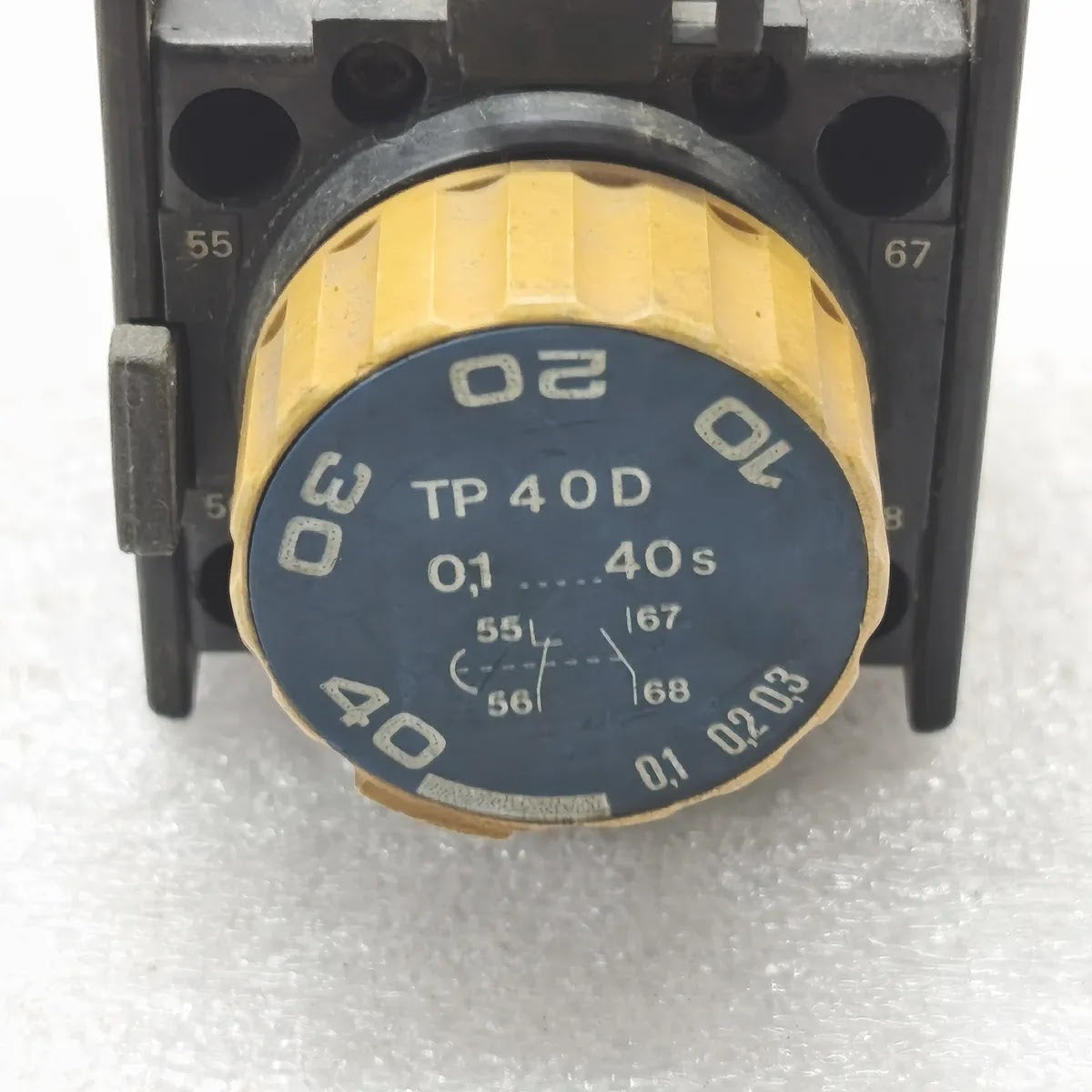

| Time Range | 0,1... 40s, dial graduated 0,1 / 0,2 / 0,3 and 10 / 20 / 30 / 40 s |

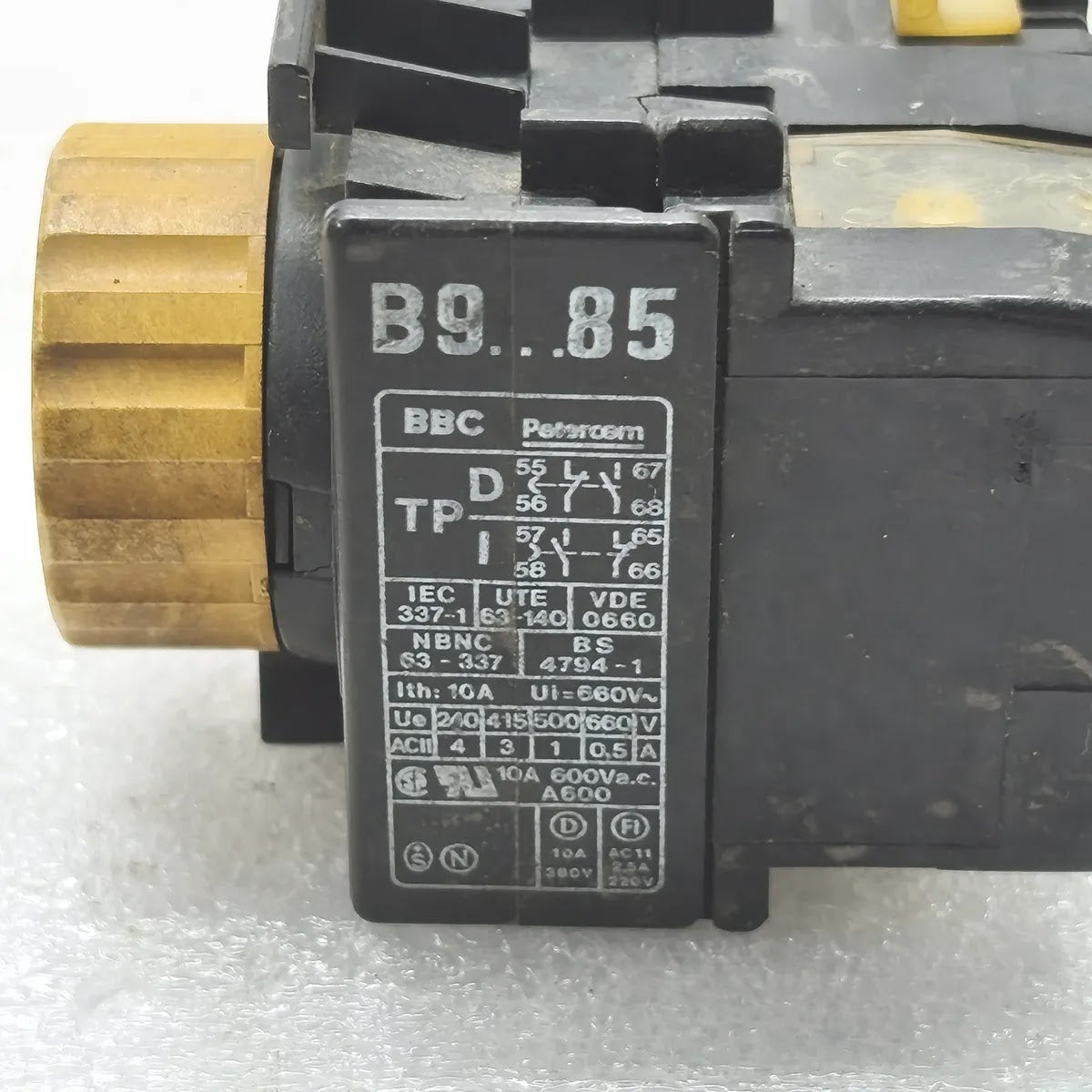

| Timed Contacts | 1 NC (55-56) + 1 NO (67-68) for the TP D version; TP I version uses 57-58 and 65-66 |
| Thermal Current | Ith: 10A |
| Insulation Voltage | Ui = 660V~ |
| Utilisation Category | AC11 |
| Ul / Csa Rating | 10A 600V a.c., A600 |
| Additional Ratings | D: 10A 380V; FI: AC11 2,5A 220V |
| Standards | IEC 337-1, UTE 63-140, VDE 0660, NBN C 63-337, BS 4794-1 |
| Approvals | UL, CSA, S, N, D, FI marks |
| Condition | PRE-OWNED / SECOND HAND |

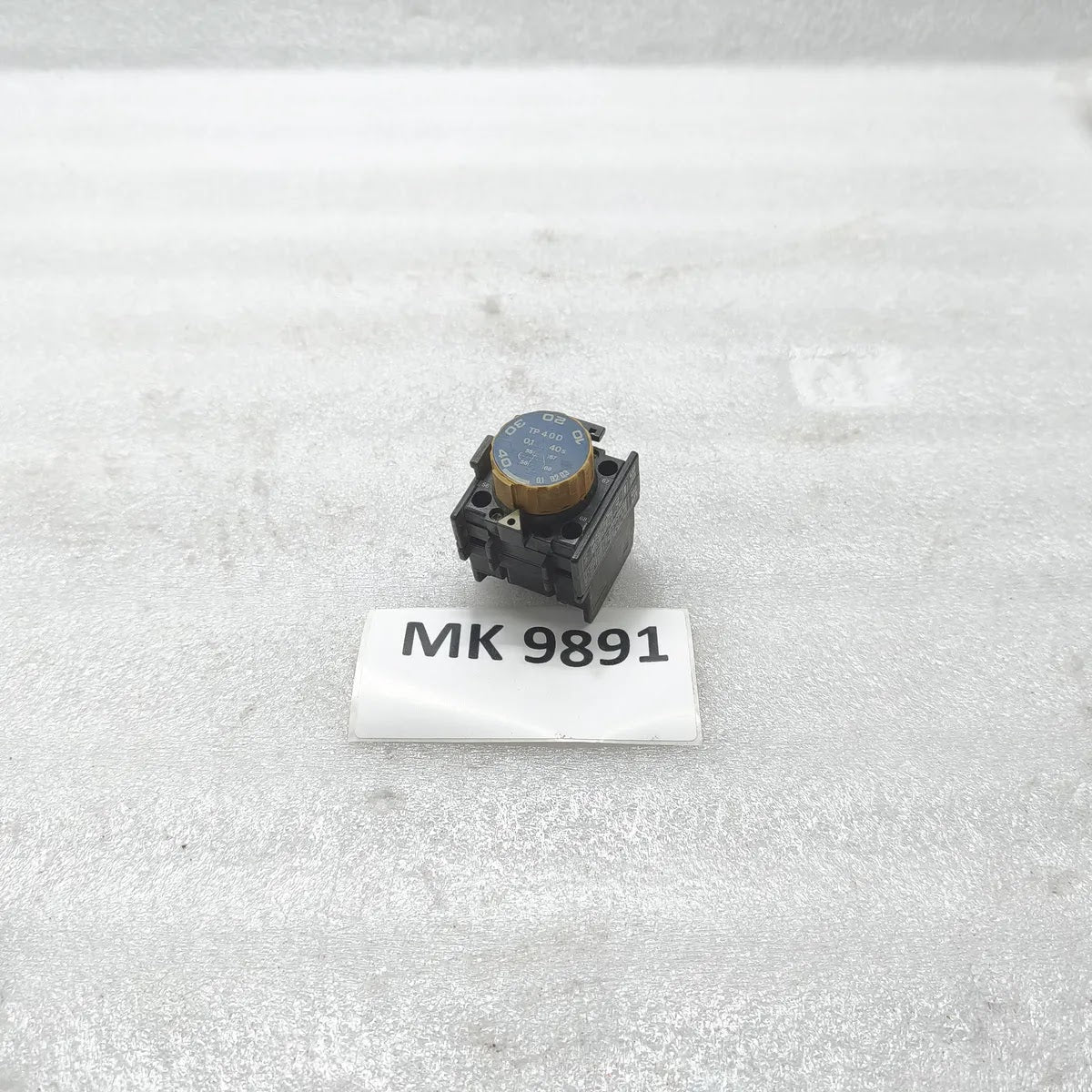

| REF | MK9891 |
