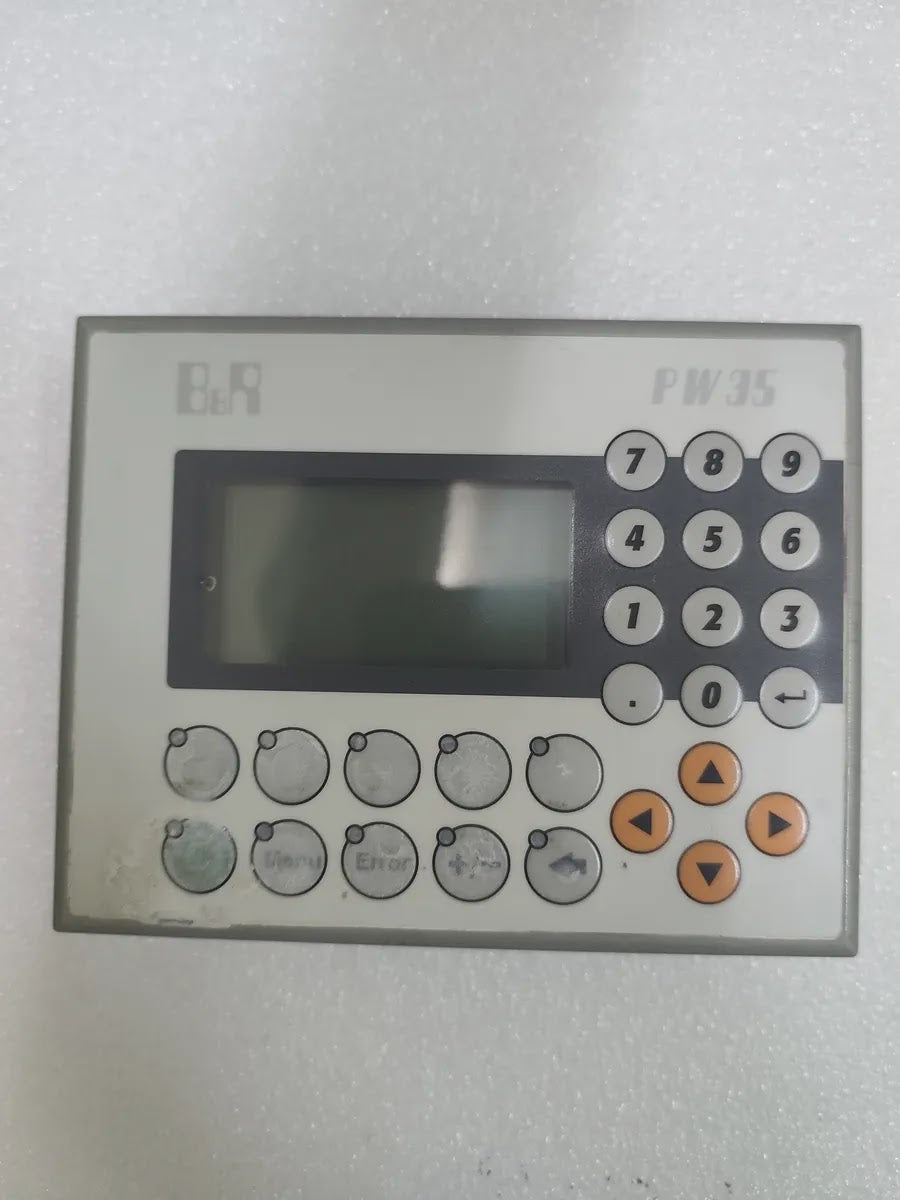

B&R 4PW035.E300-02 PW35 Operator Panel 24VDC
$449.99
Skip to product information
B&R 4PW035.E300-02 PW35 Operator Panel 24VDC
$449.99
Specifications
| BRAND | B&R |
| MODEL | PW35 |

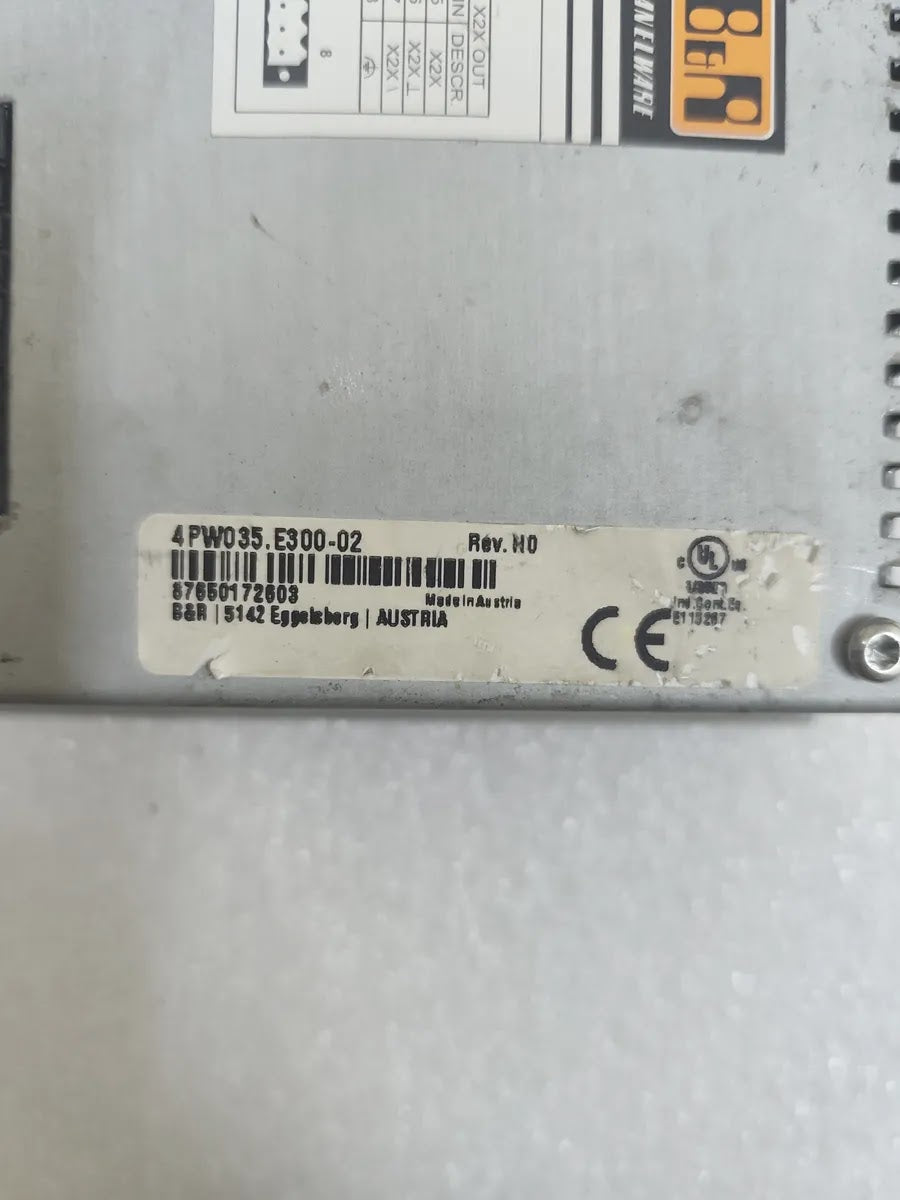

| PART NUMBER | 4PW035.E300-02 |
| TYPE | Compact HMI Operator Panel with LCD display and membrane keypad |
| SERIES | PANELWARE |
| REVISION | Rev. H0 |
| SUPPLY VOLTAGE | 24 VDC |
| INTERFACE | X2X Link bus (X2X IN / X2X OUT) |

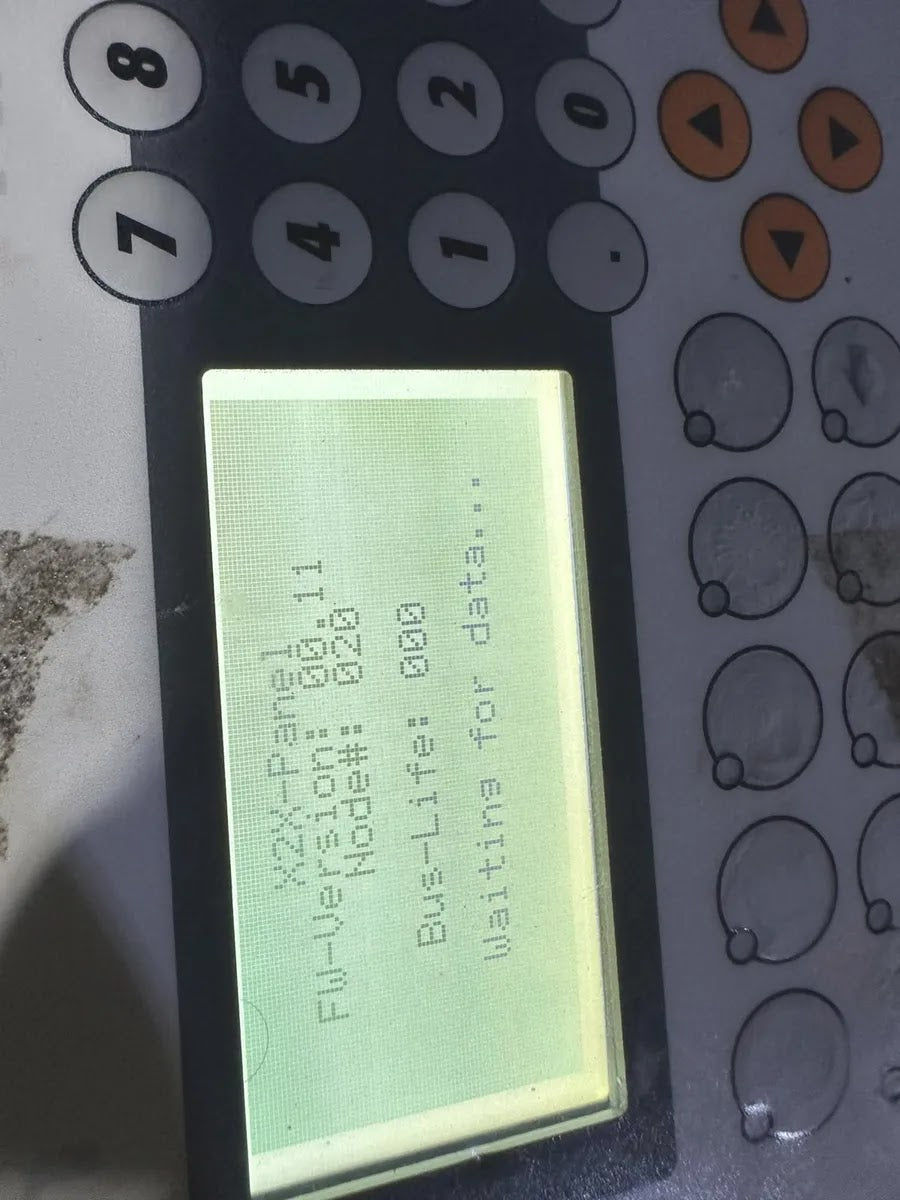

| DISPLAY | Monochrome LCD, 160 x 80 pixels, with backlight |
| KEYPAD | 26-key membrane keypad, 10 keys with yellow LEDs, left key block with exchangeable slide-in labels |

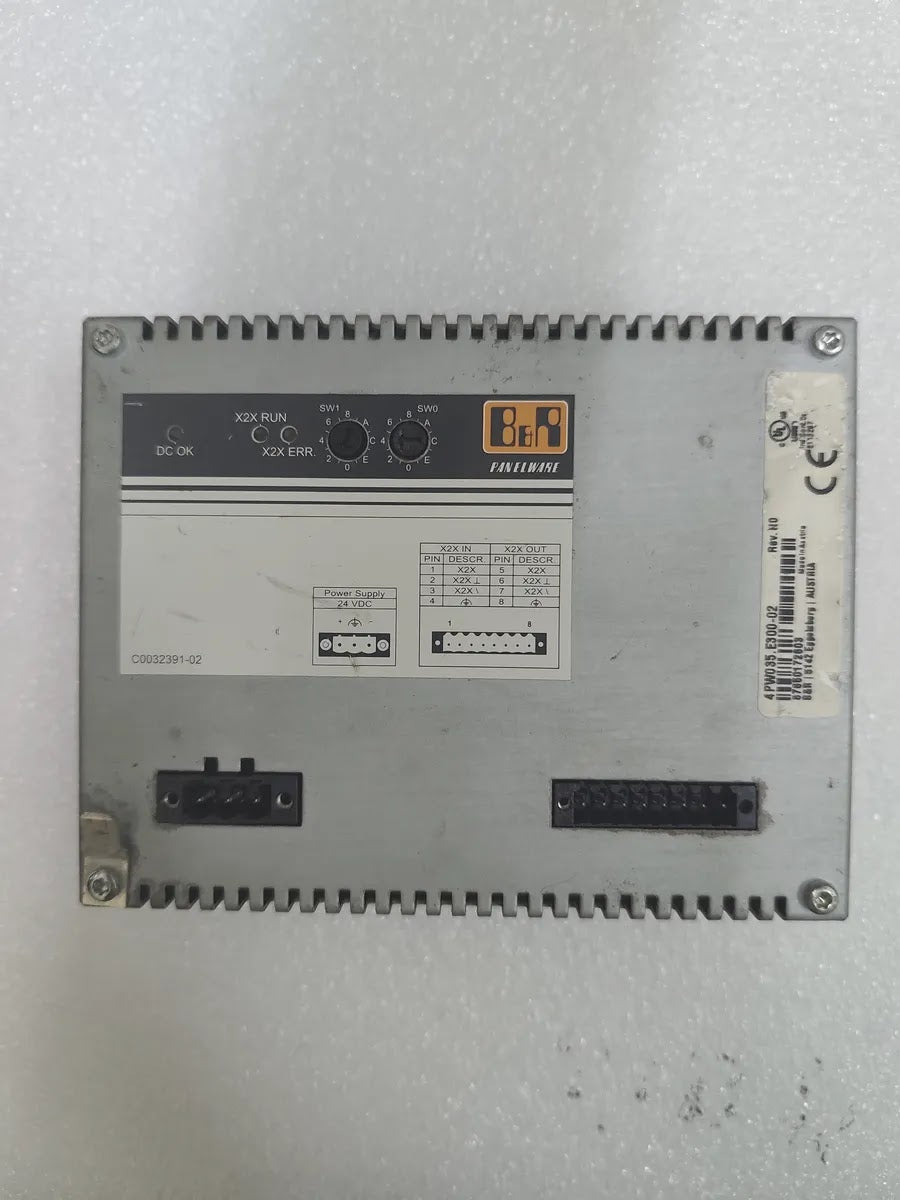

| STATUS INDICATORS | DC OK, X2X RUN, X2X ERR. |
| NODE ADDRESS | Set via two hexadecimal rotary switches SW0 and SW1 (0-F) |
| PROTECTION RATING | IP65 (front) |
| APPLICATION | Machine and plant operator interface on X2X Link networks |
| APPROVALS | CE, UL Listed Industrial Control Equipment |
| MANUFACTURER ADDRESS | B&R, 5142 Eggelsberg, Austria |
| COUNTRY OF ORIGIN | Made in Austria |
| CONDITION | PRE-OWNED / SECOND HAND |
| QTY AVAILABLE | 1 |
| REF | NTD057 |
