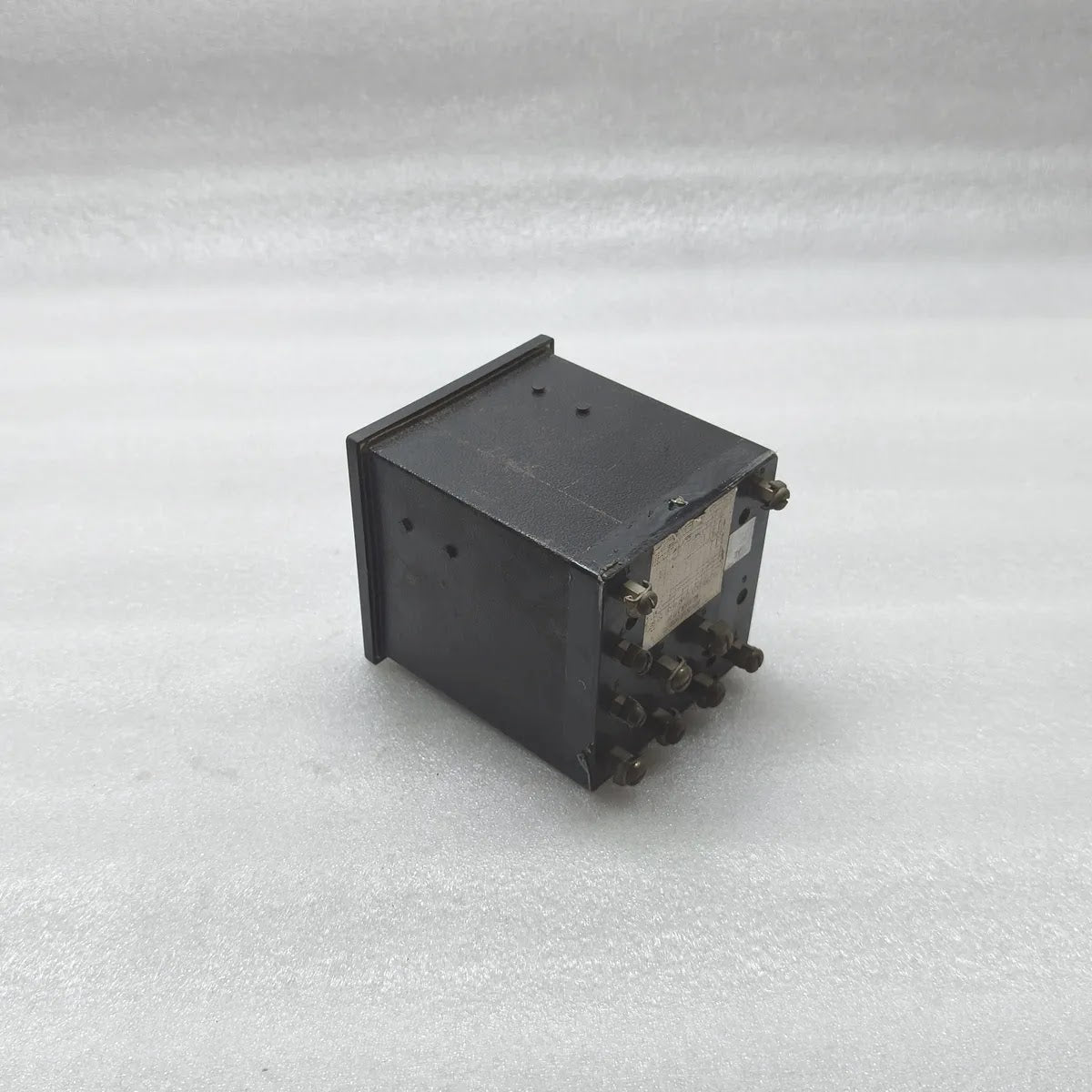

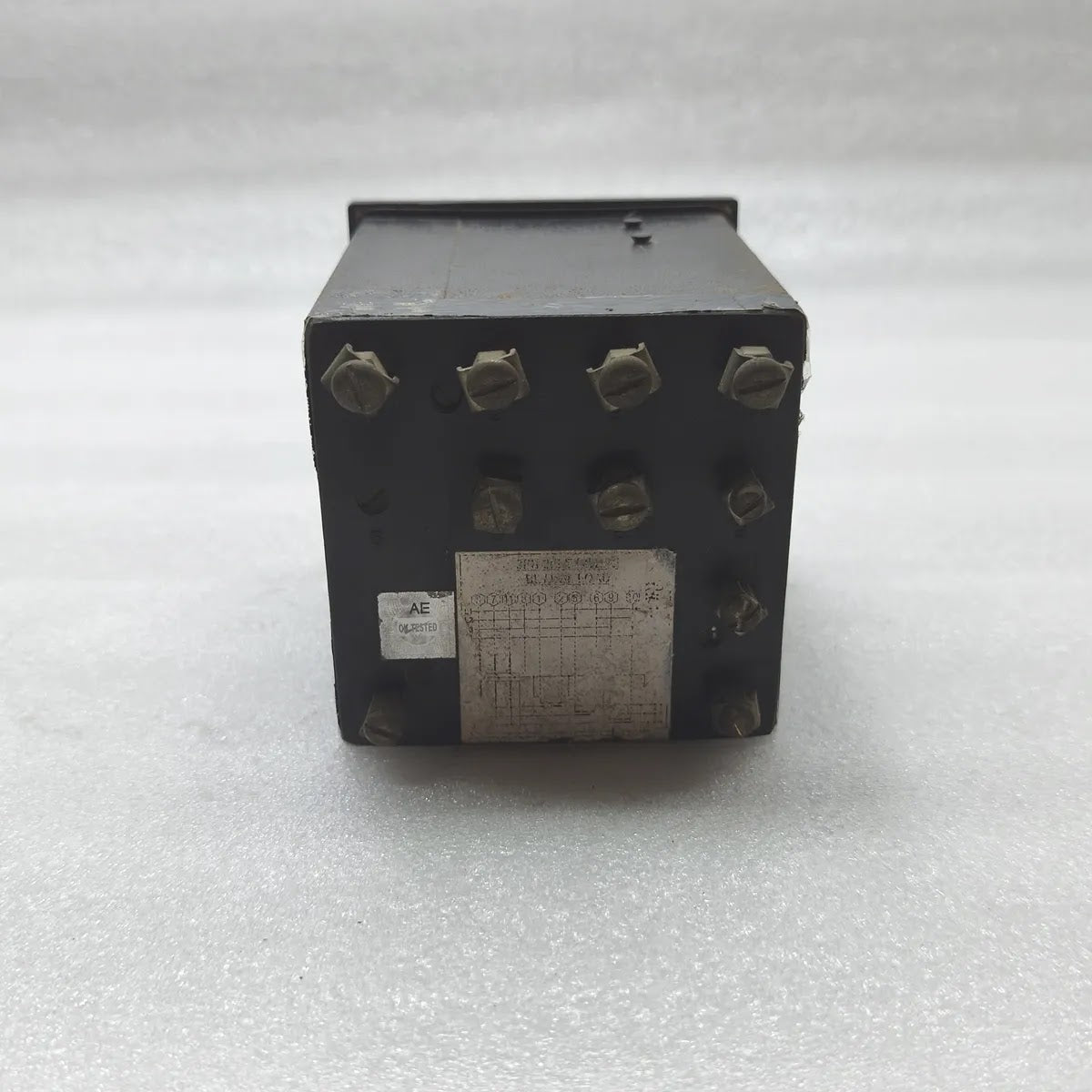

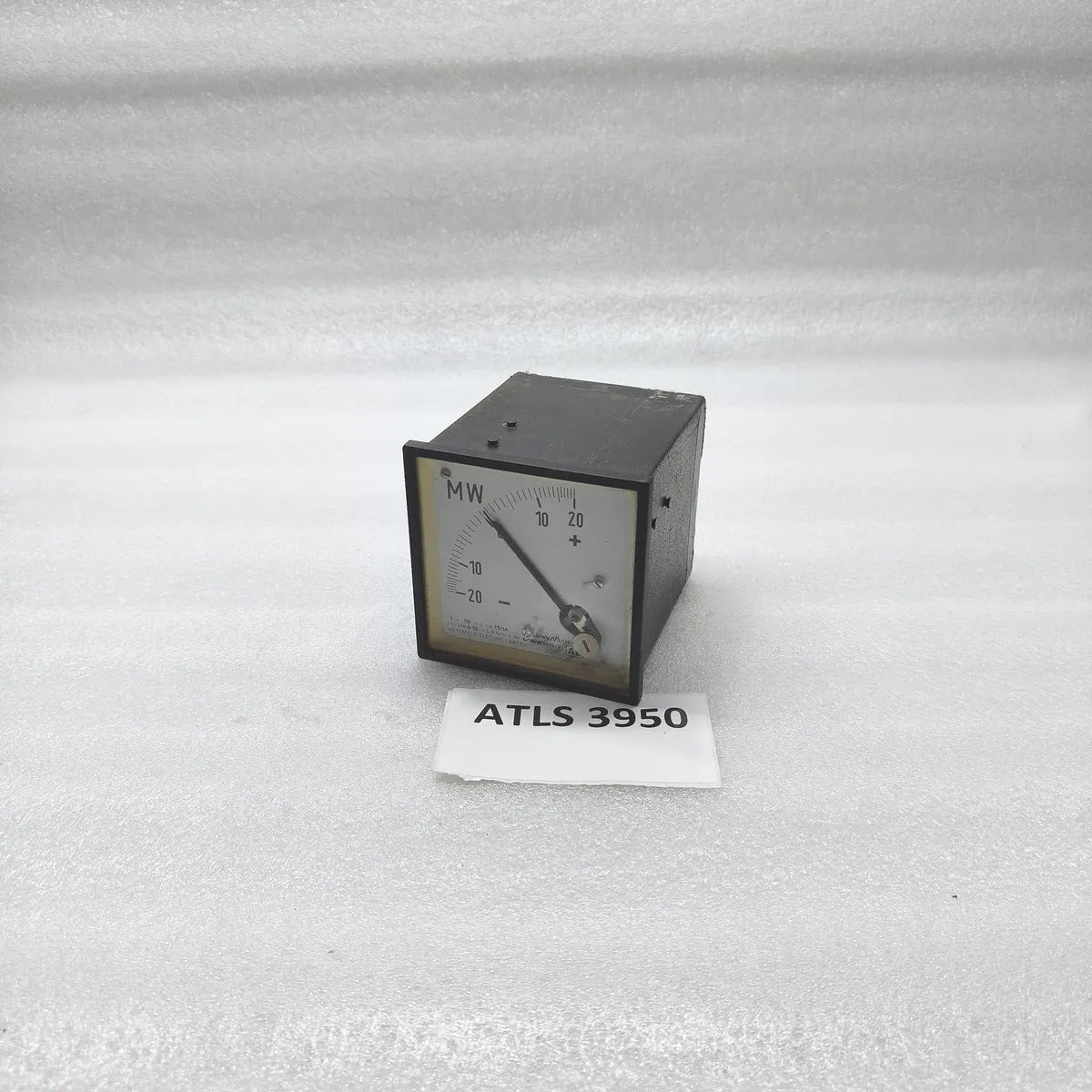

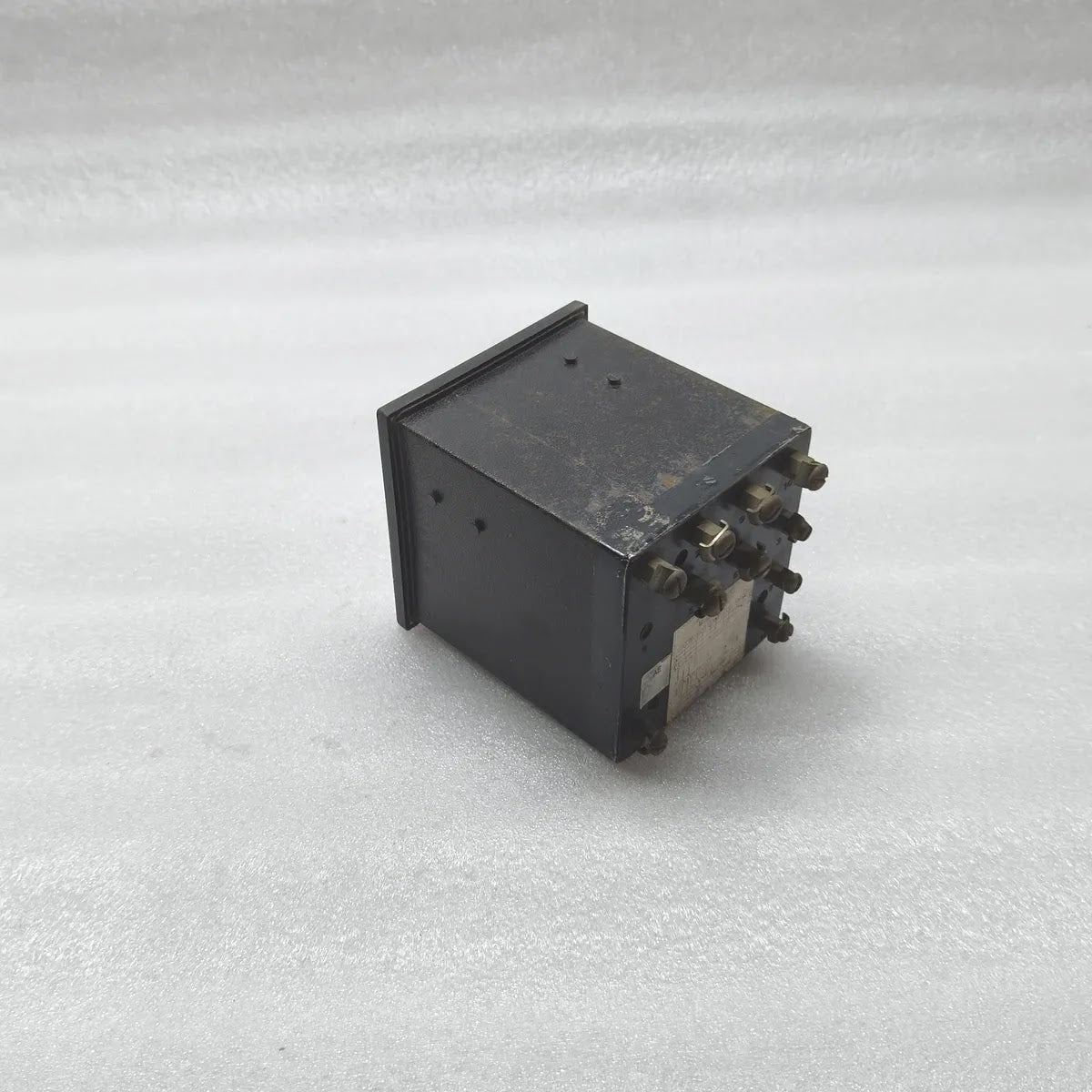

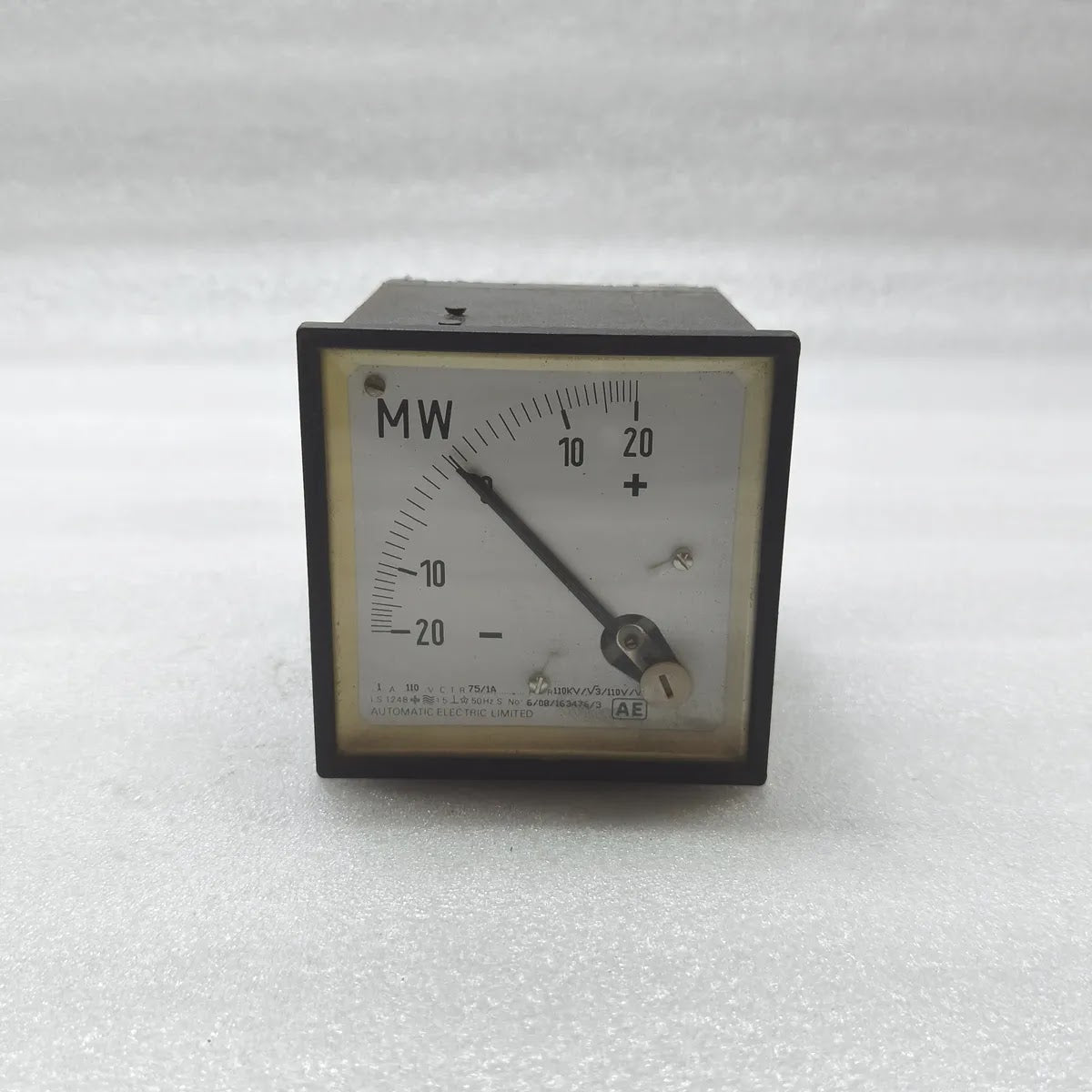

AUTOMATIC ELECTRIC MW Panel Meter 20-0-20MW 110V 1A
$79.99
AUTOMATIC ELECTRIC MW Panel Meter 20-0-20MW 110V 1A
Specifications
| Brand | Automatic Electric Limited (AE) |
| Type | Analogue switchboard panel meter, active power (megawatt) indicating |
| Measured Parameter | Active power in MW |

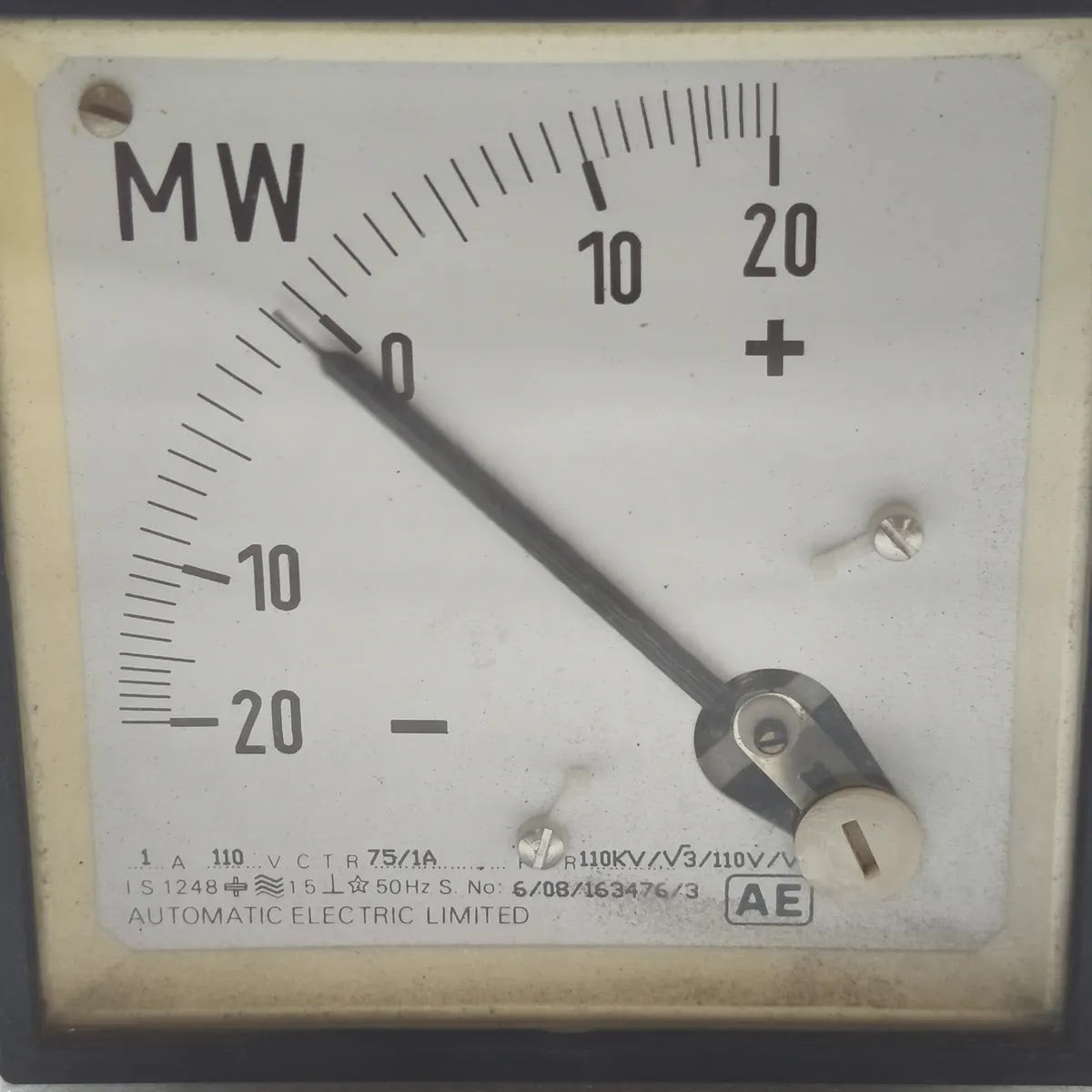

| Scale Range | 20-0-20 MW, centre zero with + and - sectors |
| Current Input | 1 A |
| Voltage Input | 110 V |
| Ct Ratio | 75/1A |
| Pt Ratio | 110KV/√3 / 110V/√3 |
| Accuracy Class | 1.5 |
| Frequency | 50Hz |
| System | Three phase, balanced load |
| Standard | I.S. 1248 |
| Application | Switchboard and control panel indication of generated or transmitted active power via CT and PT |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3950 |
