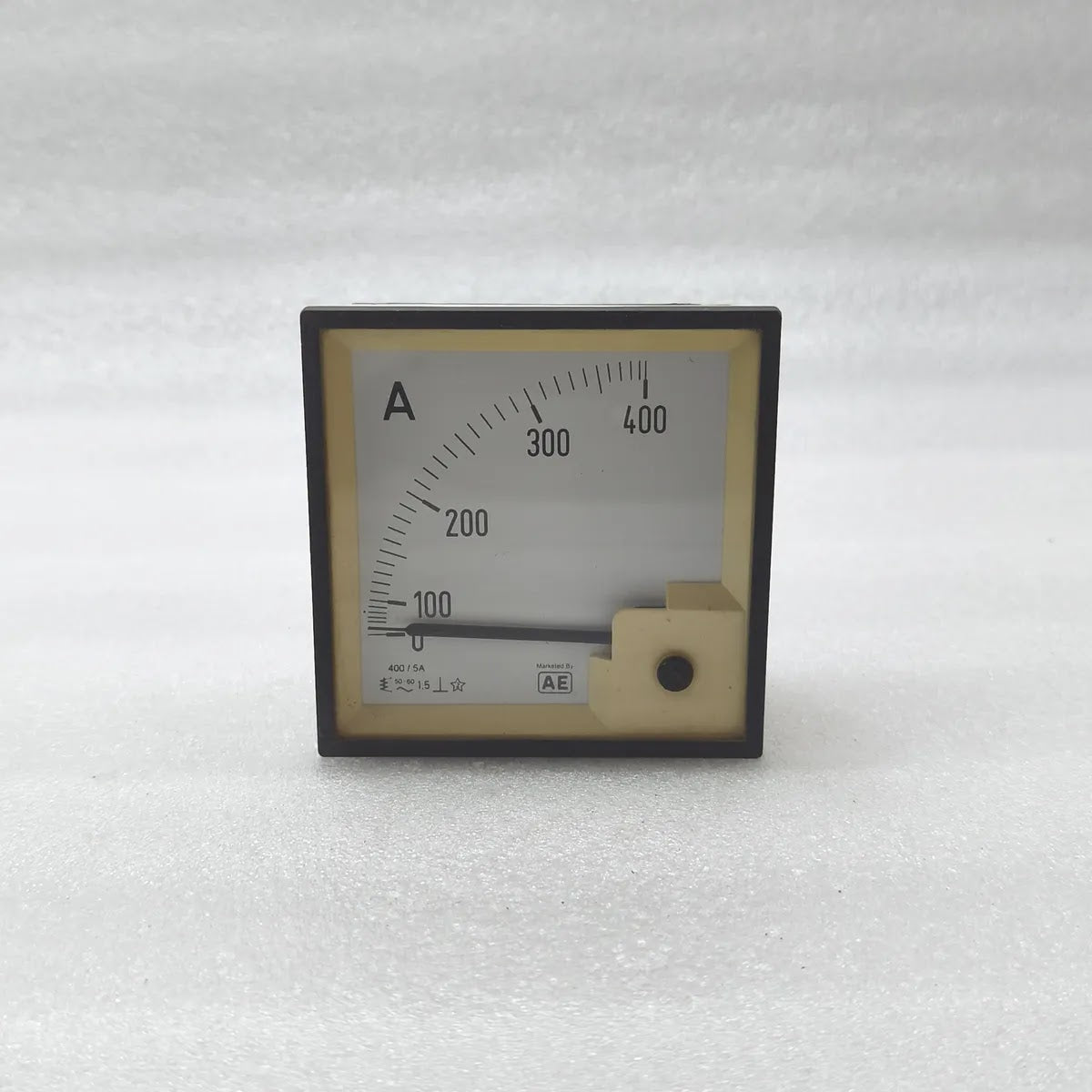

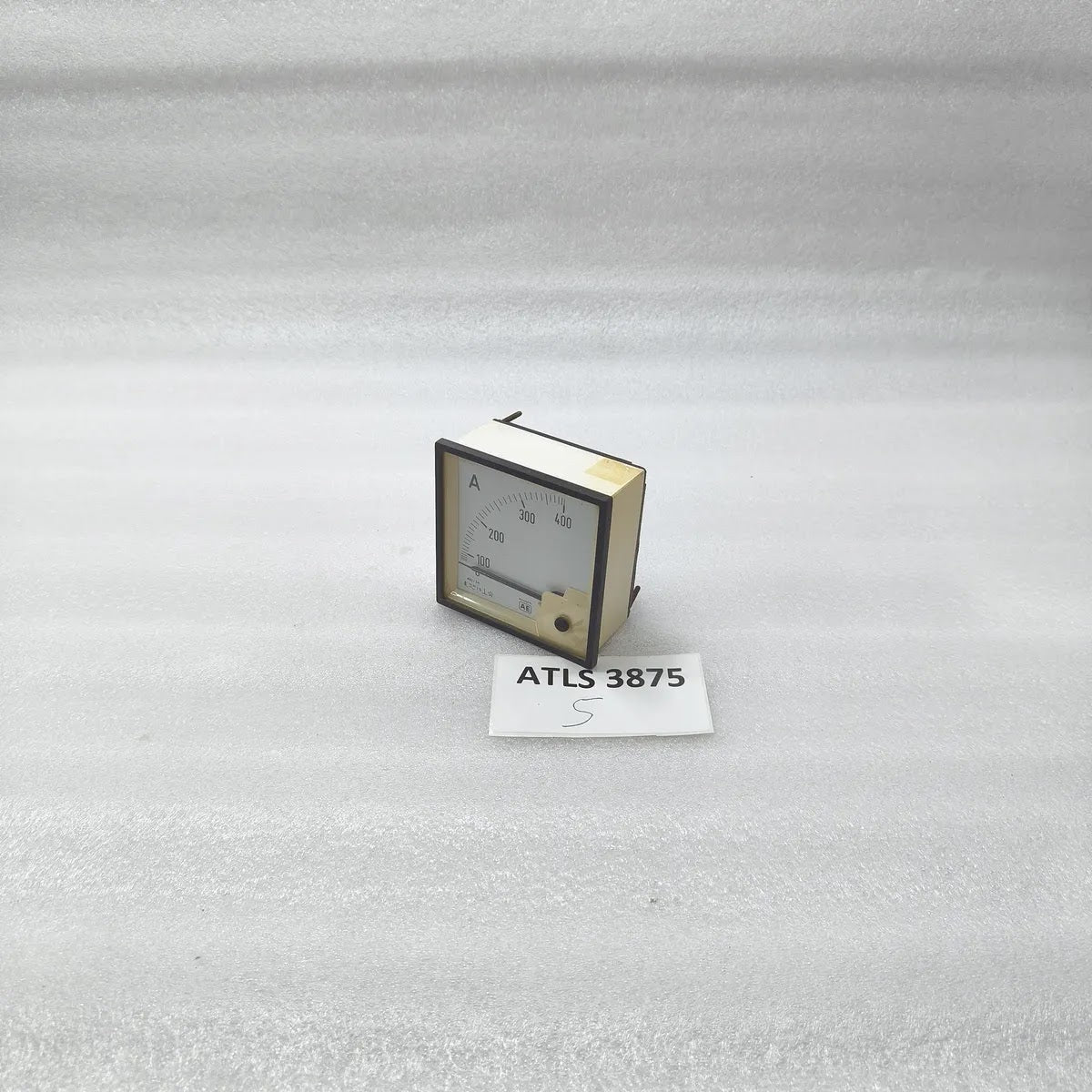

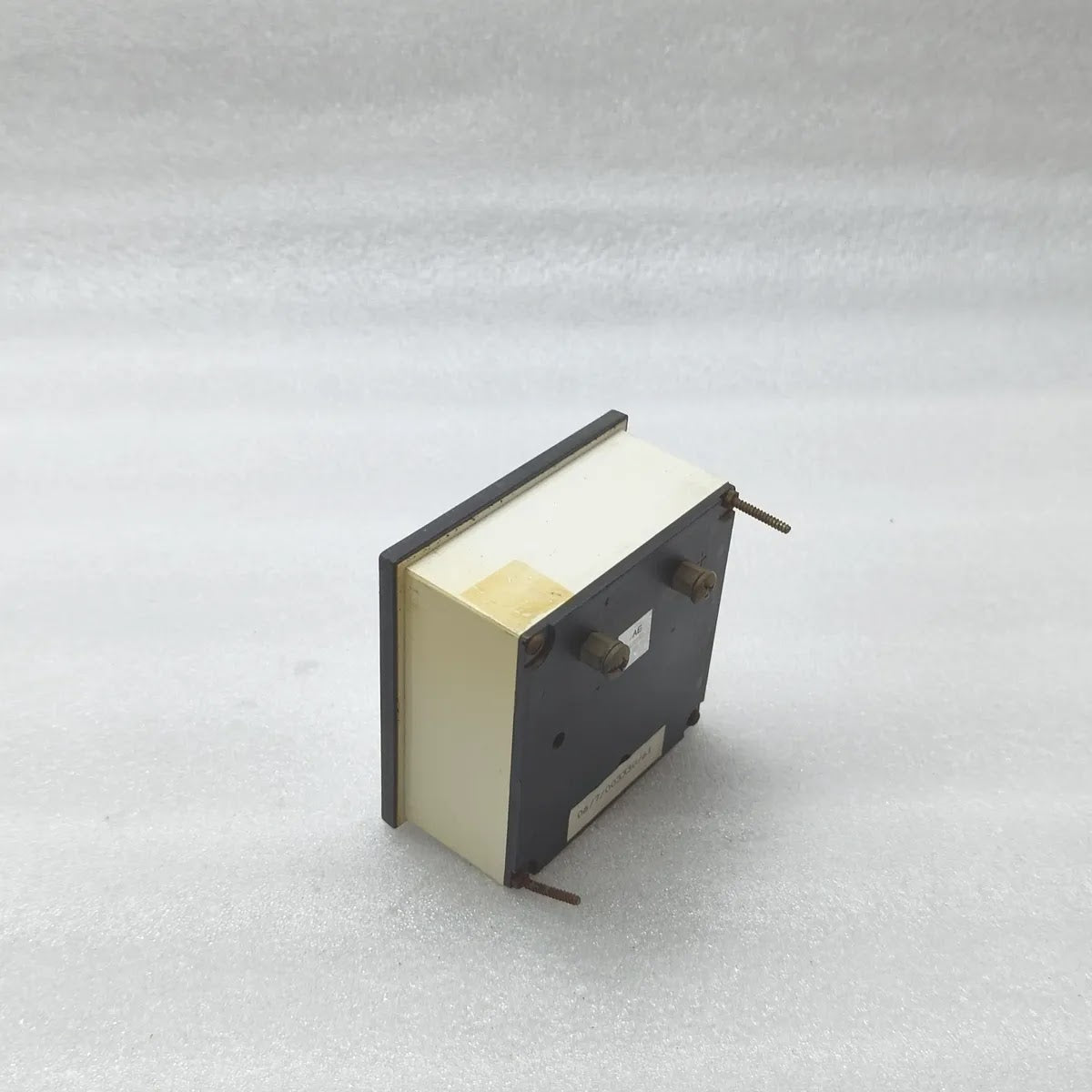

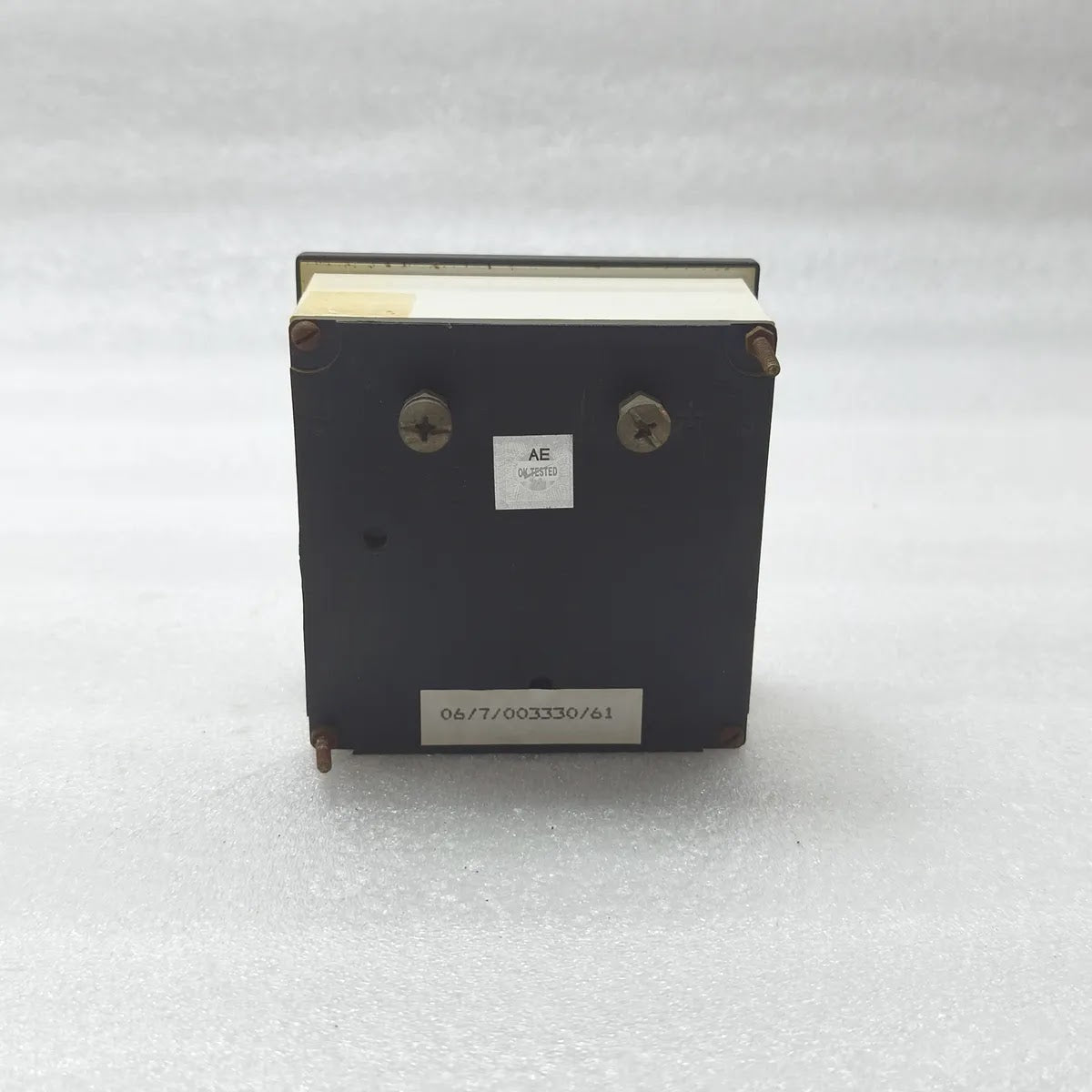

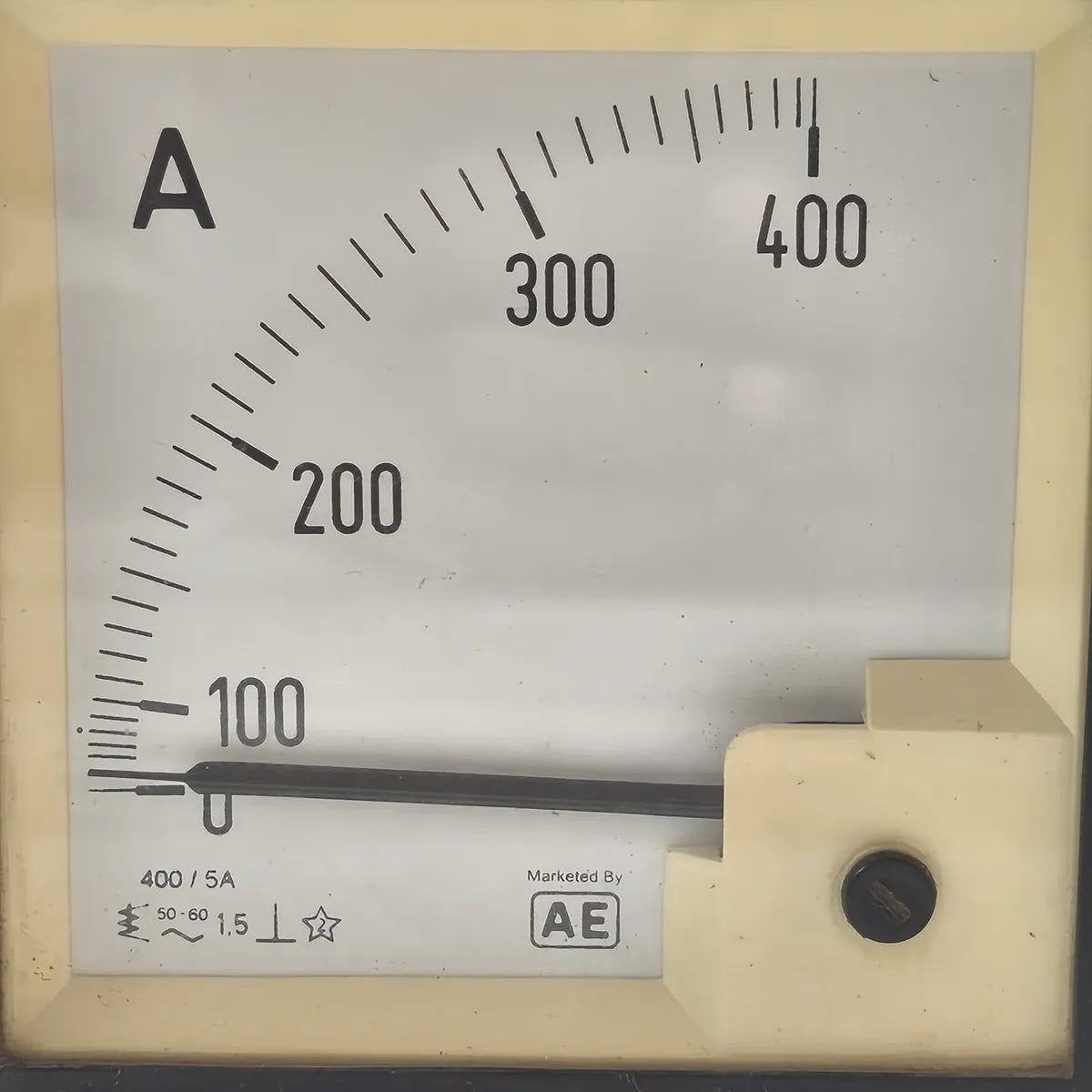

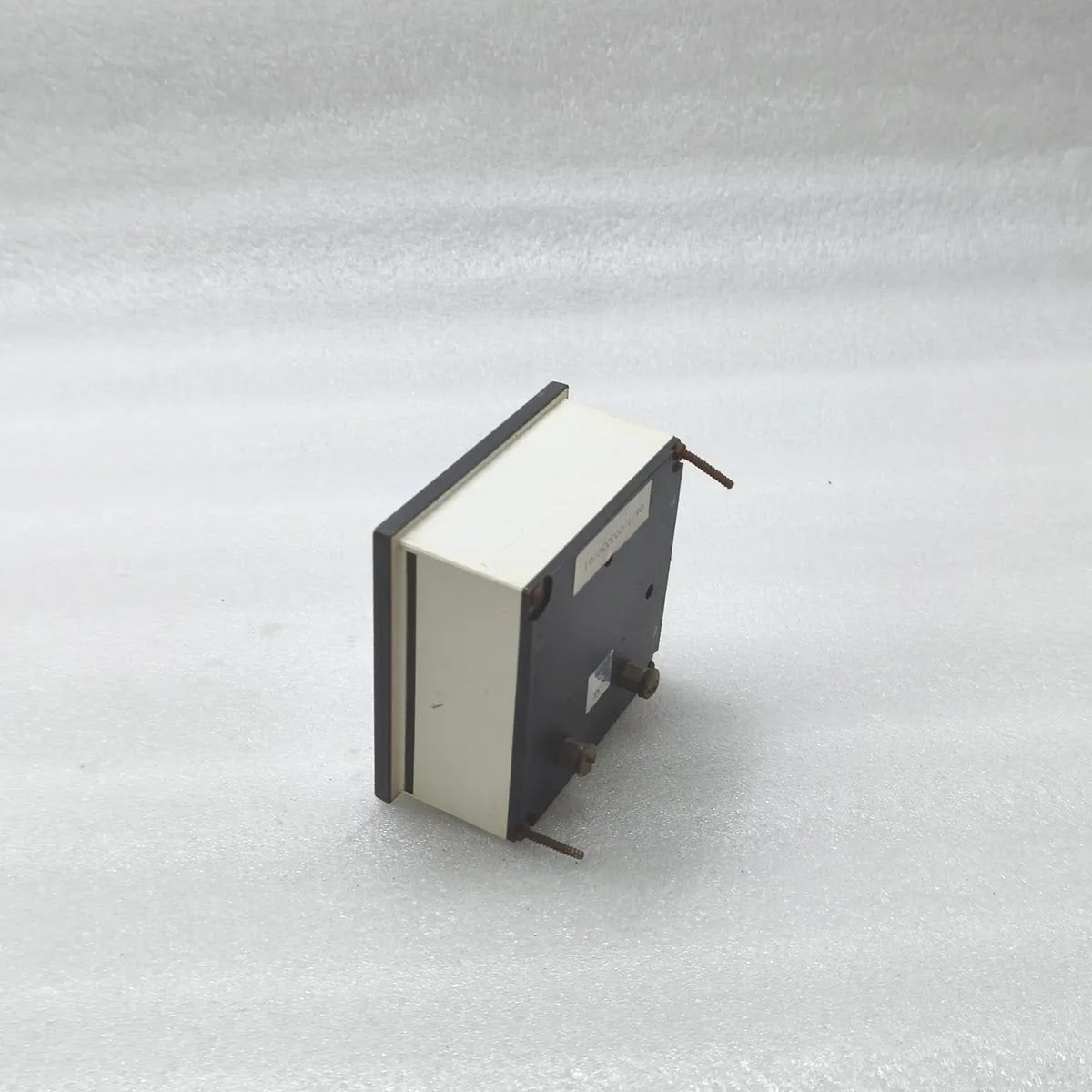

AE Moving Iron Panel Ammeter 0-400A 400/5A
$79.99
Skip to product information
AE Moving Iron Panel Ammeter 0-400A 400/5A
$79.99
AE Moving Iron Panel Ammeter 0-400A 400/5A
Specifications
| Brand | AE (Automatic Electric Ltd) |
| Type | Analogue moving iron AC panel ammeter, CT operated |
| Scale Range | 0-400 A |
| Ct Ratio | 400 / 5A |
| Measuring Unit | A (amperes), AC |
| Accuracy Class | 1,5 |
| Frequency | 50-60 Hz |
| Measuring System | Moving iron, true RMS indication independent of waveform |
| Test Voltage | 2 kV (star-2 symbol on dial) |
| Operating Position | Vertical (perpendicular position symbol on dial) |
| Scale Type | Non-linear |
| Damping | Oil damping, almost deadbeat pointer movement |
| Application | AC current indication in switchboards and control panels via 5 A secondary current transformer |
| Country Of Origin | India |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS3875 |
