ABB CM-PFS 1SVR430824R9300 Phase Sequence Monitoring Relay 200-500V
$99.99
Skip to product information
ABB CM-PFS 1SVR430824R9300 Phase Sequence Monitoring Relay 200-500V
$99.99
ABB CM-PFS 1SVR430824R9300 Phase Sequence Monitoring Relay 200-500V
Specifications
| Brand | ABB |
| Model | CM-PFS |
| Order No | 1SVR430824R9300 |
| Type | Phase sequence monitoring relay |
| Series | CM Range three-phase monitoring relays |
| Application | Monitors three-phase mains for incorrect phase sequence and phase failure |
| Measuring Voltage | L 1, 2, 3: AC 200-500V |
| Frequency | 50/60 Hz |
| Output Contacts | 2 C/O (2 change-over) |
| Rated Thermal Current | Ithe: 4A |
| Rated Insulation Voltage | Ui: 500V |
| Impulse Withstand Voltage | Uimp: 4kV |
| Short-Circuit Protection | 6A fast fuse |
| Utilisation Category | AC-15, DC-13 |
| Dimensions | 22.5 mm wide module |
| Standard | IEC / EN 60255-6, IEC / EN 60947-5-1, GB14048.5 |
| Approvals | cULus Listed 8B32 Ind.Cont.Eq. B300, GL, CE, CCC A041049, C-tick, CB scheme, PCT ME01 |
| Country Of Origin | Made in Germany |
| Condition | PRE-OWNED / SECOND HAND |

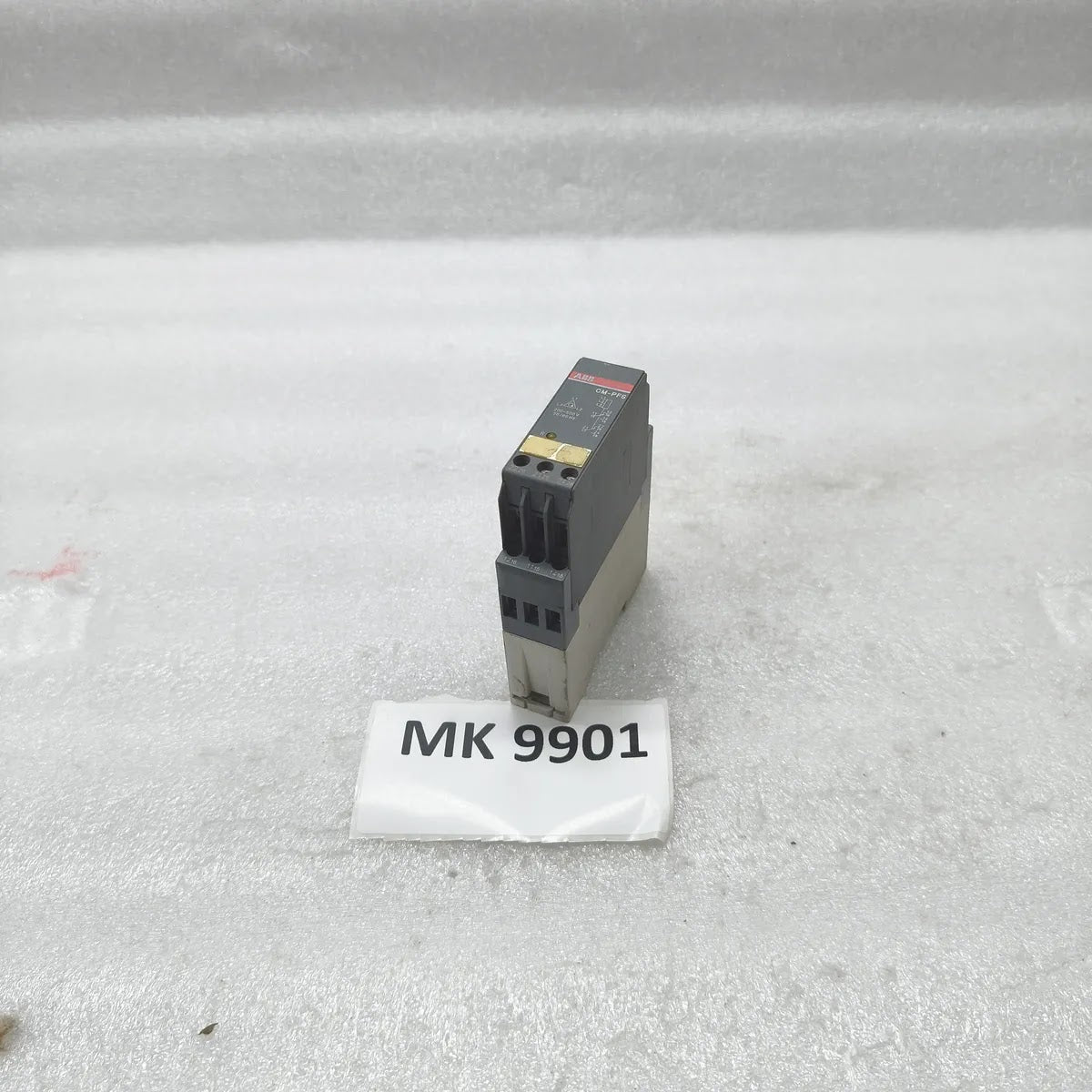

| REF | MK9901 |
Shipping & Assurance: Ships worldwide via DHL · UPS · Aramex. WhatsApp +91-814-038-5618 · sales@inmateto.com
