A Bradley 1766-L32BWA MicroLogix 1400 PLC Controller 100-240VAC 32-Point
$174.98
Skip to product information
A Bradley 1766-L32BWA MicroLogix 1400 PLC Controller 100-240VAC 32-Point
$174.98
A Bradley 1766-L32BWA MicroLogix 1400 PLC Controller 100-240VAC 32-Point
Specifications
| Brand | Allen-Bradley (AB) |
| Model | MicroLogix 1400 |
| Cat No | 1766-L32BWA |
| Type | Programmable Logic Controller, 32-point |
| Series | MicroLogix 1400 / 1766 |
| Series Letter | SER. A |
| Revision | REV. A |
| Operating System | FRN 03 |
| Supply Voltage | LINE: 100-240 VAC, 120 VA MAX. |
| Frequency | 50-60 Hz |
| I/O Configuration | DC IN / RELAY OUT / AC POWER |
| Digital Inputs | 12-24VDC Class 2; 20 inputs (12 fast, 8 normal 24V DC) |
| Digital Outputs | 12 relay outputs, 1440VA MAX. |
| Analog I/O | None embedded |
| User Power Output | 24V DC |
| Communication | 1 x RS-232/RS-485 combo port and 1 x isolated EtherNet/IP port |
| Protocols | DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, Modbus TCP/IP, DNP3 over IP |
| Memory | 10 KB words user program, 10 KB words user data; 128 KB data logging, 64 KB recipe |
| Expansion | Up to seven 1762 MicroLogix expansion I/O modules, 256 discrete I/O |
| Operating Temperature | 20 to 60 °C |
| Enclosure Rating | IP20 |
| Dimensions | 90 mm height x 87 mm depth |

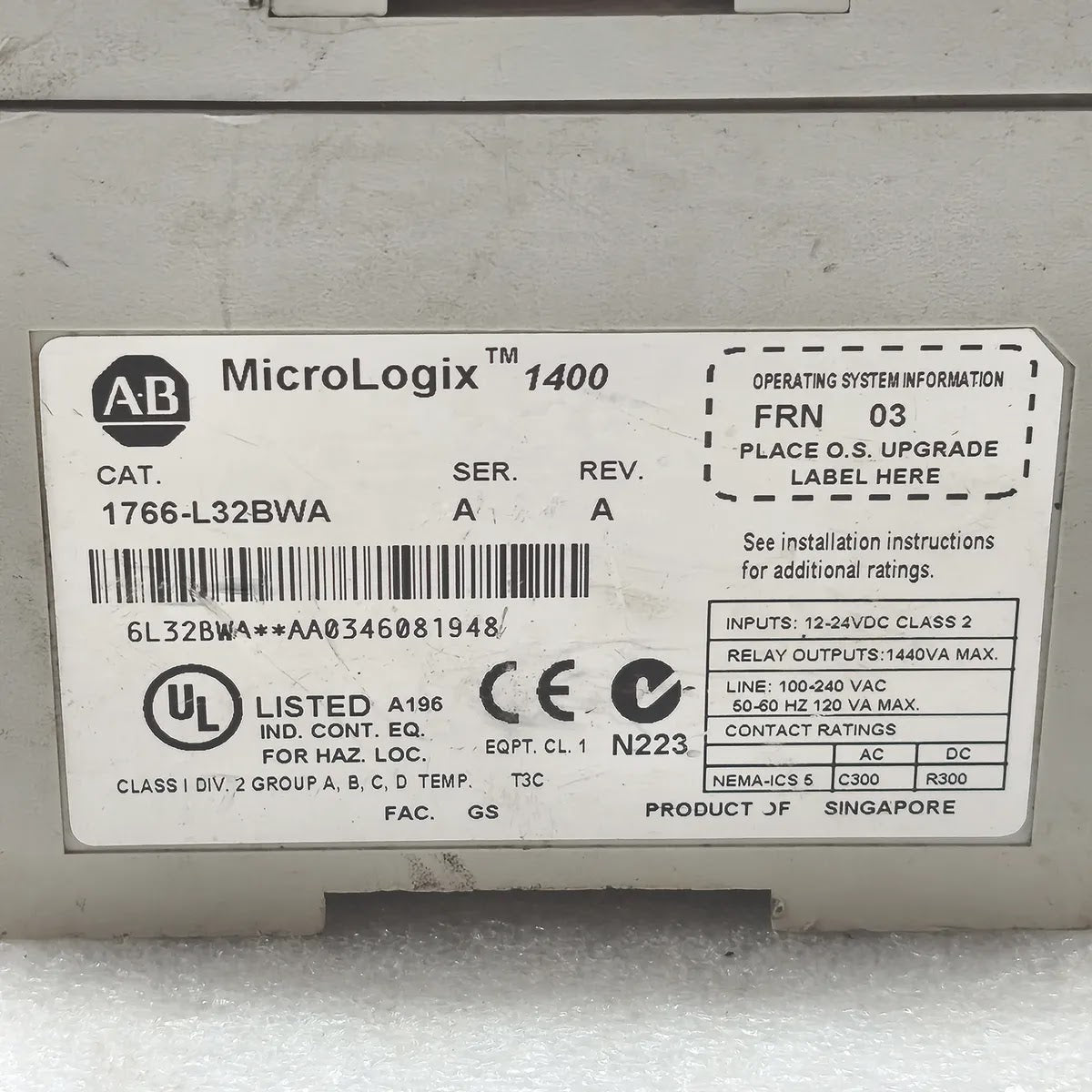

| Approvals | UL Listed A196 Ind. Cont. Eq. for Haz. Loc., Class I Div. 2 Group A, B, C, D Temp. T3C; CE Eqpt. Cl. 1; C-Tick N223 |
| Factory Code | FAC. GS |
| Country Of Origin | Product of Singapore |
| Condition | PRE-OWNED / SECOND HAND |

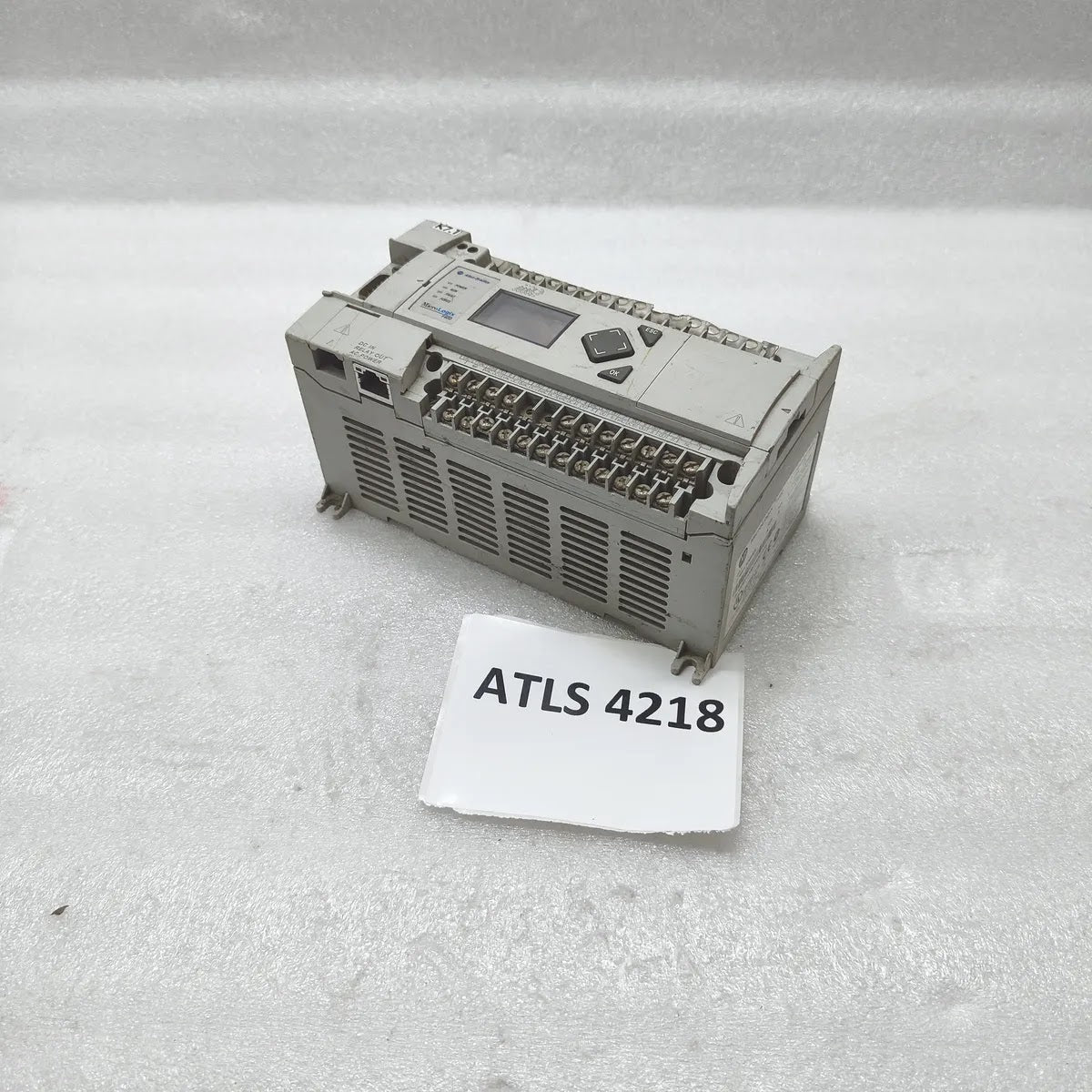

| REF | ATLS4218 |
