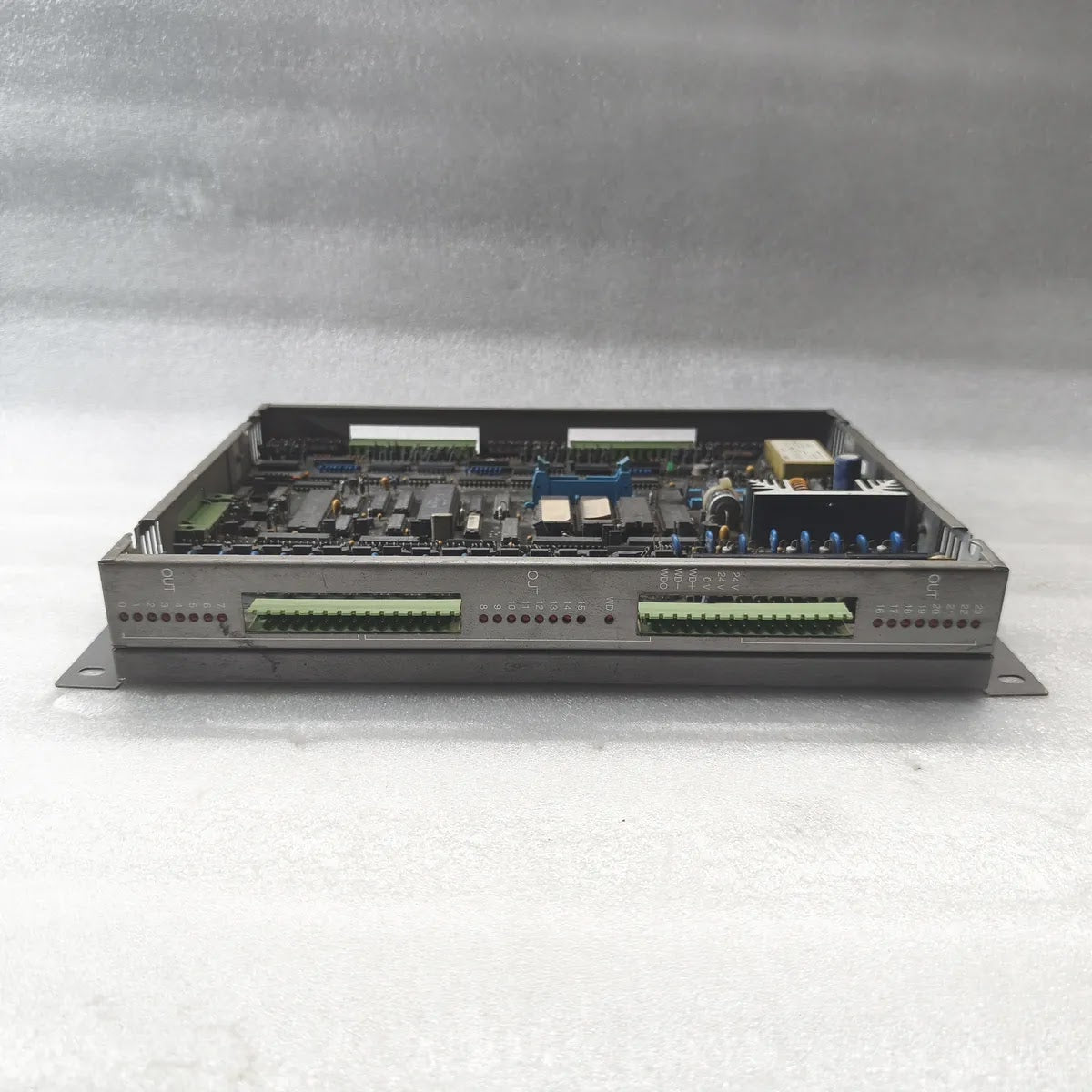

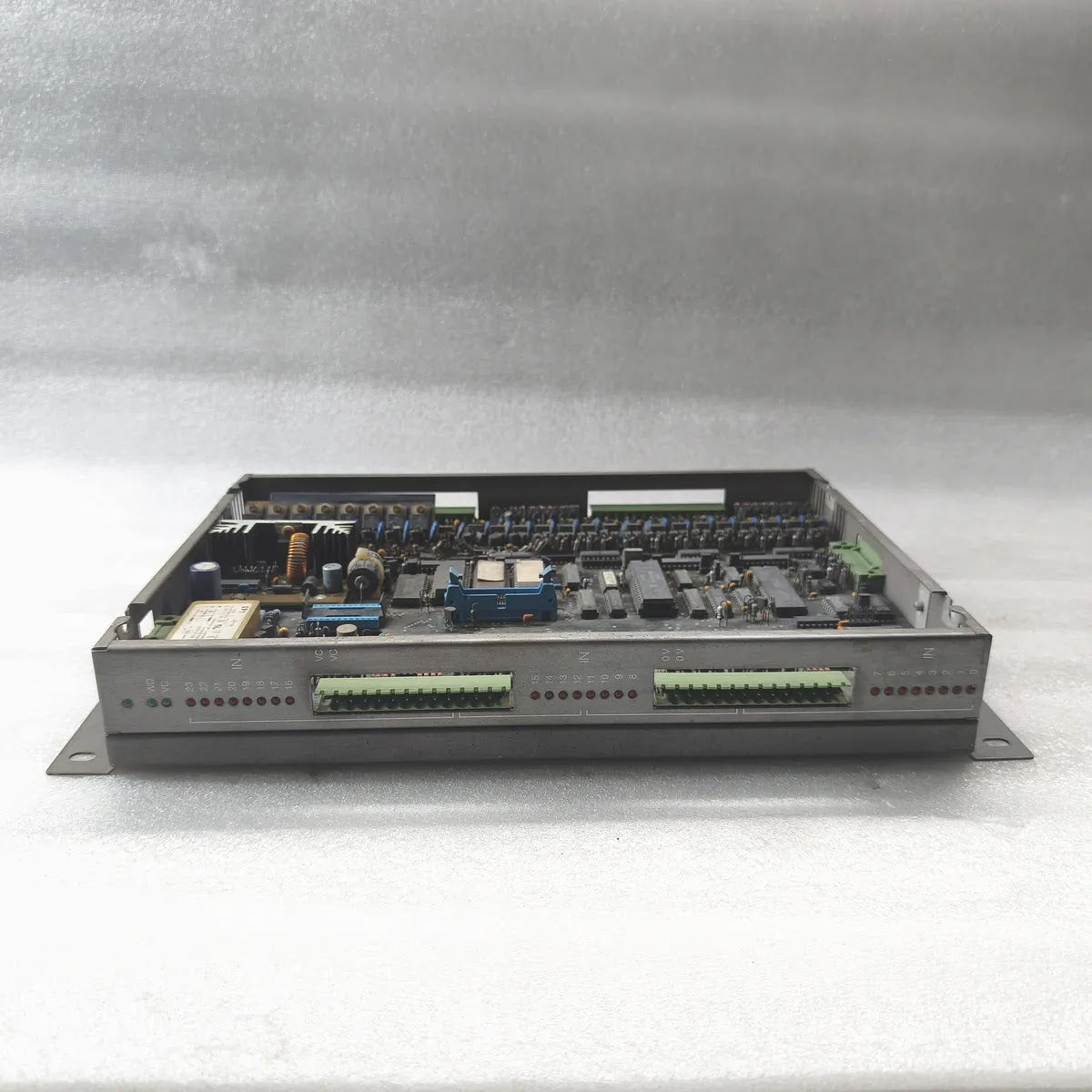

87.430.300-01 Basismodul Digital I/O Module 24 Inputs 24 Outputs 24V
$999.99
Skip to product information
87.430.300-01 Basismodul Digital I/O Module 24 Inputs 24 Outputs 24V
$999.99
87.430.300-01 Basismodul Digital I/O Module 24 Inputs 24 Outputs 24V
Specifications

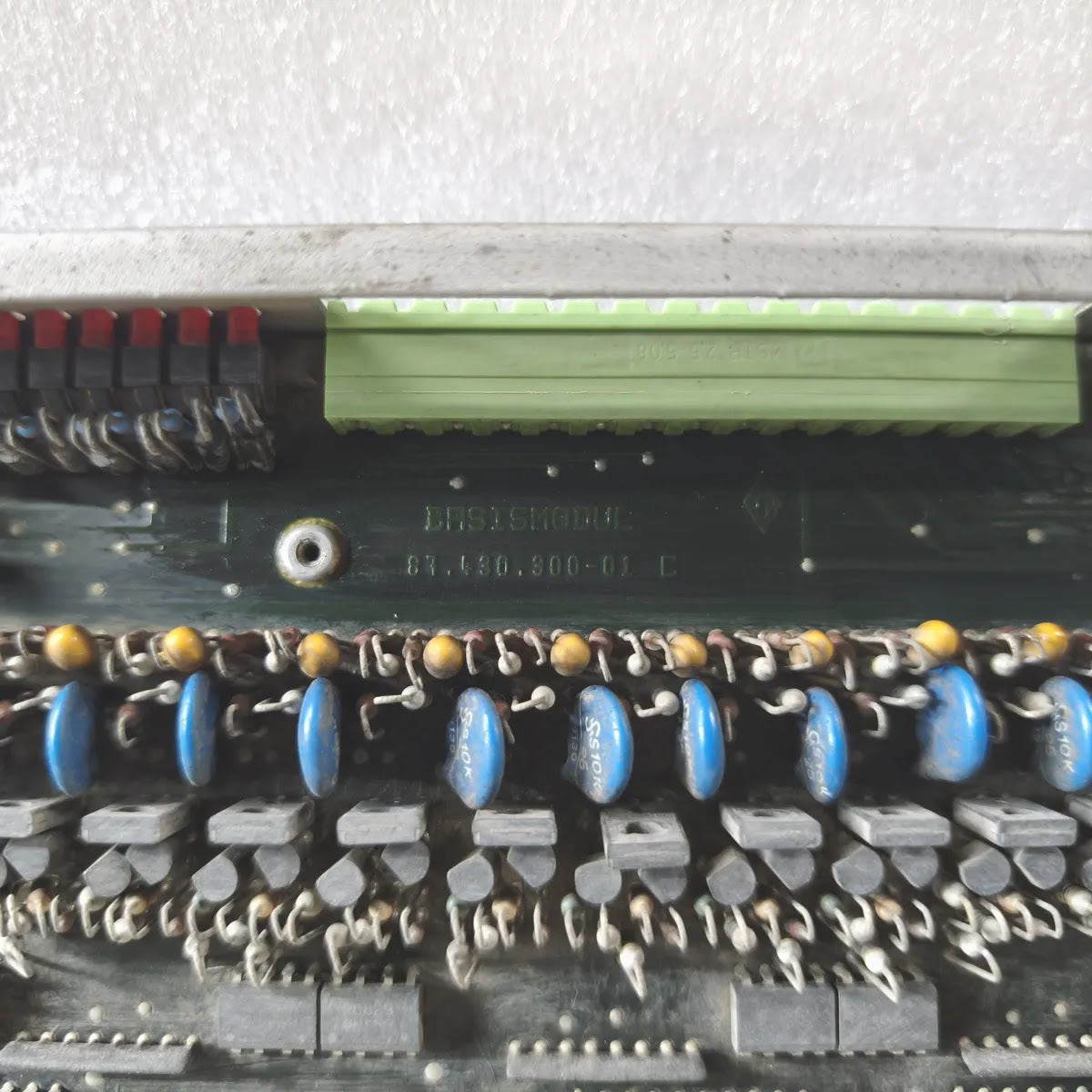

| Model | BASISMODUL (base module) |
| Part Number | 87.430.300-01 |
| Revision | C |
| Type | Digital input / output control module |

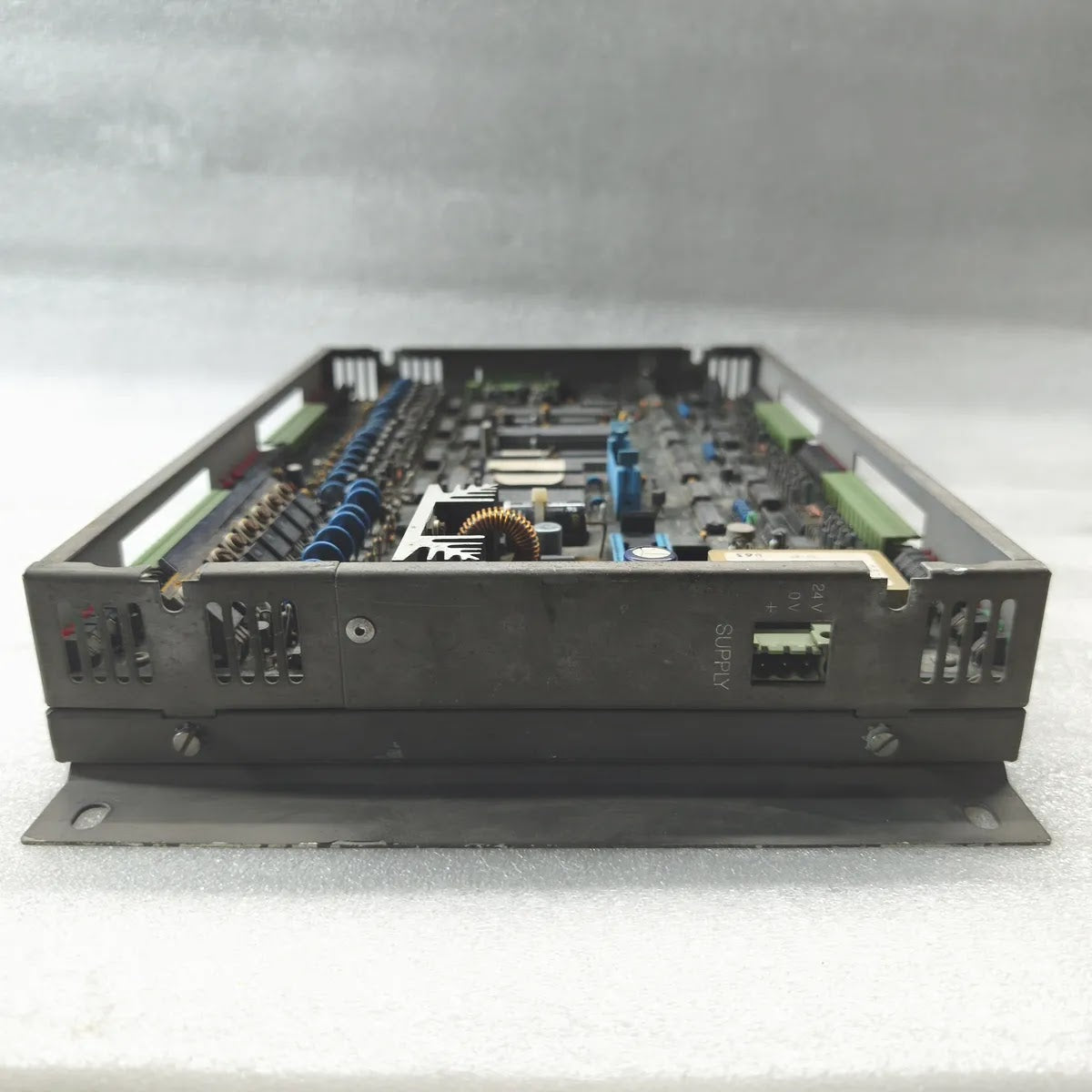

| Supply Voltage | 24V DC |

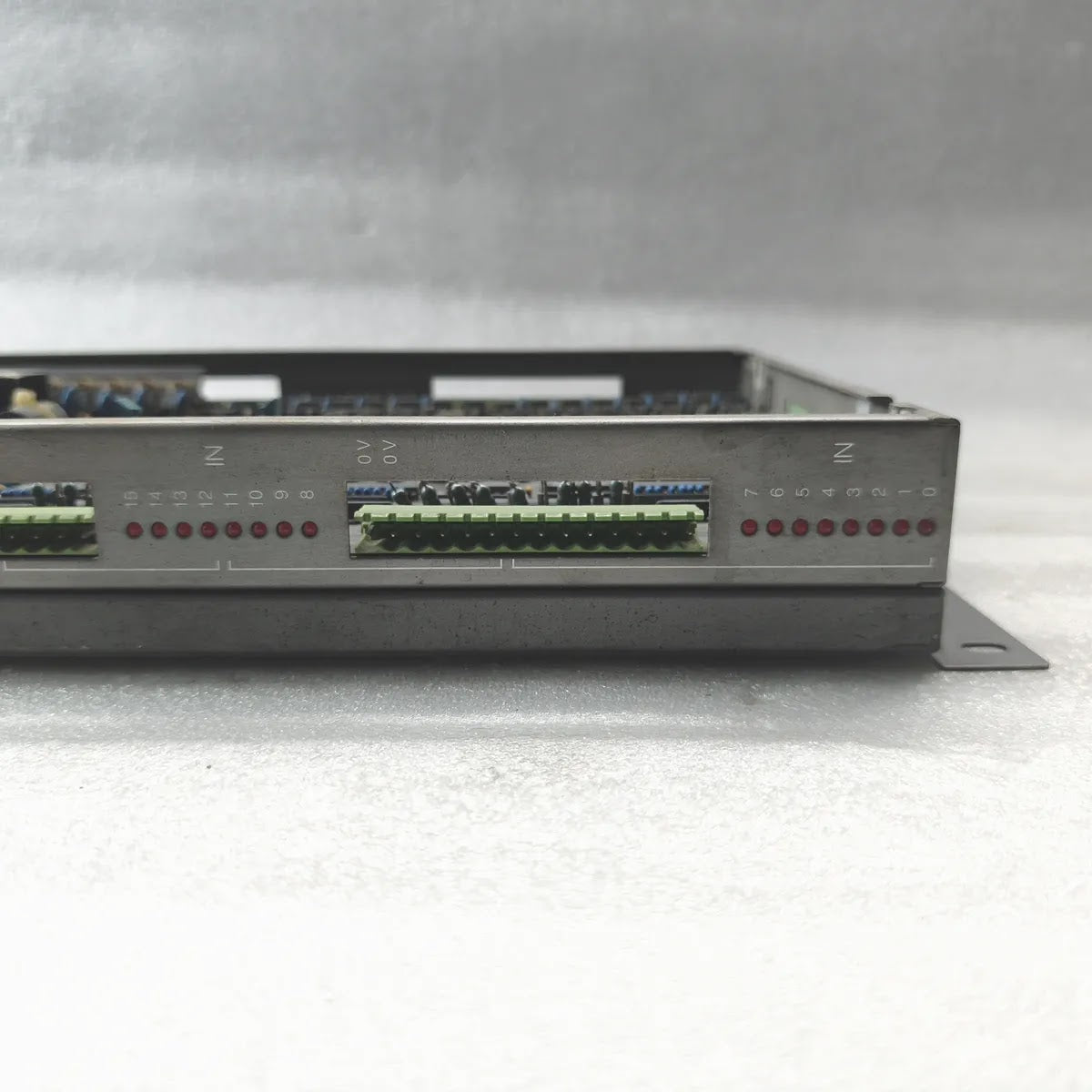

| Inputs | 24 digital inputs, channels IN 0 to 23 |
| Outputs | 24 digital outputs, channels OUT 0 to 23 |

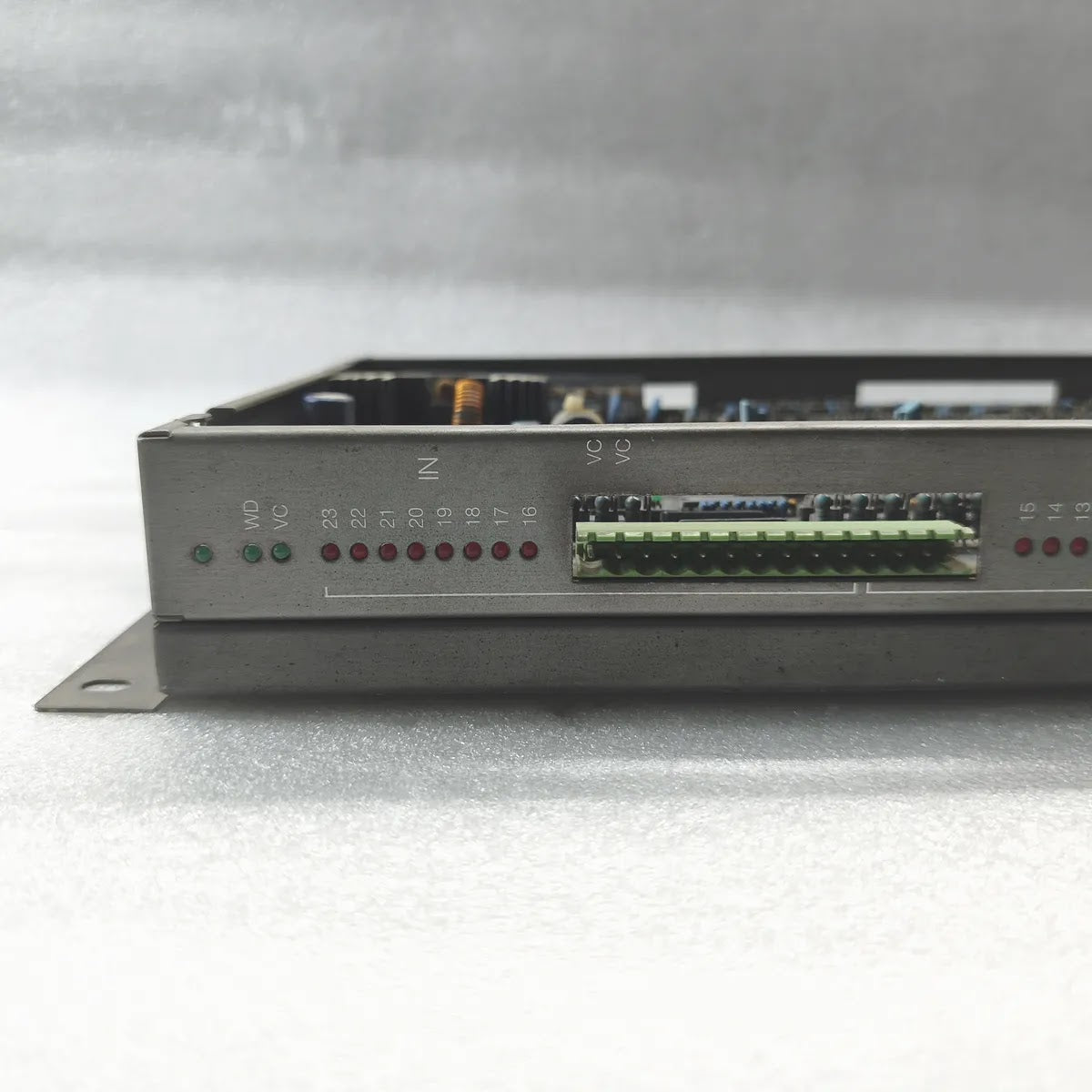

| Watchdog | Watchdog function with WD status indicator and watchdog output |

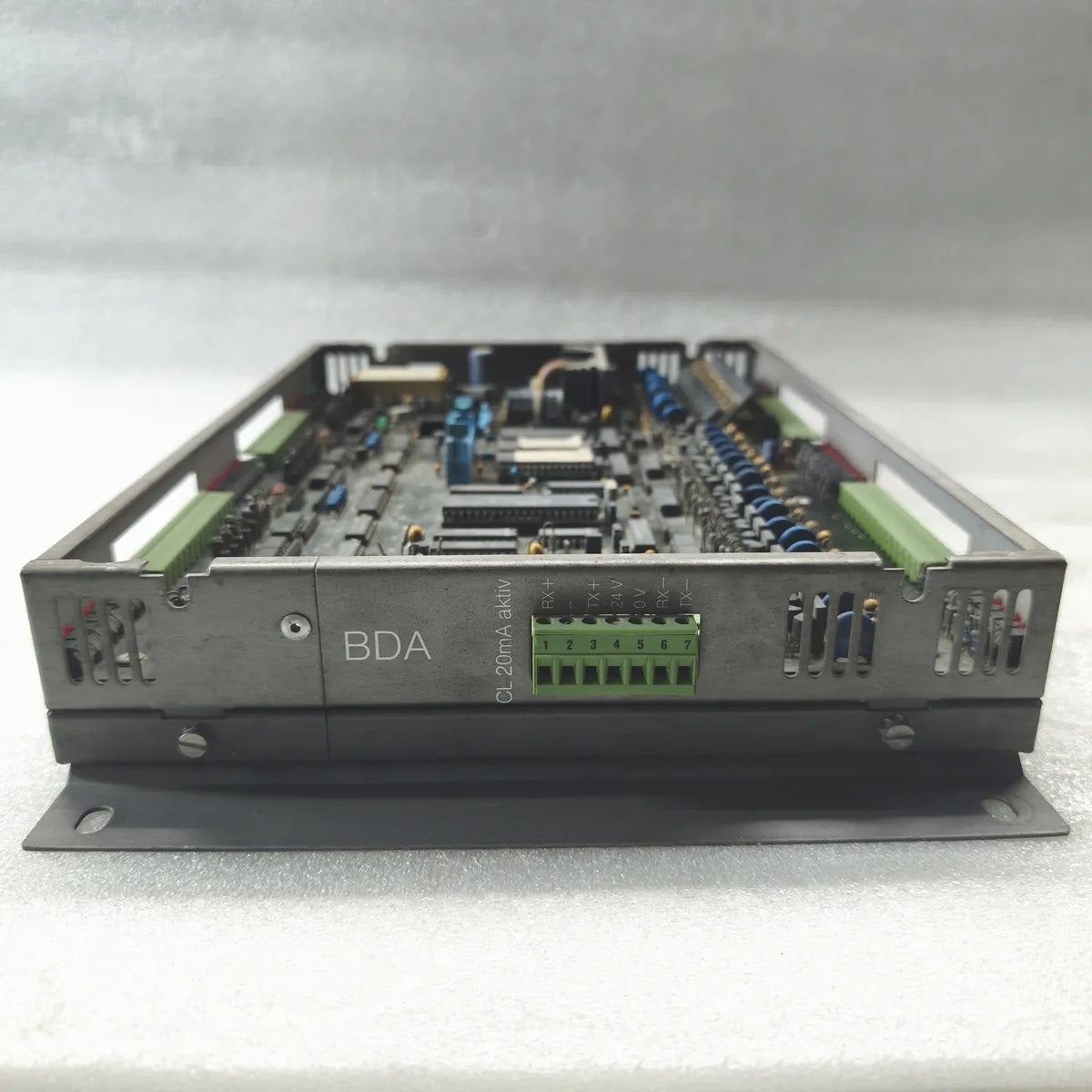

| Communication Interface | BDA serial port, CL 20mA active current loop, 7-way |

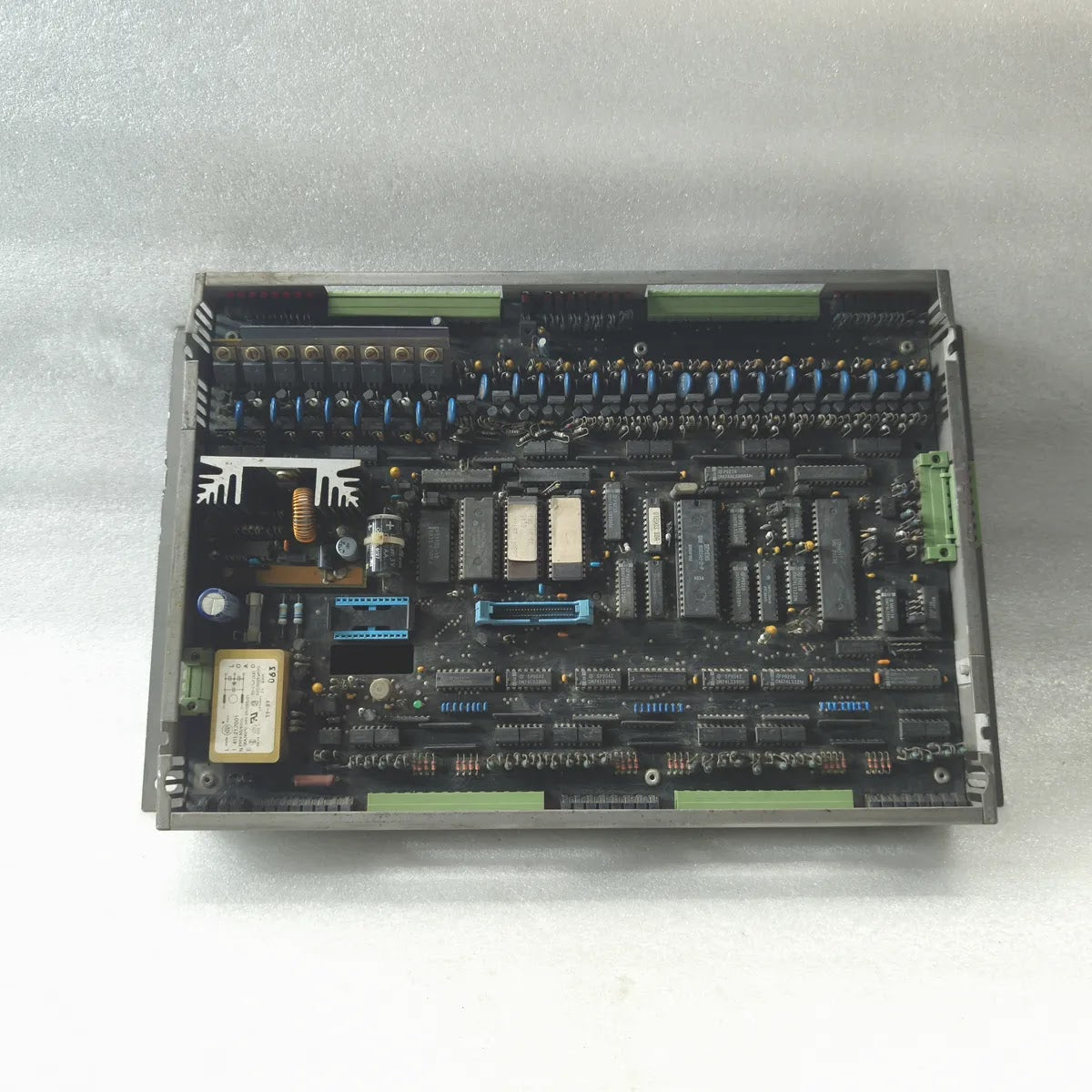

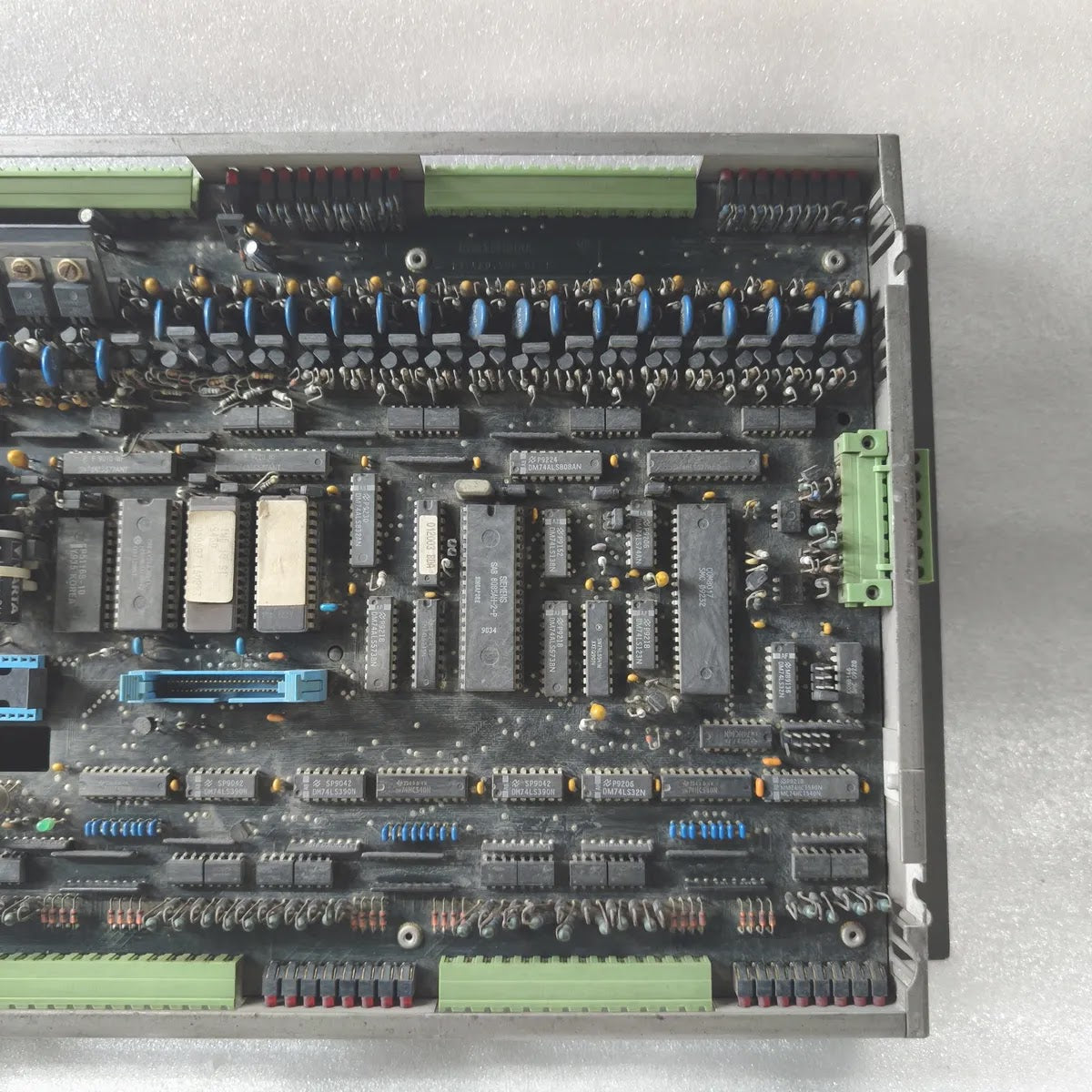

| Processor | Siemens SAB 8085AH-2-P |
| Memory | Two UV-erasable EPROMs and P51165-10 static RAM |
| Memory Backup | 3V lithium AA cell on board |

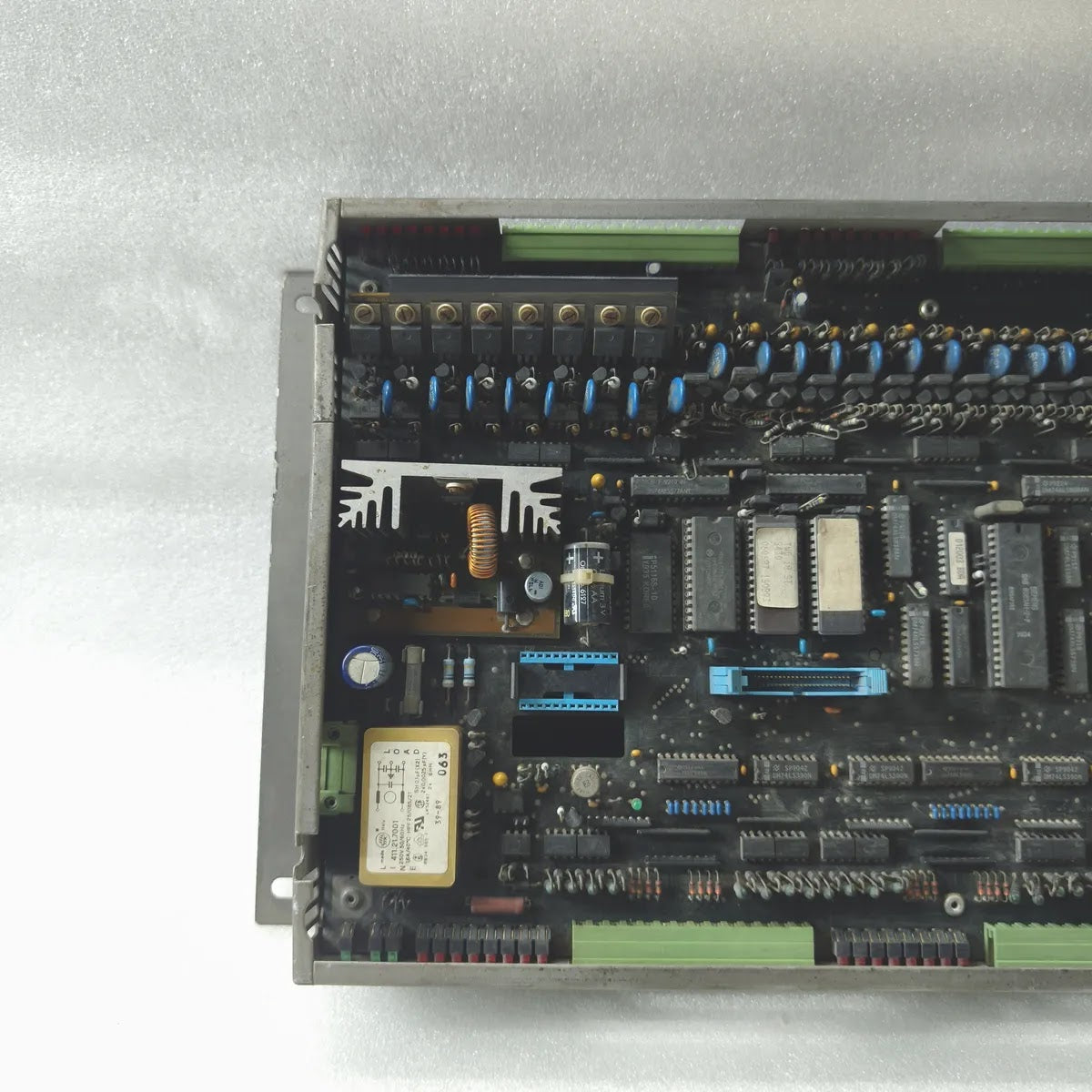

| Internal Line Filter | 411.21.7001, 250V 50/60Hz, 16A at 40°C, MPF 25/085/21, 0.1µF x2 and 2 x 0.0025µF Y capacitors, 2 x 6mH |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4319 |
