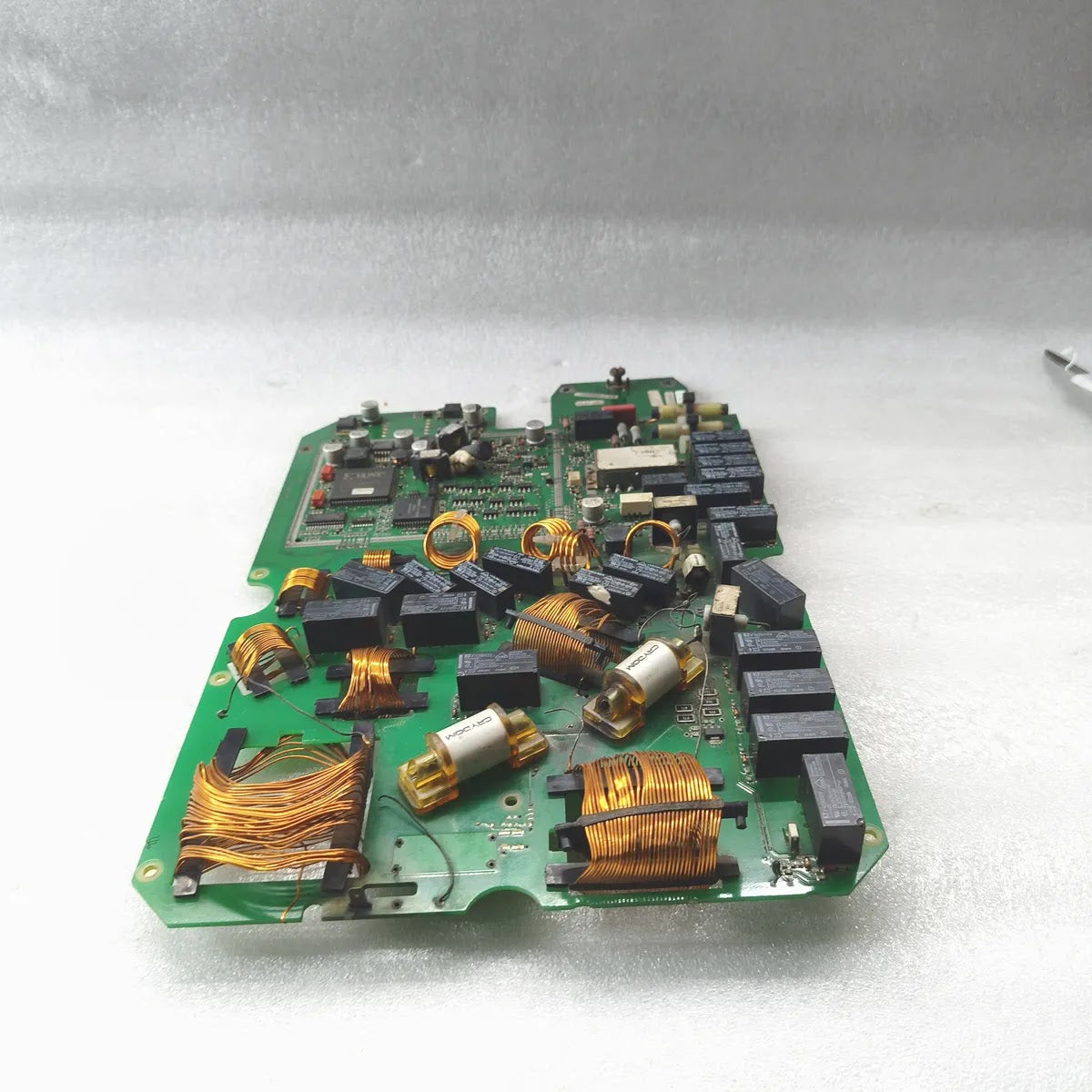

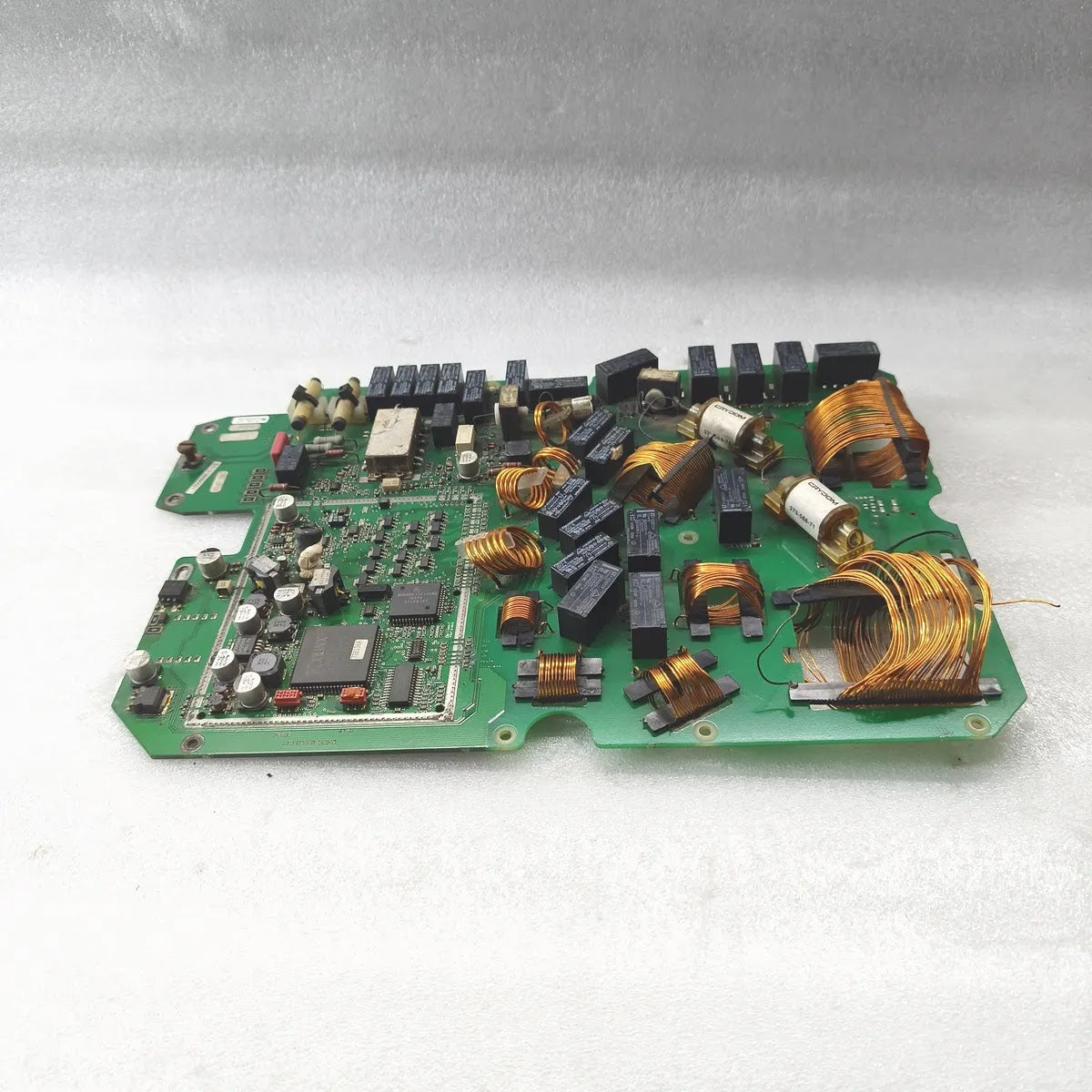

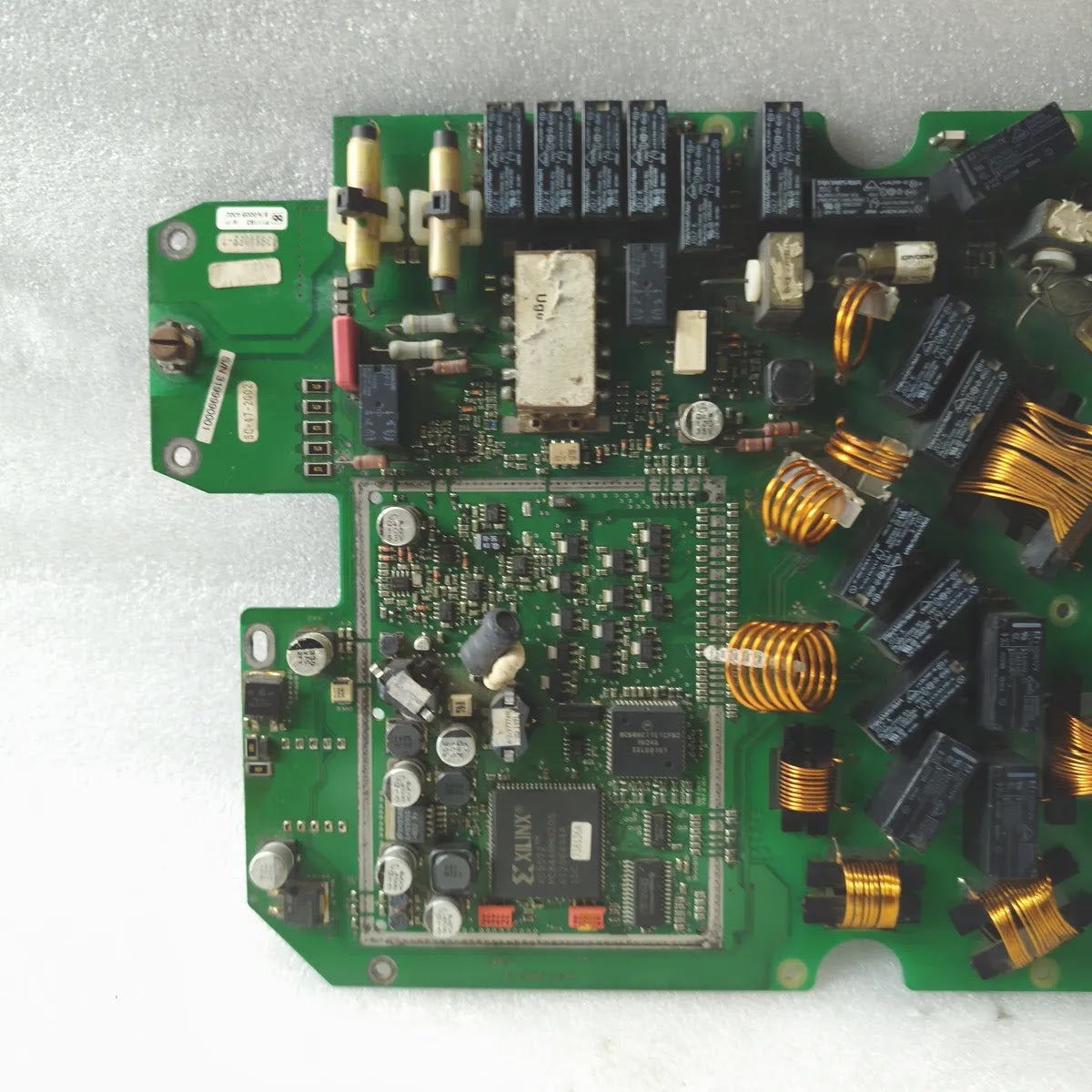

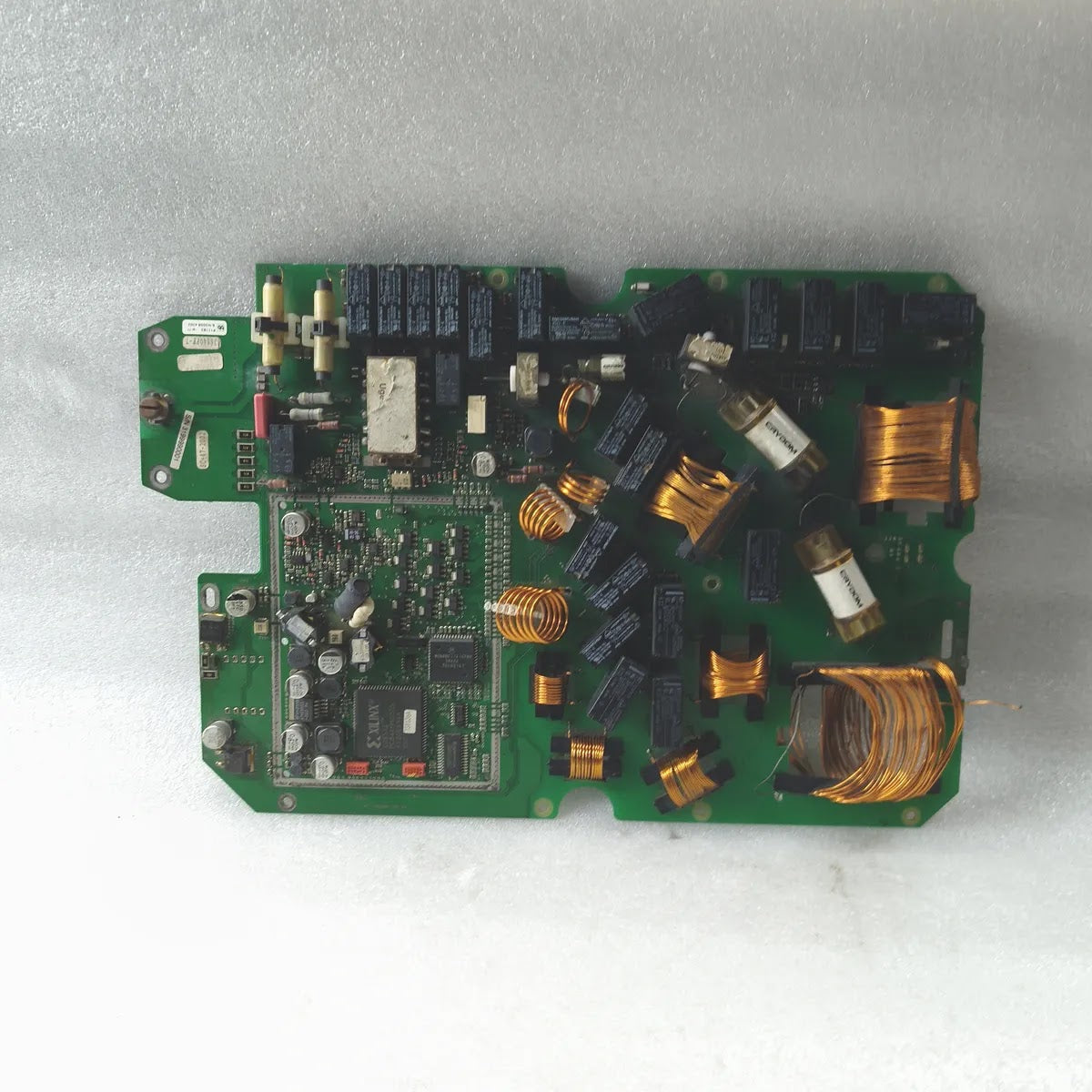

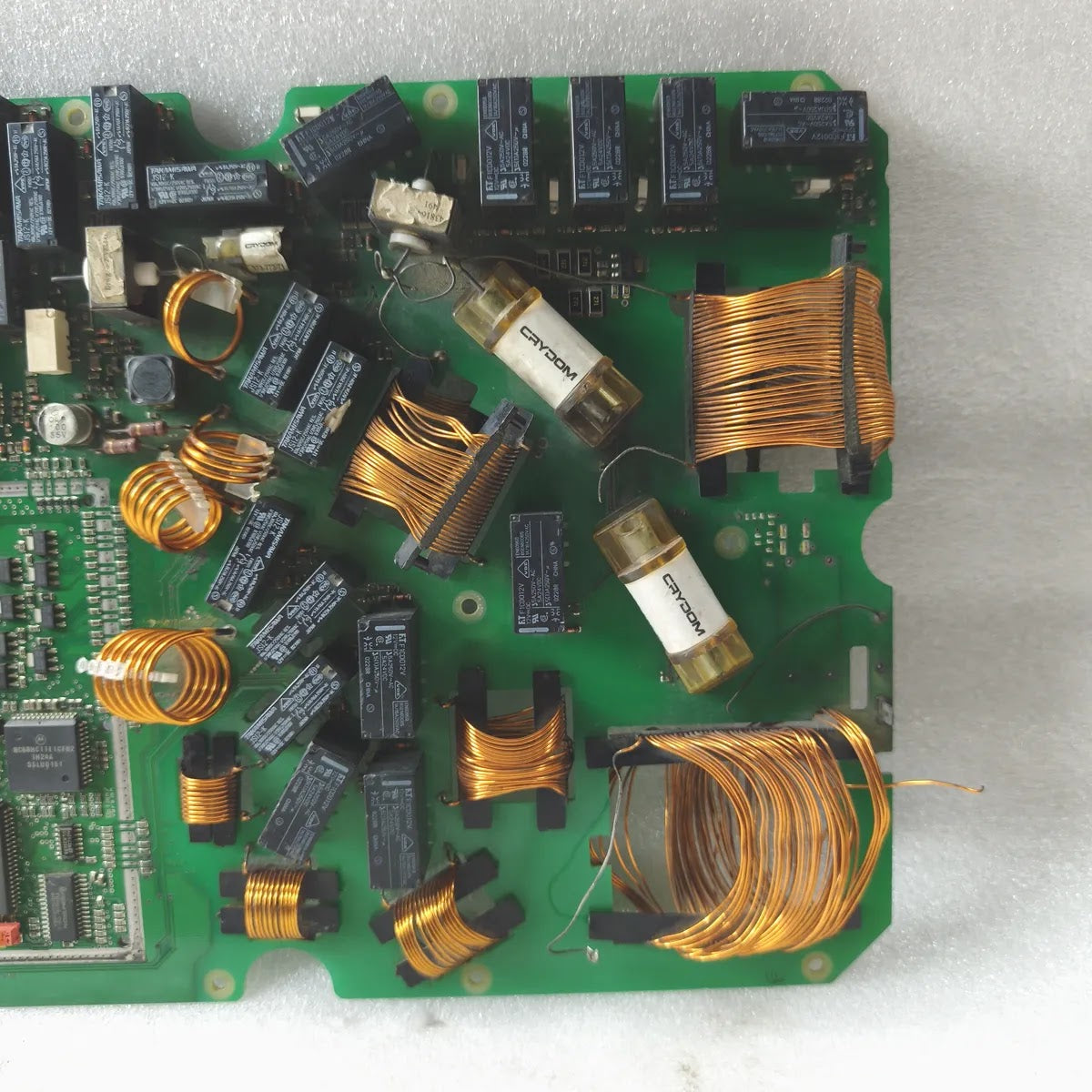

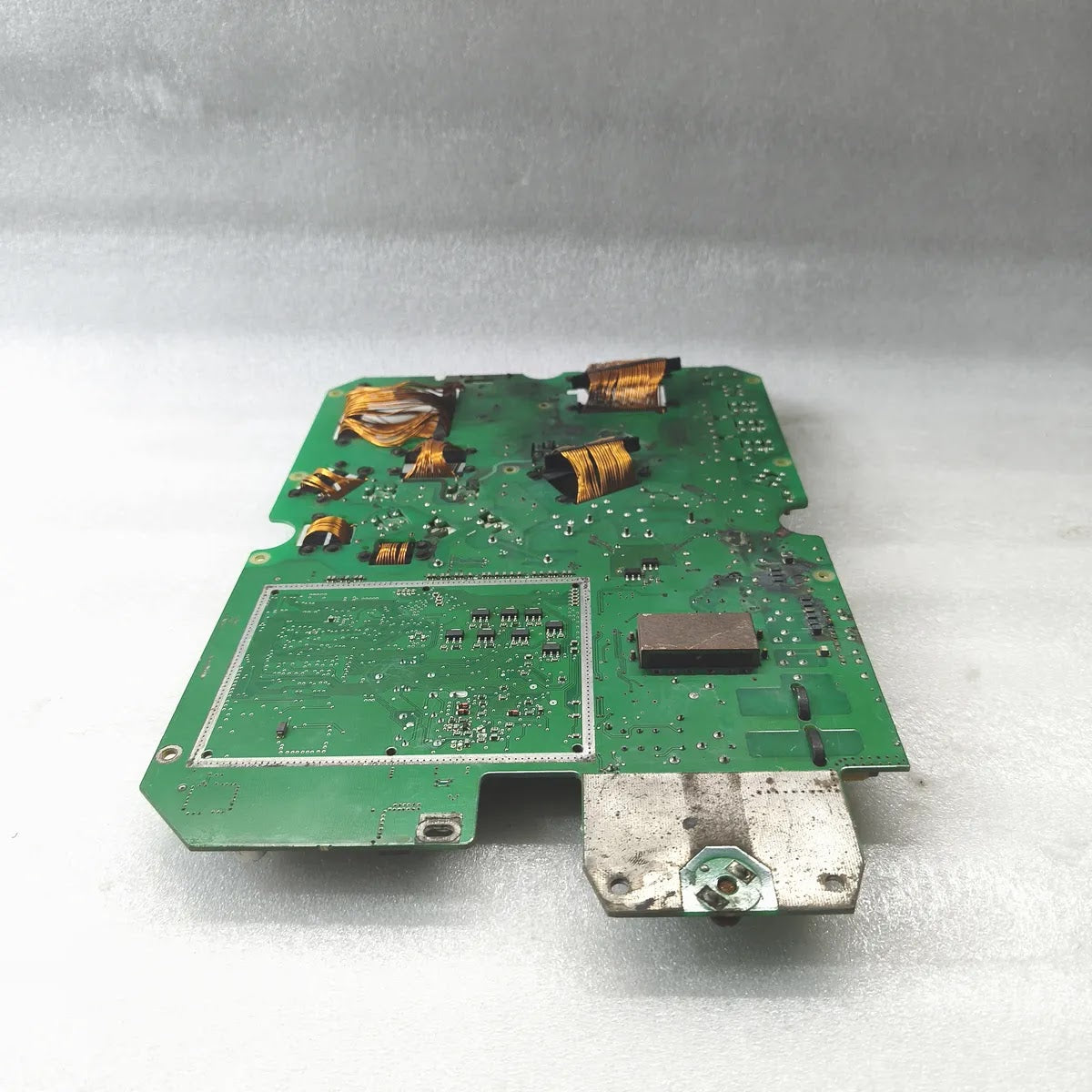

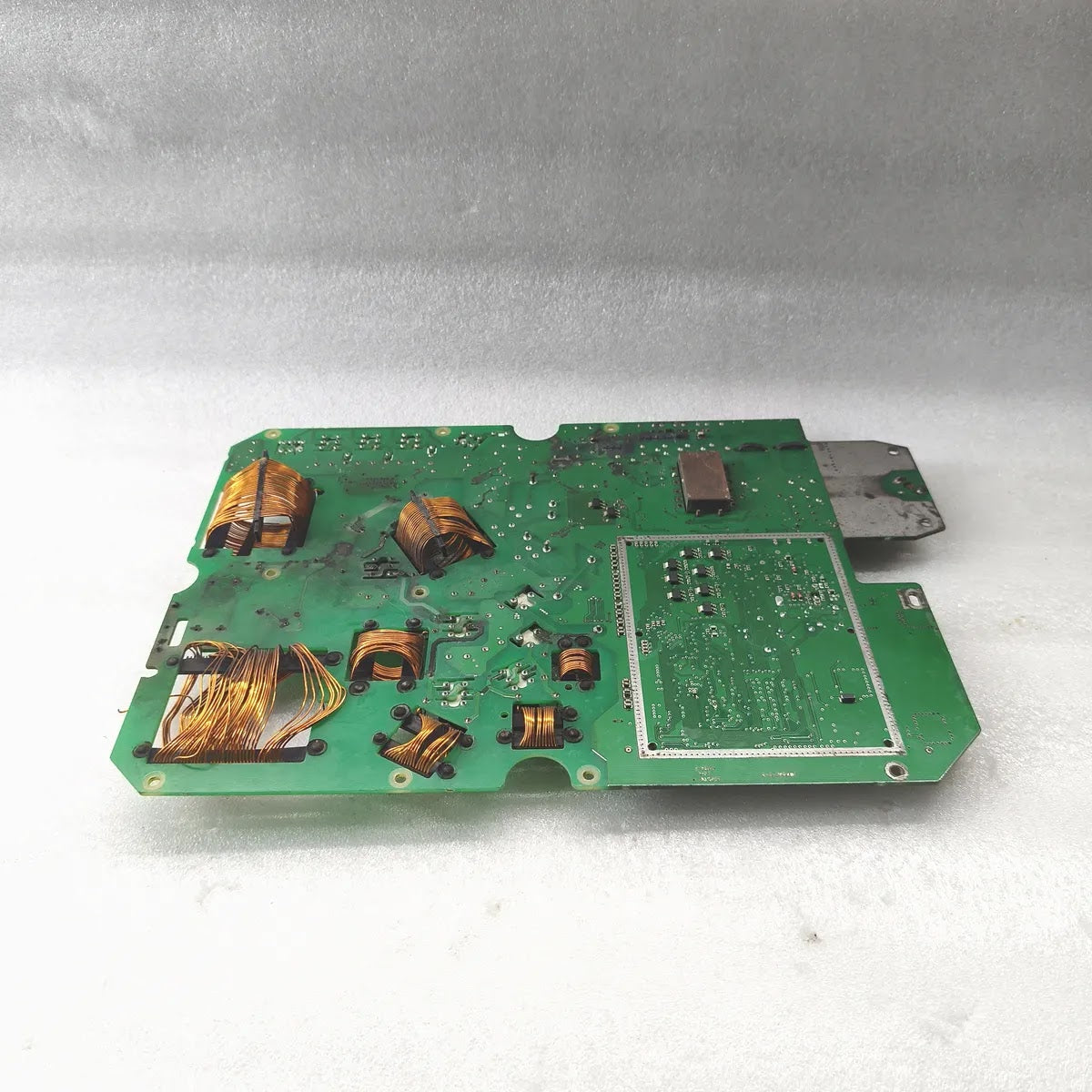

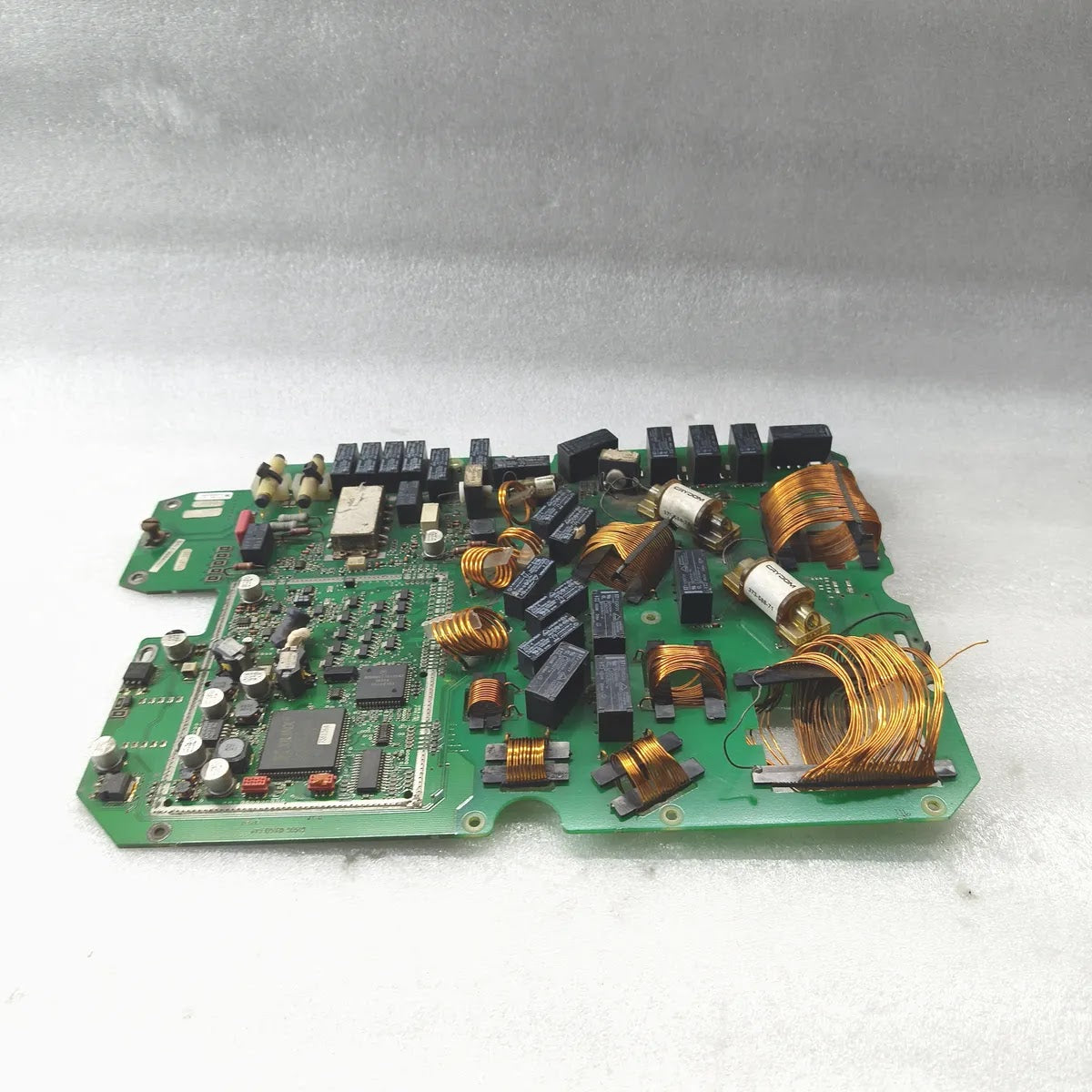

3654082-7 ATU Antenna Tuning Unit Control PCB Board
$599.99
Skip to product information

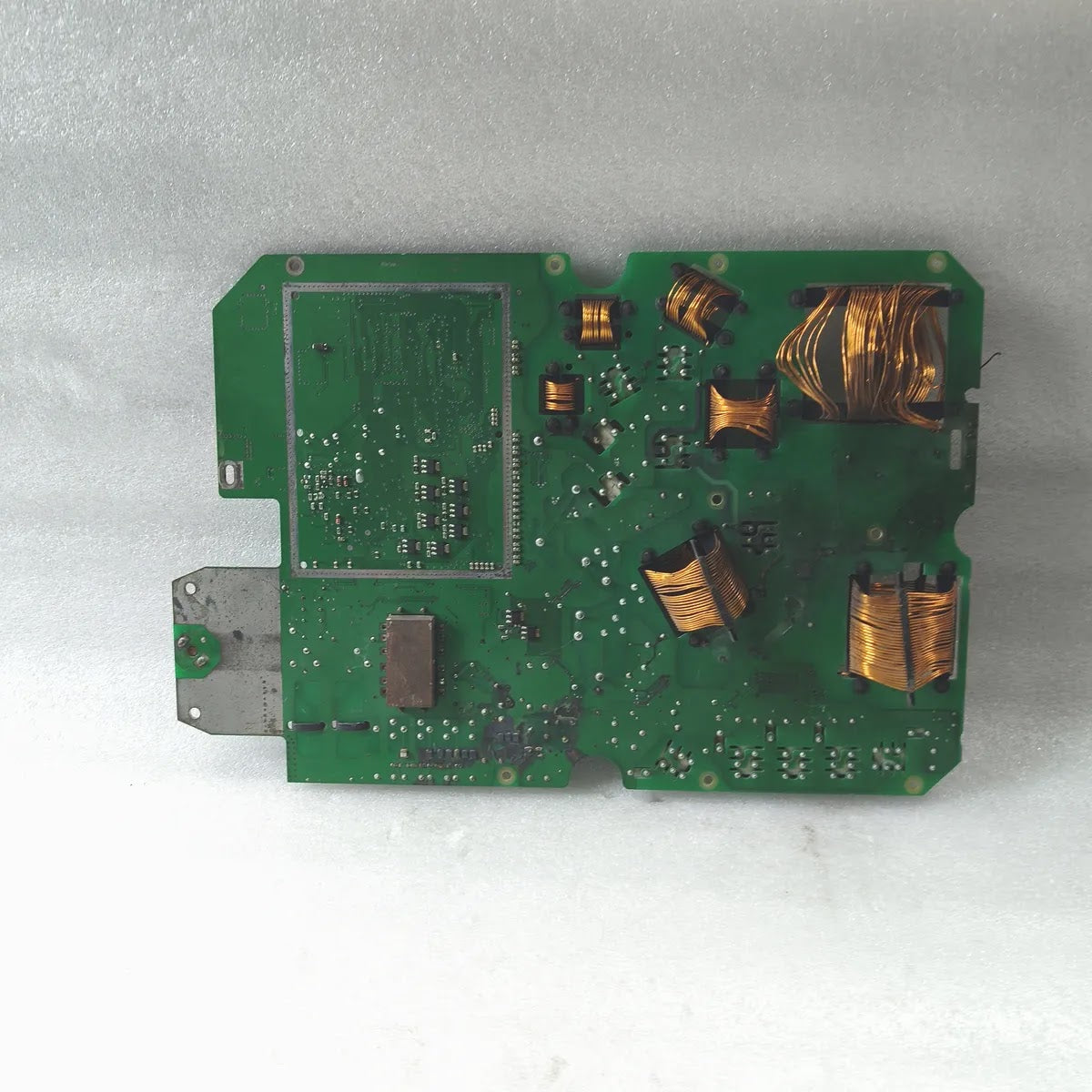

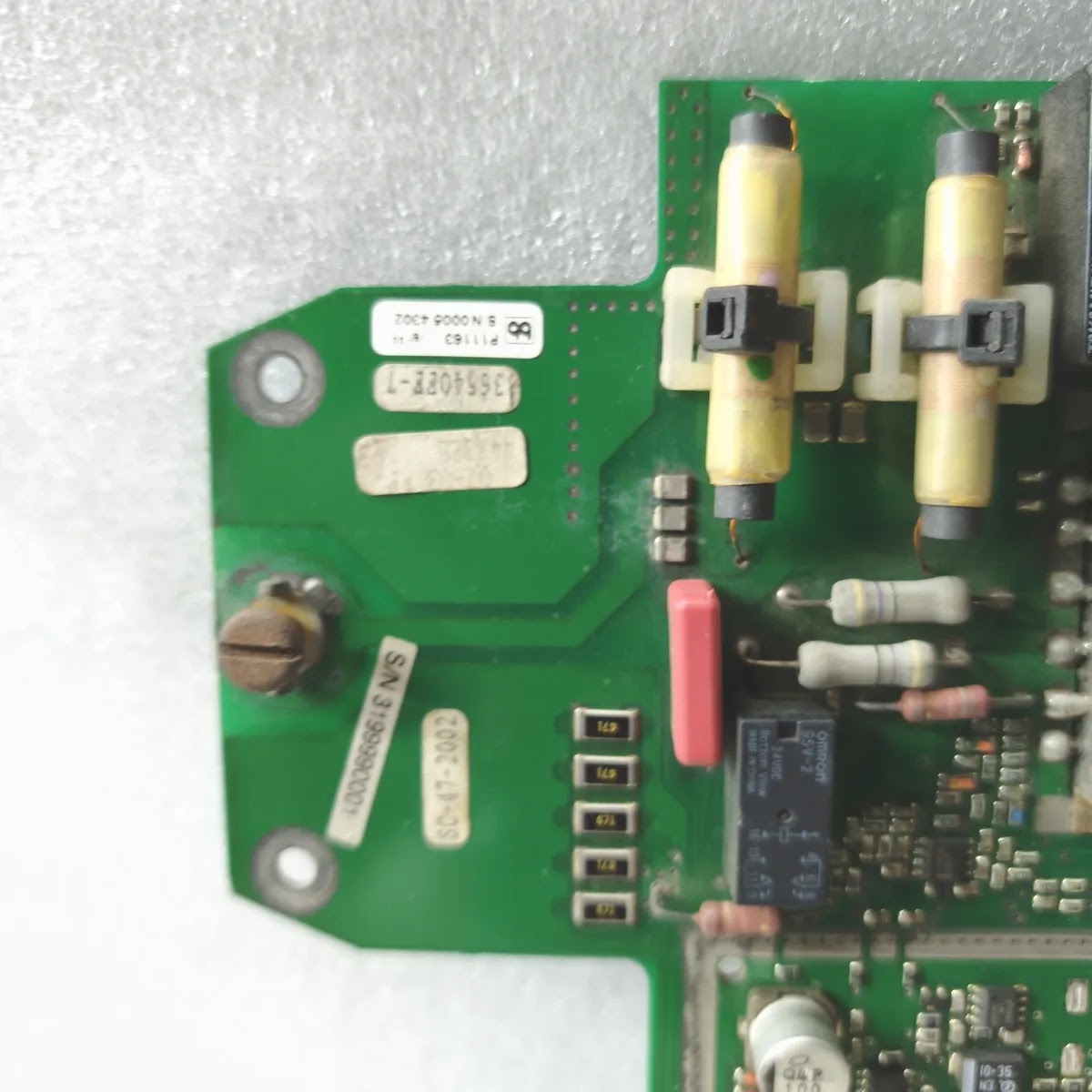

3654082-7 ATU Antenna Tuning Unit Control PCB Board
$599.99
3654082-7 ATU Antenna Tuning Unit Control PCB Board
Specifications
| Part Number | 3654082-7 |
| Assembly Code | SC-47-2002 |
| Board Code | P11163 |
| Type | ATU Board - Antenna Tuning Unit control and switching PCB |
| Supply Voltage | 24V |
| Relay Type | FiT F1CD012V and Takamisawa JS12-K, 12V DC coil |
| Auxiliary Relay | Omron G5V-2, 24VDC coil, 30VA |
| Solid State Device | Crydom 373-588-71 |
| Processor | Motorola MC68HC11E1CFN2 |
| Programmable Logic | Xilinx XC9572 PC84AMM0205, 15C speed grade |
| Standard | EN60950, VDE and UL marked components |
| Application | Antenna tuning unit relay and inductor switching control |
| Condition | PRE-OWNED / SECOND HAND |
| REF | ATLS4329 |
